5xD King Drill Indexable U-Drill (Korloy)
Scroll back
Scroll back

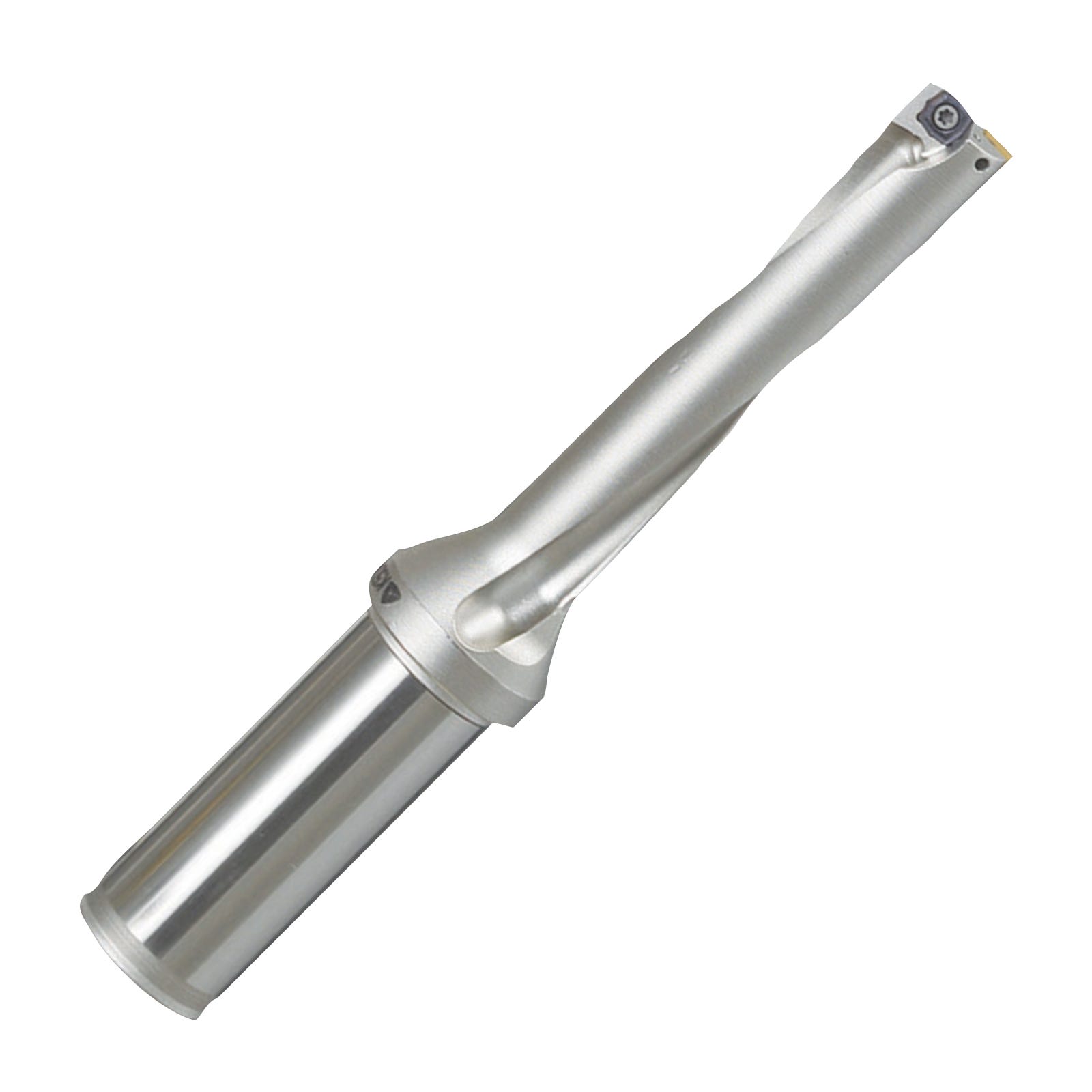

5xD King Drill Indexable U-Drill (Korloy)
Korloy King Drill's are a high performance u-drill system that utlises a dual insert design for higher...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|

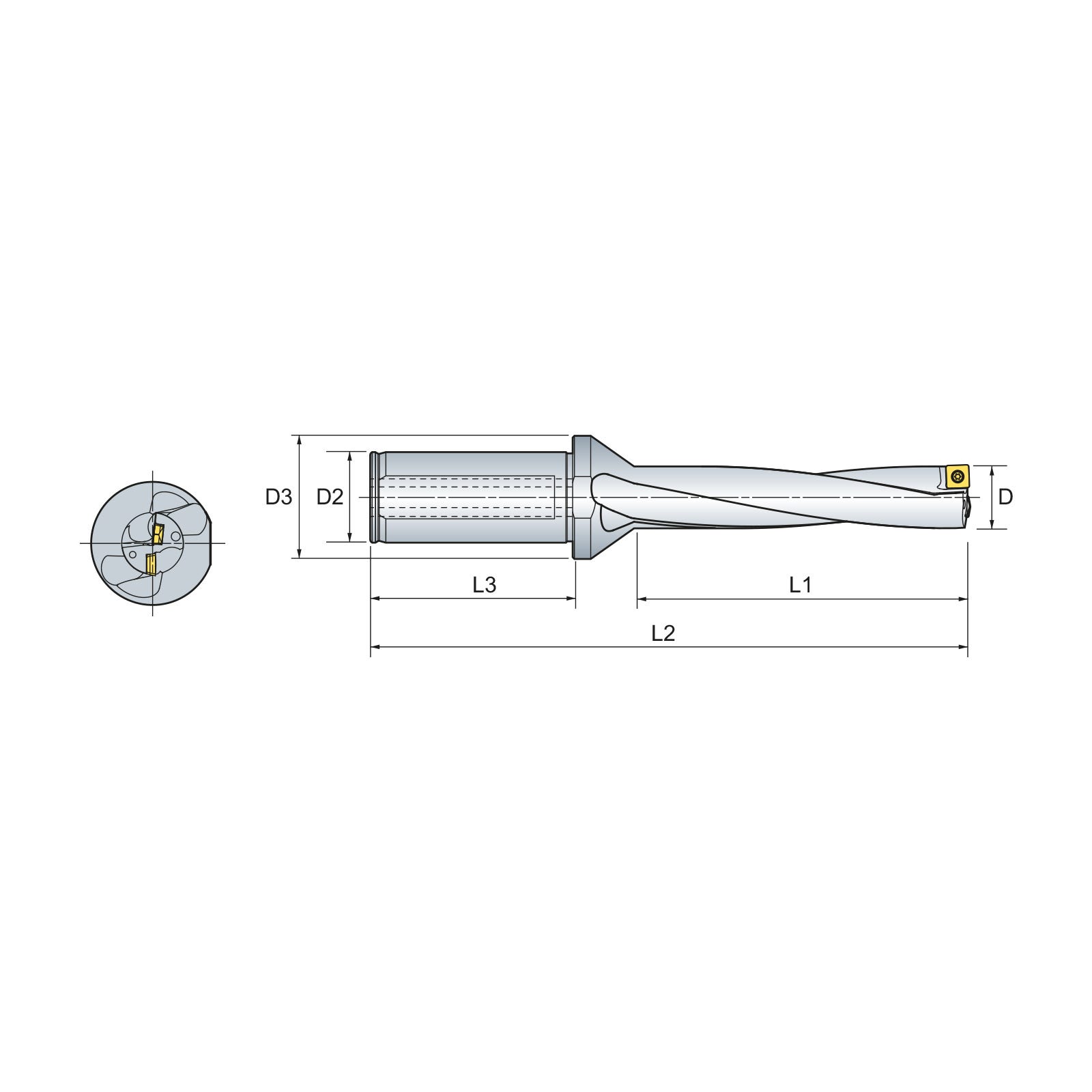

Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
D3
|
Shank Length
|
Central Inserts
|
Peripheral Inserts
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 12 | Shank (mm): 20 | Flute Length (mm): 63 | Overall Length (mm): 127 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET04 | Peripheral Inserts: SPMT/SPET04 |
21 days*
|
£306.08
£255.07
|
|
|
| Diameter (mm): 12.5 | Shank (mm): 20 | Flute Length (mm): 63 | Overall Length (mm): 127 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET04 | Peripheral Inserts: SPMT/SPET04 |
21 days*
|
£306.08
£255.07
|
|
|
| Diameter (mm): 13 | Shank (mm): 20 | Flute Length (mm): 68 | Overall Length (mm): 132 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET04 | Peripheral Inserts: SPMT/SPET04 |
In stock
|
£306.08
£255.07
|
|
|
| Diameter (mm): 13.5 | Shank (mm): 20 | Flute Length (mm): 68 | Overall Length (mm): 132 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET04 | Peripheral Inserts: SPMT/SPET04 |
21 days*
|
£306.08
£255.07
|
|
|
| Diameter (mm): 14 | Shank (mm): 20 | Flute Length (mm): 73 | Overall Length (mm): 138 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET05 | Peripheral Inserts: SPMT/SPET05 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 14.5 | Shank (mm): 20 | Flute Length (mm): 73 | Overall Length (mm): 138 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET05 | Peripheral Inserts: SPMT/SPET05 |
21 days*
|
£347.30
£289.42
|
|
|
| Diameter (mm): 15 | Shank (mm): 20 | Flute Length (mm): 78 | Overall Length (mm): 144 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET05 | Peripheral Inserts: SPMT/SPET05 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 15.5 | Shank (mm): 20 | Flute Length (mm): 78 | Overall Length (mm): 144 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET05 | Peripheral Inserts: SPMT/SPET05 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 16 | Shank (mm): 20 | Flute Length (mm): 83 | Overall Length (mm): 149 | D3: 25 | Shank Length: 50 | Central Inserts: XOMT/XOET05 | Peripheral Inserts: SPMT/SPET05 |
5 days*
|
£347.30
£289.42
|
|
|
| Diameter (mm): 16.5 | Shank (mm): 25 | Flute Length (mm): 83 | Overall Length (mm): 155 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET06 | Peripheral Inserts: SPMT/SPET06 |
21 days*
|
£347.30
£289.42
|
|
|
| Diameter (mm): 17 | Shank (mm): 25 | Flute Length (mm): 88 | Overall Length (mm): 160 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET06 | Peripheral Inserts: SPMT/SPET06 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 17.5 | Shank (mm): 25 | Flute Length (mm): 88 | Overall Length (mm): 160 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET06 | Peripheral Inserts: SPMT/SPET06 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 18 | Shank (mm): 25 | Flute Length (mm): 93 | Overall Length (mm): 166 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET06 | Peripheral Inserts: SPMT/SPET06 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 18.5 | Shank (mm): 25 | Flute Length (mm): 93 | Overall Length (mm): 166 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET06 | Peripheral Inserts: SPMT/SPET06 |
21 days*
|
£347.30
£289.42
|
|
|
| Diameter (mm): 19 | Shank (mm): 25 | Flute Length (mm): 98 | Overall Length (mm): 171 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET06 | Peripheral Inserts: SPMT/SPET06 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 19.5 | Shank (mm): 25 | Flute Length (mm): 98 | Overall Length (mm): 171 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET06 | Peripheral Inserts: SPMT/SPET06 |
21 days*
|
£347.30
£289.42
|
|
|
| Diameter (mm): 20 | Shank (mm): 25 | Flute Length (mm): 103 | Overall Length (mm): 178 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
In stock
|
£347.30
£289.42
|
|
|
| Diameter (mm): 20.5 | Shank (mm): 25 | Flute Length (mm): 103 | Overall Length (mm): 178 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
In stock
|
£371.74
£309.78
|
|
|
| Diameter (mm): 21 | Shank (mm): 25 | Flute Length (mm): 108 | Overall Length (mm): 183 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
In stock
|
£371.74
£309.78
|
|
|
| Diameter (mm): 21.5 | Shank (mm): 25 | Flute Length (mm): 108 | Overall Length (mm): 183 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
21 days*
|
£371.74
£309.78
|
|
|
| Diameter (mm): 22 | Shank (mm): 25 | Flute Length (mm): 113 | Overall Length (mm): 188 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
5 days*
|
£371.74
£309.78
|
|
|
| Diameter (mm): 22.5 | Shank (mm): 25 | Flute Length (mm): 113 | Overall Length (mm): 188 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
In stock
|
£371.74
£309.78
|
|
|
| Diameter (mm): 23 | Shank (mm): 25 | Flute Length (mm): 118 | Overall Length (mm): 195 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
In stock
|
£371.74
£309.78
|
|
|
| Diameter (mm): 23.5 | Shank (mm): 25 | Flute Length (mm): 118 | Overall Length (mm): 195 | D3: 34 | Shank Length: 56 | Central Inserts: XOMT/XOET07 | Peripheral Inserts: SPMT/SPET07 |
21 days*
|
£371.74
£309.78
|
|
|
| Diameter (mm): 24 | Shank (mm): 32 | Flute Length (mm): 123 | Overall Length (mm): 205 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
In stock
|
£371.74
£309.78
|
|
|
| Diameter (mm): 24.5 | Shank (mm): 32 | Flute Length (mm): 123 | Overall Length (mm): 205 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
21 days*
|
£371.74
£309.78
|
|
|
| Diameter (mm): 25 | Shank (mm): 32 | Flute Length (mm): 128 | Overall Length (mm): 210 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
In stock
|
£371.74
£309.78
|
|
|
| Diameter (mm): 25.5 | Shank (mm): 32 | Flute Length (mm): 128 | Overall Length (mm): 210 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
21 days*
|
£402.48
£335.40
|
|
|
| Diameter (mm): 26 | Shank (mm): 32 | Flute Length (mm): 133 | Overall Length (mm): 215 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
In stock
|
£402.48
£335.40
|
|
|
| Diameter (mm): 26.5 | Shank (mm): 32 | Flute Length (mm): 133 | Overall Length (mm): 215 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
21 days*
|
£402.48
£335.40
|
|
|
| Diameter (mm): 27 | Shank (mm): 32 | Flute Length (mm): 138 | Overall Length (mm): 221 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
In stock
|
£402.48
£335.40
|
|
|
| Diameter (mm): 27.5 | Shank (mm): 32 | Flute Length (mm): 138 | Overall Length (mm): 221 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
21 days*
|
£402.48
£335.40
|
|
|
| Diameter (mm): 28 | Shank (mm): 32 | Flute Length (mm): 143 | Overall Length (mm): 227 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
21 days*
|
£402.48
£335.40
|
|
|
| Diameter (mm): 28.5 | Shank (mm): 32 | Flute Length (mm): 143 | Overall Length (mm): 227 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
In stock
|
£402.48
£335.40
|
|
|
| Diameter (mm): 29 | Shank (mm): 32 | Flute Length (mm): 148 | Overall Length (mm): 232 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
In stock
|
£402.48
£335.40
|
|
|
| Diameter (mm): 29.5 | Shank (mm): 32 | Flute Length (mm): 148 | Overall Length (mm): 232 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET09 | Peripheral Inserts: SPMT/SPET09 |
21 days*
|
£402.48
£335.40
|
|
|
| Diameter (mm): 30 | Shank (mm): 32 | Flute Length (mm): 153 | Overall Length (mm): 240 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
In stock
|
£402.48
£335.40
|
|
|
| Diameter (mm): 30.5 | Shank (mm): 32 | Flute Length (mm): 153 | Overall Length (mm): 240 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£402.48
£335.40
|
|
|
| Diameter (mm): 31 | Shank (mm): 32 | Flute Length (mm): 158 | Overall Length (mm): 245 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£454.28
£378.57
|
|
|
| Diameter (mm): 31.5 | Shank (mm): 32 | Flute Length (mm): 158 | Overall Length (mm): 245 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£454.28
£378.57
|
|
|
| Diameter (mm): 32 | Shank (mm): 32 | Flute Length (mm): 163 | Overall Length (mm): 250 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£454.28
£378.57
|
|
|
| Diameter (mm): 32.5 | Shank (mm): 32 | Flute Length (mm): 163 | Overall Length (mm): 250 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£454.28
£378.57
|
|
|
| Diameter (mm): 33 | Shank (mm): 32 | Flute Length (mm): 168 | Overall Length (mm): 256 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
In stock
|
£454.28
£378.57
|
|
|
| Diameter (mm): 33.5 | Shank (mm): 32 | Flute Length (mm): 168 | Overall Length (mm): 256 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£454.28
£378.57
|
|
|
| Diameter (mm): 34 | Shank (mm): 32 | Flute Length (mm): 173 | Overall Length (mm): 261 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£454.28
£378.57
|
|
|
| Diameter (mm): 34.5 | Shank (mm): 32 | Flute Length (mm): 173 | Overall Length (mm): 261 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
21 days*
|
£454.28
£378.57
|
|
|
| Diameter (mm): 35 | Shank (mm): 32 | Flute Length (mm): 178 | Overall Length (mm): 266 | D3: 44 | Shank Length: 60 | Central Inserts: XOMT/XOET11 | Peripheral Inserts: SPMT/SPET11 |
In stock
|
£454.28
£378.57
|
|
|
| Diameter (mm): 36 | Shank (mm): 40 | Flute Length (mm): 184 | Overall Length (mm): 284 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£478.96
£399.13
|
|
|
| Diameter (mm): 37 | Shank (mm): 40 | Flute Length (mm): 189 | Overall Length (mm): 289 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£478.96
£399.13
|
|
|
| Diameter (mm): 37.5 | Shank (mm): 40 | Flute Length (mm): 189 | Overall Length (mm): 289 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£478.96
£399.13
|
|
|
| Diameter (mm): 38 | Shank (mm): 40 | Flute Length (mm): 194 | Overall Length (mm): 295 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
In stock
|
£478.96
£399.13
|
|
|
| Diameter (mm): 38.5 | Shank (mm): 40 | Flute Length (mm): 194 | Overall Length (mm): 295 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£478.96
£399.13
|
|
|
| Diameter (mm): 40 | Shank (mm): 40 | Flute Length (mm): 204 | Overall Length (mm): 306 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£478.96
£399.13
|
|
|
| Diameter (mm): 40.5 | Shank (mm): 40 | Flute Length (mm): 204 | Overall Length (mm): 306 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 41 | Shank (mm): 40 | Flute Length (mm): 209 | Overall Length (mm): 311 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 41.5 | Shank (mm): 40 | Flute Length (mm): 209 | Overall Length (mm): 311 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 42 | Shank (mm): 40 | Flute Length (mm): 214 | Overall Length (mm): 317 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 42.5 | Shank (mm): 40 | Flute Length (mm): 214 | Overall Length (mm): 317 | D3: 48 | Shank Length: 70 | Central Inserts: XOMT/XOET13 | Peripheral Inserts: SPMT/SPET13 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 43 | Shank (mm): 40 | Flute Length (mm): 220 | Overall Length (mm): 325 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 43.5 | Shank (mm): 40 | Flute Length (mm): 220 | Overall Length (mm): 325 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 44.5 | Shank (mm): 40 | Flute Length (mm): 225 | Overall Length (mm): 330 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£514.60
£428.83
|
|
|
| Diameter (mm): 45 | Shank (mm): 40 | Flute Length (mm): 230 | Overall Length (mm): 336 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
In stock
|
£514.60
£428.83
|
|
|
| Diameter (mm): 45.5 | Shank (mm): 40 | Flute Length (mm): 230 | Overall Length (mm): 336 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 46.5 | Shank (mm): 40 | Flute Length (mm): 235 | Overall Length (mm): 341 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 47 | Shank (mm): 40 | Flute Length (mm): 240 | Overall Length (mm): 347 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 47.5 | Shank (mm): 40 | Flute Length (mm): 240 | Overall Length (mm): 347 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 48 | Shank (mm): 40 | Flute Length (mm): 245 | Overall Length (mm): 352 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 48.5 | Shank (mm): 40 | Flute Length (mm): 245 | Overall Length (mm): 352 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 49.5 | Shank (mm): 40 | Flute Length (mm): 250 | Overall Length (mm): 357 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 50 | Shank (mm): 40 | Flute Length (mm): 255 | Overall Length (mm): 362 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£544.43
£453.69
|
|
|
| Diameter (mm): 50.5 | Shank (mm): 40 | Flute Length (mm): 255 | Overall Length (mm): 362 | D3: 58 | Shank Length: 70 | Central Inserts: XOMT/XOET15 | Peripheral Inserts: SPMT/SPET15 |
21 days*
|
£574.27
£478.56
|
|
|
| Diameter (mm): 51 | Shank (mm): 40 | Flute Length (mm): 261 | Overall Length (mm): 371 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£574.27
£478.56
|
|
|
| Diameter (mm): 51.5 | Shank (mm): 40 | Flute Length (mm): 261 | Overall Length (mm): 371 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£580.01
£483.34
|
|
|
| Diameter (mm): 52 | Shank (mm): 40 | Flute Length (mm): 266 | Overall Length (mm): 376 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£574.27
£478.56
|
|
|
| Diameter (mm): 52.5 | Shank (mm): 40 | Flute Length (mm): 266 | Overall Length (mm): 376 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£580.01
£483.34
|
|
|
| Diameter (mm): 53 | Shank (mm): 40 | Flute Length (mm): 271 | Overall Length (mm): 381 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£574.27
£478.56
|
|
|
| Diameter (mm): 53.5 | Shank (mm): 40 | Flute Length (mm): 271 | Overall Length (mm): 381 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£580.01
£483.34
|
|
|
| Diameter (mm): 54 | Shank (mm): 40 | Flute Length (mm): 276 | Overall Length (mm): 386 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£574.27
£478.56
|
|
|
| Diameter (mm): 54.5 | Shank (mm): 40 | Flute Length (mm): 276 | Overall Length (mm): 386 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£580.01
£483.34
|
|
|
| Diameter (mm): 55 | Shank (mm): 40 | Flute Length (mm): 281 | Overall Length (mm): 391 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£574.27
£478.56
|
|
|
| Diameter (mm): 55.5 | Shank (mm): 40 | Flute Length (mm): 281 | Overall Length (mm): 391 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£609.02
£507.52
|
|
|
| Diameter (mm): 56.5 | Shank (mm): 40 | Flute Length (mm): 286 | Overall Length (mm): 398 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£609.02
£507.52
|
|
|
| Diameter (mm): 57 | Shank (mm): 40 | Flute Length (mm): 292 | Overall Length (mm): 404 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£603.00
£502.50
|
|
|
| Diameter (mm): 57.5 | Shank (mm): 40 | Flute Length (mm): 292 | Overall Length (mm): 404 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£609.02
£507.52
|
|
|
| Diameter (mm): 58 | Shank (mm): 40 | Flute Length (mm): 298 | Overall Length (mm): 410 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£603.00
£502.50
|
|
|
| Diameter (mm): 58.5 | Shank (mm): 40 | Flute Length (mm): 298 | Overall Length (mm): 410 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£609.02
£507.52
|
|
|
| Diameter (mm): 59 | Shank (mm): 40 | Flute Length (mm): 304 | Overall Length (mm): 416 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£603.00
£502.50
|
|
|
| Diameter (mm): 59.5 | Shank (mm): 40 | Flute Length (mm): 304 | Overall Length (mm): 416 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£609.02
£507.52
|
|
|
| Diameter (mm): 60 | Shank (mm): 40 | Flute Length (mm): 310 | Overall Length (mm): 422 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£603.00
£502.50
|
|
|
| Diameter (mm): 60.5 | Shank (mm): 40 | Flute Length (mm): 310 | Overall Length (mm): 422 | D3: 68 | Shank Length: 70 | Central Inserts: XOMT/XOET18 | Peripheral Inserts: SPMT/SPET18 |
21 days*
|
£609.02
£507.52
|
|
Product Information
Features & Benefits
Korloy King Drill's are a high performance u-drill system that utlises a dual insert design for higher efficiency. The unique insert geometries create a balanced step by step entrance into the workpiece which reduces cutting loads up to 50% and virtually eliminates deflection on entry. Holders are avaialble in 2xD, 3xD, 4xD and 5xD and use the SPMT (peripheral) and XOMT (central) inserts.
- Available in diameters 12mm-60.5mm in 0.5mm increments
- Inserts available in grades for steel, stainless steel, HRSA’s, cast iron, aluminium & plastics
- All holders through coolant
- Tool holders available in 2xD, 3xD, 4xD & 5xD max drill depths
- Optimised insert design for inner and outer pocket
- Exceptionally accurate drilling compared to other indexable drills, even in deep holes
- High performance drilling of a wide range of materials
- Lower risk of tool failure
- Reduced insert wear
Specification
| Depth | 5xD |
|---|---|
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Performance | 5 |
| Through Coolant | Yes |
| Brand Range | King Drill |
| Brand | Korloy |
Videos
Service & Delivery
What time are we open?
We are open Monday to Friday and able to dispatch orders between 8am and 6pm (up to 5.30 pm on Fridays).
What delivery services do we offer?
To mainland UK we offer FREE UK next day delivery on all orders above £59 ex vat*. For orders under £59 ex vat we offer the following:
- 1st class post - £2.49
- DPD Standard Next Day Delivery - £6.50
- DPD Next Day Pre-12pm - £9.50 or (£5.00 on orders over £59*)
- DPD Next Day Pre-10.30am - £17.00
- Fluid Orders - FREE UK next day delivery on all orders above £79 ex vat*. For orders under £79 - £8
We also offer Saturday delivery for those that require it. If you order before 5.30 pm on a Friday we offer a range of options including all day Saturday, pre12pm and pre10.30am. Please see our delivery page for more information.
*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).
How do I return an order/item?
Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.
