7/16" x 14TPI UNC Powder Metal Straight Flute TiAlN Coated Machine Tap (2BX Tolerance) for Cast Iron - K26/27UNC-TX Series (UFS)

Cutwel Sku
K27UNC7/16TX

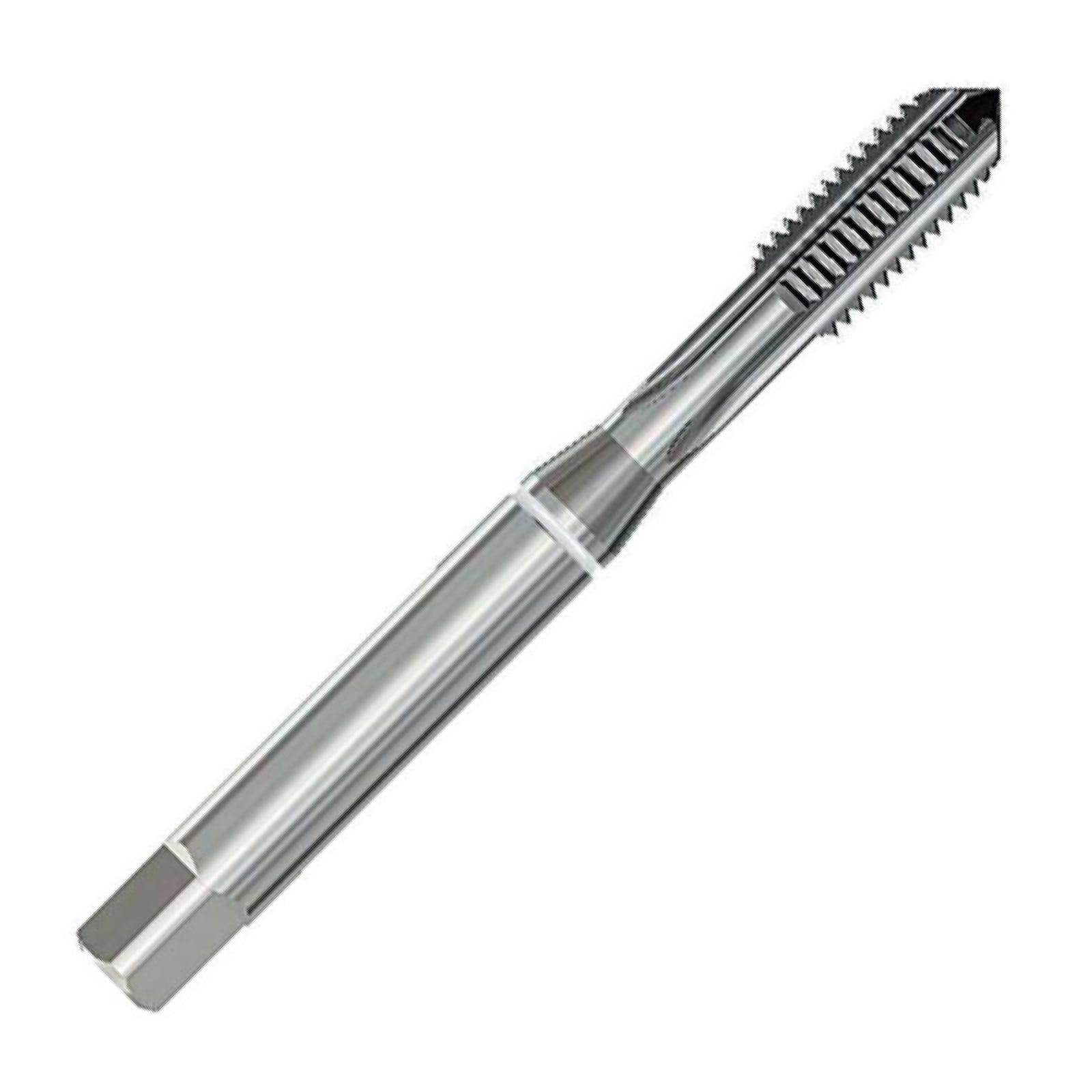

7/16" x 14TPI UNC Powder Metal Straight Flute TiAlN Coated Machine Tap (2BX Tolerance) for Cast Iron - K26/27UNC-TX Series (UFS)

Cutwel Sku
K27UNC7/16TX

Key Features

available UNC Machine Tap for Cast Iron
available High Performance Powder Metal Substrate
available Straight Flute for Blind & Through Holes
Read More
K
Cast Iron
S
Exotics
Overall Length (mm)100
Flute Length (mm)20
Shank (mm)8
green Available for Delivery within 7-10 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

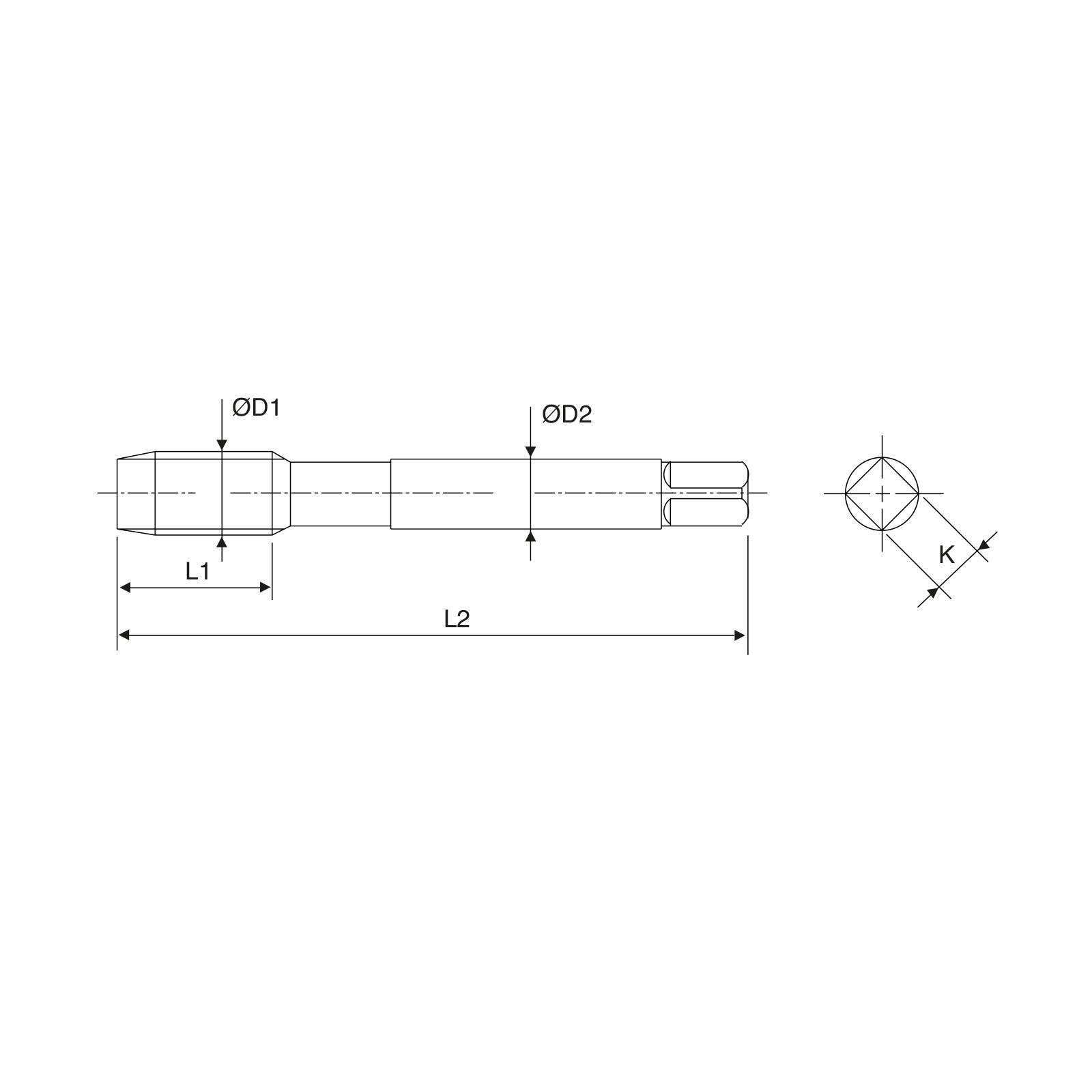

Specification

Category Threading
Sub Category Machine Taps
Thread 7/16"
Sub Category 2 Cast Iron & Abrasive Machine Taps
Shank (mm) 8
Flute Length (mm) 20
Overall Length (mm) 100
TPI 14
Flutes 3
Drill Diameter 9.4
Square 6.2
Substrate HSS-PM
Oil Grooves No
Surface Treatment Coated (PVD/CVD)
Depth 3xD
Applicable Materials Cast Iron, Exotics
Flute Geometry Straight Flute
Performance 5
Coating Description TiAIN 900 Coated
Substrate Description Powder Metal
Helix Angle 60°
Brand Range Top-line
Thread Form UNC (Unified Coarse)
Brand UFS
Part Numbers
  • Cutwel Part Number K27UNC7/16TX

Description

The UFS K27UNC-TX series Metric Fine Cast Iron Machine Taps are suitable for tapping grey, nodular and malleable cast iron, short chipping copper alloys, graphite, highly abrasive aluminium and magnesium alloys. They come with a TiAlN coating, high performance powder metal substrate and a straight flute geometry for blind and through holes.

Features & Benefits

  • UNC Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Straight Flute for Blind & Through Holes
  • TiAlN Coating
  • Suitable for Grey, Nodular and Malleable Cast Iron, Short Chipping Copper Alloys, Graphite, Highly Abrasive Aluminium and Magnesium Alloys

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Thread Shank (mm) Flute Length (mm) Overall Length (mm) TPI Flutes L3 Drill Diameter Square Thread Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Thread
carrat-down
Shank (mm)
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
TPI
carrat-down
Flutes
carrat-down
L3
carrat-down
Drill Diameter
carrat-down
Square
carrat-down
Thread
carrat-down
Thread: No.10 Shank (mm): 6 Flute Length (mm): 15 Overall Length (mm): 70 TPI: 24 Flutes: 3 L3: 25 Drill Diameter: 3.9 Square: 4.9 Thread:
green Available for Delivery within 4-5 Days *
£12.90 £10.75
minus plus
Thread: No.12 Shank (mm): 6 Flute Length (mm): 16 Overall Length (mm): 80 TPI: 24 Flutes: 3 L3: 30 Drill Diameter: 4.5 Square: 4.9 Thread:
green Available for Delivery within 4-5 Days *
£12.90 £10.75
minus plus
Thread: 1/4" Shank (mm): 7 Flute Length (mm): 17 Overall Length (mm): 80 TPI: 20 Flutes: 3 L3: 30 Drill Diameter: 5.2 Square: 5.5 Thread: 1/4"
green Available for Delivery within 4-5 Days *
£12.90 £10.75
minus plus
Thread: 5/16" Shank (mm): 8 Flute Length (mm): 20 Overall Length (mm): 90 TPI: 18 Flutes: 3 L3: 35 Drill Diameter: 6.6 Square: 6.2 Thread: 5/16"
green Available for Delivery within 4-5 Days *
£16.64 £13.87
minus plus
Thread: 3/8" Shank (mm): 9 Flute Length (mm): 22 Overall Length (mm): 100 TPI: 16 Flutes: 3 L3: 39 Drill Diameter: 8 Square: 7 Thread: 3/8"
green Available for Delivery within 4-5 Days *
£20.15 £16.79
minus plus
Thread: 7/16" Shank (mm): 8 Flute Length (mm): 22 Overall Length (mm): 100 TPI: 14 Flutes: 3 L3: 40 Drill Diameter: 9.4 Square: 6.2 Thread: 7/16"
green In Stock for Next Day Delivery *
£26.88 £22.40
minus plus
Thread: 1/2" Shank (mm): 9 Flute Length (mm): 25 Overall Length (mm): 110 TPI: 13 Flutes: 3 L3: 44 Drill Diameter: 10.75 Square: 7 Thread: 1/2"
green Available for Delivery within 4-5 Days *
£26.88 £22.40
minus plus
Thread: 9/16" Shank (mm): 11 Flute Length (mm): 26 Overall Length (mm): 110 TPI: 12 Flutes: 3 L3: 44 Drill Diameter: 12.25 Square: 9 Thread:
green In Stock for Next Day Delivery *
£34.09 £28.41
minus plus
Thread: 5/8" Shank (mm): 12 Flute Length (mm): 27 Overall Length (mm): 110 TPI: 11 Flutes: 3 L3: 44 Drill Diameter: 13.5 Square: 9 Thread: 5/8"
green Available for Delivery within 4-5 Days *
£41.35 £34.46
minus plus
Thread: 3/4" Shank (mm): 14 Flute Length (mm): 30 Overall Length (mm): 125 TPI: 10 Flutes: 3 L3: 50 Drill Diameter: 16.5 Square: 11 Thread:
green Available for Delivery within 4-5 Days *
£59.92 £49.93
minus plus
Thread: Shank (mm): 18 Flute Length (mm): 32 Overall Length (mm): 140 TPI: 9 Flutes: 3 L3: 54 Drill Diameter: 19.5 Square: 14.5 Thread: 7/8"
green In Stock for Next Day Delivery *
£74.39 £61.99
minus plus
Thread: 1/4" Shank (mm): 7 Flute Length (mm): 16 Overall Length (mm): 80 TPI: 20 Flutes: 3 L3: Drill Diameter: 5.1 Square: 5.5 Thread: 1/4"
green Available for Delivery within 7-10 Days *
£36.86 £30.72
minus plus
Thread: 5/16" Shank (mm): 8 Flute Length (mm): 18 Overall Length (mm): 90 TPI: 18 Flutes: 3 L3: Drill Diameter: 6.6 Square: 6.2 Thread:
green In Stock for Next Day Delivery *
£40.21 £33.51
minus plus
Thread: 3/8" Shank (mm): 10 Flute Length (mm): 20 Overall Length (mm): 100 TPI: 16 Flutes: 3 L3: Drill Diameter: 8 Square: 8 Thread: 3/8"
green In Stock for Next Day Delivery *
£44.06 £36.72
minus plus
Thread: 7/16" Shank (mm): 8 Flute Length (mm): 20 Overall Length (mm): 100 TPI: 14 Flutes: 3 L3: Drill Diameter: 9.4 Square: 6.2 Thread:
green Available for Delivery within 7-10 Days *
£62.56 £52.13
minus plus
Thread: 1/2" Shank (mm): 9 Flute Length (mm): 25 Overall Length (mm): 110 TPI: 13 Flutes: 3 L3: Drill Diameter: 10.8 Square: 7 Thread: 1/2"
green In Stock for Next Day Delivery *
£66.85 £55.71
minus plus
Thread: 9/16" Shank (mm): 11 Flute Length (mm): 28 Overall Length (mm): 110 TPI: 12 Flutes: 3 L3: Drill Diameter: 12.2 Square: 9 Thread:
green Available for Delivery within 7-10 Days *
£76.54 £63.78
minus plus
Thread: 5/8" Shank (mm): 12 Flute Length (mm): 28 Overall Length (mm): 110 TPI: 11 Flutes: 3 L3: Drill Diameter: 13.5 Square: 9 Thread: 5/8"
green Available for Delivery within 7-10 Days *
£83.95 £69.96
minus plus
Thread: 3/4" Shank (mm): 14 Flute Length (mm): 32 Overall Length (mm): 125 TPI: 10 Flutes: 3 L3: Drill Diameter: 16.5 Square: 11 Thread:
green Available for Delivery within 7-10 Days *
£129.62 £108.02
