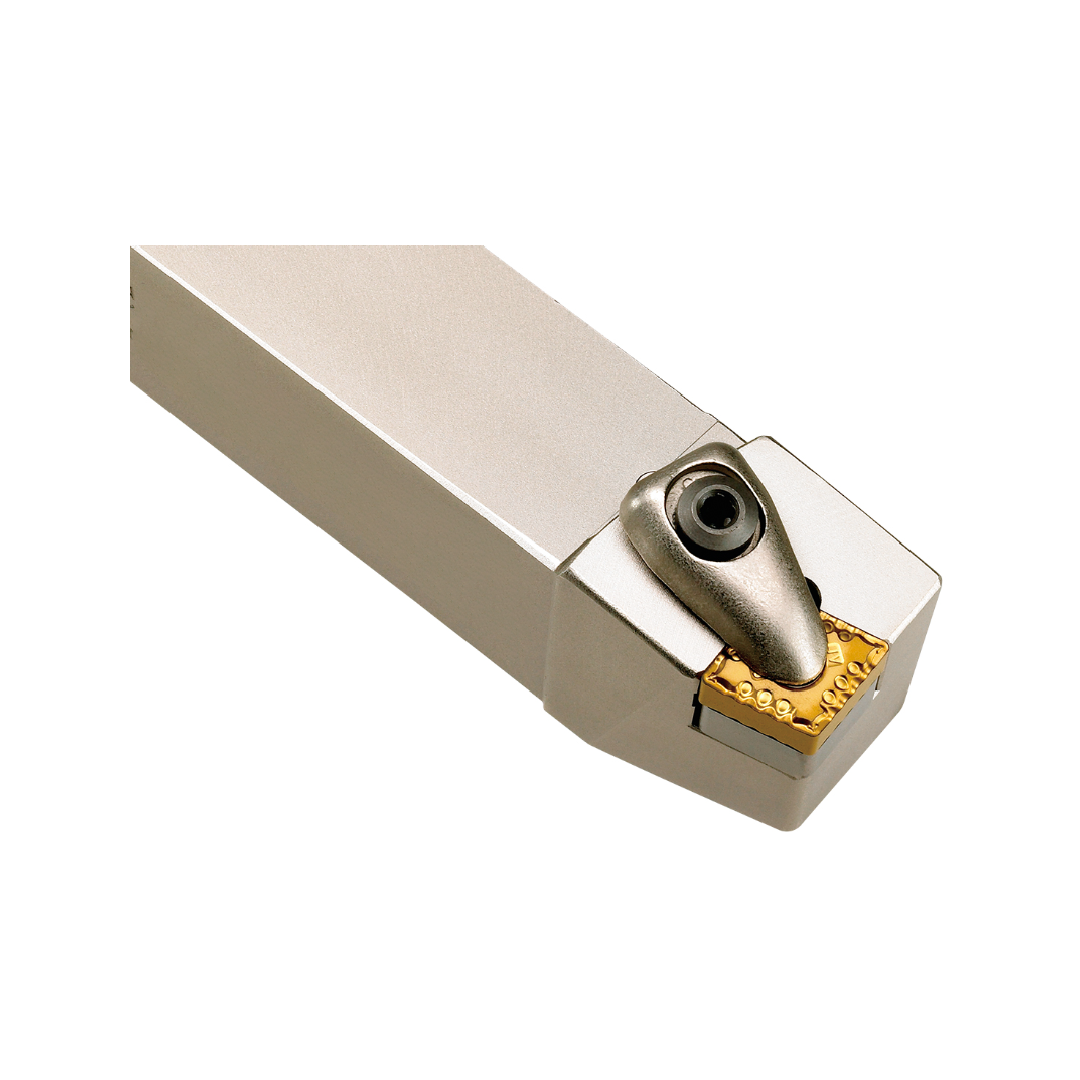

DCBNL2525-M16 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Left Hand, 75 Degree Approach, Double Clamp, for CNMG16 inserts - DCBNR/L Series (Korloy)

Cutwel Sku
1-06-039819

DCBNL2525-M16 Standard Turning Tool Holder, 25 x 25mm Shank, 150mm Long, Left Hand, 75 Degree Approach, Double Clamp, for CNMG16 inserts - DCBNR/L Series (Korloy)

Cutwel Sku
1-06-039819

Key Features

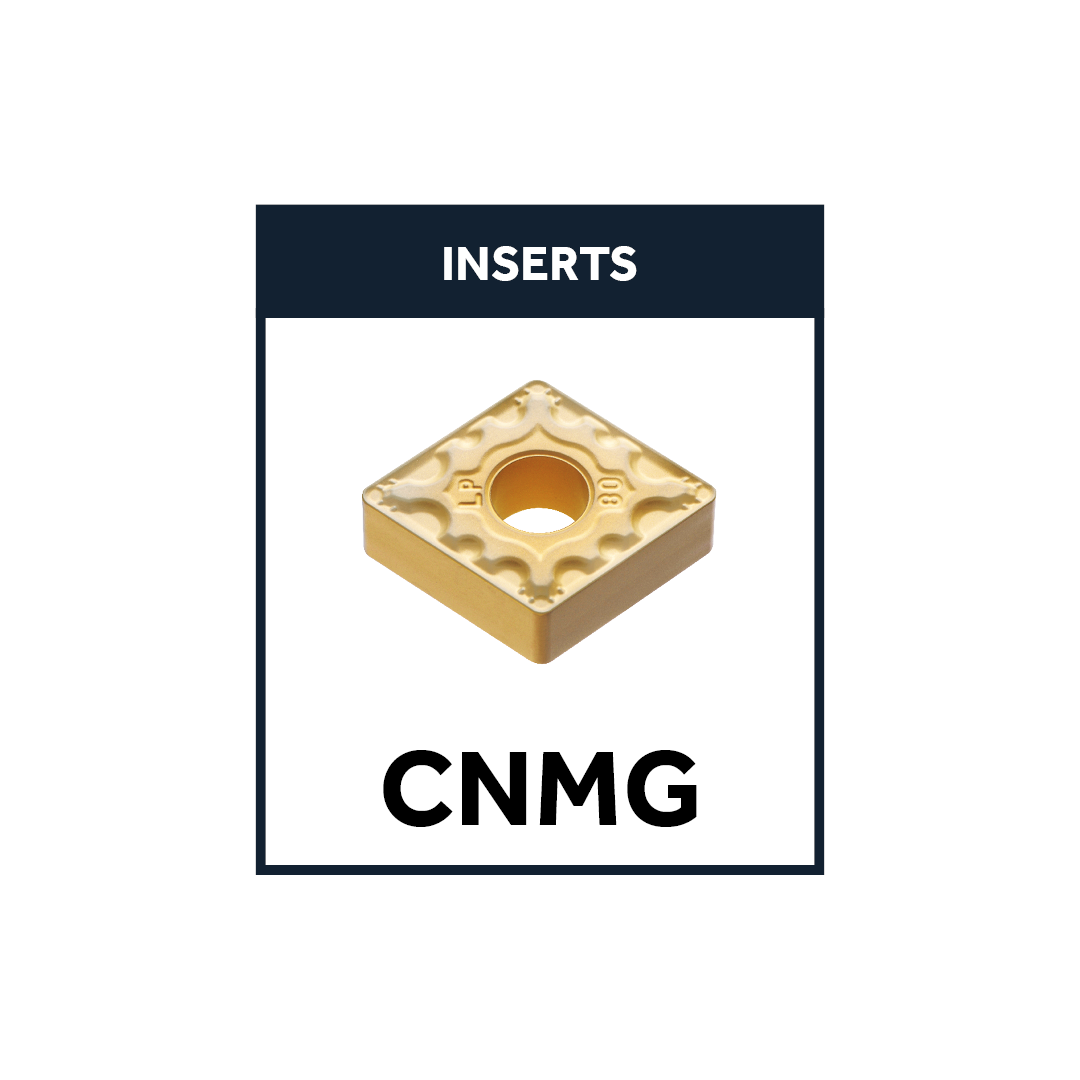

available Suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc)

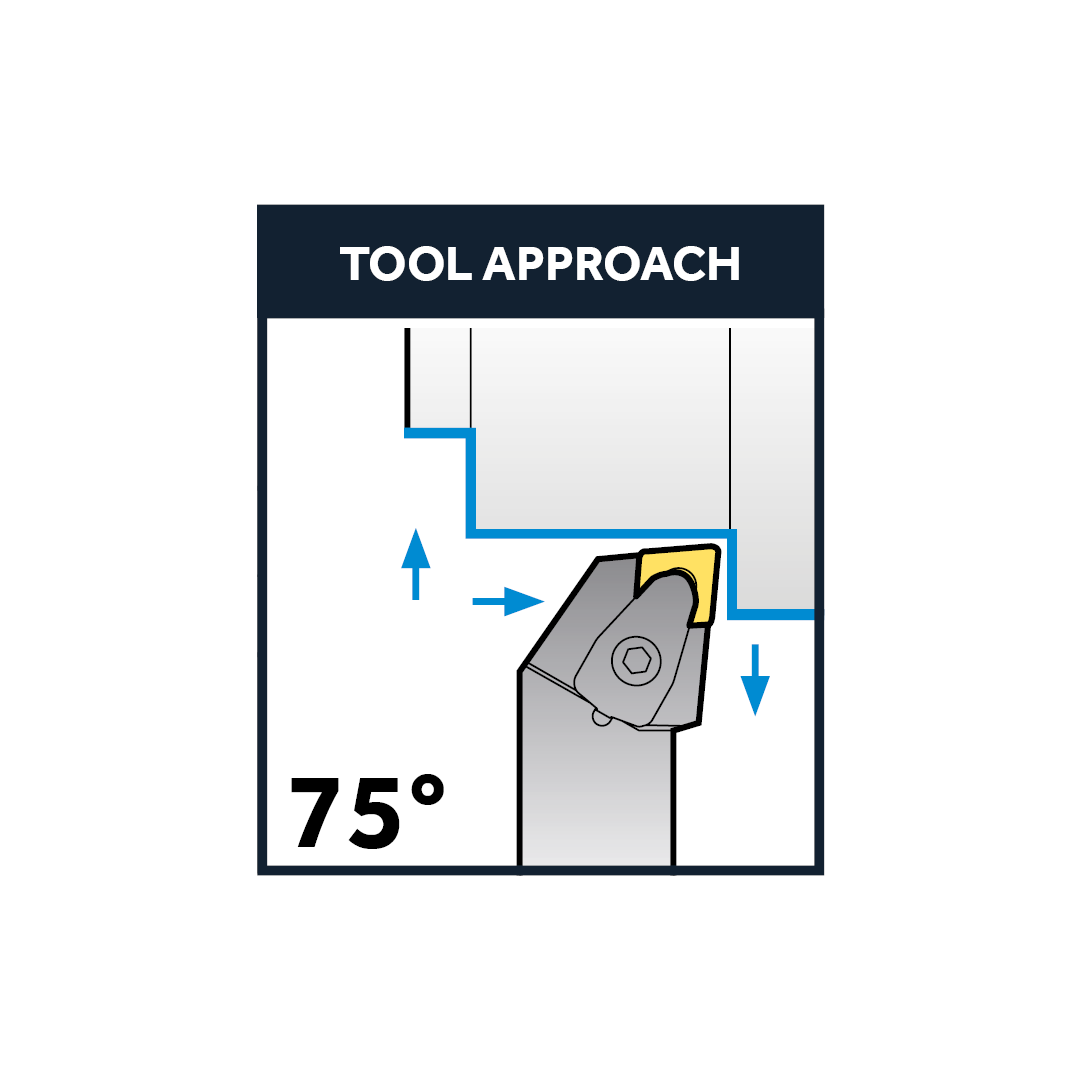

available High quality solid steel shank turning tool holder with 75° degree approach angle
available Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish
Read More
Overall Length (mm)150
Shank (mm)25
green Available for Delivery within 4-5 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Shank (mm) 25
Overall Length (mm) 150
Inserts CN**1606
ISO Code DCBNL2525-M16
Shank 25mm x 25mm
Hand Left
Insert Size CN**1606
Alternative Part Number DCBNL2525-M16
Screw VHX0821
Shim SC54V
Shim Screw FTNA0511
Clamp Screw CHX0622
Clamp CVH5
Insert Series CNMG
Through Coolant No
Angle 75°
Holder Style DCBNR/L
Clamp Type Double Clamp
Brand Korloy
Part Numbers
  • Cutwel Part Number 1-06-039819

Description

High quality solid steel shank turning tool holder suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc). The DCBNR/L series have a Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish with a 75° degree approach angle. Available in Left hand, these turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Features & Benefits

  • Suitable for use with CNMG style turning inserts (also suitable for CNMA, CNMM, CNGA, CNGG etc)
  • High quality solid steel shank turning tool holder with 75° degree approach angle
  • Ultra powerful double clamp style clamping system - high precision clamping system for longer tool life and excellent surface finish
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:45pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £59 (ex vat), and £79 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £59 (ex vat), we offer the following:

  • 1st class post - £2.49
  • DPD Standard Next Day Delivery - £6.50
  • DPD Next Day Pre-12pm - £9.50 or (£5.00 on orders over £59 (ex VAT))
  • DPD Next Day Pre-10.30am - £17.00

For orders containing liquids under £79 (ex vat),  standard UK Mail Next Day Delivery is £8.00 and UK Mail Next Day Pre-12pm Delivery is £13.00.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Shank (mm) Overall Length (mm) Inserts ISO Code Shank Hand Insert Size Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Shank (mm)
carrat-down
Overall Length (mm)
carrat-down
Inserts
carrat-down
ISO Code
carrat-down
Shank
carrat-down
Hand
carrat-down
Insert Size
carrat-down
Shank (mm): 20 Overall Length (mm): 125 Inserts: CN**1204 ISO Code: DCBNR2020-K12 Shank: 20mm x 20mm Hand: Right Insert Size: CN**1204
green Available for Delivery within 4-5 Days *
£86.03 £71.69
minus plus
Shank (mm): 20 Overall Length (mm): 125 Inserts: CN**1204 ISO Code: DCBNL2020-K12 Shank: 20mm x 20mm Hand: Left Insert Size: CN**1204
orange Available for Delivery within 3-4 Weeks *
£86.03 £71.69
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: CN**1204 ISO Code: DCBNR2525-M12 Shank: 25mm x 25mm Hand: Right Insert Size: CN**1204
green Available for Delivery within 4-5 Days *
£90.73 £75.61
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: CN**1204 ISO Code: DCBNL2525-M12 Shank: 25mm x 25mm Hand: Left Insert Size: CN**1204
orange Available for Delivery within 3-4 Weeks *
£90.73 £75.61
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: CN**1204 ISO Code: DCBNR3225-P12 Shank: 32mm x 25mm Hand: Right Insert Size: CN**1204
green Available for Delivery within 4-5 Days *
£100.26 £83.55
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: CN**1606 ISO Code: DCBNR2525-M16 Shank: 25mm x 25mm Hand: Right Insert Size: CN**1606
orange Available for Delivery within 3-4 Weeks *
£90.73 £75.61
minus plus
Shank (mm): 25 Overall Length (mm): 150 Inserts: CN**1606 ISO Code: DCBNL2525-M16 Shank: 25mm x 25mm Hand: Left Insert Size: CN**1606
green Available for Delivery within 4-5 Days *
£90.73 £75.61
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: CN**1906 ISO Code: DCBNR3232-P19 Shank: 32mm x 32mm Hand: Right Insert Size: CN**1906
orange Available for Delivery within 3-4 Weeks *
£121.75 £101.46
minus plus
Shank (mm): 32 Overall Length (mm): 170 Inserts: CN**1906 ISO Code: DCBNL3232-P19 Shank: 32mm x 32mm Hand: Left Insert Size: CN**1906
green Available for Delivery within 4-5 Days *
£121.75 £101.46
minus plus
Shank (mm): 40 Overall Length (mm): 250 Inserts: CN**1906 ISO Code: DCBNR4040-S19 Shank: 40mm x 40mm Hand: Right Insert Size: CN**1906
orange Available for Delivery within 3-4 Weeks *
£163.09 £135.91
minus plus
Shank (mm): 40 Overall Length (mm): 250 Inserts: CN**1906 ISO Code: DCBNL4040-S19 Shank: 40mm x 40mm Hand: Left Insert Size: CN**1906
orange Available for Delivery within 3-4 Weeks *
£163.09 £135.91
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.
