Pro-V Mill

Premium high speed milling of Aluminium with maximum productivity

Improved insert design with double contact clamping allows for higher speeds & feeds, improved surface finish & tool life.

★★★★★

Diameter
Range (mm)

Insert
Sizes (mm)

Metal Removal
Rates

Material Versatility

Surface
Finish

High Accuracy Machining

Square Shoulder Milling

Chip
Control

10-100 6, 11, 16 ★★★☆☆ ★★★★★ ★★★☆☆ ★★★☆☆ ★★★★☆ ★★★★☆

Diameter
Range (mm)

Insert
Sizes (mm)

Metal Removal
Rates

Material Versatility

Surface
Finish

High Accuracy Machining

Square Shoulder Milling

Chip
Control

25-125 19 ★★★★★ ★★★★☆ ★★★★★ ★★★★★ ★★★★★ ★★★★★

Browse the Range

Double core geometry for slotting and profiling, long tool life and best all-round performance

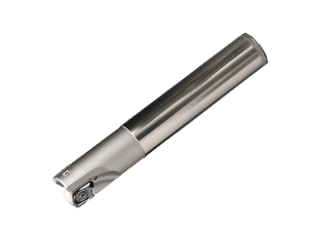

Pro-V Mill
90° End Mill

Application
Diameters 25-40mm

Best for profiling offering high feed rates and tool stability

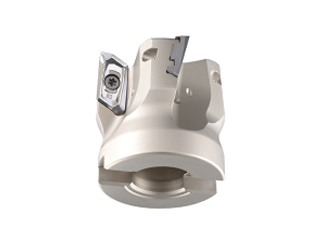

Pro-V Mill
90° Face Mill

Application
Diameters 40-125mm

With 45° chamfer preparation for
added corner protection

Special profile with corner protection for roughing stainless steel and titanium

Advantages

Extreme Stability

Ultra-strong clamping means stable machining at very high cutting speeds

Mirror Surface Finish

Insert design with mirror like finish avoids built up edge issues and improves chip flow

High Speed Machining

Aluminium machining possible up to 3000m/min vs Pro-X Mill <2000m/min

Perpendicular

Enhanced surface roughness and perpendicularity thanks to high speed capacity

Features

Key Slot Design

Special clamping method via two insert slots give ultra-high clamping

Special Screw Design

Improved screw geometry for stable insert clamping eliminates vibration and improves surface finish

High Rake Chip Breaker

High rake insert design reduces cutting loads and improves chip flow

Through Coolant

Internal coolant directed to the cutting edge improves chip evacuation and surface roughness

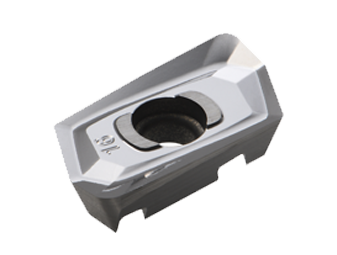

Pro-V Mill Inserts

Insert Designation:



XDET

Dedicated milling inserts for premium non-ferrous machining.

The Pro-V mill inserts feature a mirror like finish of the rake surface to avoid built up edge through smooth chip flow.

 Chip Breaker Guide

Chipbreaker Cutting Edge Application Description
MA Aluminium Optimal cutting edge, high positive rake and buffed surface prevents built up edge and smooth chip flow in aluminium machining

Grade Guide

Grade Chipbreaker Materials Features & Benefits
H01 (Uncoated) MA
Non-Ferrous
Dedicated non ferrous grade for high speed, high feed milling & mirror surface finish. Uncoated polished grade for maximum swarf control in medium-high speed cutting.

Application

Material Suitability

Material Excellent Good
P
Steel
H
Hardened Steel
M
Stainless Steel
S
HRSA's
K
Cast Iron
N
Aluminium & Non-Ferrous

Possible Machining Methods

Face Milling

Trochoidal Milling

Side Cutting

Slotting

Circular Interpolation
