FM10 PNMU 36° Face Milling System
With 10 cutting edges for unrivalled performance in face milling applications
Larger depths of cut than high feed milling and higher feed rates than conventional 45° face mills.
P
M
S
K
Browse the Range
Alpha Mill
90° End Mill
| Application |
|
| Diameters | 10-63mm |
Double core geometry for slotting and profiling, long tool life and best all-round performance
FM10 (PNMU)
36° Face Mill
| Application |
|
| Diameters | 50-125mm |
Best for profiling offering high feed rates and tool stability
Alpha Mill
90° Modular End Mill
| Application |
|
| Diameters | 12-40mm |
With 45° chamfer preparation for
added corner protection
Advantages
High Feed Milling
The first face milling system to combine multi corner face milling with high feed capabilities
30% Faster vs 45°
Lower cutting resistance provides 30% faster feeds compared to 45° face mills
3x More Depth of Cut
Higher depth of cut, up to 3 times more compared to other high feed milling systems
High Efficiency
Unique inserts with 10 true cutting edges for ultimate cost efficiency
Features
Curved Cutting Ridge
Curved insert geometry combined with wiper reduces cutting forces & improves surface finish
36° Entry Angle
Improved feed rates due to chip thinning & outstanding stability due to direction of force into the spindle
Multi-Purpose
Ability to rough and finish with just one milling body
10 Cutting Edges
Double sided inserts with 5 usable cutting edges on each side

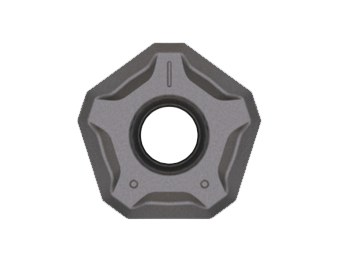

FM10 Inserts
Insert Designation:
PNMU
The unique design of YG-1’s PNMU milling inserts provide higher feeds, speeds and more depth of cut compared to more traditional milling systems.
Achieve higher productivity with 10 cutting edges and the ability to rough & finish with one tool.
Chip Breaker Guide
| Chipbreaker | Cutting Edge | Application | Description |
|---|---|---|---|
| GN |  |
General | First choice for general machining applications |
| ST |  |
Stainless Steel / HRSA's | Sharp geometry for stainless steel & HRSA's |
Grade Guide
| Grade | Chipbreaker | Materials | Features & Benefits |
|---|---|---|---|
| YG712 | GN | Steel <40 HRC |
General purpose steel grade for medium to high speed machining. |
| YG713 | Steel <45 HRC
|
Dedicated steel grade with advanced multi layer TiALN structure for improved wear resistance. | |
| YG602 | Steel <40 HRC
Stainless Steel
HRSA's
Cast Iron
|
Universal grade for general milling applications, Ultra dense PVD coating with optimal thermal resistance and strength. | |
| YG5020 | Cast Iron |
CVD milling grade dedicated for cast iron milling, excellent wear resistance and improved toughness protects the cutting edge from chipping. | |
| YG613 | ST GN |
Stainless Steel |
1st choice grade for stainless steel milling, tough substrate provides excellent cutting performance and stable tool life. |
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Face Milling
Trochoidal Milling
Side Cutting
Slotting
Circular Interpolation
