Boost your roughing and profiling performance with the optimal solution for your machining cell.
Our 6–8 flute, high-helix end mills are purpose-designed for trochoidal milling and high-feed profiling, delivering unbeatable metal removal rates, extended tool life and superior stability.
With the shallow radial depth of cut and aggressive axial engagement that define modern high-efficiency milling strategies, these cutters enable you to push feeds harder, reduce cycle times and minimise thermal and mechanical load on the tool and spindle.
Whether you're clearing deep slots, roughing large cavities or profiling complex shapes, these high-helix cutters give you the flexibility and performance to meet the demands of modern production machining.
The smart geometry facilitates smooth entry, efficient chip evacuation and consistent surface integrity, making them a go-to choice when you demand both speed and precision.
6–8 flute carbide milling cutters are designed for high-efficiency machining of harder materials where stability, feed rate and surface finish are critical.
The higher flute count increases the number of cutting edges engaged at once, allowing for smoother cutting action, reduced vibration and higher feed per tooth compared to lower-flute tools.
These cutters excel in trochoidal milling, high-feed profiling and finishing operations, particularly in stainless steels, titanium, tool steels and heat-resistant alloys.
Their high-helix geometry promotes rapid chip evacuation and consistent cutting forces, making them ideal for both high-speed and high-feed machining strategies.
Trochoidal milling is an advanced machining strategy designed to improve efficiency, reduce tool wear and maximise material removal rates.
Instead of cutting with a full-width pass, the tool follows a curved, looping toolpath that keeps the cutter constantly moving while maintaining a consistent engagement angle with the material.
This technique significantly reduces heat buildup and radial cutting forces, allowing for higher cutting speeds, deeper axial depths and longer tool life, especially when used with multi-flute, high-helix carbide cutters.
Trochoidal milling is ideal for slotting, pocketing and roughing operations in tough materials such as stainless steels, hardened steels and titanium alloys.
By combining shallow radial cuts with high feed rates, it enables machinists to remove more material in less time while maintaining excellent process stability and surface quality.
High feed profiling is a modern milling technique that uses specialised cutters designed to run at very high feed rates with shallow depths of cut.
Instead of removing material through deep passes, the tool moves quickly across the workpiece, engaging only a small portion of the cutting edge, significantly reducing cutting forces and vibration.
This approach directs most of the cutting force axially into the spindle, improving tool stability and extending tool life.
It is particularly effective for 3D contouring, complex shapes and near-net form profiling in materials such as stainless steels, tool steels and super alloys.
When paired with high-performance multi-flute carbide cutters designed for high-feed toolpaths, high-feed profiling increases metal removal rates, shortens cycle times and delivers consistent surface finishes.

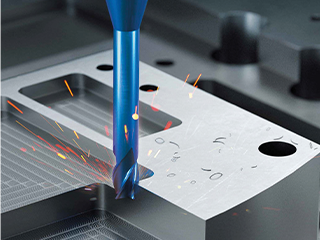

The X5070 Blue Series from global market leaders YG-1 is engineered for extreme performance in hardened steels up to 70 HRC.
Featuring a unique blue silicon-based coating, nanograin carbide substrate and optimised geometry, these cutters deliver exceptional wear resistance, stable cutting at high speeds and long tool life under demanding conditions.
Ideal for high-speed, high-accuracy machining, the X5070 Blue range ensures precise results in mould and die, toolmaking and hardened component manufacturing, at cutting temperatures up to 1,400°C.

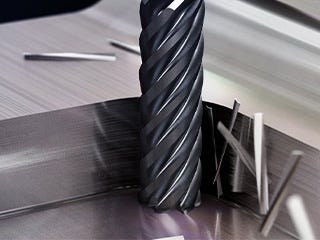

The V7 Plus 6 Flute TRP Series from YG-1 is built for ultra-high metal removal rates and deep cutting performance up to 4×D.
Featuring a triple reinforced core, variable helix and unequal flute spacing, these cutters deliver outstanding stability and chatter-free performance at aggressive speeds and feeds.
Advanced multi-layer coatings ensure superior heat resistance and tool life in stainless steel, hardened steel and super alloys, at cutting temperatures up to 1,200°C.
Ideal for roughing, semi-finishing and high-efficiency machining where productivity and reliability are critical.

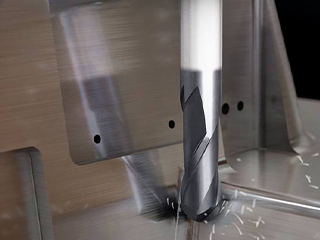

The 4G Mill range from YG-1 delivers the ideal balance of speed, accuracy and durability for machining steels up to 55 HRC.
Designed with advanced variable helix geometry and a high-performance coating, these cutters provide smooth cutting action, reduced vibration and extended tool life.
Well suited to high-speed and trochoidal milling in mould and die and toolmaking applications, 4G Mills offer reliable performance across general machining tasks.
When you need dependable, high-accuracy performance across a wide range of steels, 4G Mills set the standard.

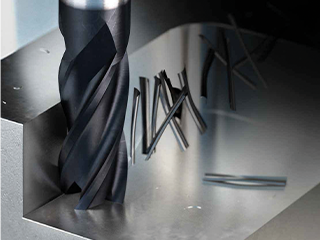

The X-Power Pro range from YG-1 delivers exceptional tool life, surface finish and cutting stability for steels up to 55 HRC.
Engineered with a reinforced core, variable helix design and premium wear-resistant coating, these cutters perform reliably in high-speed and high-precision machining.
Ideal for roughing through to finishing across carbon, alloy and hardened steels, X-Power Pro is widely used in mould and die, automotive, toolmaking and defence applications.
When productivity and precision matter, X-Power Pro is the all-round solution.
Choosing the correct 6–8 flute high-helix cutter is key to maximising performance in trochoidal milling and high-feed profiling.
Select cutters optimised for trochoidal milling, high-feed profiling or finishing based on engagement, feed rate and required surface quality.
Consider flute count, cutting length and tool diameter to ensure optimal chip evacuation, stability and compatibility with your machine and CAM strategy.
Ultra-fine carbide substrates and advanced coatings improve heat resistance, wear resistance and tool life at high speeds and feeds.
Machine rigidity, toolholding quality and effective coolant delivery are critical to achieving consistent results in high-feed and trochoidal milling.
Our technical support team is available to help you choose the right cutter for your application.
Unlock faster cycle times, longer tool life and superior surface finishes with Cutwel’s 6–8 Flute High Helix Carbide Milling Cutters.
Nothing cuts hardened steel <70HRC faster or longer.
For ultra high metal removal & ultra deep cuts <4xD.
High accuracy, speed & durability on steel <55HRC.
Exceptional tool life & surface finish on steel <55HRC.
