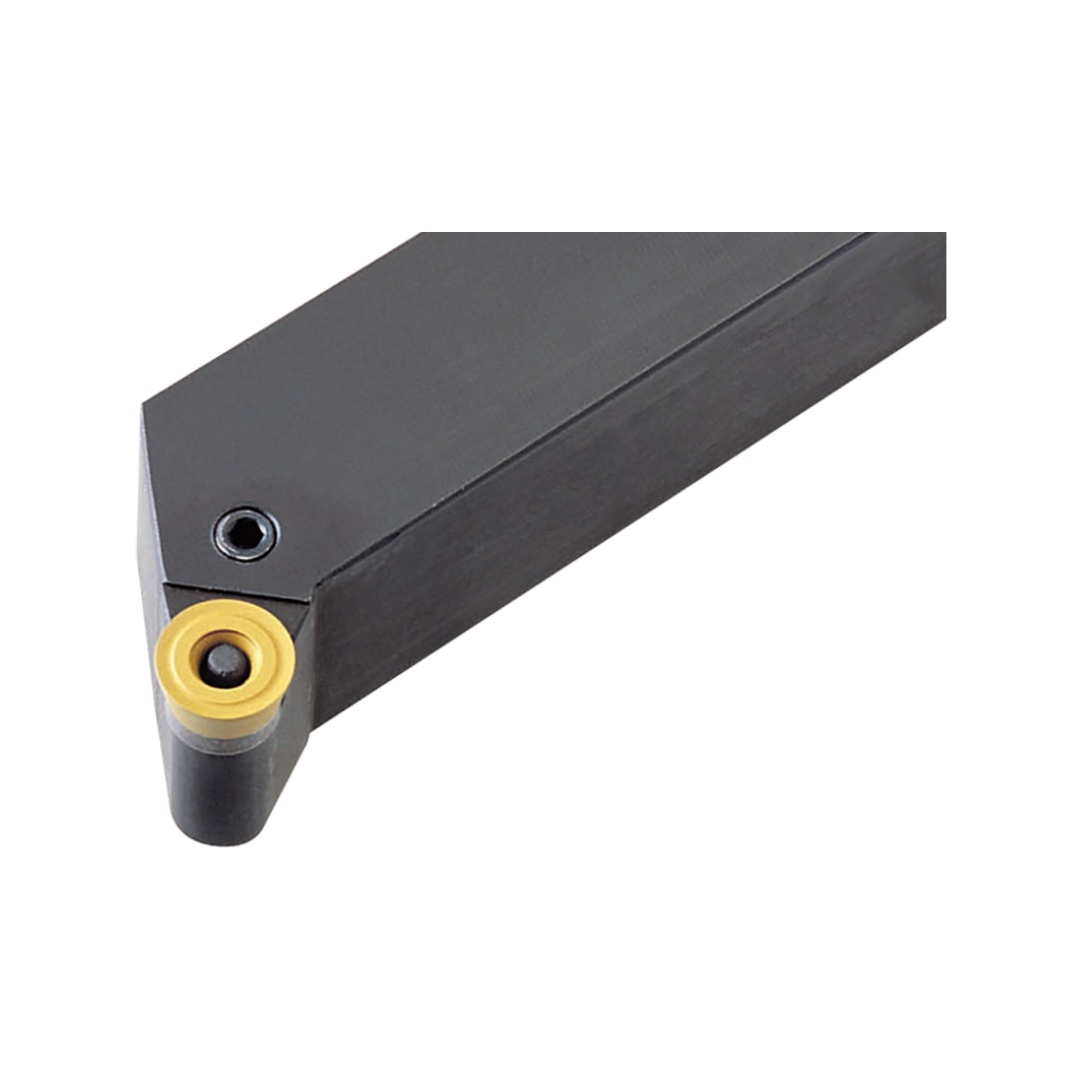

PRGCR/L Standard Turning Tool Holder 90 Degree Tool Approach, Lever Lock, for RCMT inserts - PRGCR/L Series (Korloy)

PRGCR/L Standard Turning Tool Holder 90 Degree Tool Approach, Lever Lock, for RCMT inserts - PRGCR/L Series (Korloy)

Key Features

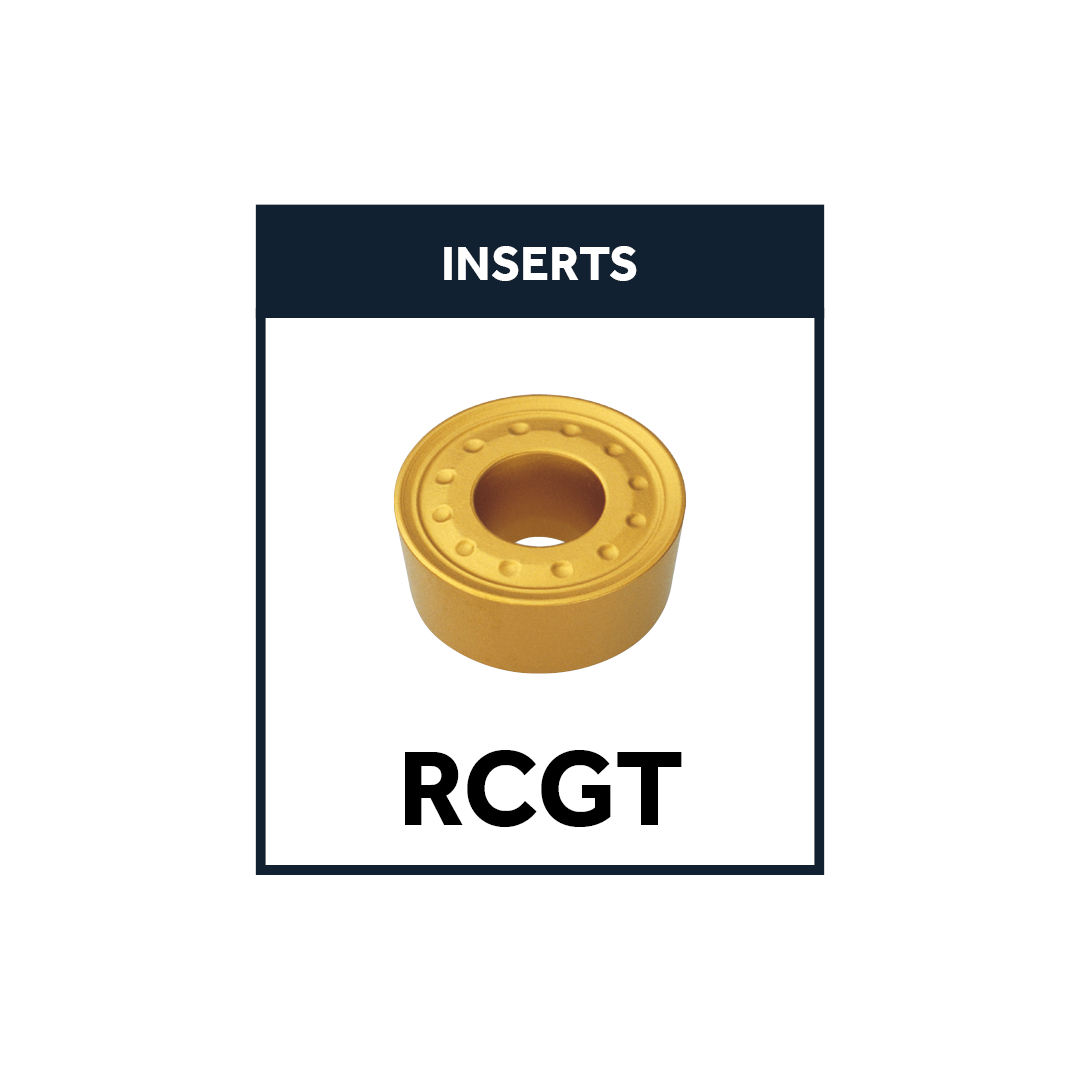

available Suitable for use with RCGT style turning inserts (also suitable for RCMX & RCMT )

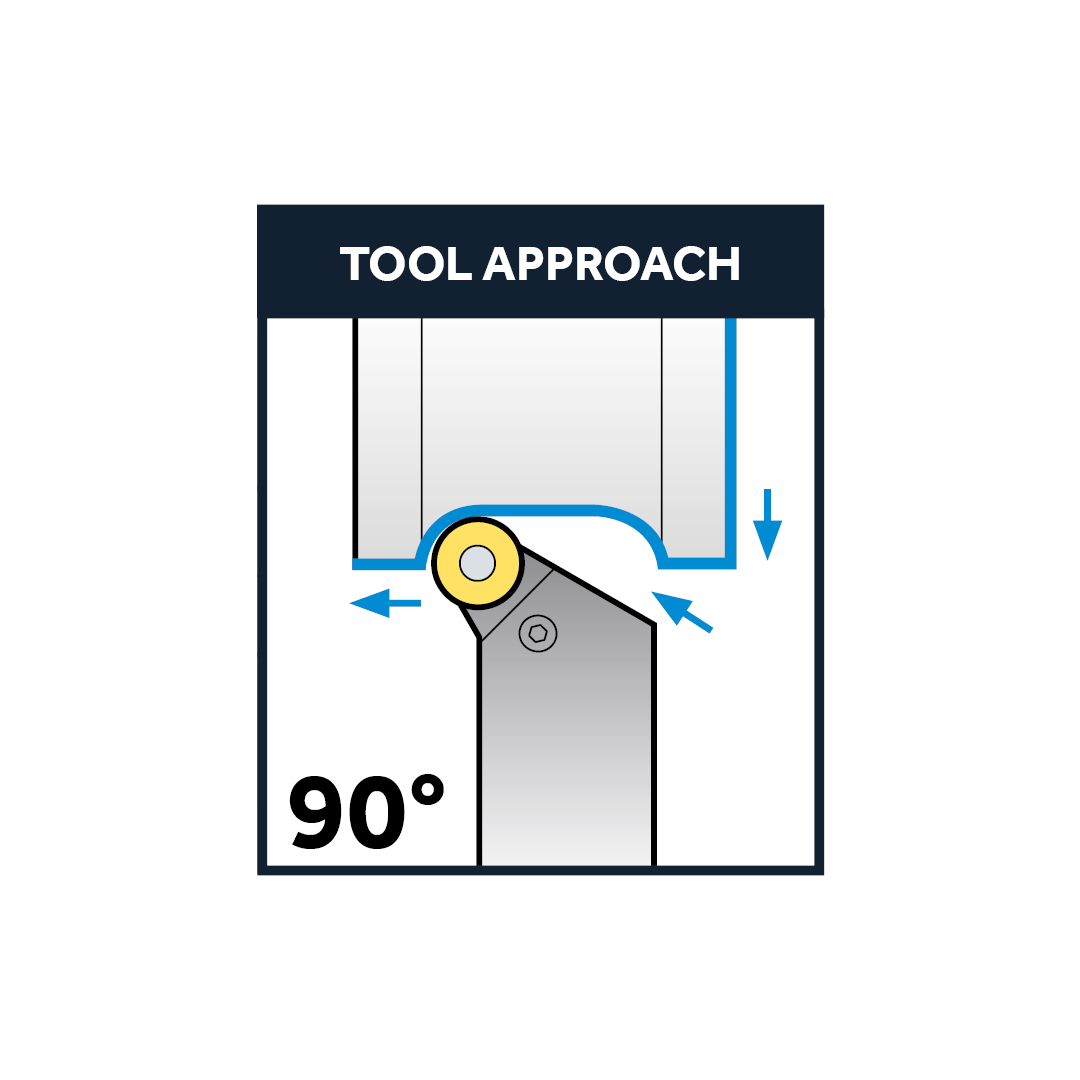

available High quality solid steel shank turning tool holder with 90° degree approach angle
available Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
Read More
View Products

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday
Filter Items arrow

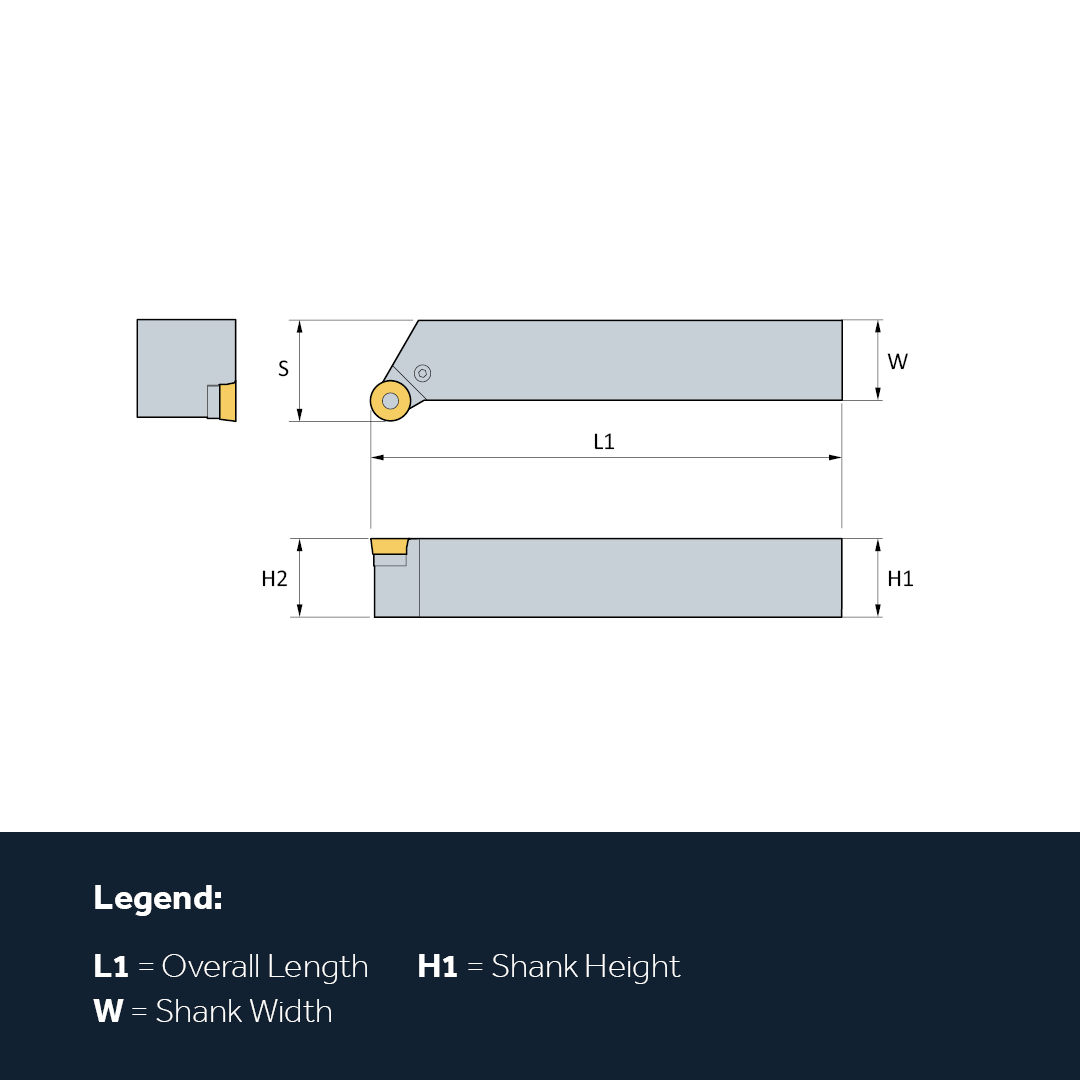

Code Shank (mm) Overall Length (mm) ISO Code Shank Hand Insert Size Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Shank (mm)
carrat-down
Overall Length (mm)
carrat-down
ISO Code
carrat-down
Shank
carrat-down
Hand
carrat-down
Insert Size
carrat-down
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PRGCR2020-K10 Shank: 20mm x 20mm Hand: Right Insert Size: RC**1003
green Available for Delivery within 4-5 Days *
£58.75 £48.96
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PRGCL2020-K10 Shank: 20mm x 20mm Hand: Left Insert Size: RC**1003
green Available for Delivery within 4-5 Days *
£58.75 £48.96
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PRGCR2525-M10 Shank: 25mm x 25mm Hand: Right Insert Size: RC**1003
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PRGCL2525-M10 Shank: 25mm x 25mm Hand: Left Insert Size: RC**1003
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PRGCR2020-K12 Shank: 20mm x 20mm Hand: Right Insert Size: RC**1204
green Available for Delivery within 4-5 Days *
£58.75 £48.96
minus plus
Shank (mm): 20 Overall Length (mm): 125 ISO Code: PRGCL2020-K12 Shank: 20mm x 20mm Hand: Left Insert Size: RC**1204
green Available for Delivery within 4-5 Days *
£58.75 £48.96
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PRGCR2525-M12 Shank: 25mm x 25mm Hand: Right Insert Size: RC**1204
green In Stock for Next Day Delivery *
£64.90 £54.08
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PRGCL2525-M12 Shank: 25mm x 25mm Hand: Left Insert Size: RC**1204
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PRGCR3225-P12 Shank: 32mm x 25mm Hand: Right Insert Size: RC**1204
green In Stock for Next Day Delivery *
£83.15 £69.29
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PRGCL3225-P12 Shank: 32mm x 25mm Hand: Left Insert Size: RC**1204
green In Stock for Next Day Delivery *
£83.15 £69.29
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PRGCR2525-M16 Shank: 25mm x 25mm Hand: Right Insert Size: RC**1606
green In Stock for Next Day Delivery *
£64.90 £54.08
minus plus
Shank (mm): 25 Overall Length (mm): 150 ISO Code: PRGCL2525-M16 Shank: 25mm x 25mm Hand: Left Insert Size: RC**1606
green Available for Delivery within 4-5 Days *
£64.90 £54.08
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PRGCR3225-P16 Shank: 32mm x 25mm Hand: Right Insert Size: RC**1606
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PRGCL3225-P16 Shank: 32mm x 25mm Hand: Left Insert Size: RC**1606
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PRGCR3232-P20 Shank: 32mm x 32mm Hand: Right Insert Size: RC**2006
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 32 Overall Length (mm): 170 ISO Code: PRGCL3232-P20 Shank: 32mm x 32mm Hand: Left Insert Size: RC**2006
green Available for Delivery within 4-5 Days *
£83.15 £69.29
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PRGCR4040-S25 Shank: 40mm x 40mm Hand: Right Insert Size: RC**2507
green Available for Delivery within 4-5 Days *
£163.44 £136.20
minus plus
Shank (mm): 40 Overall Length (mm): 250 ISO Code: PRGCL4040-S25 Shank: 40mm x 40mm Hand: Left Insert Size: RC**2507
green Available for Delivery within 4-5 Days *
£163.44 £136.20
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Standard Turning Tools
Insert Series RCMT
Through Coolant No
Angle 90°
Holder Style PRGCR/L
Clamp Type Lever Lock
Brand Korloy

Description

High quality solid steel shank turning tool holder suitable for use with RCGT style turning inserts (also suitable for RCMX & RCMT ). The PRGCR/L series have a Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts with a 90° degree approach angle. These turning tool holders are made from Korloy from a high grade tool steel for the highest accuracy, rigidity and best performance turning. Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

Features & Benefits

  • Suitable for use with RCGT style turning inserts (also suitable for RCMX & RCMT )
  • High quality solid steel shank turning tool holder with 90° degree approach angle
  • Strong lever lock style clamping system - the most common clamping system for general machining with quick and simple changeover of inserts
  • Made by Korloy, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
