Slim Collet Chucks Buying Guide: High-Precision Tool Holding for Tight Access and Fine Milling

When precision is critical and space is limited, slim collet chucks offer the perfect balance of accuracy, rigidity, and reach. Designed for applications where standard holders are too bulky, these tool holders are ideal for tight cavities, fine detail work, and 5-axis machining.

What Are Slim Collet Chucks?

Slim collet chucks, also known as slim-fit collet holders or high-precision slim chucks, are designed with a narrow nose diameter for optimal access in restricted machining areas. They maintain the precision and flexibility of standard collet chucks but with a slimmer body, allowing for high-performance tool holding in complex geometries.

These chucks are commonly used in mould & die, aerospace, medical, and high-speed 5-axis machining applications.

Key Benefits of Slim Collet Chucks

• Tight Access Machining - Slim nose design for deep cavities and narrow features

• Excellent Runout Accuracy - Typically under 5 microns with quality collets

• High-Speed Compatibility - Many chucks are balanced for >15,000 RPM operation

• Versatile Tool Holding - Hold a wide range of shank diameters with interchangeable slim collets

• Coolant-Through Options - Available for improved cooling and chip evacuation

Choosing the Right Slim Collet Chuck

Here are the key factors to consider when selecting a slim collet chuck:

• Spindle Interface
  Choose a holder that matches your machine spindle - BT40, HSK63, or DIN69871.

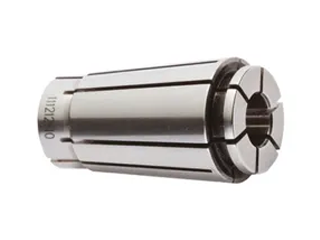

• Slim Collet Compatibility
  Slim collet chucks are typically compatible with our HC series (also known as GSK or HP3 slim collets) and they are available in 6-25mm outside diameters to match up against the chuck size.
• Nose Diameter
  Look for ultra-slim or tapered nose designs if working in particularly tight areas.
• Projection Length
  Select the appropriate length for reach without sacrificing rigidity - shorter is stiffer, longer allows deeper access.
• Coolant Supply
  If you're using through-tool coolant, choose internal coolant slim collet chucks to improve performance and tool life.
• Balancing
  For high-speed spindles, use balanced collet chucks (typically to G2.5 at 25,000 RPM or higher) to reduce vibration.

Applications Best Suited to Slim Collet Chucks

• Precision milling in tight cavities

• Fine finishing and engraving

• 5-axis contouring

• Mould & die and medical part manufacturing

Why Buy Slim Collet Chucks from Cutwel?

• Wide Range in Stock - For all major tapers, collet sizes and compatible with Nikken style SK collets & chucks.

• Trusted Brands - Dine and Cutwel Pro.

• Fast Delivery UK-Wide - Get the tools you need, when you need them

• Expert Technical Advice - Speak with our engineering team for guidance

• Great Value - High-performance holders at competitive prices

Shop Slim Collet Chucks Online Today

Upgrade your CNC performance with Cutwel’s high-precision slim collet chucks. Whether you're machining fine details, accessing tight pockets, or pushing high-speed limits, we have the right tool holder for the job. Browse our full range online today and experience accuracy where it counts.
