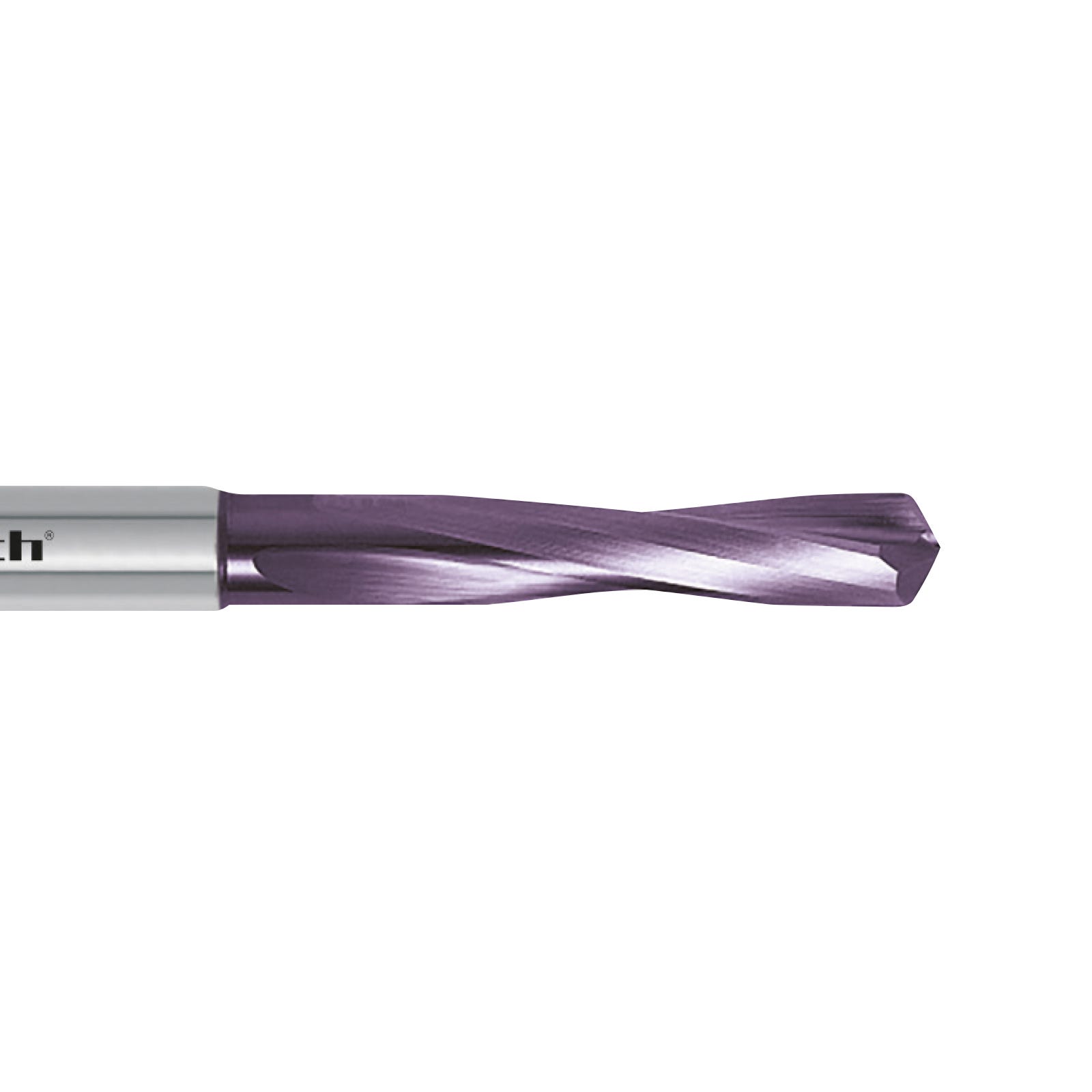

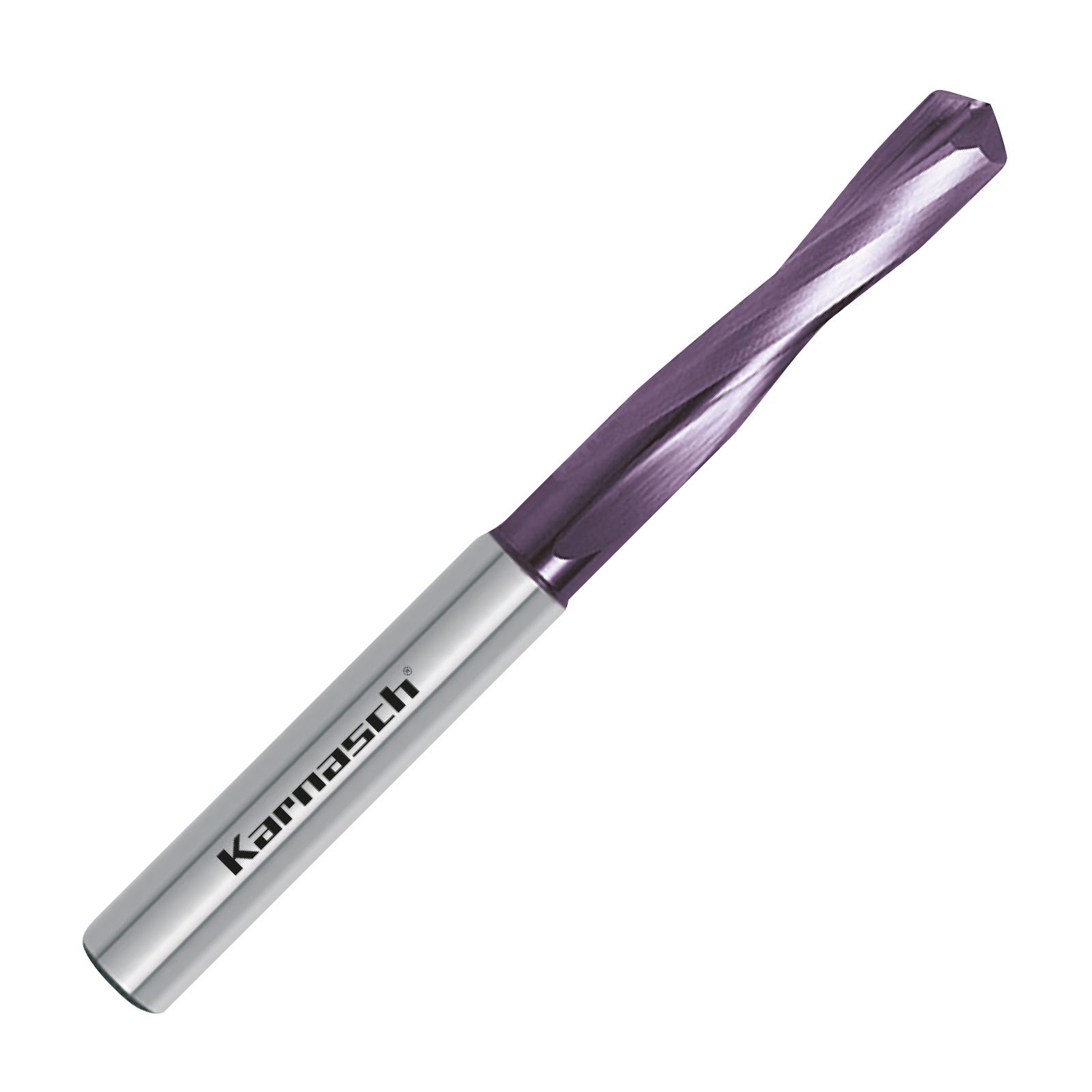

1.1mm Coated Carbide 3xD Stub K-Drill for Hardened Steels - 22.0468 Series (Karnasch)

Cutwel Sku
2204680110

1.1mm Coated Carbide 3xD Stub K-Drill for Hardened Steels - 22.0468 Series (Karnasch)

Cutwel Sku
2204680110

Key Features

available Micrograin Carbide Substrate
available For High Performance Drilling on Hardened Steel HRc55-70 & Cast Iron
available Special 15 degree Helix for High Strength 3xD Stub Length
Read More

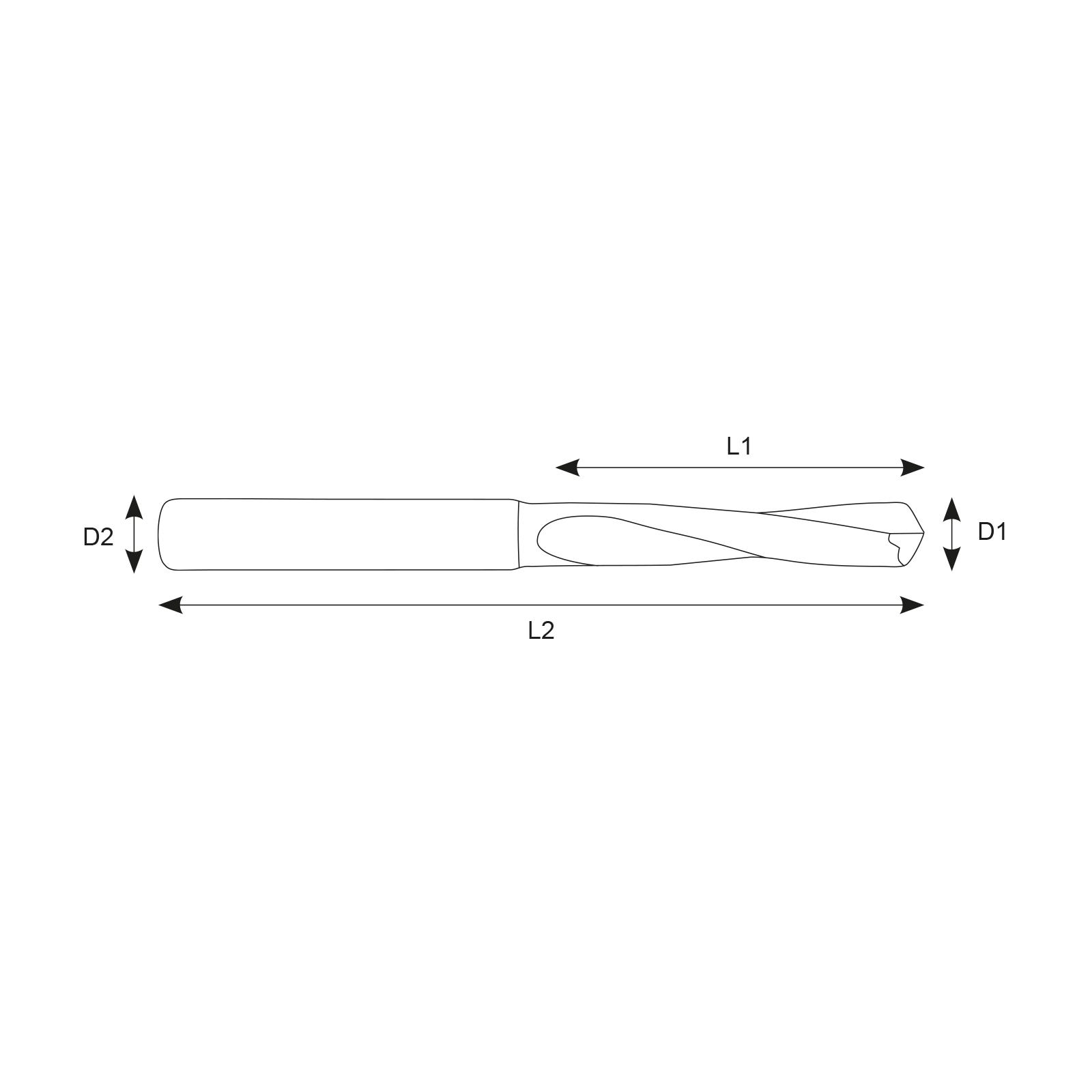

Diameter (mm)1.1
Overall Length (mm)50
Flute Length (mm)8
Shank (mm)3
green Available for Delivery within 7-10 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Specification

Category Hole Making
Sub Category Carbide Drills
Sub Category 2 Carbide Drills (Other)
Diameter (mm) 1.1
Shank (mm) 3
Flute Length (mm) 8
Overall Length (mm) 50
Tolerance m7
Point Angle 140°
Shank Type Plain
Shank Tolerance h6
Substrate Carbide
Surface Treatment Coated (PVD/CVD)
Performance 5
Coating Description Micrograin Solid Carbide
Through Coolant No
Substrate Description Hardlube Coating
Self Centring Yes
Helix Angle 15°
Brand Karnasch
Part Numbers
  • Cutwel Part Number 2204680110

Description

The Karnasch 22.0468 K-Drills are designed for high performance drilling of high hardened steels (HRc55-HRc70). These are self centering and can drill to a h7 tolerance which eliminates any reaming operations, whilst the low 15 degree helix angle maximises the rigidity which is required in hardened steel applications. Diameters range from 0.3-14mm and they are supplied with whole number shanks.

Features & Benefits

  • Micrograin Carbide Substrate
  • For High Performance Drilling on Hardened Steel HRc55-70 & Cast Iron
  • Special 15 degree Helix for High Strength
  • 3xD Stub Length
  • Self Centering with 140 degree Drill Point
  • Eliminates Reaming Operations

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £59 (ex vat), and £79 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £59 (ex vat), we offer the following:

  • 1st class post - £2.49
  • DPD Standard Next Day Delivery - £6.50
  • DPD Next Day Pre-12pm - £9.50 or (£5.00 on orders over £59 (ex VAT))
  • DPD Next Day Pre-10.30am - £17.00

For orders containing liquids under £79 (ex vat),  standard UK Mail Next Day Delivery is £8.00 and UK Mail Next Day Pre-12pm Delivery is £13.00.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Diameter (mm) Shank (mm) Flute Length (mm) Overall Length (mm) Point Angle Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Diameter (mm)
carrat-down
Shank (mm)
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
Point Angle
carrat-down
Diameter (mm): 0.3 Shank (mm): 3 Flute Length (mm): 2.5 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 0.4 Shank (mm): 3 Flute Length (mm): 3 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 0.5 Shank (mm): 3 Flute Length (mm): 4 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 0.6 Shank (mm): 3 Flute Length (mm): 4.5 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 0.7 Shank (mm): 3 Flute Length (mm): 5.5 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 0.8 Shank (mm): 3 Flute Length (mm): 6.5 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 0.9 Shank (mm): 3 Flute Length (mm): 7.5 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 1 Shank (mm): 3 Flute Length (mm): 8 Overall Length (mm): 38 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£131.66 £109.72
minus plus
Diameter (mm): 1.1 Shank (mm): 3 Flute Length (mm): 8 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.2 Shank (mm): 3 Flute Length (mm): 10 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.3 Shank (mm): 3 Flute Length (mm): 12 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.4 Shank (mm): 3 Flute Length (mm): 12 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.5 Shank (mm): 3 Flute Length (mm): 12 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.6 Shank (mm): 3 Flute Length (mm): 15 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.7 Shank (mm): 3 Flute Length (mm): 15 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.8 Shank (mm): 3 Flute Length (mm): 15 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 1.9 Shank (mm): 3 Flute Length (mm): 15 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 2 Shank (mm): 3 Flute Length (mm): 16 Overall Length (mm): 50 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£138.82 £115.68
minus plus
Diameter (mm): 2.6 Shank (mm): 3 Flute Length (mm): 16 Overall Length (mm): 46 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£113.92 £94.93
minus plus
Diameter (mm): 3.2 Shank (mm): 4 Flute Length (mm): 16 Overall Length (mm): 48 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£113.92 £94.93
minus plus
Diameter (mm): 3.3 Shank (mm): 4 Flute Length (mm): 16 Overall Length (mm): 48 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£113.92 £94.93
minus plus
Diameter (mm): 3.8 Shank (mm): 4 Flute Length (mm): 22 Overall Length (mm): 52 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£113.92 £94.93
minus plus
Diameter (mm): 4 Shank (mm): 4 Flute Length (mm): 22 Overall Length (mm): 52 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£113.92 £94.93
minus plus
Diameter (mm): 4.1 Shank (mm): 6 Flute Length (mm): 25 Overall Length (mm): 65 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£130.78 £108.98
minus plus
Diameter (mm): 4.7 Shank (mm): 6 Flute Length (mm): 28 Overall Length (mm): 68 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£130.78 £108.98
minus plus
Diameter (mm): 4.8 Shank (mm): 6 Flute Length (mm): 32 Overall Length (mm): 72 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 4.9 Shank (mm): 6 Flute Length (mm): 32 Overall Length (mm): 72 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 5 Shank (mm): 6 Flute Length (mm): 32 Overall Length (mm): 72 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 5.1 Shank (mm): 6 Flute Length (mm): 32 Overall Length (mm): 72 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 5.2 Shank (mm): 6 Flute Length (mm): 32 Overall Length (mm): 72 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 5.6 Shank (mm): 6 Flute Length (mm): 35 Overall Length (mm): 75 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 5.7 Shank (mm): 6 Flute Length (mm): 35 Overall Length (mm): 75 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 5.8 Shank (mm): 6 Flute Length (mm): 35 Overall Length (mm): 75 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£136.09 £113.41
minus plus
Diameter (mm): 6.4 Shank (mm): 8 Flute Length (mm): 40 Overall Length (mm): 80 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 6.5 Shank (mm): 8 Flute Length (mm): 40 Overall Length (mm): 80 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 6.6 Shank (mm): 8 Flute Length (mm): 40 Overall Length (mm): 80 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 6.8 Shank (mm): 8 Flute Length (mm): 45 Overall Length (mm): 85 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 7 Shank (mm): 8 Flute Length (mm): 45 Overall Length (mm): 85 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 7.2 Shank (mm): 8 Flute Length (mm): 45 Overall Length (mm): 85 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 7.3 Shank (mm): 8 Flute Length (mm): 45 Overall Length (mm): 85 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 7.5 Shank (mm): 8 Flute Length (mm): 45 Overall Length (mm): 85 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£169.92 £141.60
minus plus
Diameter (mm): 7.6 Shank (mm): 8 Flute Length (mm): 50 Overall Length (mm): 98 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 7.8 Shank (mm): 8 Flute Length (mm): 50 Overall Length (mm): 98 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 8 Shank (mm): 8 Flute Length (mm): 50 Overall Length (mm): 98 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 8.5 Shank (mm): 10 Flute Length (mm): 50 Overall Length (mm): 98 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 8.6 Shank (mm): 10 Flute Length (mm): 57 Overall Length (mm): 105 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 8.8 Shank (mm): 10 Flute Length (mm): 57 Overall Length (mm): 105 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 9.3 Shank (mm): 10 Flute Length (mm): 57 Overall Length (mm): 105 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 9.7 Shank (mm): 10 Flute Length (mm): 63 Overall Length (mm): 111 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 10 Shank (mm): 10 Flute Length (mm): 63 Overall Length (mm): 111 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£223.32 £186.10
minus plus
Diameter (mm): 10.2 Shank (mm): 10 Flute Length (mm): 63 Overall Length (mm): 111 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£270.47 £225.39
minus plus
Diameter (mm): 10.3 Shank (mm): 10 Flute Length (mm): 63 Overall Length (mm): 111 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£270.47 £225.39
minus plus
Diameter (mm): 10.5 Shank (mm): 10 Flute Length (mm): 63 Overall Length (mm): 111 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£270.47 £225.39
minus plus
Diameter (mm): 10.8 Shank (mm): 12 Flute Length (mm): 71 Overall Length (mm): 111 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£274.03 £228.36
minus plus
Diameter (mm): 11 Shank (mm): 12 Flute Length (mm): 71 Overall Length (mm): 119 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£274.03 £228.36
minus plus
Diameter (mm): 11.9 Shank (mm): 12 Flute Length (mm): 71 Overall Length (mm): 119 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£281.16 £234.30
minus plus
Diameter (mm): 12 Shank (mm): 12 Flute Length (mm): 71 Overall Length (mm): 119 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£281.16 £234.30
minus plus
Diameter (mm): 13 Shank (mm): 14 Flute Length (mm): 77 Overall Length (mm): 125 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£320.29 £266.91
minus plus
Diameter (mm): 14 Shank (mm): 14 Flute Length (mm): 77 Overall Length (mm): 125 Point Angle: 140°
green Available for Delivery within 7-10 Days *
£320.29 £266.91
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.
