Plastic Cut Milling Cutters
High performance routing & milling tools for plastic & aluminium
Uncoated lapped carbide tools ideal for acrylic, ABS, PMMA, PE, PP & soft aluminium, with up-cut and downcut geometries.
★★★★★
N
Browse the Range

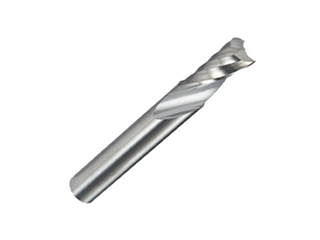

Standard Plastic-Cut Milling Cutters
Mirror-finish machining with lapped flute design. Ideal for plastics such as ABS, acrylic and non-ferrous metals

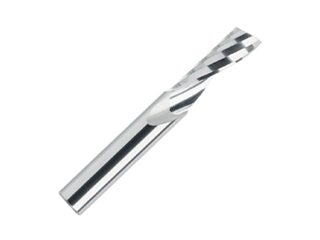

Up-Cut Plastic-Cut Milling Cutters
Upcut milling cutters remove chips upwards, as its flutes move up from left to right

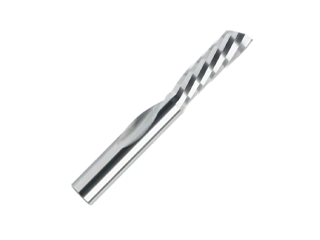

Down-Cut Plastic-Cut Milling Cutters
Down cut milling cutters force chips downwards, prevent workpiece lift and improve top surface finish

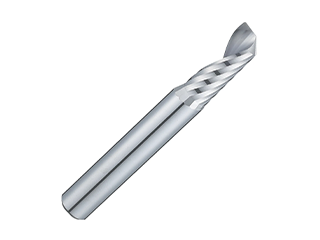

Plastic-Cut Routers
Available in a variety of shapes and sizes, including chamfering, ball nose, hard plastic & engraving routers
Advantages
Router Styles
Router geometries prevent chip build-up, improving surface finish
Lapped Flutes
Combined with ultra-sharp cutting edges improve cutting performance
Uncoated Carbide
Uncoated tools prevent material building up on the cutting edge
Precision Machining
A tailored dedicated range for high accuracy plastic
Features
1 Flute Geometry
Allows for excellent surface finish and maximum chip evacuation
Polished Flutes
Reduces friction and elevates surface finish, resulting in improved machining performance
Down Cut
Specialised geometry designed specifically for vacuum clamping applications
Solid Carbide
Engineered to enhance tool life and provide superior wear resistance, ensuring lasting performance and durability
Double Core Geometry
GMG40 & GMG41 Series
UNIQUE FLUTE DESIGN for excellent chip evacuation and higher rigidity. Adds stability, aids chip flow and prevents flute clogging in sticky metals.
Section X-X'
Excellent chip evacuation
Section Y-Y'
Higher Rigidity
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Face Milling
Profiling
Side Cutting
Slotting
Circular Interpolation
Example Cutting Data
| Ø12mm, 4 Flute Double Core Slotting - Titanium (Ti6Al4V) |
Ø12mm, 4 Flute Double Core Slotting - Stainless Steel (316) |
Ø12mm, 4 Flute Double Core Slotting - Alloy Steel (30 HRC) |
Ø12mm, 5 Flute Corner Rad Side Cutting - Stainless Steel (316) |
|
|---|---|---|---|---|
| RPM | 1459 | 2255 | 3185 | 2175 |
| Feed (mm/min) | 390 | 432 | 624 | 685 |
| Vc (m/min) | 55 | 85 | 120 | 82 |
| Fz (mm/tooth) | 0.067 | 0.048 | 0.049 | 0.063 |
| Depth of Cut (AP) | 12 | 12 | 12 | 18 |
| Depth of Cut (AE) | 12 | 12 | 12 | 3.6 |
