Leading supplier of spindle speeders
All applications covered
Expert technical support
MAIN STYLE TAGS
MOBILE VIEW HTML
Readily available from stock on short delivery times
Our range of high speed spindles (or spindle speeders) can help you in applications where higher RPM’s are required than what is possible on your existing machine tool set up.
Wide range of solutions that best suit your application, depending on the maximum output speed, accuracy, torque, run-out, rigidity, cost and lead time required
Mechanical spindle speeders for milling machines (up to 1:8 ratio and output speeds <40,000RPM)
Mechanical driven tools for CNC lathes (up to 1:4 ratio and output speeds <40,000RPM)
Air or coolant driven high speed spindles for output speeds <80,000RPM
Make an Enquiry
Please send an enquiry below to our expert technical team who are on hand to support any projects or questions you have.
Spindle speeder solutions from our leading partners BENZ, WTO & Gerardi
Mechanical Spindle Speeders
For everyday applications <40,000RPM
- Perfect for durability, heavy machining or high production
- For milling machines
- 1:5 gearing ratio
- Available in STD or heavy duty models
- Optional 100 bar through coolant
Mechanical Spindle Speeders
For everyday applications <35,000RPM
- Fast delivery & excellent prices
- Perfect for sub-con &Â general machining
- For drilling, engraving, chamfering, deburring or light milling
- Up to 1:8 ratio available
- Available in 4 different models
Coolspeed Mini®
Air or coolant driven high speed spindles <80,000RPM
- For any machine with coolant, oil or air supply
- Suitable for milling &Â turning centres
- Extends machine spindle lifetime
- High precision <4 micron run-out
- Straight, right angle or adjustable models

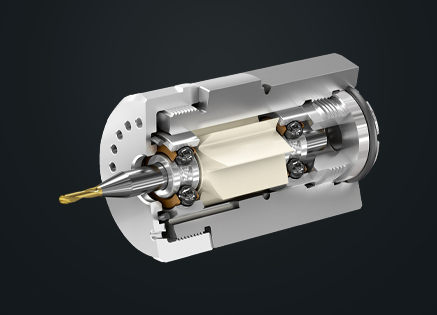

BENZ Jet Spindle Speeders
High speed coolant driven <45,000RPM
- Reduce machining time by up to 70%
- HPC-spindle technology by Colibri spindles
- For machines with high coolant pressure
- Plug & play
- Available in radial or axial models

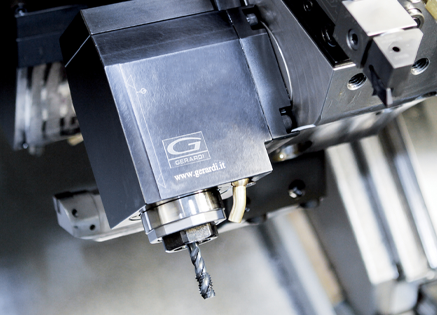

High Speed Driven Tools
For all major turret systems <24,000RPM
- Geared ratios from 1:2, 1:3Â or 1:4 available
- Available with modular QuickFlex output
- Straight offset or right angle driven tools
- Suitable for BMT, VDI, DMG Mori, Mazak, Nakamura, Okuma, Star and more
High Machining Speeds

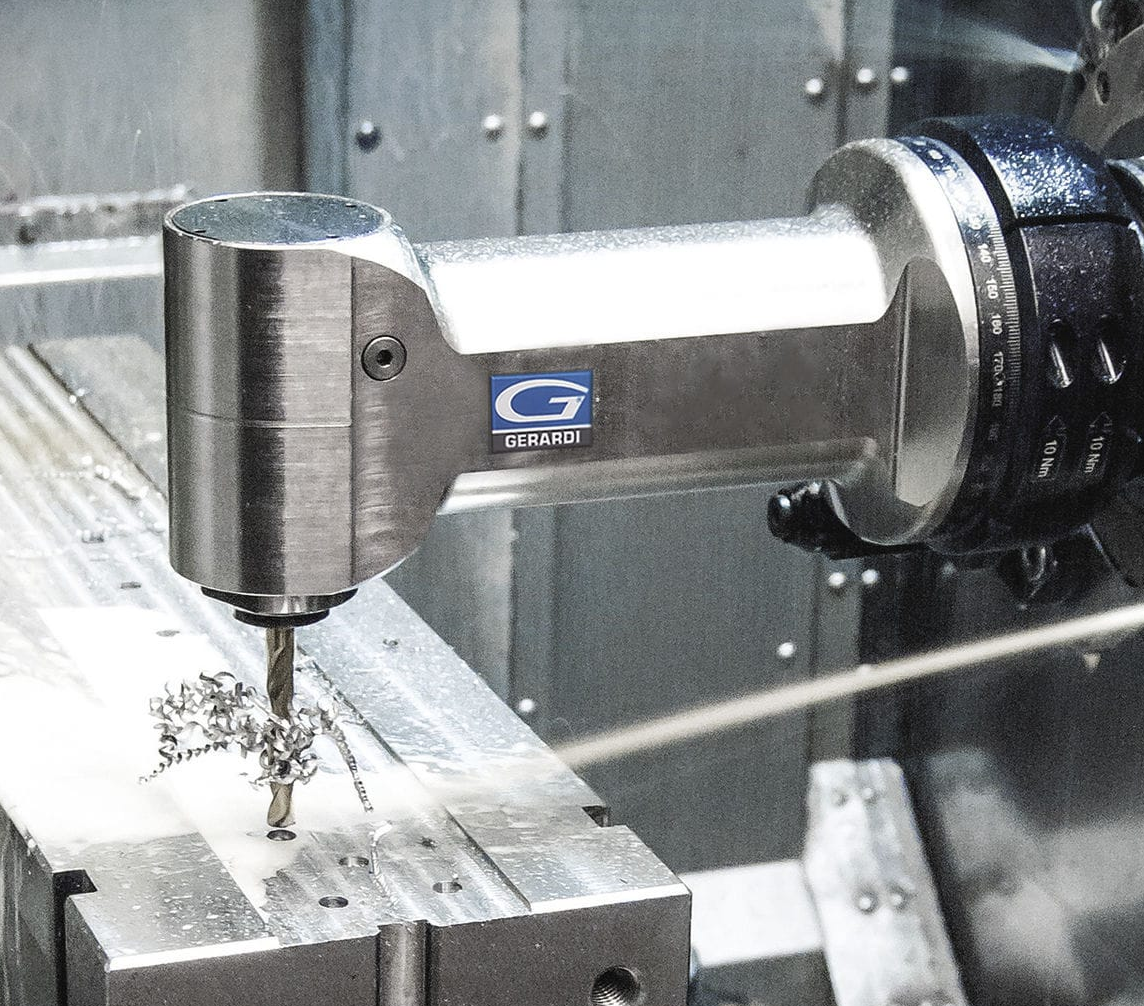

Gerardi's Evolution Line angle heads feature an interchangeable Drive Taper which enables the same angle head to be used of different machines (e.g. BT or SK) simply by changing the input shaft.
ATC Series
Designed for CNC machines with automatic tool change and can be automatically transferred from the tool store to the machine spindle and vice-versa.
The orientation ring and arrester arm support ring are both 360° adjustable to allow the best angular orientation.
ATC Series
This range of angle heads is for conventional machines without automatic tool change.
MTC angle heads (Manual Tool Change) are manually mounted on the machine headstock through a flange.
ATC SLIM Series
Ideal for micro-machining in narrow spaces.
ATC F90 Series
Ideal for milling, drilling, tapping
at ±90.
ATC F90L Series
Long series for deep machining applications.
ATC F90 10BAR Series
Coolant input from positioning pin and output through the tool.
ATC FR90 70BAR Series
Offset series for machining in
narrow spaces.
ATC FMU Series
Adjustable output at ±90° for tilt drilling, milling and tapping.
CMTC F90S Series
8.000RPM high speed angle head
with exceptional performance.
MTC F900L Series
High torque angle head for heavy
duty machining.
Customised Solutions
Accessories
Collets
ER-DIN 6499 / ET1.
Nuts
ER-DIN 6499 / ET1.
Wrench
ES (Exagonal) /Â STD (Standard).
Anti-Rotation Group
Composed by pin group, ring and shank group.
Stop Block
Avoids the rotation of the angle head and ensures perfect stability, high precision.
Pin Group
Positioning pin with through coolant to guarantee the correct pitch.
Universal Flange
Used for the interface between the MTC angle head and the machine spindle.
Extensions
Extend the length of MTC angle head bodies by adding an extension.
We will partner with you every step of the way
Project Management
Our goal is to support you in your tasks. Thanks to many years of expertise with Benz products, our technical team are here to help to make your production easier and more efficient.
Cutwel will work alongside the end-user to find the best solution for the application
Full 3D modelling available
Support in installation if required
With the support of BENZ’s expertise, a solution will be proposed to best suit the machine tool and application
Service & Repair
We offer repair, rebuild, and maintenance services for angle heads. Whether damaged or underperforming, most angle heads can be restored to almost new condition.
Regular servicing and preventative maintenance
Quick and professional analysis of damage
Crash repairs from small bumps to full rebuilds
Rapid Repair & Spares
Ensure minimal downtime costs before incidents occur by purchasing a rapid repair kit. It includes all wear and special parts for your unit, providing reliable support even for custom solutions.
Reduce downtime costs due to a machine standstill
All critical wear and special parts available
Rapid repair kits can be purchased for any new or old BENZ angle head
