Multifunctional Turn, Drill, Face & Boring System

  DRILL, BORE, FACE & TURN WITH JUST ONE HOLDER

PERFECT FOR SMALL TURRETS WITH LIMITED STATIONS

 for mould and die

  HIGHLY ECONOMICAL - 1 MULTITURN HOLDER CAN REPLACE 3-4 TOOLS

MULTIFUNCTIONAL SYSTEM FOR DRILLING, BORING, FACING & OD TURNING

One tool holder and insert can be used to perform 4 possible operations.

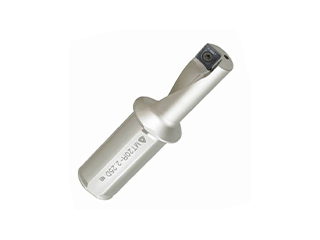

Multiturn Holders

Steel shank body from Korloy & Teknik

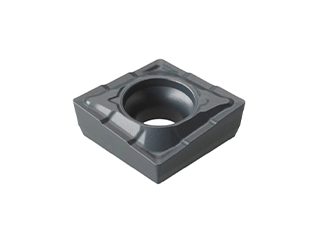

General Purpose Coated Inserts

NC3225 (Steel), NC6315 (Cast Iron) & PC5300 (General Purpose) grades

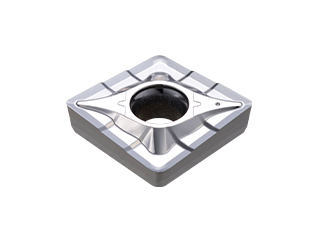

Polished Inserts for Aluminium

H01 (Aluminium & Non-Ferrous) grade



OD TURNING



FACE TURNING



DRILL & BORE


Features & Benefits



  • Improved surface roughness and reduced cutting load by inclined cutting edge.
  • Stepped design on the cutting edge enables stable machining by minimizing cutting edge part on workpiece when machining starts.
  • Excellent cutting performance due to small radius width of chips.
  • Helix-angled flute design enables smooth chip evacuation.
  • Through coolant system leads to longer tool life and smooth chip evacuation.

Insert Grades

NC3225

Coated grade suitable for use on Carbon Steels & Alloy Steels.

NC6315

Coated grade suitable for use on Grey Cast Iron & Ductile Cast Iron.

PC5300

General purpose coated grade which is ideal for machining Stainless Steels.

H01

Polished grade designed specifically for aluminium and non-ferrous machining.

See the Korloy Multi-turn system in action...
