Dinox FBH-B Modular Boring & Back Boring System | Cutwel

HSK Tool Holder For Dinox Modular Finish Boring & Back Boring Systems - FBH/B Series (Dine)

This HSK Tool Holder is suitable for use with the Dinox FBH/B Modular Finish Boring and Back Boring System. These tool holders are through coolant and are available in various lengths. They can also b...

HSK Tool Holder for FBH/B Boring System
Through Coolant
FBH/B System for boring 20-150mm bores
Also suitable for back boring 29-150mm bores
Up to 172mm bores can be achieves via an extensions type bite
Use Connect Code to match to head and bite

From £266.76 £222.30

View Products

Extension Bar for Dinox Modular Finish Boring & Back Boring System - FBH/B Series (Dine)

This extension bar is part of the Dinox FBH/B Finish Boring and Back Boring Modular Boring System. It allows you to extend the reach of your boring head for deeper bores. Please use connect code to ma...

Extend the reach of your boring head for deeper bores
FBH/B series for boring 20-150mm bores
Also suitable for back boring 29-150mm bores
Up to 172mm bores can be achieves via an extensions type bite
Use Connect Code to match to head and tool holder

From £58.98 £49.15

View Products

BT MAS Tool Holder For Dinox Modular Finish Boring & Back Boring Systems - FBH/B Series (Dine)

This BT MAS Tool Holder is suitable for use with the Dinox FBH/B Modular Finish Boring and Back Boring System. These tool holders are through coolant and are available in various lengths. They can als...

BT MAS Tool Holder for FBH/B Boring System
Through Coolant
FBH/B System for boring 20-150mm bores
Also suitable for back boring 29-150mm bores
Up to 172mm bores can be achieves via an extensions type bite
Use Connect Code to match to head and bite

From £32.94 £27.45

View Products

Bite for Dinox Modular Boring & Back Boring System - FBH/B Series (Dine)

This bite is part of the Dinox FBH/B Finish Boring and Back Boring Modular Boring System. FBH/B Bites can take selected standard ISO inserts such as CCET, CCMT, CCGT, TPGT, TPGW, please check for appl...

Takes standard ISO inserts (CCET/CCMT/CCGT/TPGT/TPGW).
For use with FBH/B Boring Heads.
FBH/B system is suitable for use with Dine branded BT, SK and HSK type basic Tool Holders.
The system is ideal for boring from 20mm up to 150mm and back boring from 29mm up to 150mm.

From £77.22 £64.35

View Products

DIN69871 SK Tool Holder For Dinox Modular Finish Boring & Back Boring Systems - FBH/B Series (Dine)

This SK DIN69871 Tool Holder is suitable for use with the Dinox FBH/B Modular Finish Boring and Back Boring System. These tool holders are through coolant and are available in various lengths. They ca...

DIN69871 SK Tool Holder for FBH/B Boring System
Through Coolant
FBH/B System for boring 20-150mm bores
Also suitable for back boring 29-150mm bores
Up to 172mm bores can be achieves via an extensions type bite
Use Connect Code to match to head and bite

From £38.20 £31.83

View Products

Reduction Bar for Dinox Modular Finish Boring & Back Boring System - FBH/B Series (Dine)

This reduction bar is part of the Dinox FBH/B Finish Boring and Back Boring Modular Boring System. It allows you to use smaller diameter boring heads without the need for extra tool holders, which is ...

Reduce tool holder costs and set up times
FBH/B series for boring 20-150mm bores
Also suitable for back boring 29-150mm bores
Up to 172mm bores can be achieves via an extensions type bite
Use Connect Code to match to head and tool holder

From £116.93 £97.44

View Products

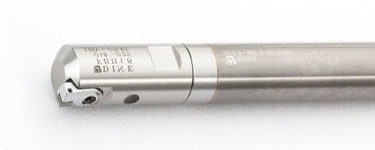

Straight Shank Dinox Modular Finish Boring & Back Boring System - FBH/B Series (Dine)

This straight shank modular finish boring system comprises of a steel or carbide shank with a boring head (bite and inserts supplied seperately). This system is ideal for boring from 15mm up to 43mm. ...

Available in Steel or Carbide Shank
FBH/B series for boring 15-43mm bores
Also suitable for back boring
Through coolant
0.002mm fine adjustment
Use Connect Code to match to applicable bite

From £561.74 £468.12

View Products

Boring Head for Dinox Modular Finish Boring & Back Boring System - FBH/B Series (Dine)

This boring head is part of the Dinox FBH/B Modular Finish Boring and Back Boring System. This system is ideal for boring from 20mm up to 150mm and back boring from 29mm up to 150mm. (172mm boring ran...

Also suitable for back boring 29-150mm bores
Up to 172mm bores can be achieves via an extensions type bite
Use Connect Code to match to tool holder and bite

From £441.86 £368.22

View Products
