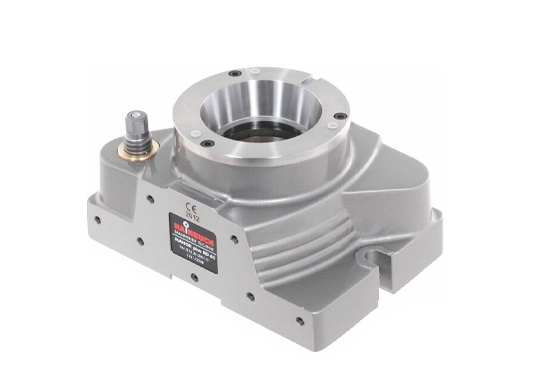

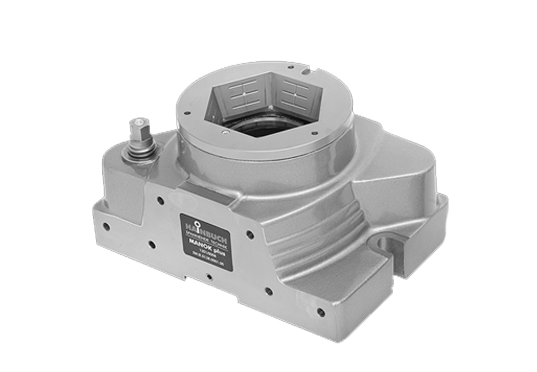

Manok Plus Manual Chuck
With manual actuation - No clamping cylinder or hydraulic required

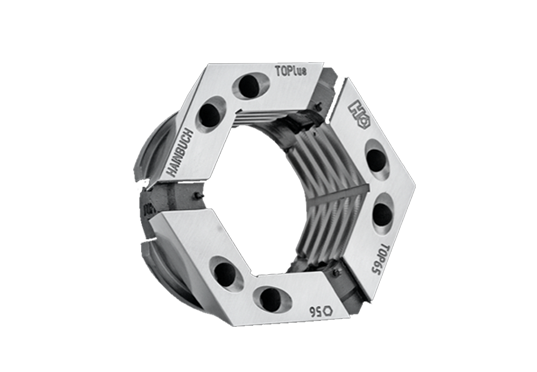

Suitable for use with round and hexagon clamping heads
Available Adapters
Features
Manual Actuation
No clamping cylinder or hydraulic required
5-Axis Machining
Ideal for complete workpiece machining
Clamping Range
3-65mm using round or hexagon clamping heads

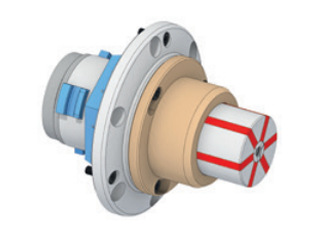

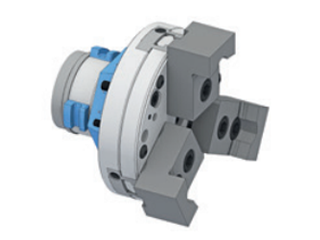

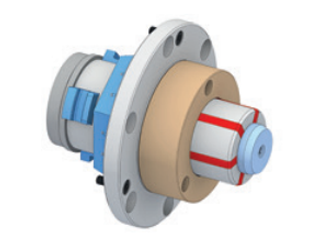

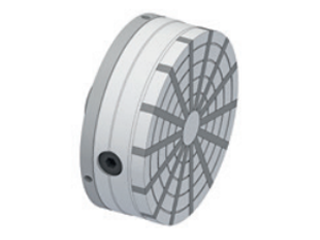

Additional Adapters
To create a versatile modular clamping system
Available for use with
Round Clamping Heads
Round geometry offers higher holding forces than conventional 3 jaw chucks
Specification
| SE (Hex) |
RD (Round) |
|
|---|---|---|
| Size | 65 | 65 |
| Repeatability | 0.01 | 0.01 |
| Max Radial Clamping Force kN | 120 | 105 |
| Max Actuating Torque Nm | 100 | 100 |
| Weight (kg) | 23.5 | 23.5 |
| Order Code | 1201/0009 | 1201/0008 |
