Gerardi Evolution Line

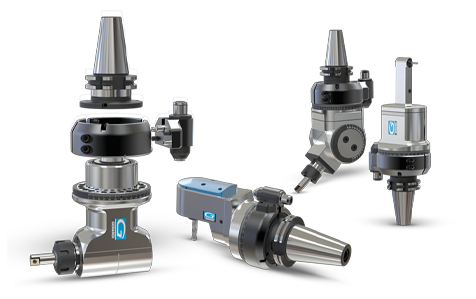

Gerardi Evolution Line Angle Heads

Interchangeable Drive Taper which enables the same angle head to be used in different machines (e.g. BT or SK)

High machining speeds

Gerardi's Evolution Line angle heads feature an interchangeable Drive Taper which enables the same angle head to be used of different machines (e.g. BT or SK) simply by changing the input shaft.


ATC Series

Designed for CNC machines with automatic tool change and can be automatically transferred from the tool store to the machine spindle and vice-versa. The orientation ring and arrester arm support ring are both 360° adjustable to allow the best angular orientation.



MTC Series

This range of angle heads is for conventional machines without automatic tool change. MTC angle heads (Manual Tool Change) are manually mounted on the machine headstock through a flange.

Features

High performance
Heavier duty
Modular shanks
High machining speeds
Exceptional tool life guarenteed

ATC SLIM Series

Ideal for micro-machining in narrow spaces.

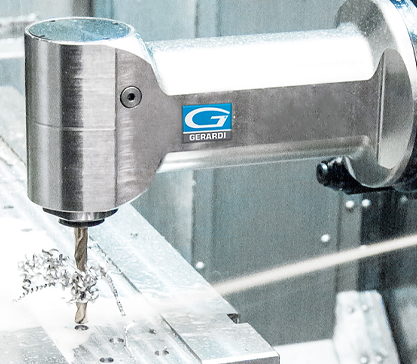

ATC F90 Series

Ideal for milling, drilling, tapping
at ±90.


CoolSpeed® Mini 90

Long series for deep machining applications.


CoolSpeed® Mini Air

Coolant input from positioning pin and output through the tool.


ATC FR90 70BAR Series

Offset series for machining in
narrow spaces.

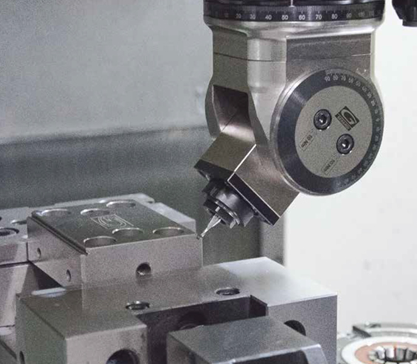

ATC FMU Series

Adjustable output at ±90° for tilt drilling, milling and tapping.


CMTC F90S Series

8.000RPM high speed angle head
with exceptional performance.


MTC F900L Series

High torque angle head for heavy
duty machining.

Accessories

Collets

ER-DIN 6499 / ET1

Nuts

ER-DIN 6499 / ET1

Wrench

ES (Exagonal)
STD (Standard)

Anti- Rotation Group

Composed by pin group, ring and shank group

Stop Block

Avoids the rotation of the angle head and ensures perfect stability, high precision

Pin Group

Positioning pin with through coolant to guarantee the correct pitch

Universal Flange

Used for the interface between the MTC angle head and the machine spindle

Extensions

Extend the length of MTC angle head bodies by adding an extension

PDF Download
Gerardi Angle Heads

Instant Technical Support

Our in-house technical support team are on hand to deal with simple to complex engineering problems and enquiries.

Each member brings with them their own experience and know-how to add to our growing pool of technical knowledge. That’s why our services are known for being the best in the business!

Our technical line is open from 8am to 5:45pm (4.30 Fridays)
