Roughness Testers

Roughness Testers

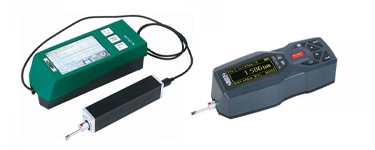

Our range of roughness testers from Insize provide quick and accurate measurements and can be used on a variety of surfaces. A roughness tester shows the measured roughness depth (Rz) as well as the mean roughness (Ra) in microns (µm).

Filter By arrow
carrat-down

10 Items

Sort By
carrat-down
sort-descending
Portable Surface Roughness Tester (Moore & Wright)
Portable Surface Roughness Tester (Moore & Wright)

The MWT-1100 roughness tester can be used for a multitude of metallic or non-metallic surfaces. A bright LCD display allows simple configuration and gives readings in multiple units. When measuring, t...

  • Bright LCD display for wide angle viewing Digital signal processing for high accuracy measurement
  • Selectable measuring parameters, sample distance and units
  • Internal storage of 500 data points
  • Data export to PC, analysis and reporting by dedicated software
  • Aluminium housing for high durability and protection from electromagnetic interference
  • Stroke length = 5.6mm
  • Sampling length = 0.25mm, 0.80mm, 2.50mm
  • Evaluation length = 1.25mm, 4.0mm, 5.6mm
  • Measuring range (µm) = Ra: Rq: 0.05 - 10.0, Rz: Rt: 0.1 - 50
  • Indication variability = <6%
  • Indication error = +-10%
  • Arc radius and angle of sensor stylus tip = Tip arc radius: µm +- 1 µm, Angle: 90 degrees
  • Parameter (µm): Ra, Rz, Rq, Rt
  • Static force of sensor stylus (N) = <0.016
  • Suitable for working environment conditions of 0°C - 40°C and relative humidity of <90%
  • Supplied with a reference standard block for test and calibration

From £1,386.00 £1,155.00

View Products
Roughness Tester - ISR-C03 Series (Insize)
Roughness Tester - ISR-C03 Series (Insize)

The Insize ISR-C03 is a compact Roughness Tester for quick and accurate measurements and can be used on a variety of surfaces. A roughness tester shows the measured roughness depth (Rz) as well as the...

  • Roughness parameters (Ra, Rz, Rq, Rt).
  • Measuring range up to 50µm.
  • Outmatic power off.
  • Main unit.
  • Calibration block.
  • AC/DC adapter.

From £1,292.29 £1,076.91

View Products
Portable Surface Roughness Tester – MarSurf PS 10 Series (Mahr)
Portable Surface Roughness Tester – MarSurf PS 10 Series (Mahr)

The MarSurf PS 10 series portable roughness tester is ideal for measuring the surface roughness of an object or workpiece. The portable design makes this perfect for mobile usage due to its built-in r...

  • Easy and intuitive operation: as easy as operating a smartphone
  • Large, illuminated 4.3“-TFT touch display
  • Adjustable display
  • In the palm of your hand. Small size and light weight (approx. 500 g)
  • Instrument flexibility: removable drive unit
  • 31 parameters: offer the same range of functions as a laboratory instrument.
  • Data backup as TXT, X3P, CSV and PDF file
  • Creation of finished PDF protocols directly in the measuring device
  • Customized comments for the PDF protocol are entered directly on the MarSurf PS 10
  • Mains-independent operation: Over 1200 measurements without having to recharge the instrument
  • Work without errors: through integrated, removable roughness standard
  • Quick access to your desired functions thanks to favorites stored in the display
  • Working without errors: due to integrated, removable roughness standard
  • Automatic cutoff selection: ensures correct measurement results even for the non-specialist
  • Made by premium German supplier Mahr for the highest quality & efficiency

From £2,909.09 £2,424.24

View Products
Portable Surface Measuring Instrument - MarSurf M 410 Series (Mahr)
Portable Surface Measuring Instrument - MarSurf M 410 Series (Mahr)

The Portable Surface Measuring Instrument is ideal for easy documentation of results thanks to the mobile printer and data back up features, It is also lightweight and easy to use ensuring accurate an...

  • Simple and intuitive operation: as easy as operating a smartphone
  • Large, illuminated 4.3" TFT touch display
  • Assistant-guided tilt adjustment
  • Unique touch arm management
  • Separation of display and drive unit
  • 55 parameters
  • Magnetic stylus arm mounting
  • Automatic cutoff selection: ensures correct measurement results even for the non-measuring technician
  • Made by premium German supplier Mahr for the highest quality & efficiency

From £9,940.32 £8,283.60

View Products
Surface Roughness Specimen Set - ISR CS2 Series (Insize)
Surface Roughness Specimen Set - ISR CS2 Series (Insize)

The Insize ISR-CS Surface Roughness Specimen Set is for checking, identifying and specifying the roughness by symbol. Made of carbon steel....

  • For checking, identifying and specifying the roughness by symbol.
  • Made of carbon steel

From £178.80 £149.00

View Products
Surface Roughness Reference Specimens - ISR-RS Series (Insize)
Surface Roughness Reference Specimens - ISR-RS Series (Insize)

The Insize ISR-RS Surface Roughness Reference Specimens is used to calibrate roughness testers and meets ISO 5436-1: 200 standards. The specimin is made of pure nickel and is therefore rust proof. ...

  • Used to calibrate roughness testers.
  • Meets ISO 5436-1: 2000 standard.
  • Made of pure nickel.
  • Rust proof.
  • Please note: Actual roughness value (Ra) may be slightly different.

From £914.27 £761.89

View Products
Roughness Tester - ISR-S Series (Insize)
Roughness Tester - ISR-S Series (Insize)

The Insize ISR-S is a handy mobile Roughness Tester for quick and accurate measurements and can be used on a variety of surfaces. A roughness tester shows the measured roughness depth (Rz) as well as ...

  • Automatic probe levelling.
  • Language: English, French, German, Italian, Spanish, Portuguese.
  • 12 roughness parameters (Ra, Rq, Rt, Rz, Rc, Rmax, Rsm, Rpc,Rmr, R, AR, Rx).
  • Can set tolerance.
  • Measuring range up to 400µm (can measure grit and shot blasting).
  • Traverse length up to 16mm.
  • The probe can be set at 90°or 270°, for transverse measurement.
  • Memory of maximum 100 results.
  • Main unit.
  • Standard probe.
  • Calibration block.
  • Adjustable stand.
  • AC/DC adapter.
  • Probe cover.
  • USB cable and output software.

From £2,895.31 £2,412.76

View Products
Roughness Tester - ISR-C Series (Insize)
Roughness Tester - ISR-C Series (Insize)

The Insize ISR-C is a handy mobile Roughness Tester for quick and accurate measurements and can be used on a variety of surfaces. A roughness tester shows the measured roughness depth (Rz) as well as ...

  • 21 roughness parameters (Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz, (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS) Rmax).
  • Measuring range up to 160µm.
  • Memory of maximum 100 results.
  • Main unit.
  • Standard probe.
  • Calibration block and support.
  • Adjustable stand.
  • AC/DC adapter.
  • Probe cover.
  • Software.

From £1,198.80 £999.00

View Products
Roughness Tester (Separable Type) - ISR-C Series (Insize)
Roughness Tester (Separable Type) - ISR-C Series (Insize)

The Insize ISR-C3 is a handy mobile Roughness Tester (separable type) for quick and accurate measurements and can be used on a variety of surfaces. A roughness tester shows the measured roughness dept...

  • Roughness tester can be operated by mobile phone (android only) or computer.
  • Data output to excel via bluetooth or USB.
  • 22 roughness parameters (Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rc, Rz, (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS) Rmax).
  • Measuring range 320µm.
  • Memory of maximum 100 results.
  • Touch screen.
  • Auto power off.
  • Main unit.
  • Standard probe.
  • Calibration block and support.
  • Connecting cable (long and short).
  • Magnetic stand adapter.
  • Adjustable stand.
  • Touch pen.
  • AC/DC adapter.
  • USB cable and Software.

From £1,639.73 £1,366.44

View Products
3μm Surface Roughness Reference Specimens - ISR-RS Series (Insize)
3μm Surface Roughness Reference Specimens - ISR-RS Series (Insize)

The Insize ISR-RS Surface Roughness Reference Specimens is used to calibrate roughness testers and meets ISO 5436-1: 200 standards. The specimin is made of pure nickel and is therefore rust proof. ...

  • Used to calibrate roughness testers.
  • Meets ISO 5436-1: 2000 standard.
  • Made of pure nickel.
  • Rust proof.
  • Please note: Actual roughness value (Ra) may be slightly different.

From £973.45 £811.21

View Products
