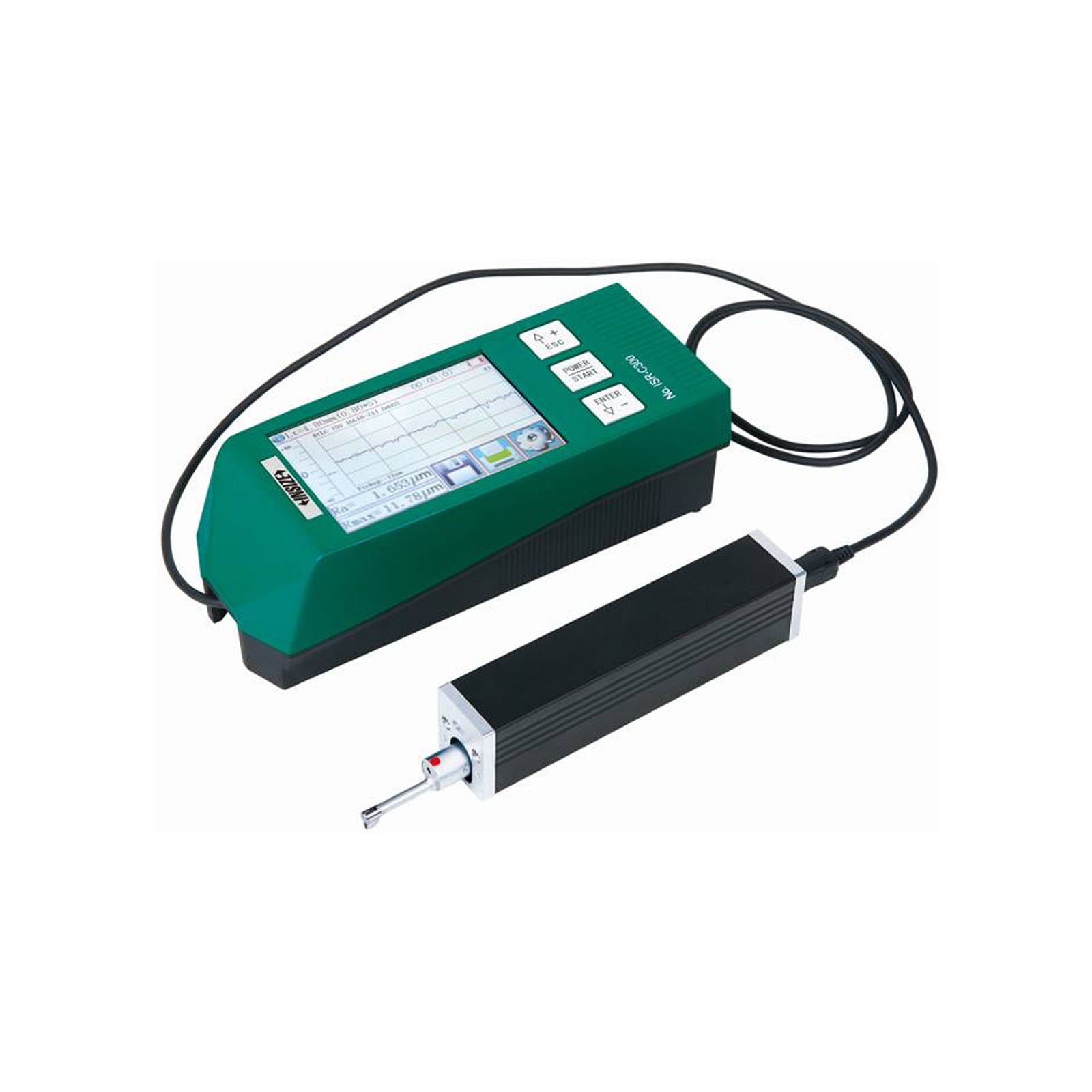

Roughness Tester (Separable Type) - ISR-C Series (Insize)
Roughness Tester (Separable Type) - ISR-C Series (Insize)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Range
|
Measuring Force
|
Output
|
Parameters
|
Probe
|
Dimensions
|
Accuracy
|
Resolution
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Range: X axis: 17.5mm, Z axis: 320µm(-160µm-160µm) | Measuring Force: 4Nm | Output: USB and Bluetooth | Parameters: Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax | Probe: Inductive, 5µm/90° Radius, Diamond | Dimensions: 158x64x63mm | Accuracy: 10% | Resolution: 0.001µm |
In stock
|
£1,639.73
£1,366.44
|
|
Product Information
Features & Benefits
- Roughness tester can be operated by mobile phone (android only) or computer.
- Data output to excel via bluetooth or USB.
- 22 roughness parameters (Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rc, Rz, (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS) Rmax).
- Measuring range 320µm.
- Memory of maximum 100 results.
- Touch screen.
- Auto power off.
- Main unit.
- Standard probe.
- Calibration block and support.
- Connecting cable (long and short).
- Magnetic stand adapter.
- Adjustable stand.
- Touch pen.
- AC/DC adapter.
- USB cable and Software.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Roughness Testers & Accessories |
| Sub Category 2 | Roughness Testers |
| Brand | Insize |
