What Are Carbide Rotary Burrs

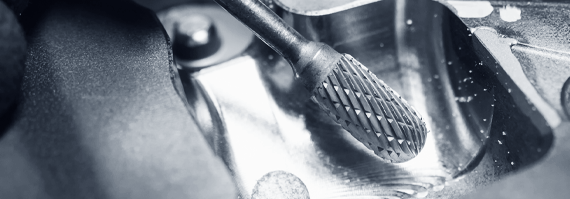

Carbide rotary burrs (or burs) are cutting tools made from tungsten carbide. They are mounted on rotary tools like die grinders or bench grinders.
- Material: Tungsten carbide is exceptionally hard and heat resistant. This means carbide burrs retain sharp cutting edges under high temperatures, resist wear, and maintain performance over longer life versus many HSS or softer options.
- Function: Used for shaping, cutting, grinding, deburring, slotting, removing welds, smoothing edges and finishing contours. Their geometry allows aggressive material removal while allowing control and precision.
- Applications: Metalworking (steel, stainless, cast iron), non-ferrous metals (aluminium, brass), composites, and sometimes harder plastics. Carbide burrs are preferred where hardness, edge retention, or heat resistance is important.
Types & Shapes / Geometries Available
Cutwel’s product range illustrates a broad variety of burr shapes and geometries to meet different needs. Some of the most common include:
- Cylinder (without end cut) – Type A: For surface work; flat surfaces, side cutting only.
- Cylinder (with end cut) – Type B: Allows cutting at the end face as well as the sides; useful for grooves or end-profile work.
- Ball Nose Cylinder – Type C: Rounded front edge; good for curved surfaces and profile blending.
- Ball Shape – Type D: Sphere shape for contour work, radii, and smooth transitions.
- Oval Shape – Type E: Elongated profile; tends to smooth and shape curves more gently.
- Tree, Ball Nose Tree – Types F & G: Tapered/pointed forms to reach into tight or angled spaces.
- Flame Shape – Type H: Flame or tipped shape useful for detail work, corners, tight contours.
- Cone, Inverted Cone, Ball Nose Cone (Types L, M, N, etc.): For deburring or shaping in angled or conical profiles.
- Countersink – Type J: To cut or bevel holes, chamfers or countersinks.
- Rim shape: For edge work or finishing around profiles or holes.
Beyond shape, burrs differ by geometry / cut type:
- Single-cut: One set of straight teeth; good for general purpose cutting, smoother finish on many ferrous materials.
- Double-cut (cross-cut): Two interlaced sets of cutting teeth; more aggressive removal, less vibration, better finish in many cases.
- Alu-cut: Special tooth design for non-ferrous metals (aluminium, brass, copper) that tends to prevent clogging and build-up.
- INOX / Steel Cuts: Specialised tooth designs optimised for stainless steel and steels to reduce heat and gumming.
- Heavy-duty / NG6: Coarse cut and ultra high performance series offering maximum stock removal and exceptional surface finish.
How to Select the Right Rotary Burr for Your Application
Choosing the right burr depends on several key factors:
- Material: Stainless steel needs INOX geometry; aluminium/non-ferrous metals need alu-cut; cast iron and hard steels may need heavy-duty or coarse geometry.
- Shape/Profile: Cylinders for flat surfaces, ball/oval/tree for contours, cylinders with end cut or tapers for slots and grooves, cones/flames for tight access.
- Diameter & Shank: Larger diameters for bulk removal, smaller for detail. Match shank size (e.g. 6mm, 1/4") to your tool.
- Cut/Geometry: Double-cut for fast removal, single-cut for smoother finish, alu-cut for non-ferrous materials.
- Coating/Series: Options include uncoated or advanced series such as NG6 with high performance tooth forms.
- Speed & Safety: Match RPM to tool and burr rating, mount properly, use coolant/lubrication when required.
Why Buy Rotary Burrs from Cutwel
- Leading Brands: ATA Garryson & Karnasch, plus Cutwel Pro.
- Wide Variety: From cylinder, ball, tree, flame, cone to specialist shapes.
- Specialist Geometries: Alu-cut, INOX, steel cut, heavy duty, NG6 ultra performance.
- Stock & Delivery: Next-day UK delivery over £59 ex VAT; same-day dispatch before cut-off.
- Expert Support: Technical advice, recommender tools, custom/special tooling available.
- Quality & Durability: High grade carbide, precision geometries, tested for long tool life.
