• Strong, fast & powerful
• Available in ER11-ER32 & ISO40

• For smaller bores or cavities
• Available in ER16-ER32 & ISO40

• Adjustable angle 0-90°
• Available in ER16-ER32

• Lightweight aluminium housing
• Available in ER11-ER25

High Machining Speeds

Gerardi's Evolution Line angle heads feature an interchangeable Drive Taper which enables the same angle head to be used of different machines (e.g. BT or SK) simply by changing the input shaft.

ATC Series

ATC Series

Ideal for micro-machining in narrow spaces.

Ideal for milling, drilling, tapping
at ±90.

Long series for deep machining applications.

Coolant input from positioning pin and output through the tool.

Offset series for machining in
narrow spaces.

Adjustable output at ±90° for tilt drilling, milling and tapping.

8.000RPM high speed angle head
with exceptional performance.

High torque angle head for heavy
duty machining.

Our expert technical team are on hand to help

• All-rounder.
• For drilling, milling and sawing operations.
• Versatile use (e.g. drilling anchor holes, milling pockets, formatting of panels).

• Two horizontal tool holder for vertical sawing.
• Horizontal drilling and milling (e.g. drilling anchor holes, milling pockets, formatting of panels).

• Save valuable tool change times: with this unit you have four tools available directly on the workpiece.
• Suitable for milling and drilling operations.

• Due to its narrow design, this unit is suitable for plunging into small recesses (e.g. notching of inside corners on light cutouts).

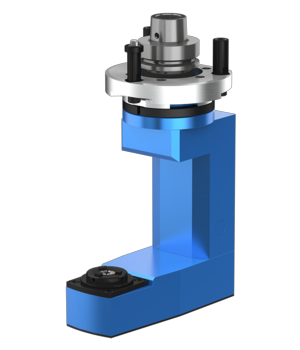

• Enables machining on the underside of the workpiece (e.g. connector pockets on kitchen countertops).

• Due to the recessed spindle output, this unit is ideal for horizontal machining with long tools.
• Additional second output spindle allows a second milling tool to be used without changing tools.

• Drilling, milling and sawing at any angle.
• The A-axis is manually adjustable from -5° to +100° (e.g. for any and all angled machining).

• The particularly low design was specially developed to prevent touchdown during horizontal machining on nesting tables.

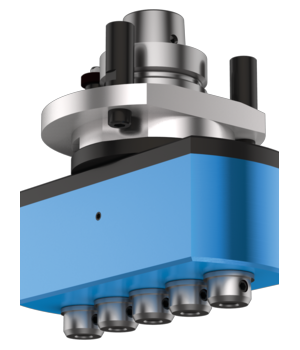

• Save time by drilling multiple holes in one machining step. Also available with 3, 7 or 11 spindles.
• Ideally suited for vertical row drilling (e.g. shaft beam drilling, shelves, hinges).

• With oil mist lubrication. Save time by drilling several holes in one machining step (e.g. acoustic panels).

• Reduction of machining time: drilling of pockets for cabineo connectors in one stroke = one hole instead of three.
• Integration of the machining process directly into your CAD planning.

• Panel scanning for horizontal holes. Surface tolerances are compensated by scanning the workpiece surface.
• The adjustable scanning shoe determines the position of the hole on the front side of the plate.

• Vertical floating for consistent machining depth despite variations in the thickness of the workpiece.

• Machining of the vertical profile groove for Tenso P-14 connecting fitting (Lamello P-System).

• Vertical floating for consistent milling depths despite varying thickness of the workpiece.
• Integrated chip conveyor for more cleanliness on the workpiece surface.

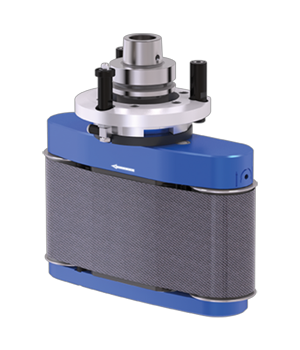

• Grinding of flat, concave and convex edges (e.g. on table tops, stair treads and stair stringers).

• Grinding of flat, concave and convex surfaces (e.g. chair backs, chamfers).

• Two horizontal tool holder for vertical sawing.
• Horizontal drilling and milling (e.g. drilling anchor holes, milling pockets, formatting of panels).

• Cutting of different materials like foam, cardboard, fabric, leather, veneer, rubber, carpet, felt, cork, soft plastic and many more.

• Drilling of horizontal square holes in one step (e.g. stake holes, angular recesses).

• Drilling of vertical square holes in one step (e.g. stake holes).

• Insertion of horizontal slots for window hinges.

• Insertion of vertical slots for window hinges.

• Mortising of very deep and flat pockets with automatic chain tensioning during the machining process. No chain lubrication required.

We will partner with you every step of the way

Project Management

Our goal is to support you in your tasks. Thanks to many years of expertise with Benz products, our technical team are here to help to make your production easier and more efficient.

Service & Repair

BENZ offers full repair, rebuild, and maintenance services for angle heads. Whether damaged or underperforming, most angle heads can be restored to almost new condition.

Rapid Repair & Spares

Ensure minimal downtime costs before incidents occur by purchasing a rapid repair kit. It includes all wear and special parts for your unit, providing reliable support even for custom solutions.
