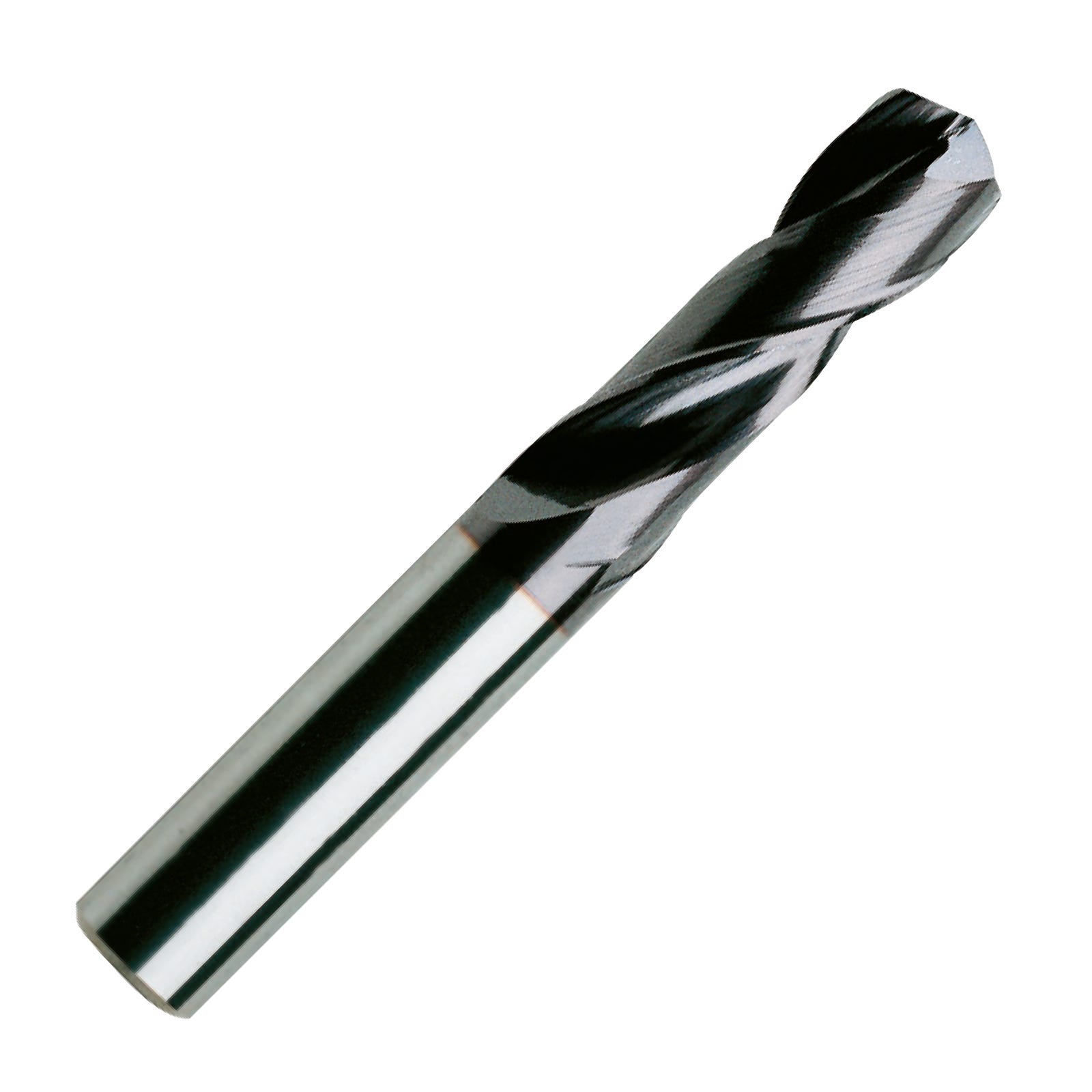

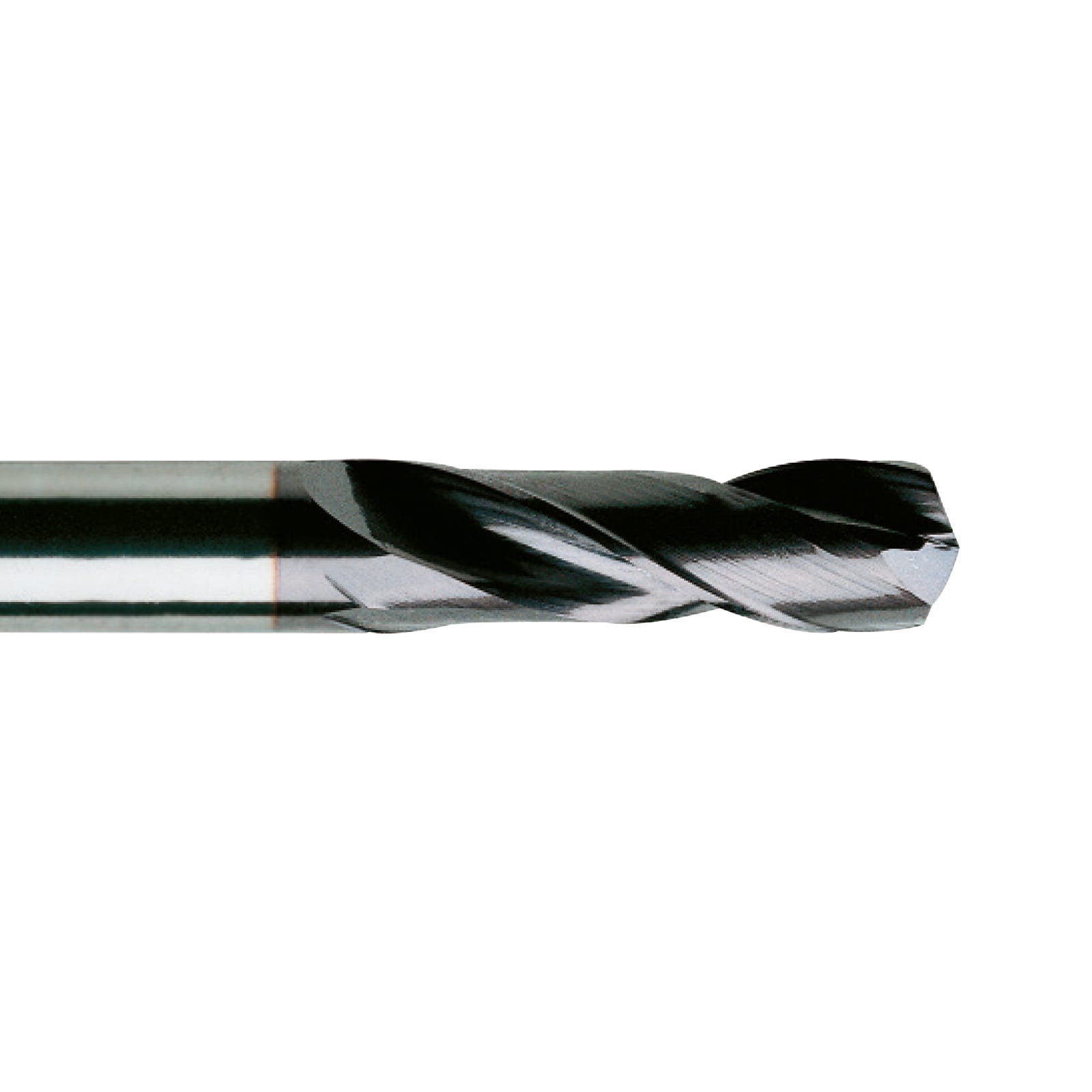

10.3mm TiAIN Coated Carbide Stub Dream Drill - DH404 Series (YG-1)
10.3mm TiAIN Coated Carbide Stub Dream Drill - DH404 Series (YG-1)

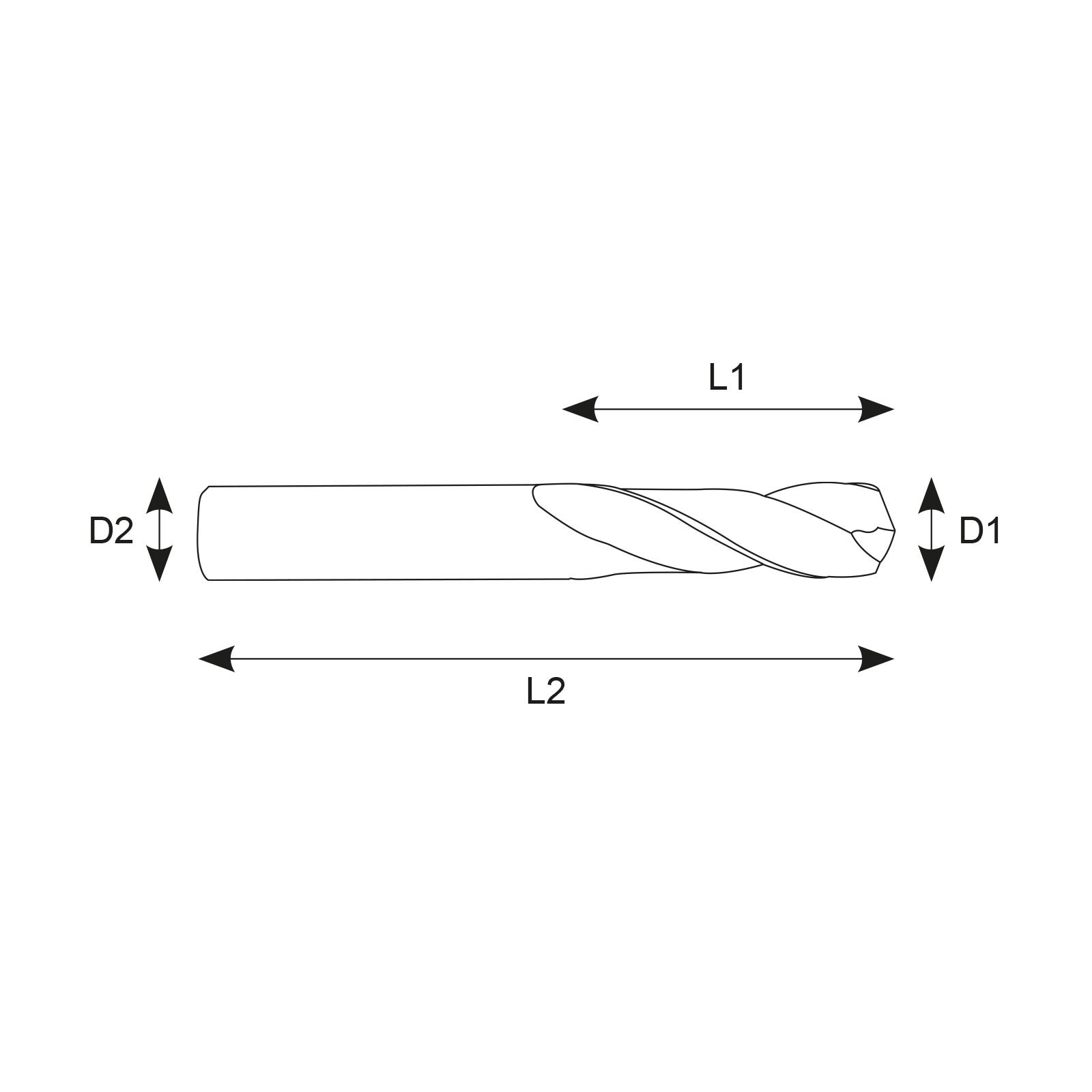

| Diameter (mm) | 10.3 |
|---|---|
| Overall Length (mm) | 89 |
| Flute Length (mm) | 43 |
| Shank (mm) | 10.3 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Micrograin Carbide Substrate
- TiAlN Coated High Performance Drill
- 3xD Stub Length
- Self Centering with 140 degree Drill Point
- High Performance Drilling on Steel
- Eliminates Reaming Operations
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Carbide Drills |
| Sub Category 2 | Dream Drill Steel |
| Diameter (mm) | 10.3 |
| Shank (mm) | 10.3 |
| Flute Length (mm) | 43 |
| Overall Length (mm) | 89 |
| Tolerance | h7 |
| Point Angle | 140° |
| Shank Type | Plain |
| Shank Tolerance | h6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Stub |
| Depth | 3xD |
| Performance | 4 |
| Coating Description | Micrograin Solid Carbide |
| Through Coolant | No |
| Substrate Description | TiAlN coated |
| Self Centring | Yes |
| Helix Angle | 30° |
| Brand Range | Dream Drill |
| Brand | YG-1 |
