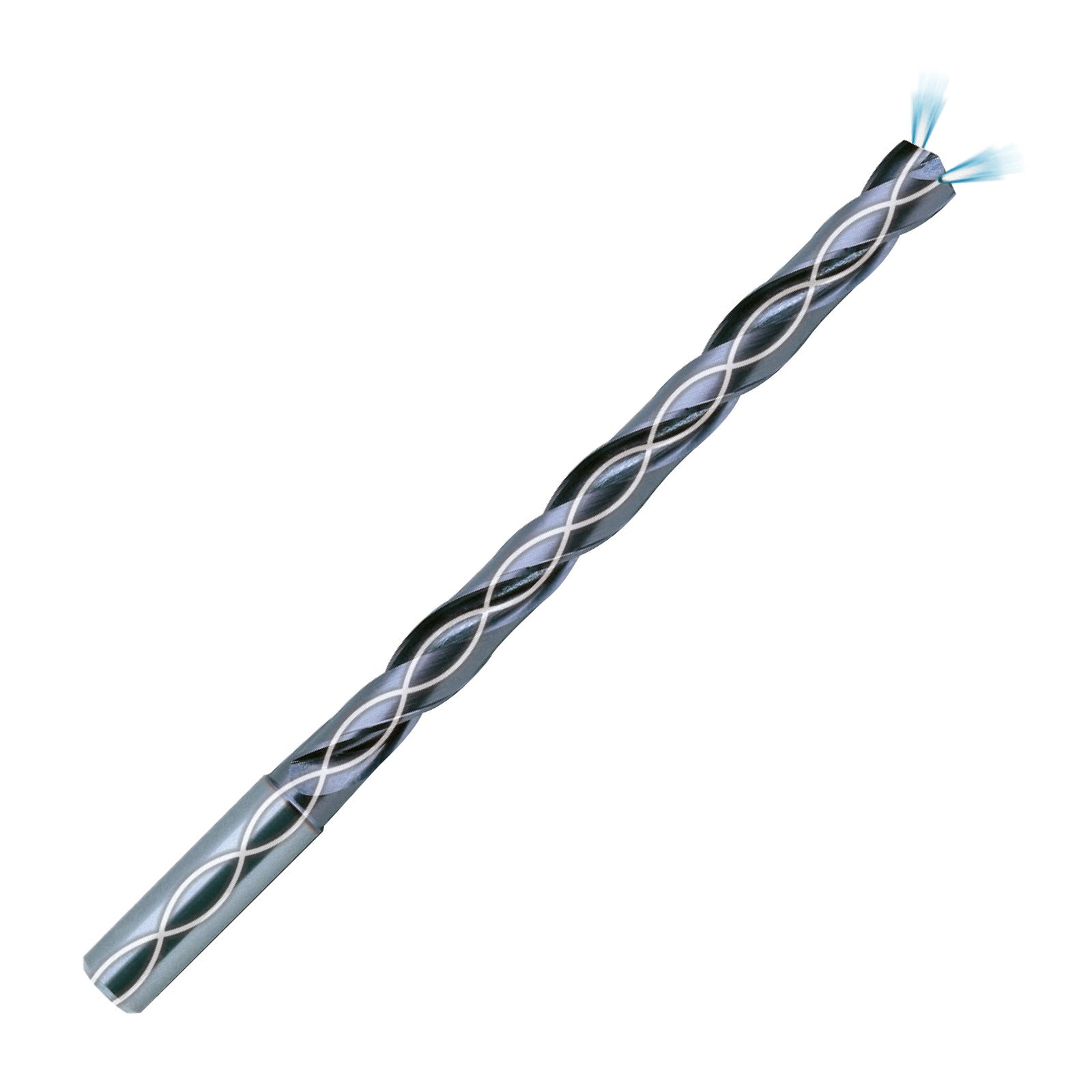

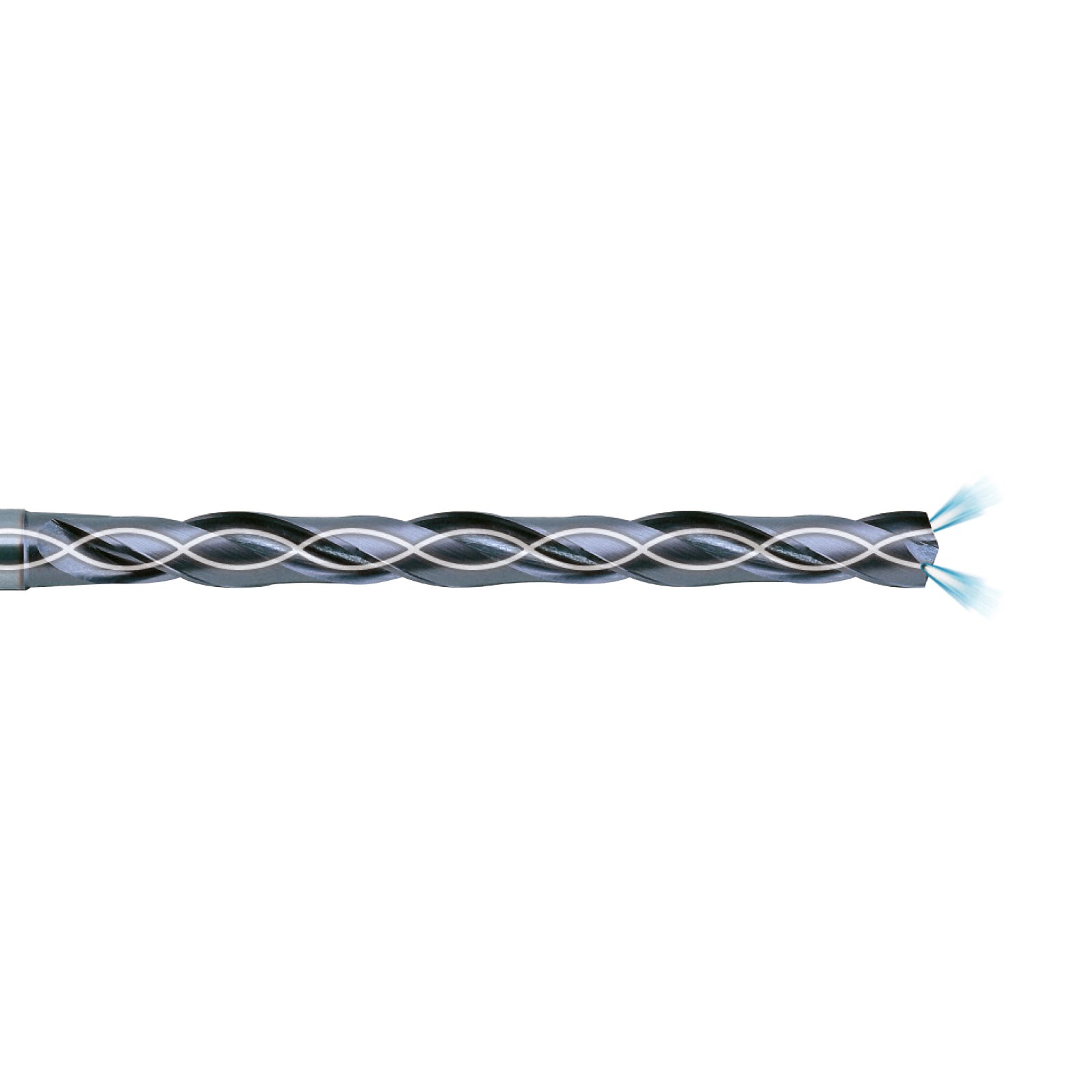

12.5mm TiAIN Coated Carbide Through Coolant Long Length INOX Dream Drill for Stainless Steel - DH453 Series (YG-1)
12.5mm TiAIN Coated Carbide Through Coolant Long Length INOX Dream Drill for Stainless Steel - DH453 Series (YG-1)

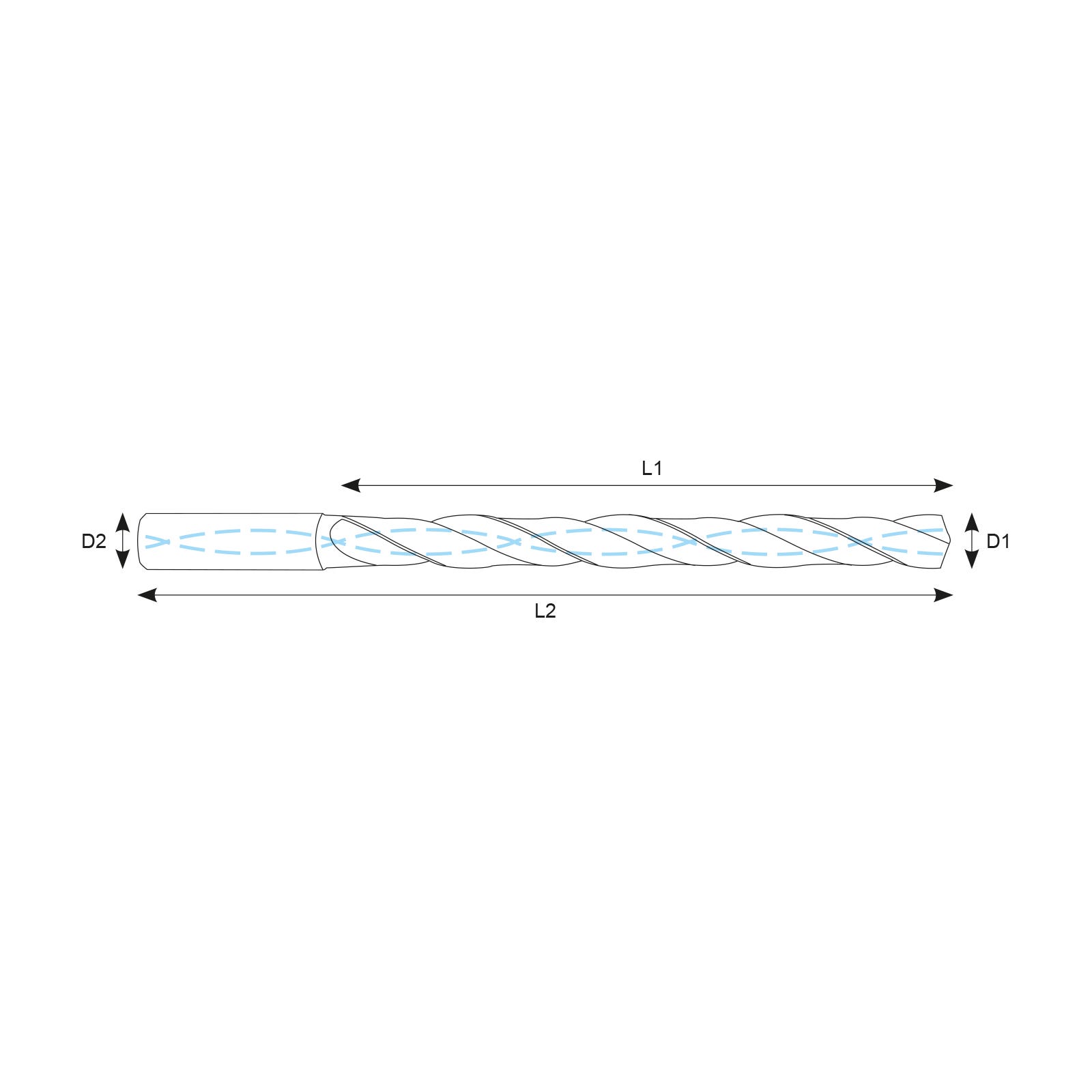

| Diameter (mm) | 12.5 |
|---|---|
| Overall Length (mm) | 178 |
| Flute Length (mm) | 133 |
| Shank (mm) | 14 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Micrograin Carbide Substrate
- TiAlN Coated High Performance Drill
- INOX Geometry for High Performance Drilling on Stainless Steel
- 8xD Long Length
- Self Centering with 140 degree Drill Point
- Whole Number Shanks
- Through Coolant
- Eliminates Reaming Operations
- Also Suitable for Steel, Titanium & HRSA Materials
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Carbide Drills |
| Sub Category 2 | Dream Drill INOX |
| Diameter (mm) | 12.5 |
| Shank (mm) | 14 |
| Flute Length (mm) | 133 |
| Overall Length (mm) | 178 |
| Tolerance | m7 |
| Point Angle | 140° |
| Shank Type | Plain |
| Shank Tolerance | h6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Long |
| Depth | 8xD |
| Performance | 5 |
| Coating Description | Micrograin Solid Carbide |
| Through Coolant | Yes |
| Substrate Description | TiAlN coated |
| Self Centring | Yes |
| Helix Angle | 30° |
| Brand Range | Dream Drill INOX |
| Brand | YG-1 |
