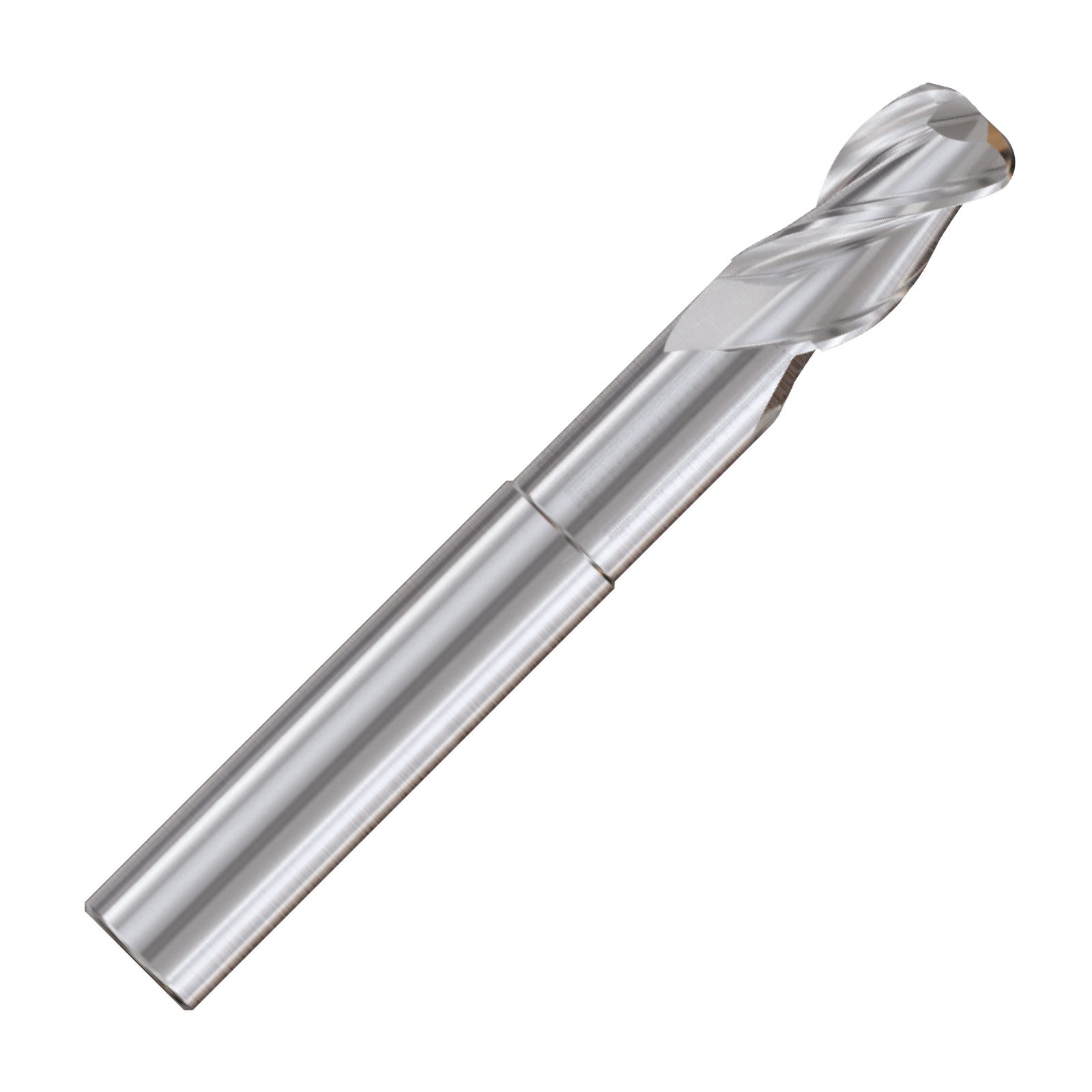

The E5H25 series features a corner radius and reduced neck diameter to prevent interference with the workpiece. The LAPPED flutes are ideal for soft/sticky materials with low wear resistance. While other 3-flute end mills can muster up the speed for rough cutting aluminium, few can make it through without melting down the aluminum that surrounds the work itself. That’s where the ALU-POWER HPC has a distinct advantage – speed, strength and sharpness. ALU-POWER HPC’s highly polished 3-flute design provides more balanced cutting performance – without excessive heat build up resulting in longer tool life, balanced cutting without vibration, extreme cutting conisations and supreme metal removal rates in aluminium, non-ferrous alloys and plastics.
Micrograin carbide substrate
Deep flute pockets
Extreme metal removal rates
Polished flutes for excellent chip flow
Effective chip evacuation at high feed rates with lower cutting forces
Highly effective in vertical ramping up to 20 degrees and step-over plunging applications
3 flute ‘centre match’ HPC geometry for high feed rates & large depth of cut
Specification
Category
Milling
Sub Category
Milling Cutters
Sub Category 2
Alu-Power HPC Milling Cutters

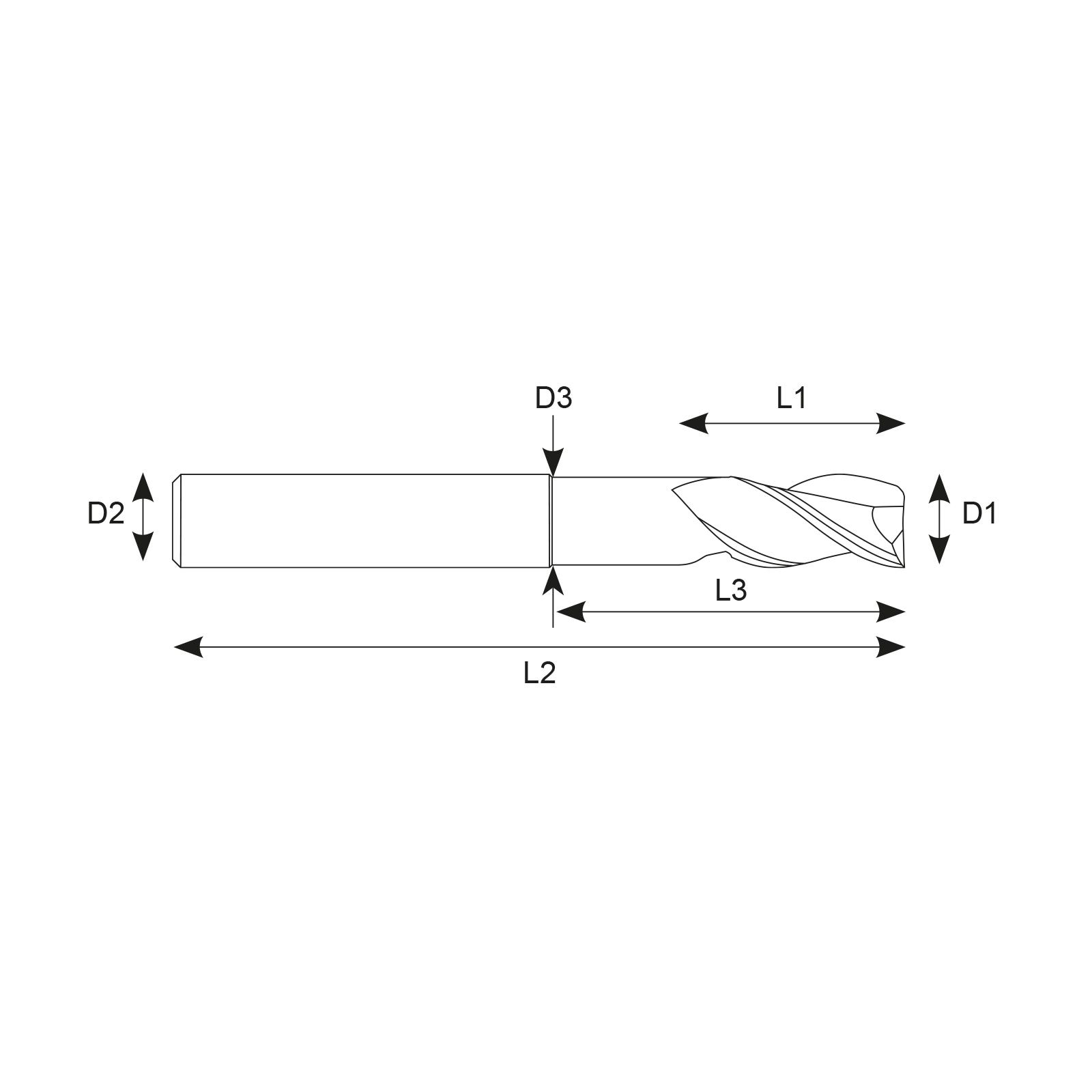

Diameter (mm)
12
Shank (mm)
12
Radius
3
Flute Length (mm)
19
Overall Length (mm)
100
Flutes
3
Substrate
Carbide
Surface Treatment
Uncoated
End Profile
Corner Radius
Flute Type
Reduced Neck
Shank Type
Plain
Applicable Materials
Non-Ferrous
Helix Profile
Standard
Performance
5
Substrate Description
Micrograin Carbide
Helix Angle
37°
Brand
YG-1
Application
