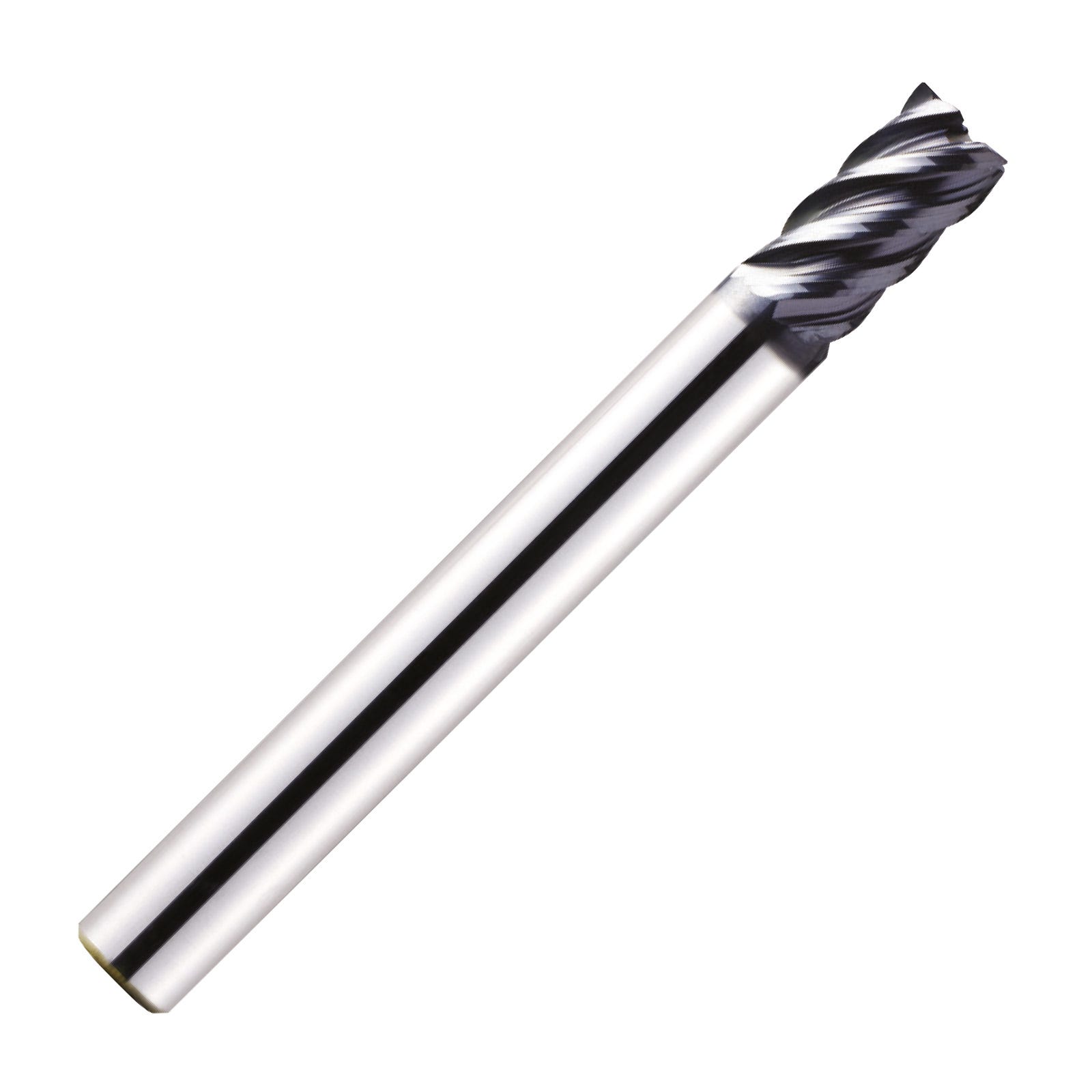

12mm 5 Flute V7 Inox Variable Helix TiAlN Coated Carbide Chamfer Prep Plain Shank End Mill - EMB72 (YG-1)
12mm 5 Flute V7 Inox Variable Helix TiAlN Coated Carbide Chamfer Prep Plain Shank End Mill - EMB72 (YG-1)

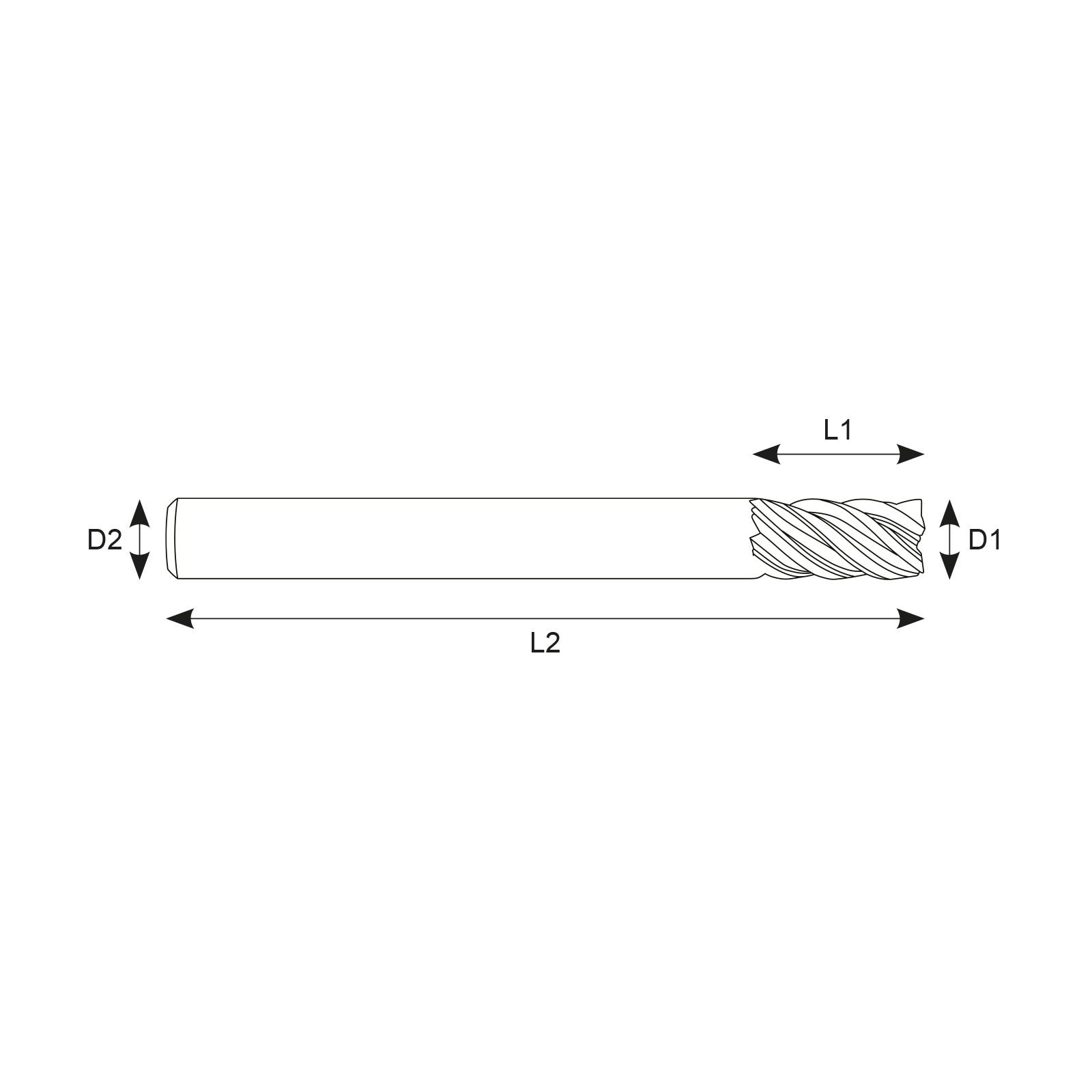

| Diameter (mm) | 12 |
|---|---|
| Overall Length (mm) | 83 |
| Flute Length (mm) | 26 |
| Shank (mm) | 12 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- TiALN coated premium grade micrograin carbide
- HPC (High performance cutting)
- Higher speeds, deeper cuts and higher metal removal rates than standard cutters
- Variable helix & unequal flute spacing eliminates vibration
- 5 Flutes ideal for finishing or high feed profiling

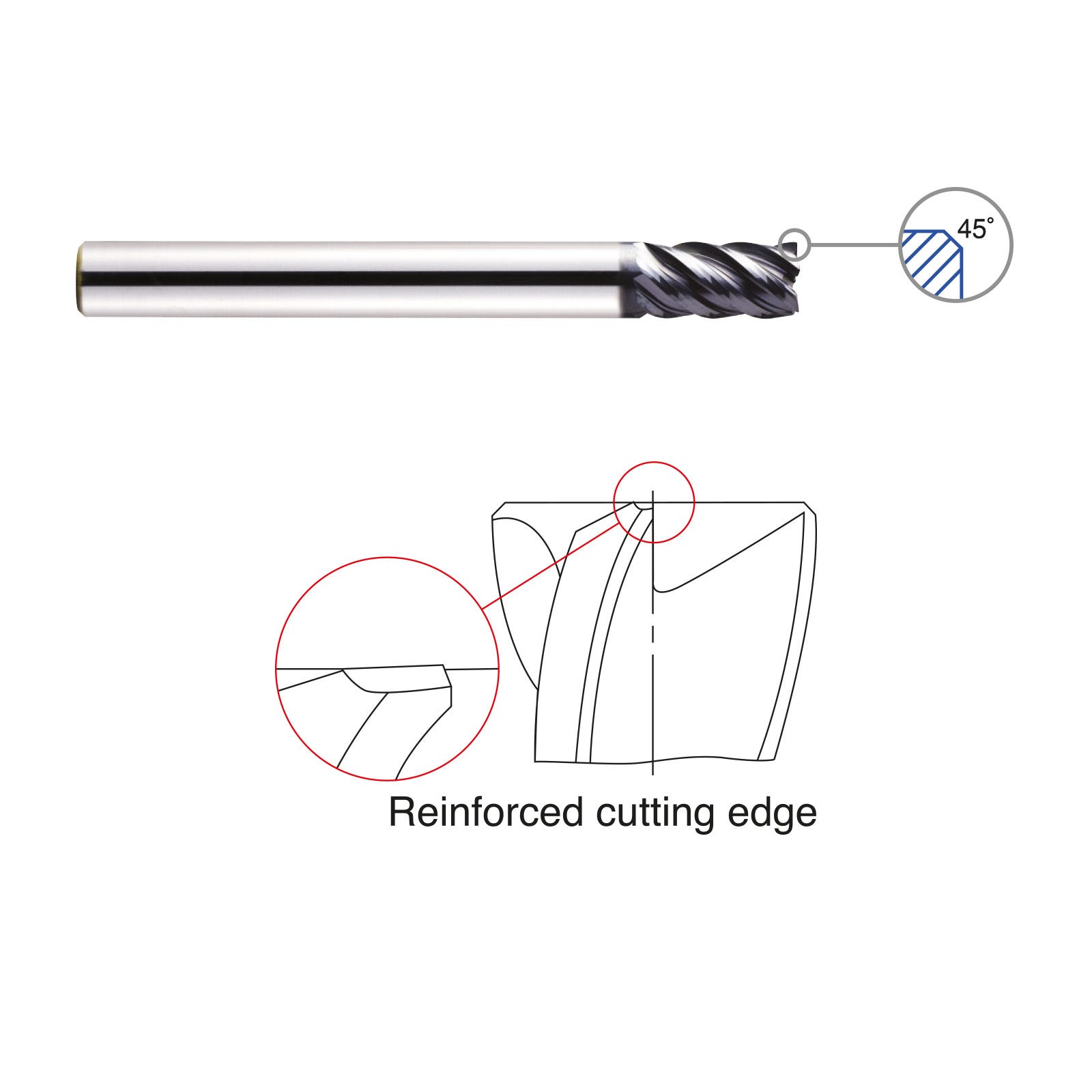

- Chamfer corner protection to prevent against tool chipping
- Rough and finish with one tool
- Longer tool life
- Excellent for machining Stainless Steel, Titanium, Inconel and Low Hardness Steels
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | V7 Inox Milling Cutters |
| Diameter (mm) | 12 |
| Shank (mm) | 12 |
| Flute Length (mm) | 26 |
| Overall Length (mm) | 83 |
| Flutes | 5 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Chamfer Prep |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Steel, Stainless Steel, Exotics |
| Helix Profile | Variable Helix |
| Performance | 4 |
| Brand | YG-1 |
