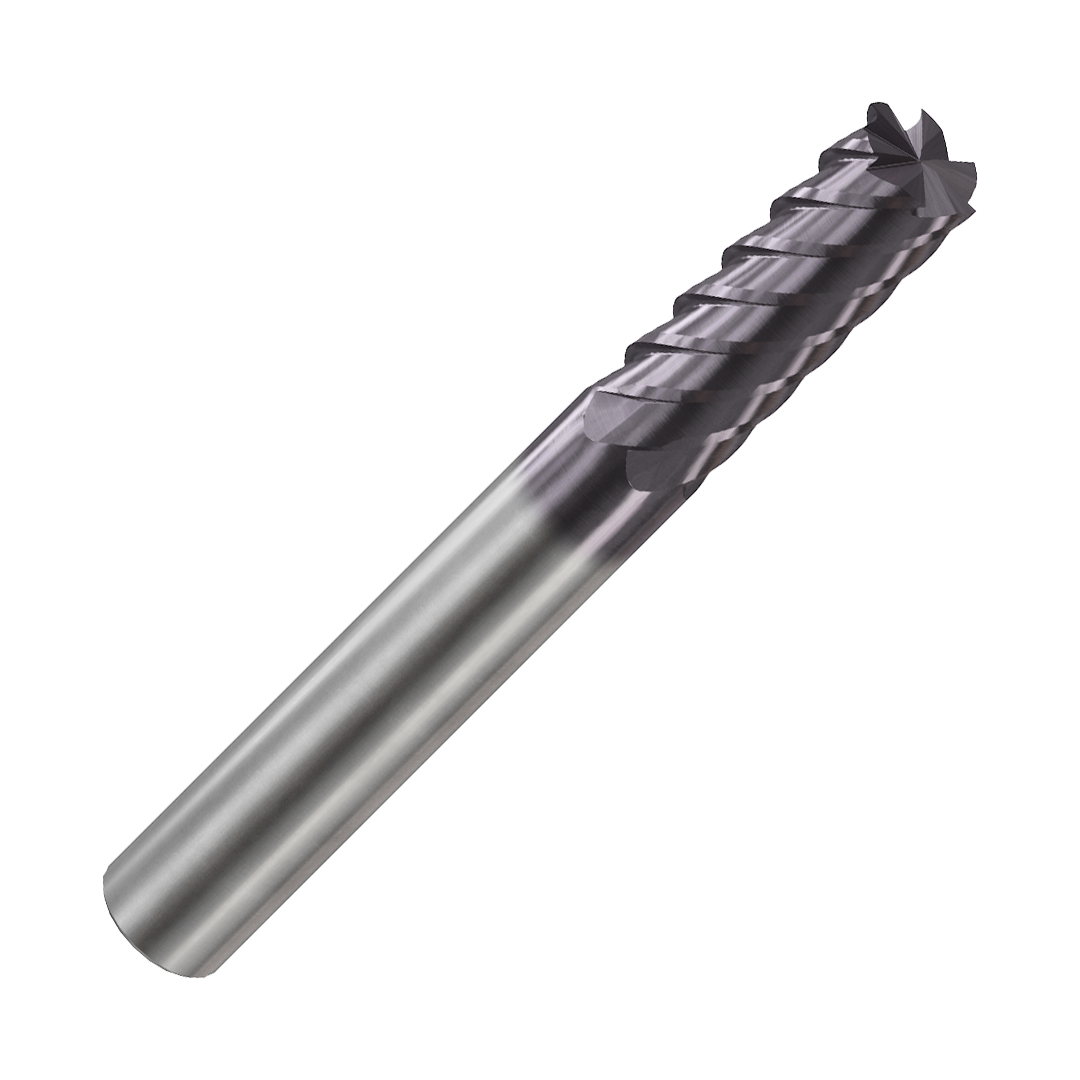

12mm 6 Flute NC Mill Hardened Steel Milling Cutter, Z-Coated Carbide End Mill, Square End (Superior Finishing), up to 60HRC, Standard Length, Plain Shank, 12x12x26x75 - GFJ74 (YG-1)
12mm 6 Flute NC Mill Hardened Steel Milling Cutter, Z-Coated Carbide End Mill, Square End (Superior Finishing), up to 60HRC, Standard Length, Plain Shank, 12x12x26x75 - GFJ74 (YG-1)

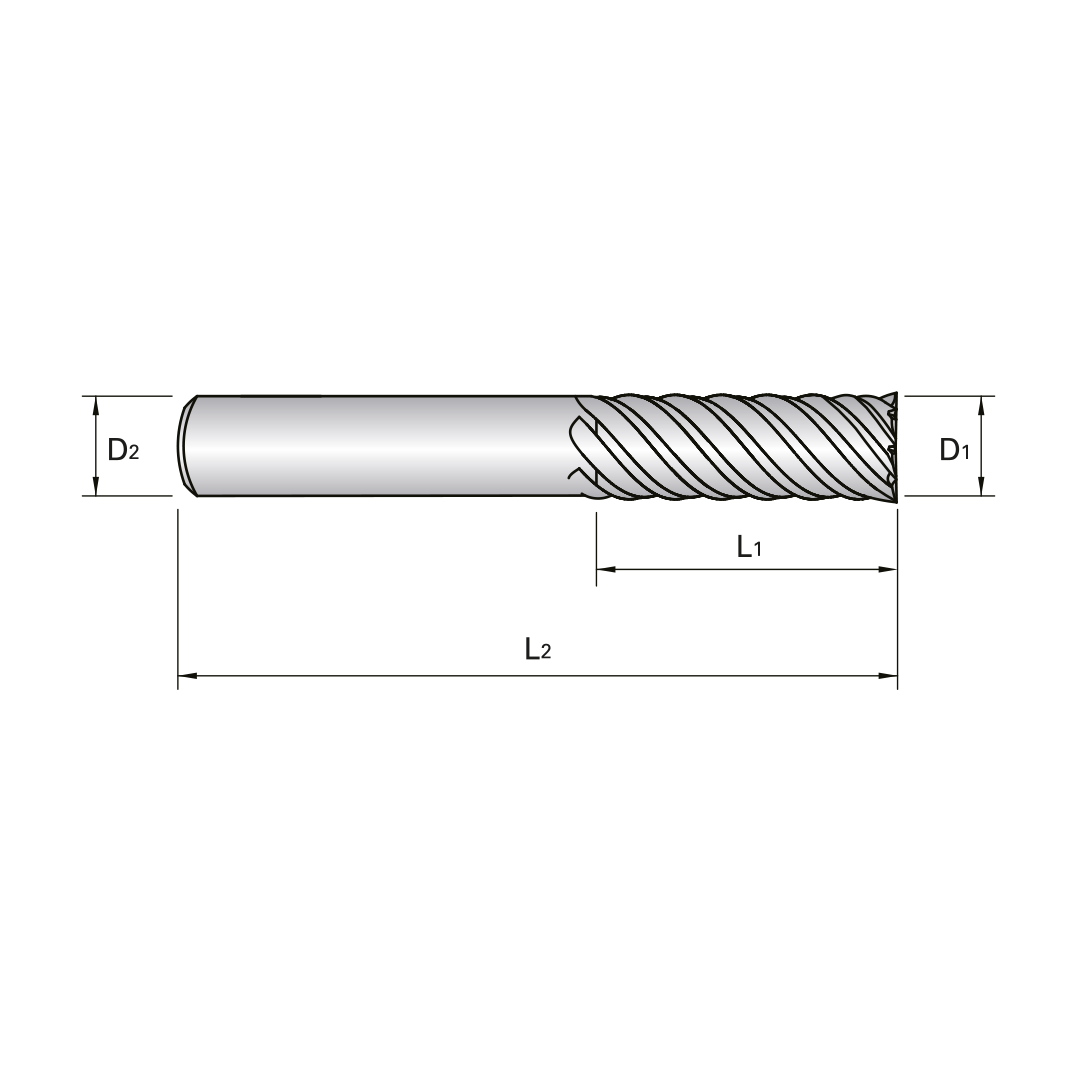

| Diameter (mm) | 12 |
|---|---|
| Overall Length (mm) | 75 |
| Flute Length (mm) | 26 |
| Shank (mm) | 12 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Suitable for trochoidal milling.
- Superior surface finish on profiling applications.
- Cut through alloy steel, tool steel & hardened steel <60HRC at speed.
- Designed specifically for machining high-hardened materials.
- Suitable for dry, high-speed cutting (dry cutting can increase tool life up to 40%).
- High quality nanograin carbide with unique Z-coating for high hardness & high temperature machining.
- Consistently delivers an exceptional workpiece finish and boasts high wear resistance.
- Premium quality micrograin carbide substrate for improved tool life and reliable performance in CNC machining.
- Manufactured by global market leader of solid milling tools, YG-1.
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | NC Mills Milling Cutters |
| Diameter (mm) | 12 |
| Shank (mm) | 12 |
| Flute Length (mm) | 26 |
| Overall Length (mm) | 75 |
| Flutes | 6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Square |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Steel, Hardened Steel, Cast Iron |
| Helix Profile | Standard |
| Performance | 4 |
| Coating Description | Z-Coated |
| Substrate Description | Nanograin Carbide |
| Helix Angle | 45° |
| Brand | YG-1 |
