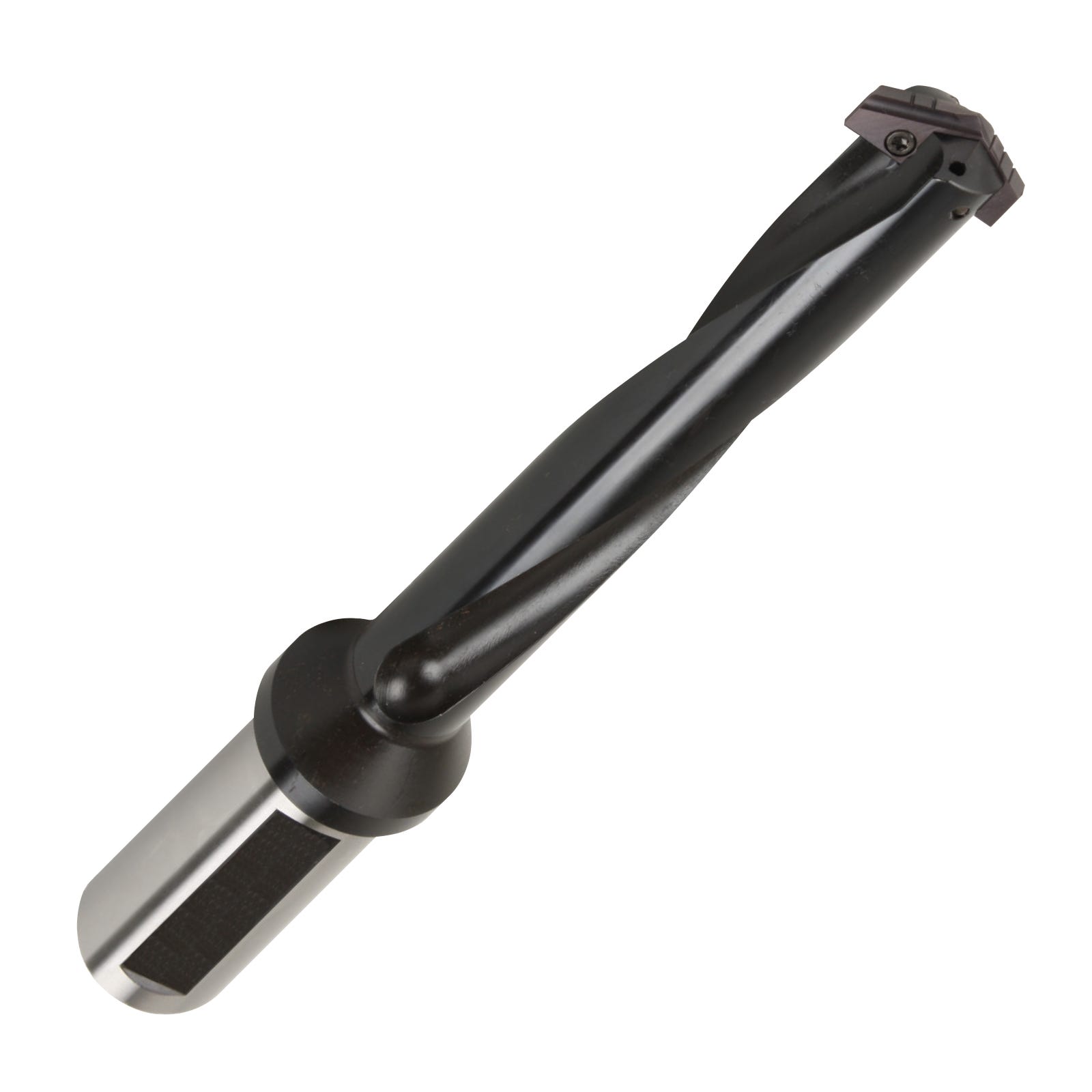

13-17.5mm Stub (2xD) Weldon Shank Supercut Spade Drill Holder
13-17.5mm Stub (2xD) Weldon Shank Supercut Spade Drill Holder
| Overall Length (mm) | 89 |
|---|---|
| Flute Length (mm) | 22.2 |
| Shank (mm) | 20 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Holders are available from 2xD to 25xD
- Wide range of insert diameters fit each holder
- Inserts available in metric and imperial
- Through Coolant drill Holder
- Made from high quality alloy steel
- Faster set up times as inserts can be changed on the machine
- Extremely accurate compared to traditional indexable drills, even in deep holes
- High performance in a wide range of materials
- Low cutting resistance
- Suitable for new or old machines, both CNC or Conventional
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Indexable Drills |
| Sub Category 2 | Spade Drill |
| Shank (mm) | 20 |
| Diameter Range (mm) | 13-17.5 |
| Flute Length (mm) | 22.2 |
| Overall Length (mm) | 89 |
| Shank Length | 41.9 |
| L3 | 47 |
| L4 | 50 |
| Drill Depth | 2xD |
| Flute Geometry | Straight Flute |
| T1 | 1/8" |
| T2 | 1/8" |
| Shank Type | Weldon |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Performance | 3 |
| Through Coolant | Yes |
| Brand Range | Spade Drill |
| Brand | Cutwel Pro |
