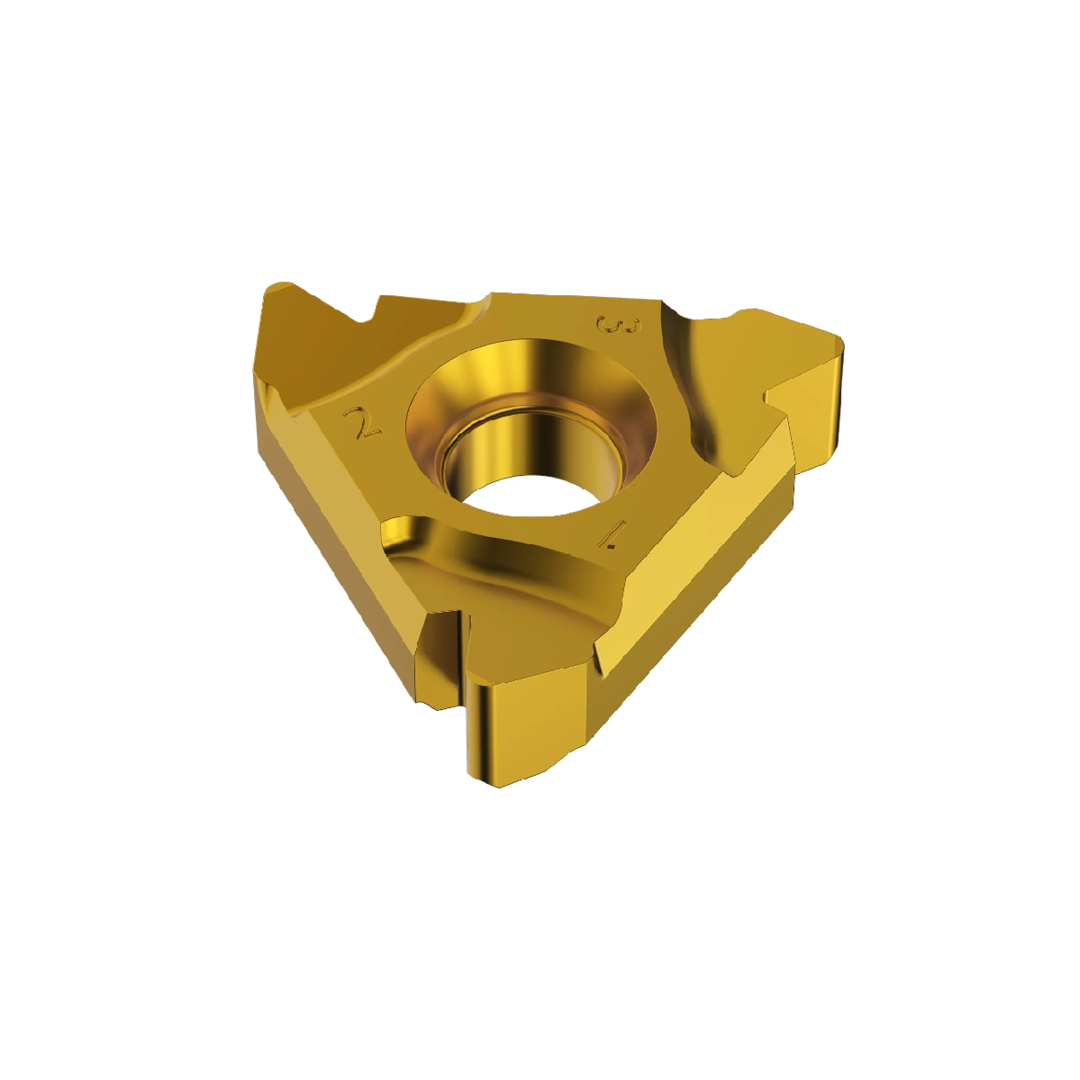

16DTER18WVK8 Whitworth External Right Hand Mach TT Vardex Thread Turning Insert, 16mm x 18mm, VK8 General Purpose Grade, Multi-layer PVD Coating (Vargus) - Ref: 3DTER18WVK8
16DTER18WVK8 Whitworth External Right Hand Mach TT Vardex Thread Turning Insert, 16mm x 18mm, VK8 General Purpose Grade, Multi-layer PVD Coating (Vargus) - Ref: 3DTER18WVK8
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- BSW (British Standard Whitworth) Threading Insert.

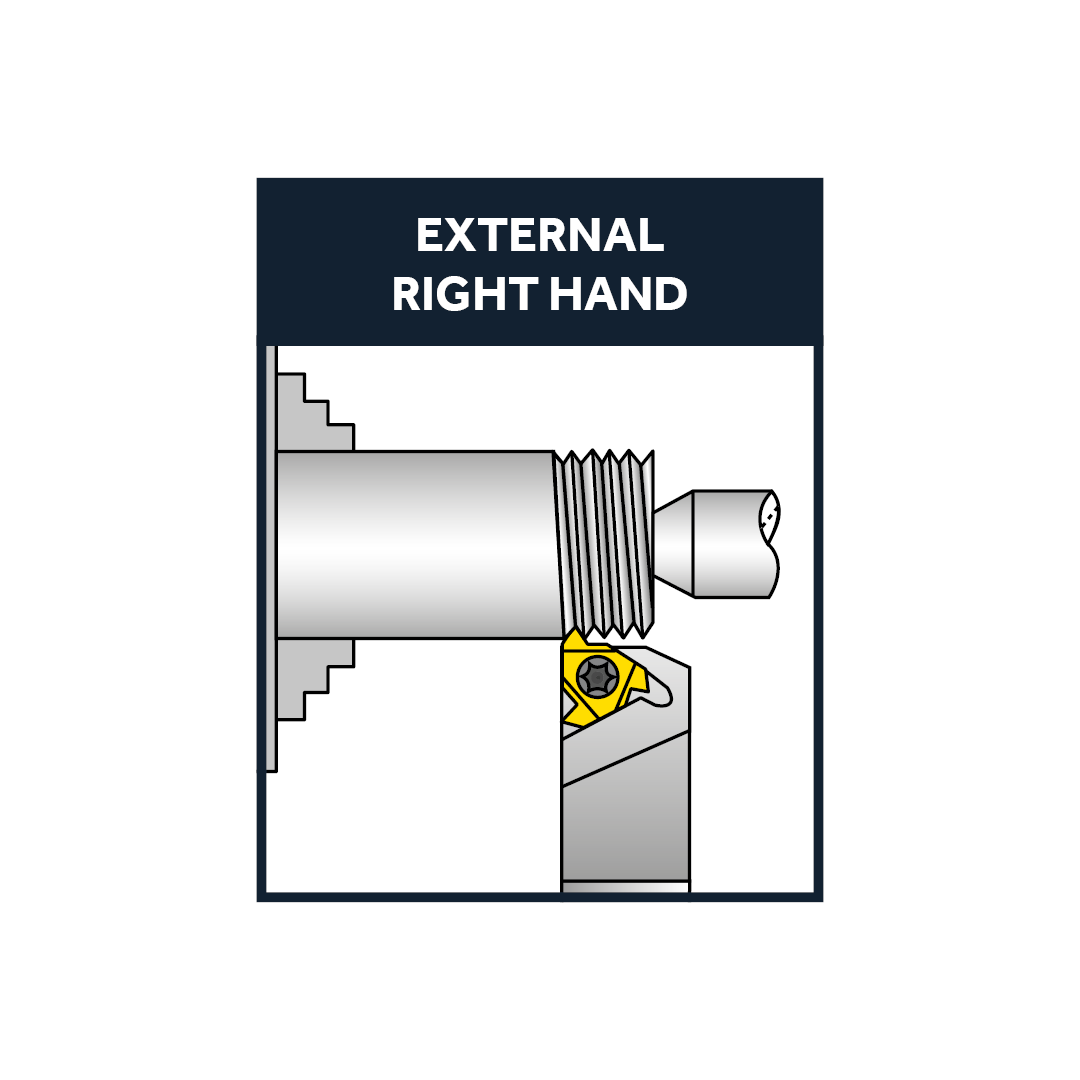

- For External Right Hand Threads.
- VK8 general purpose grade offers high wear resistance.
- AlTiN + TiN PVD coating.
- Improved rake and reinforced geometry for high ressitance with a reduced number of passes.
- Superior threading surface finish with an improved profile design.
- Advanced surface treatment with reinforced cutting edges and smooth surface finish.
- Special Vargus super-rigid dovetail clamping system is designed for high load machining.

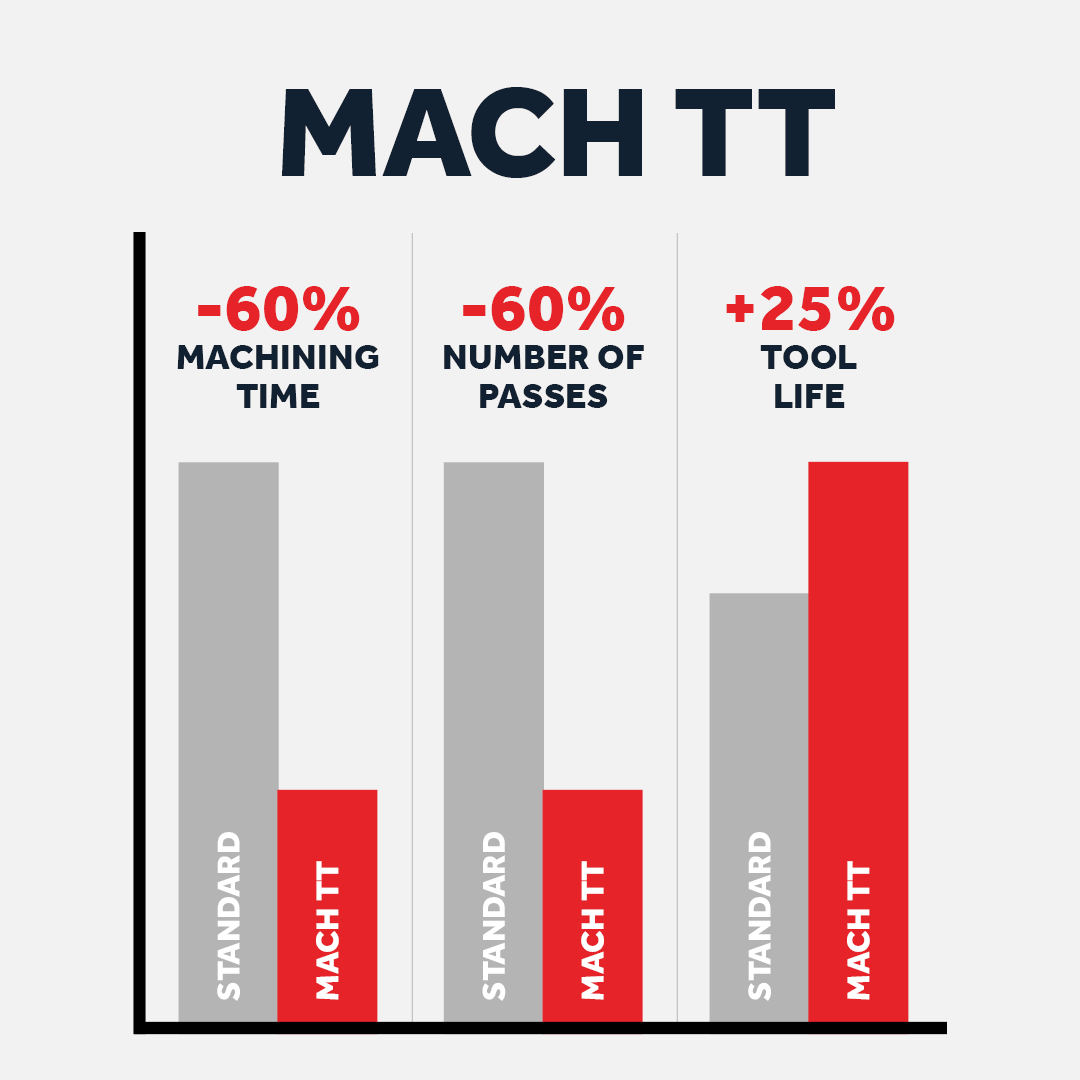

- Significantly reduce number of passes and machining time with the Mach TT system.
- Extend tool life by up to 25%.
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Turning Tools |
| Sub Category 2 | Thread Turning Inserts |
| TPI | 18 |
| Grade | VK8 (General Purpose) |

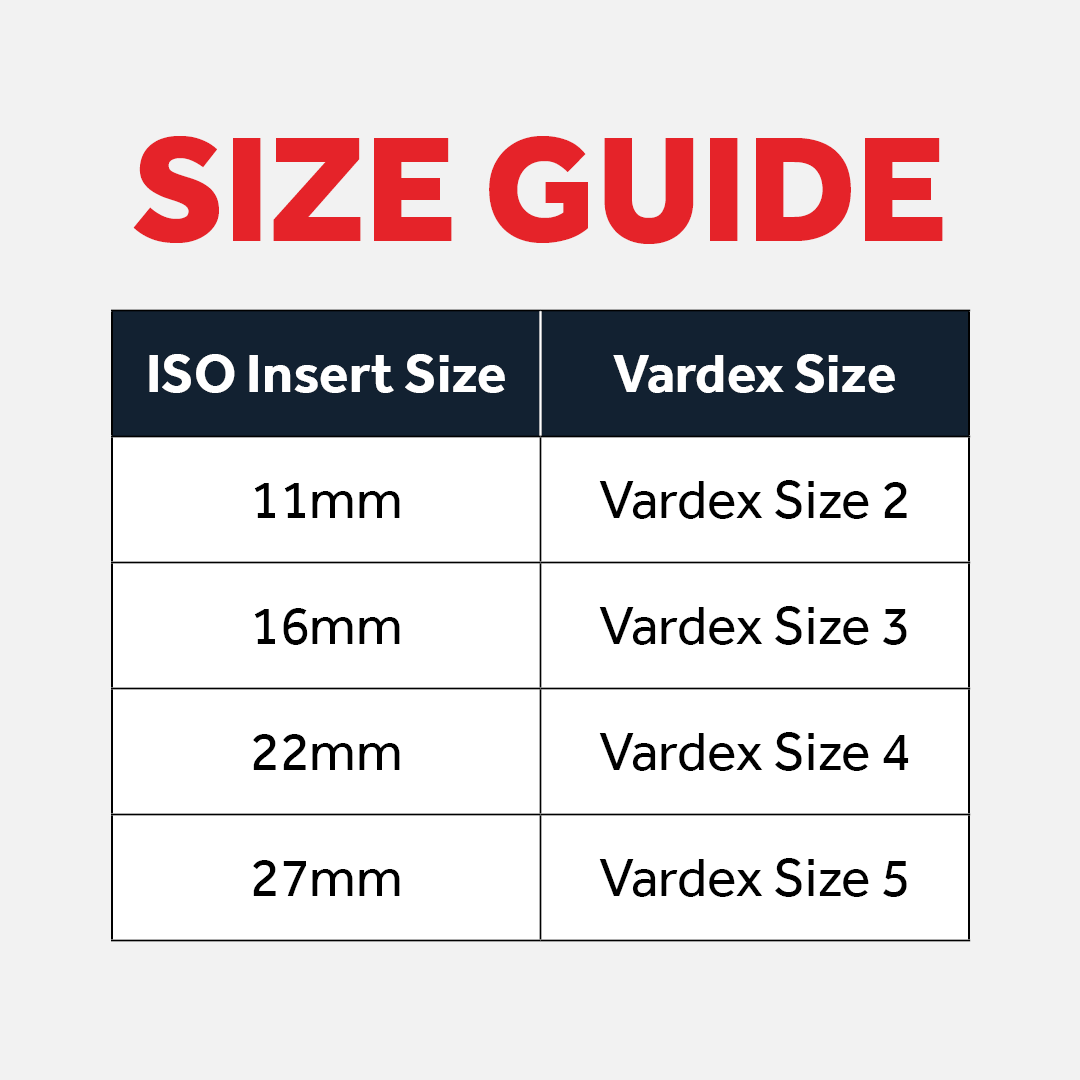

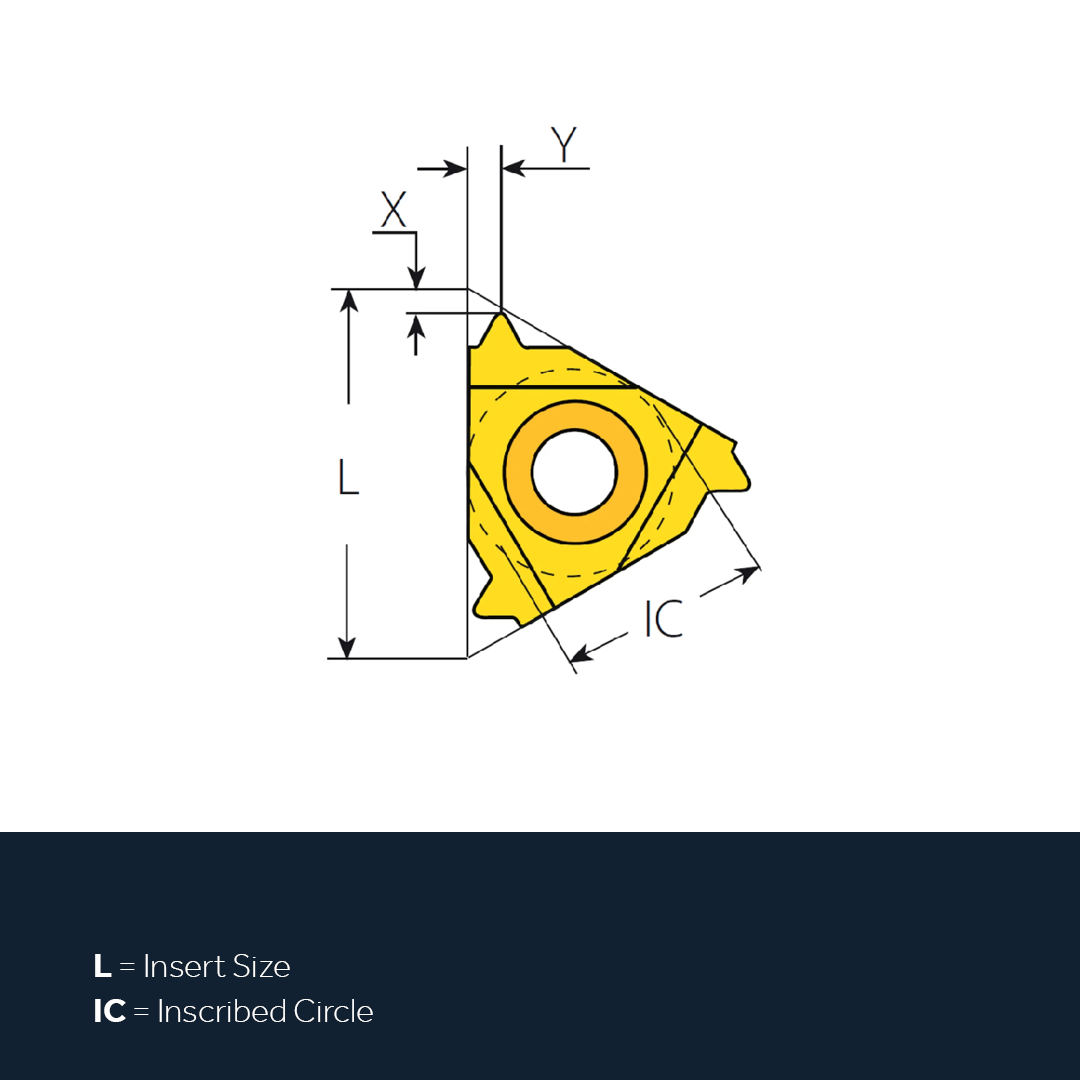

| Insert Size | 16 (Vardex Size 3) |
| Alternative Part Number | 3DTER18WVK8 |
| Surface Treatment | Coated (PVD/CVD) |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Coating Description | Multi-layer PVD Coating |
| Thread Form | Whitworth |
| Hand | Right Hand |
| Brand | Vardex |
