16DTER2.0TRVK8 Trapezoidal External Right Hand Mach TT Vardex Thread Turning Insert, 16mm x mm, VK8 General Purpose Grade, Multi-layer PVD Coating (Vargus) - Ref: 3DTER2.0TRVK8

Cutwel Sku
093-00062

16DTER2.0TRVK8 Trapezoidal External Right Hand Mach TT Vardex Thread Turning Insert, 16mm x mm, VK8 General Purpose Grade, Multi-layer PVD Coating (Vargus) - Ref: 3DTER2.0TRVK8

Cutwel Sku
093-00062

Key Features

available Tr (Trapezoidal) Threading Insert.

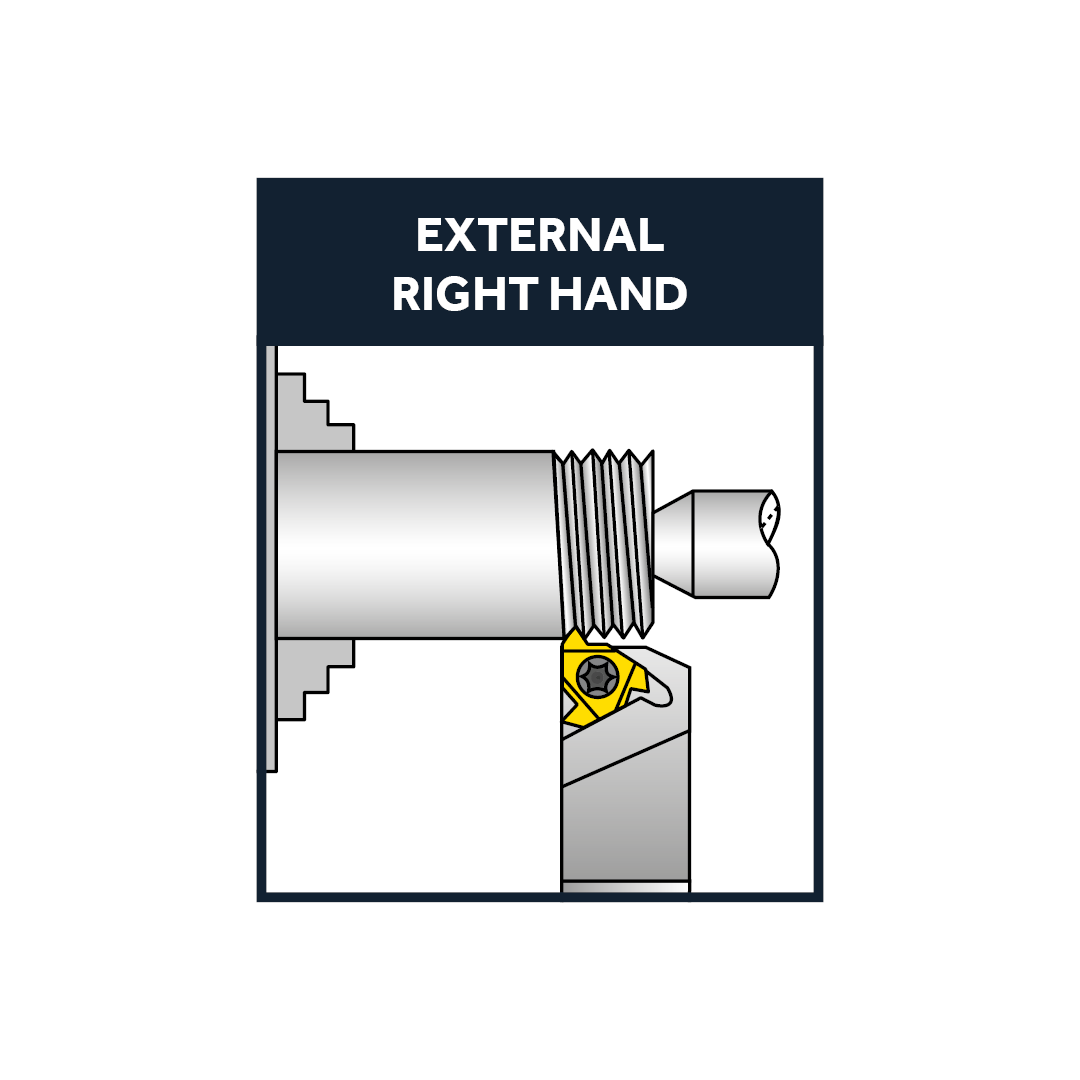

available For External Right Hand Threads.
available VK8 general purpose grade offers high wear resistance.
Read More
P
Steel
H
Hardened Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
Exotics
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Threading
Sub Category Thread Turning Tools
Sub Category 2 Thread Turning Inserts
Pitch 2
Grade VK8 (General Purpose)

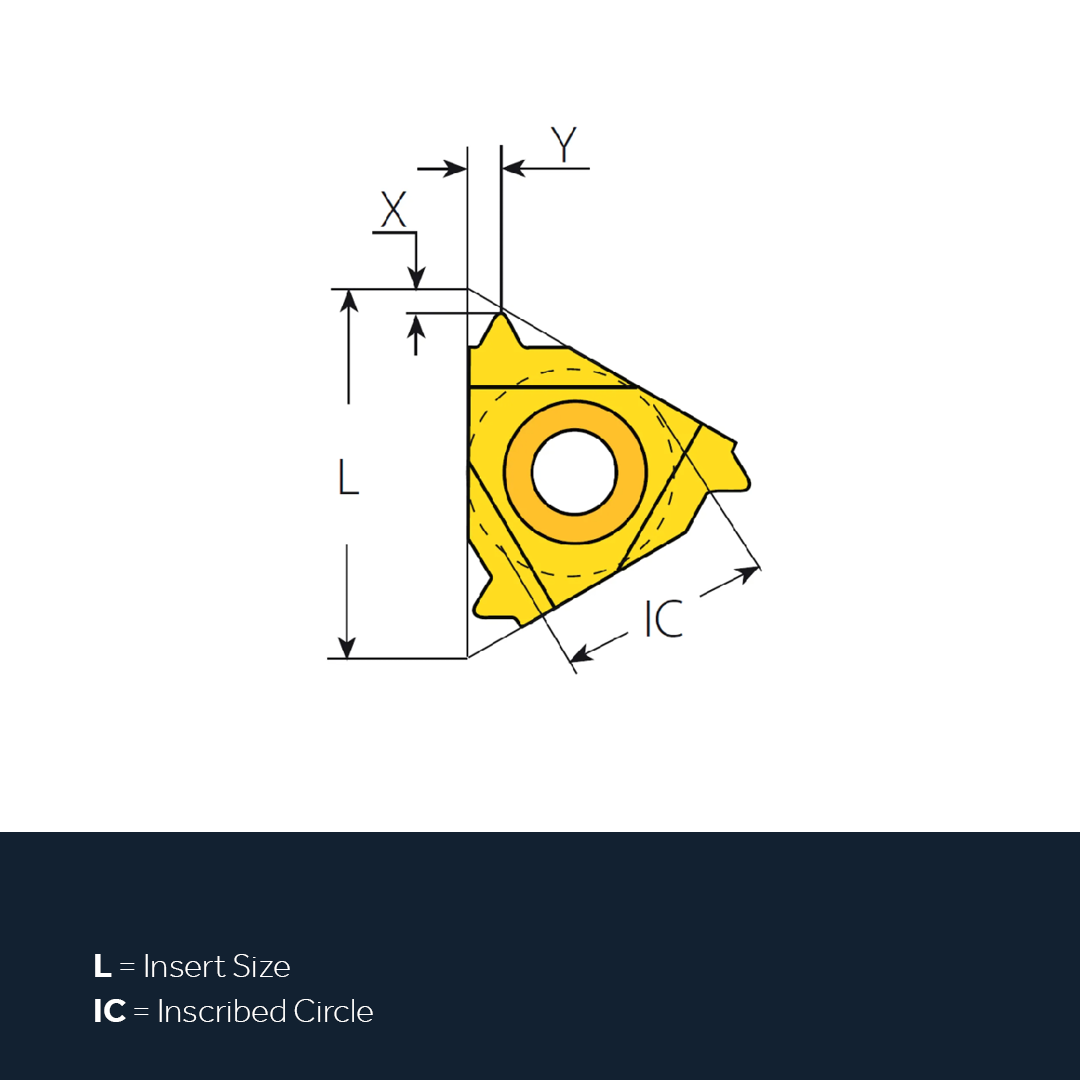

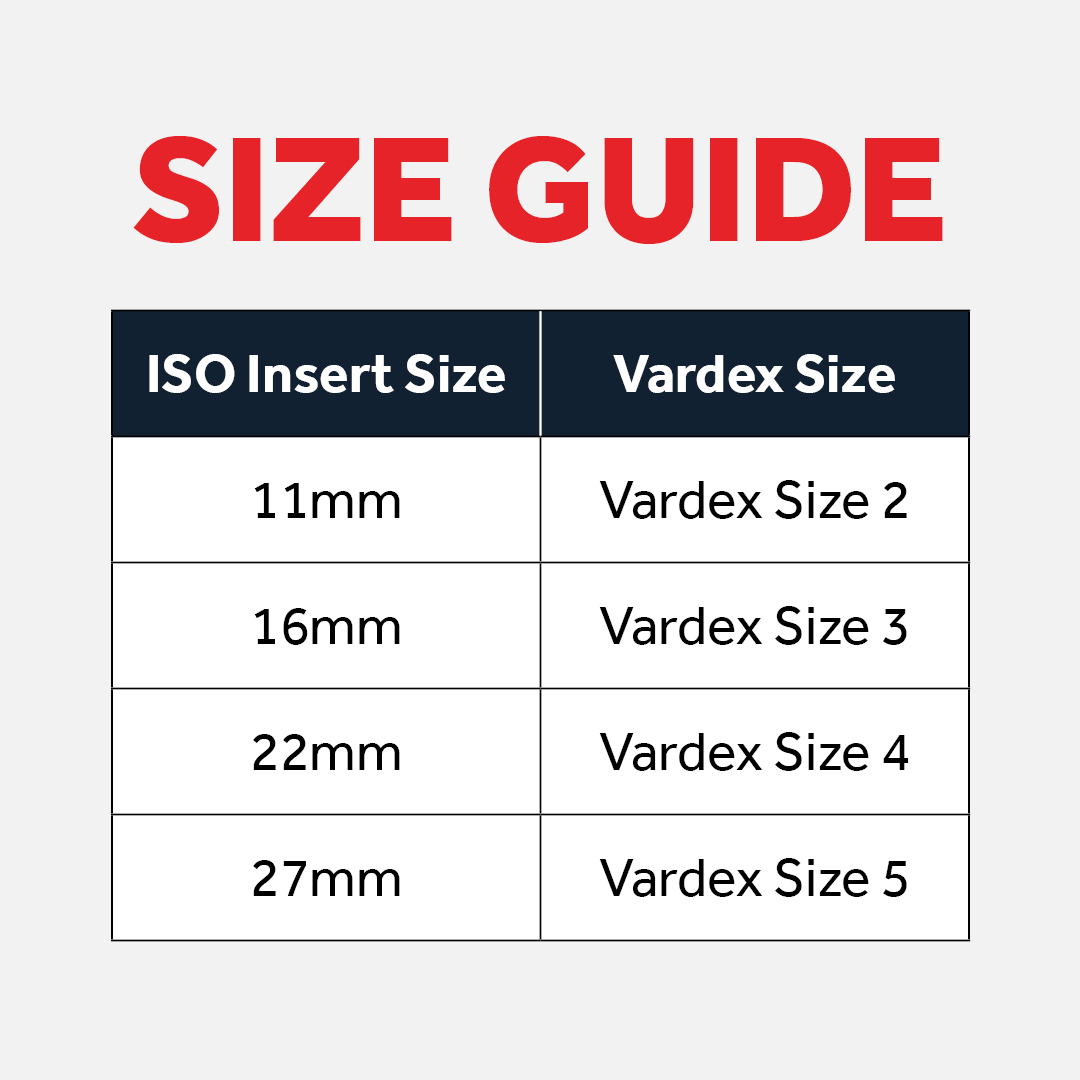

Insert Size 16 (Vardex Size 3)
Alternative Part Number 3DTER2.0TRVK8
Surface Treatment Coated (PVD/CVD)
Applicable Materials Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics
Coating Description Multi-layer PVD Coating

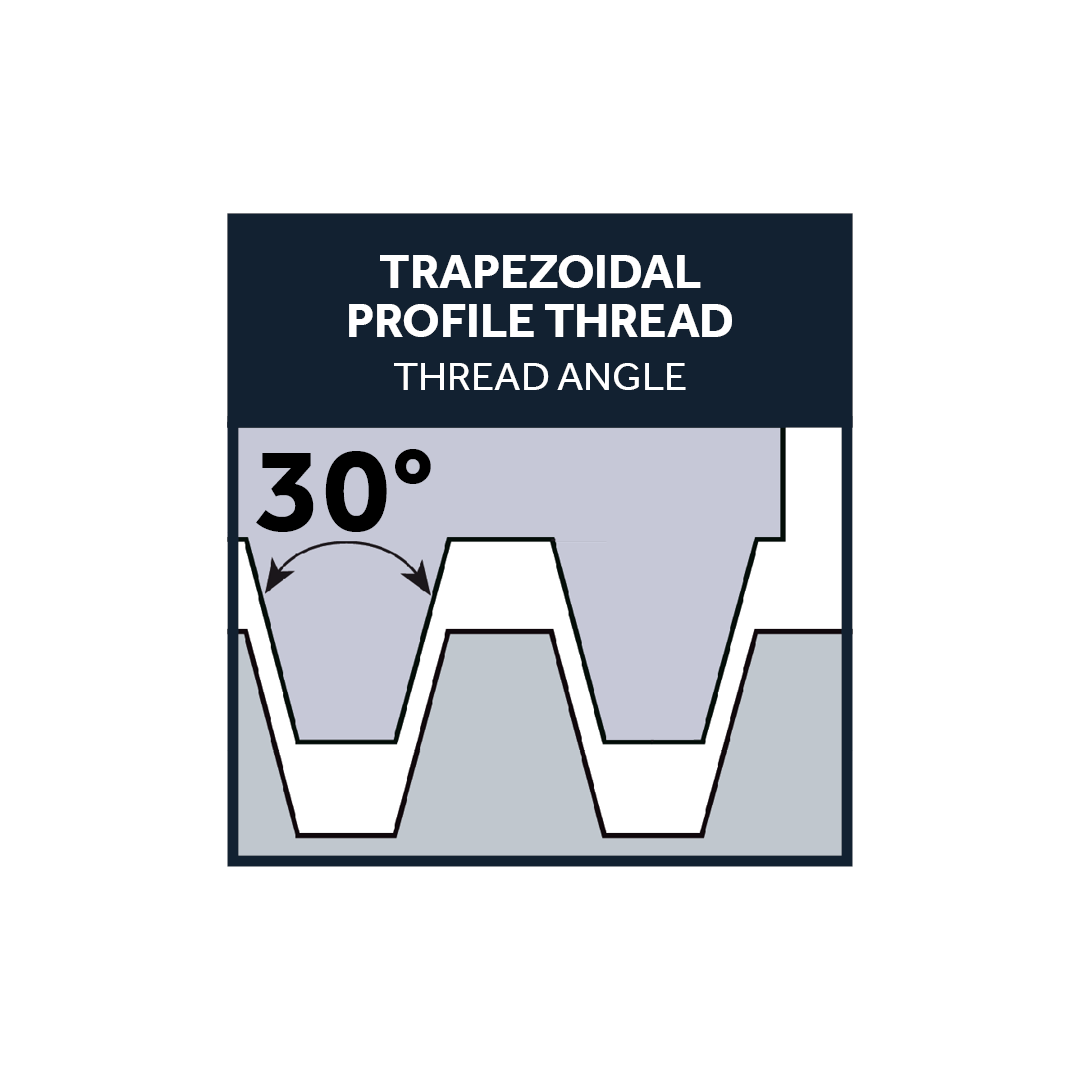

Thread Form Trapezoidal
Hand Right Hand
Brand Vardex
Part Numbers
  • Cutwel Part Number 093-00062

Description

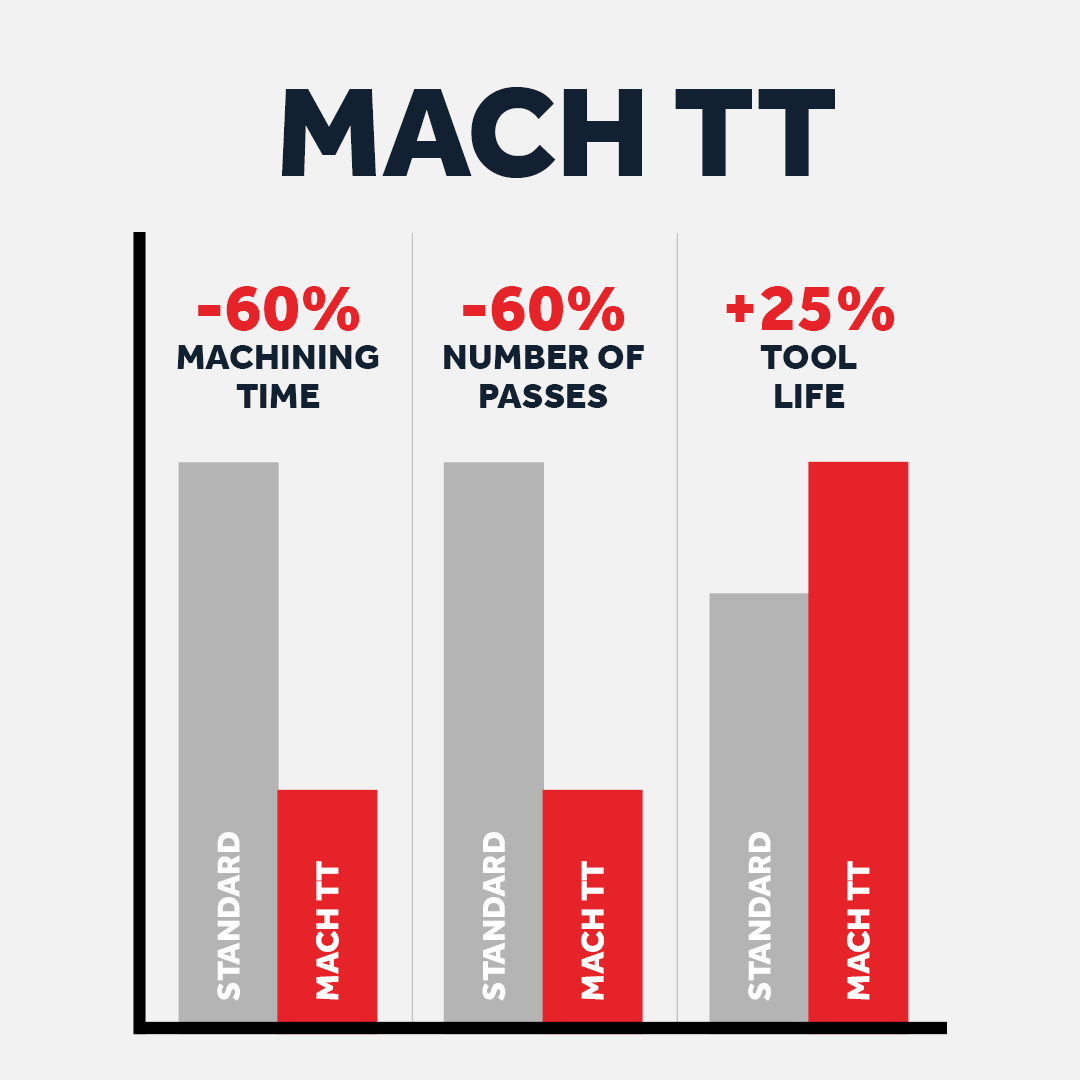

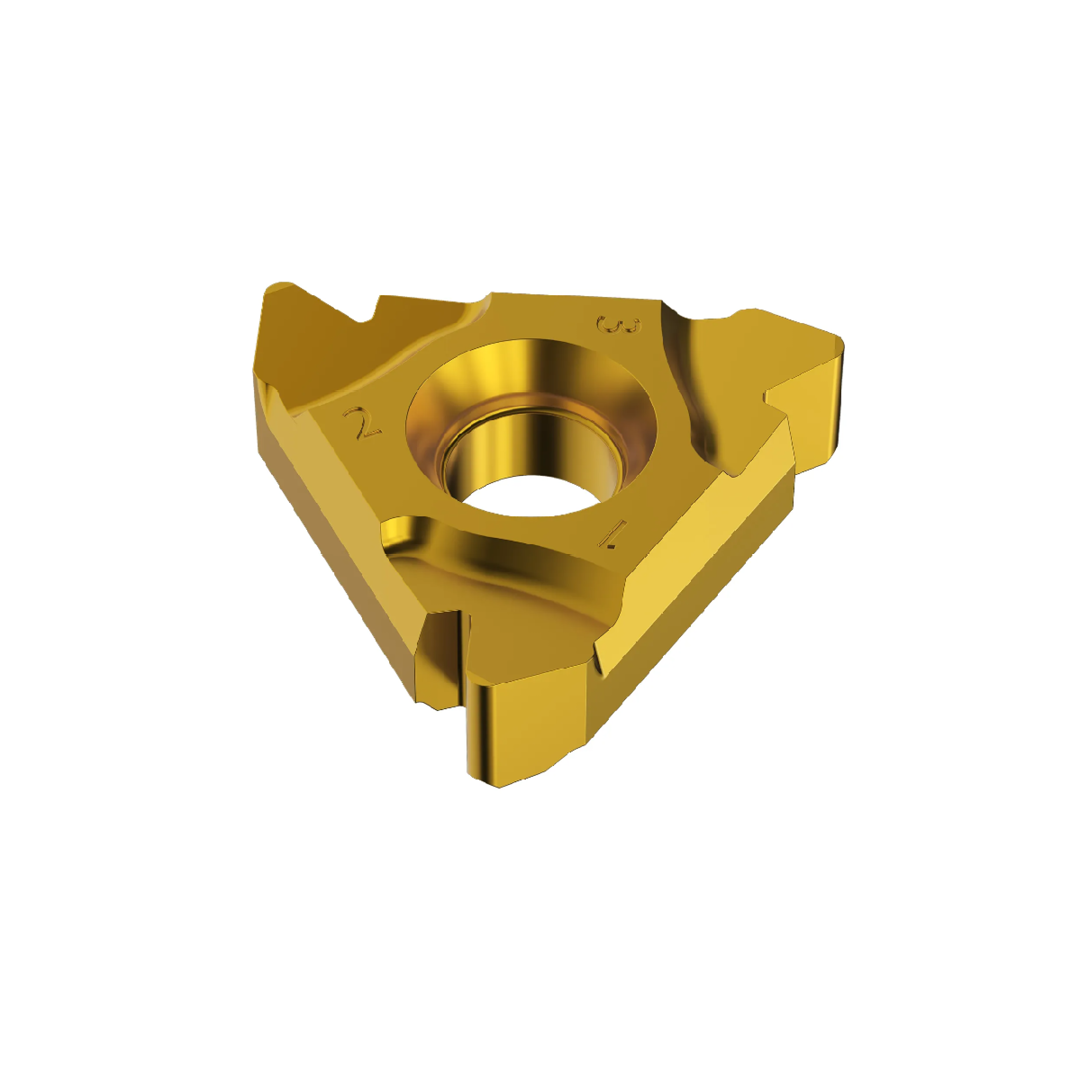

Vardex Mach TT single point threading inserts for External Right Hand Trapezoidal threads. Features improved rake, reinforced geometries, advanced surface treatment and improved profile design. The Mach TT system gives unmatched productivity with 60% less machining time, 60% lower number of passes and 25% more tool life. Vardex threading inserts are fully compatible with other manufacturers holders. Vardex from Vargus is the market leading range of thread turning tools with the largest choice of insert pitches and sizes.

Features & Benefits

  • Tr (Trapezoidal) Threading Insert.
  • For External Right Hand Threads.
  • VK8 general purpose grade offers high wear resistance.
  • AlTiN + TiN PVD coating.
  • Improved rake and reinforced geometry for high ressitance with a reduced number of passes.
  • Superior threading surface finish with an improved profile design.
  • Advanced surface treatment with reinforced cutting edges and smooth surface finish.
  • Special Vargus super-rigid dovetail clamping system is designed for high load machining.
  • Significantly reduce number of passes and machining time with the Mach TT system.
  • Extend tool life by up to 25%.
