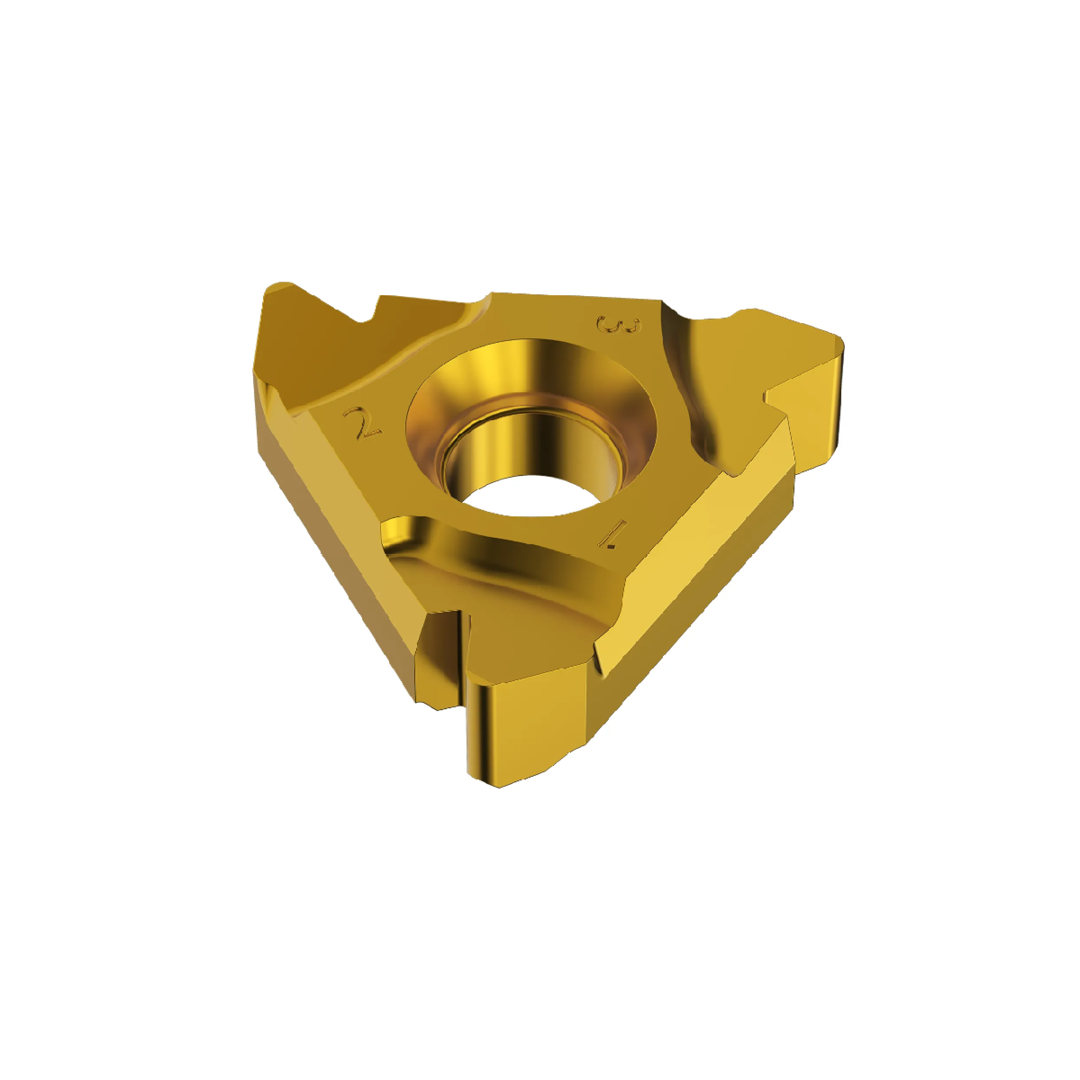

16DTER8NPTFVK8 NPTF External Right Hand Mach TT Vardex Thread Turning Insert, 16mm x 8mm, VK8 General Purpose Grade, Multi-layer PVD Coating (Vargus) - Ref: 3DTER8NPTFVK8

Cutwel Sku
093-00058

16DTER8NPTFVK8 NPTF External Right Hand Mach TT Vardex Thread Turning Insert, 16mm x 8mm, VK8 General Purpose Grade, Multi-layer PVD Coating (Vargus) - Ref: 3DTER8NPTFVK8

Cutwel Sku
093-00058

Key Features

available NPTF (National Pipe Taper Fuel) Threading Insert.
available For External Right Hand Threads.
available VK8 general purpose grade offers high wear resistance.
Read More
P
Steel
H
Hardened Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
Exotics
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Threading
Sub Category Thread Turning Tools
Sub Category 2 Thread Turning Inserts
TPI 8
Grade VK8 (General Purpose)

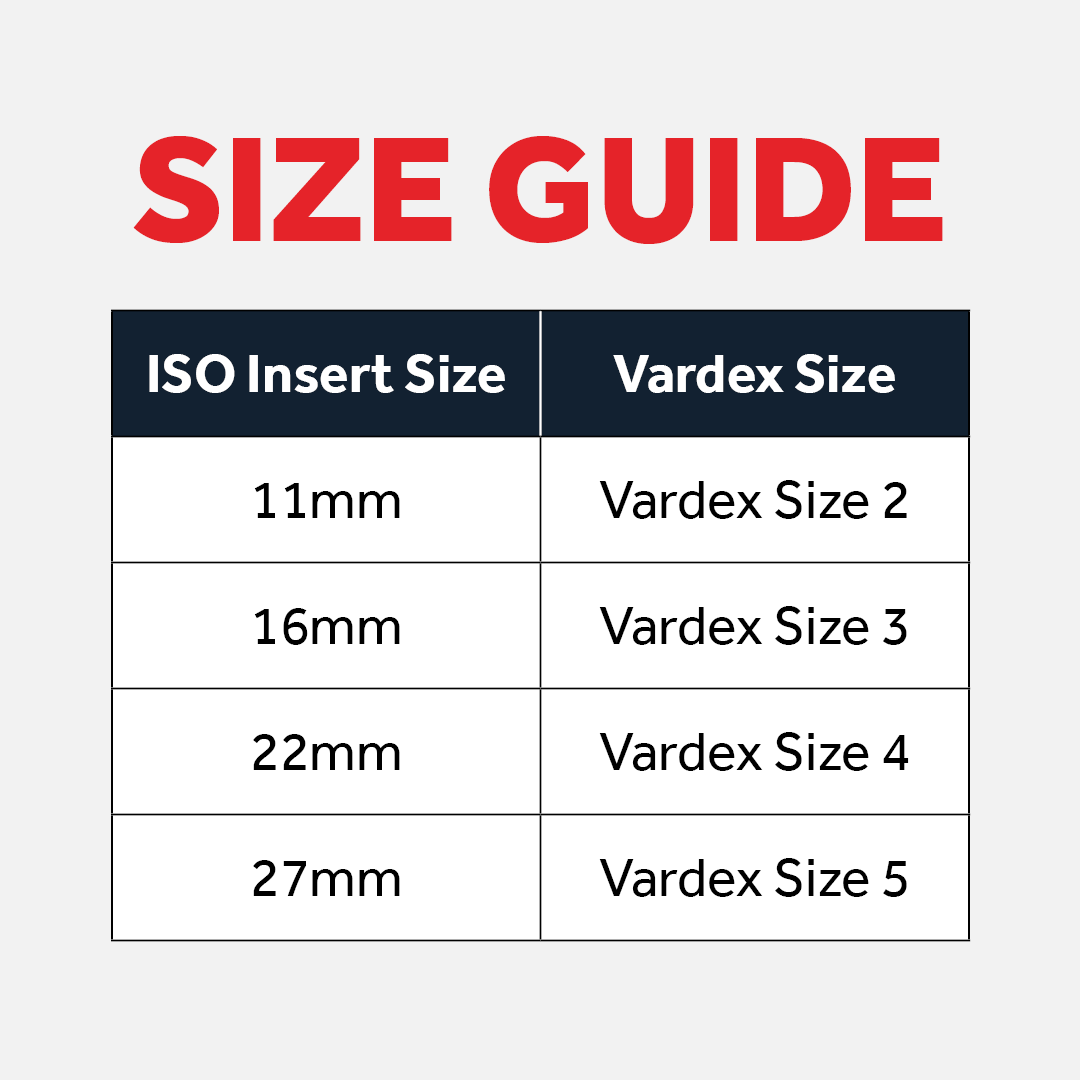

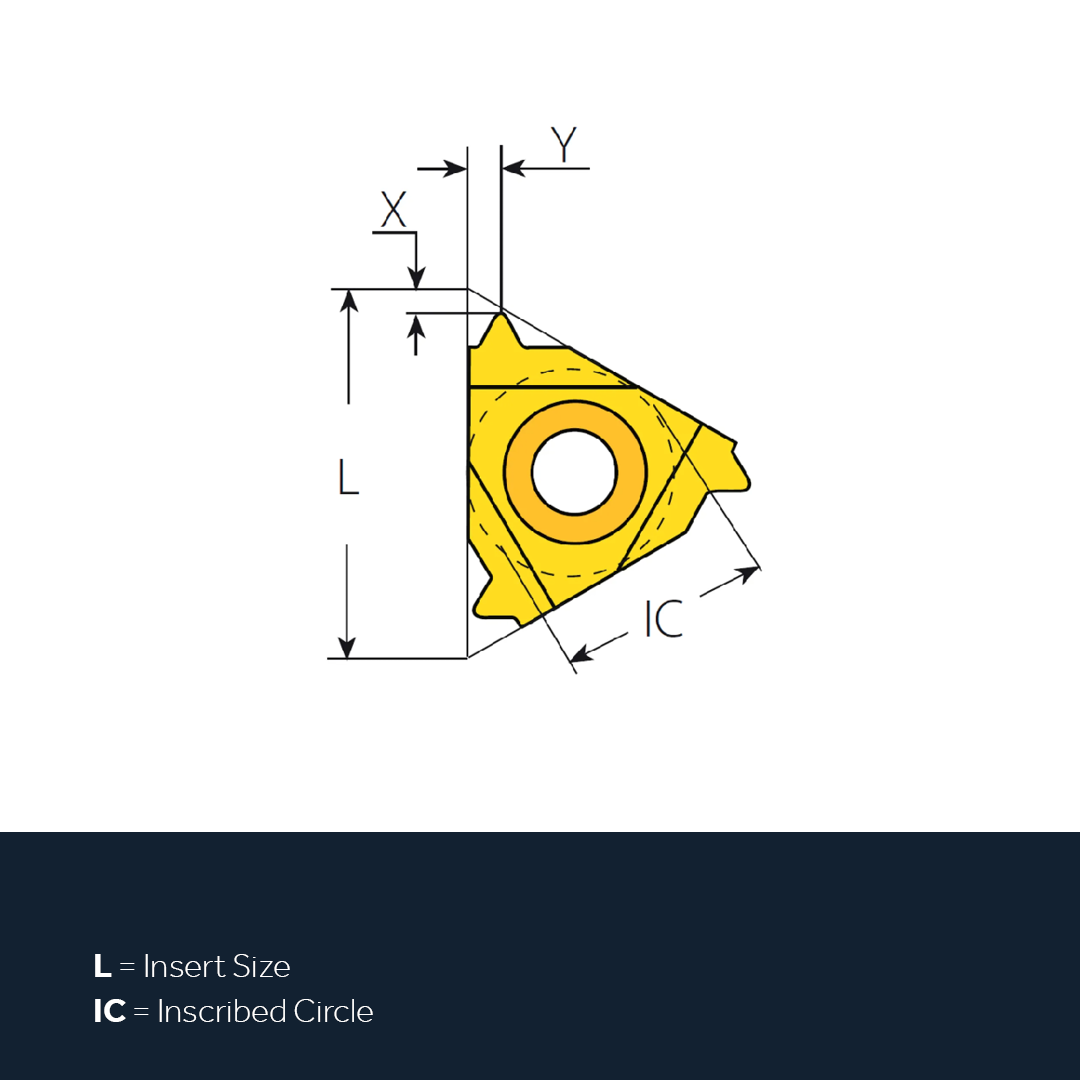

Insert Size 16 (Vardex Size 3)
Alternative Part Number 3DTER8NPTFVK8
Surface Treatment Coated (PVD/CVD)
Applicable Materials Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics
Coating Description Multi-layer PVD Coating

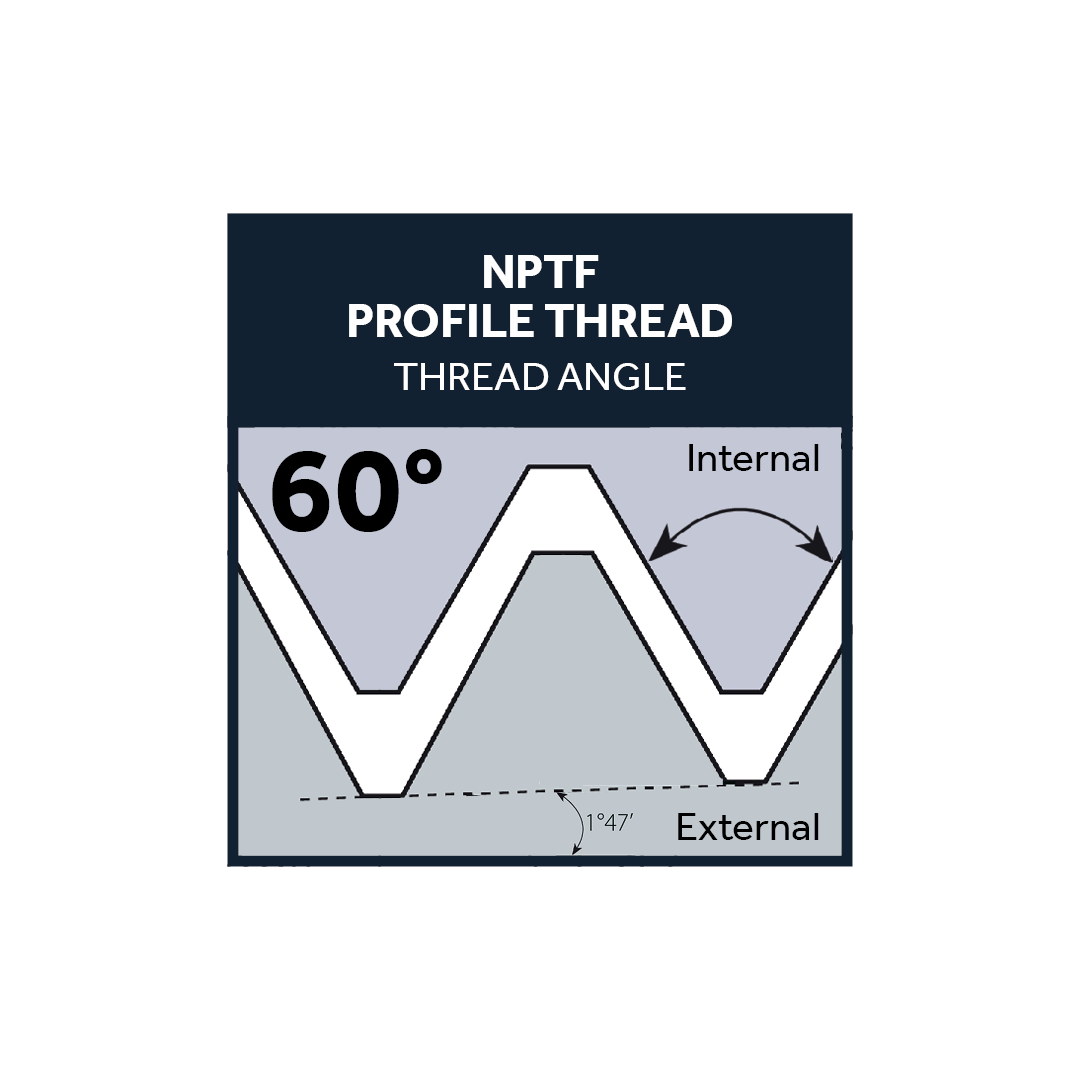

Thread Form NPTF (National Pipe Taper Fuel)
Hand Right Hand
Brand Vardex
Part Numbers
  • Cutwel Part Number 093-00058

Description

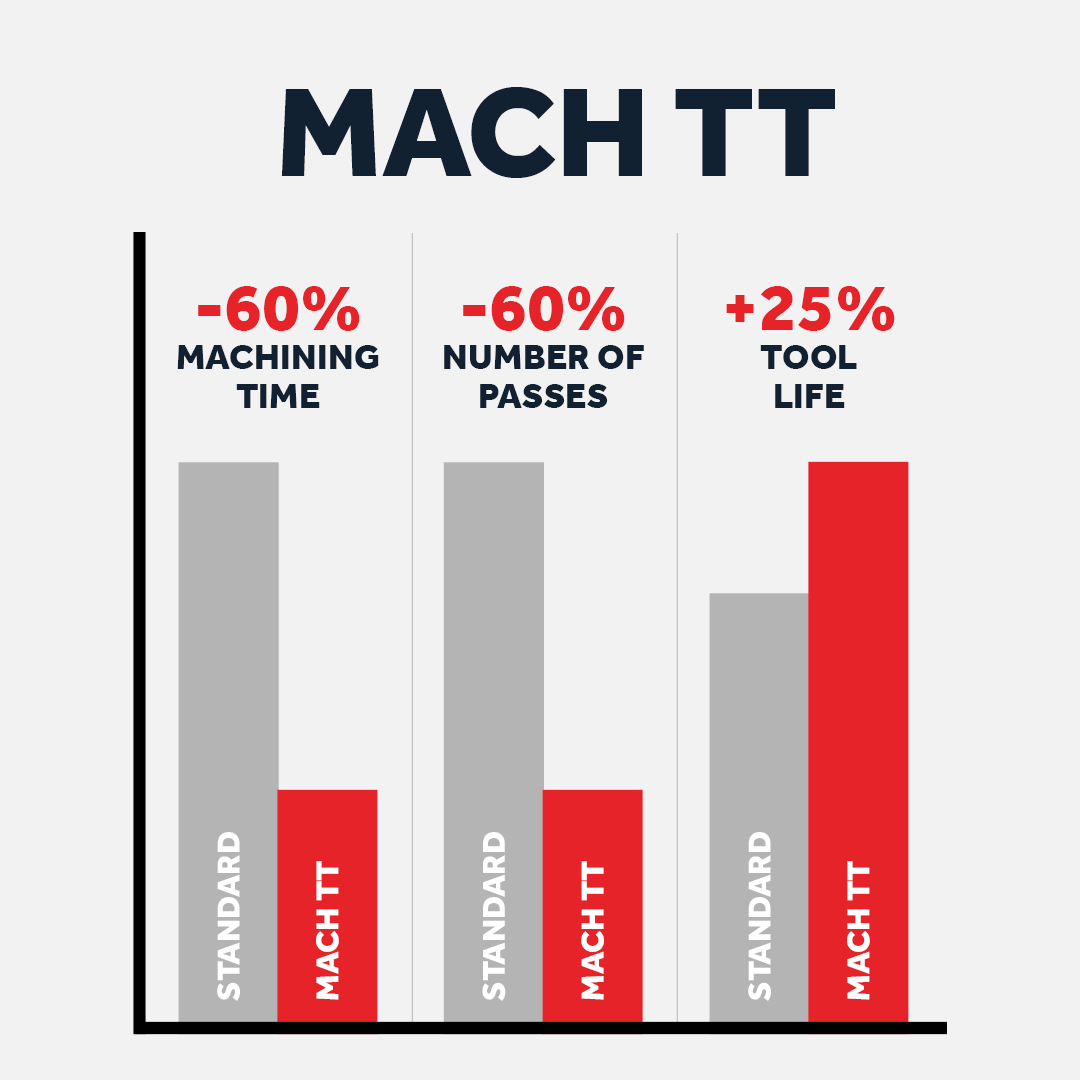

Vardex Mach TT single point threading inserts for External Right Hand NPTF threads. Features improved rake, reinforced geometries, advanced surface treatment and improved profile design. The Mach TT system gives unmatched productivity with 60% less machining time, 60% lower number of passes and 25% more tool life. Vardex threading inserts are fully compatible with other manufacturers holders. Vardex from Vargus is the market leading range of thread turning tools with the largest choice of insert pitches and sizes.

Features & Benefits

  • NPTF (National Pipe Taper Fuel) Threading Insert.
  • For External Right Hand Threads.
  • VK8 general purpose grade offers high wear resistance.
  • AlTiN + TiN PVD coating.
  • Improved rake and reinforced geometry for high ressitance with a reduced number of passes.
  • Superior threading surface finish with an improved profile design.
  • Advanced surface treatment with reinforced cutting edges and smooth surface finish.
  • Special Vargus super-rigid dovetail clamping system is designed for high load machining.
  • Significantly reduce number of passes and machining time with the Mach TT system.
  • Extend tool life by up to 25%.
