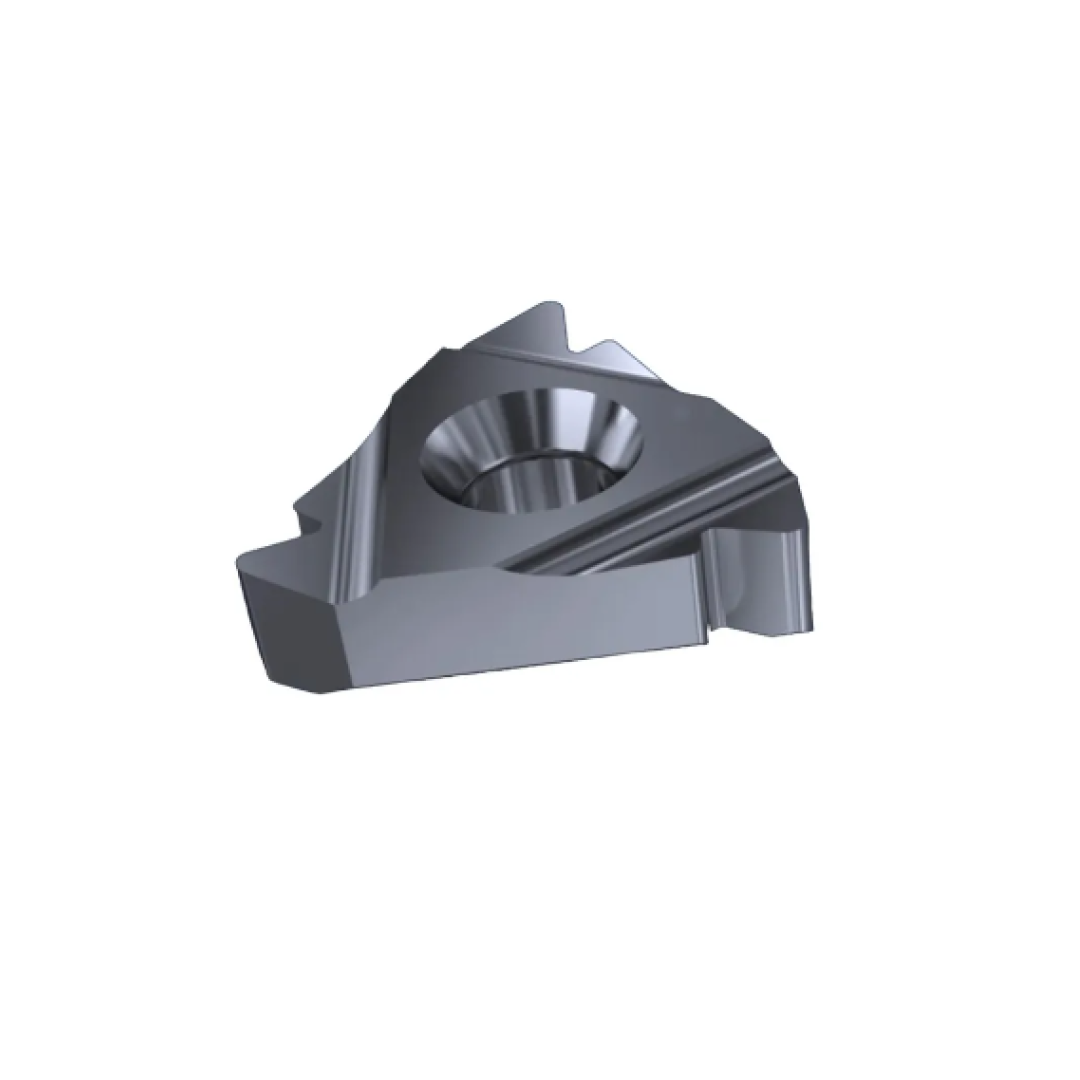

16ER12UNVT10 Unified External Right Hand Vardex Thread Turning Insert, 16mm x 12mm TPI, Multipurpose VT10 Grade, Enhanced Coating (Vargus) - Ref: 3ER12UNVT10
16ER12UNVT10 Unified External Right Hand Vardex Thread Turning Insert, 16mm x 12mm TPI, Multipurpose VT10 Grade, Enhanced Coating (Vargus) - Ref: 3ER12UNVT10
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Multi-purpose VT10 grade for Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics & Hardened Steel
- VT10 grade - New surface treatment increases tool life by 30%

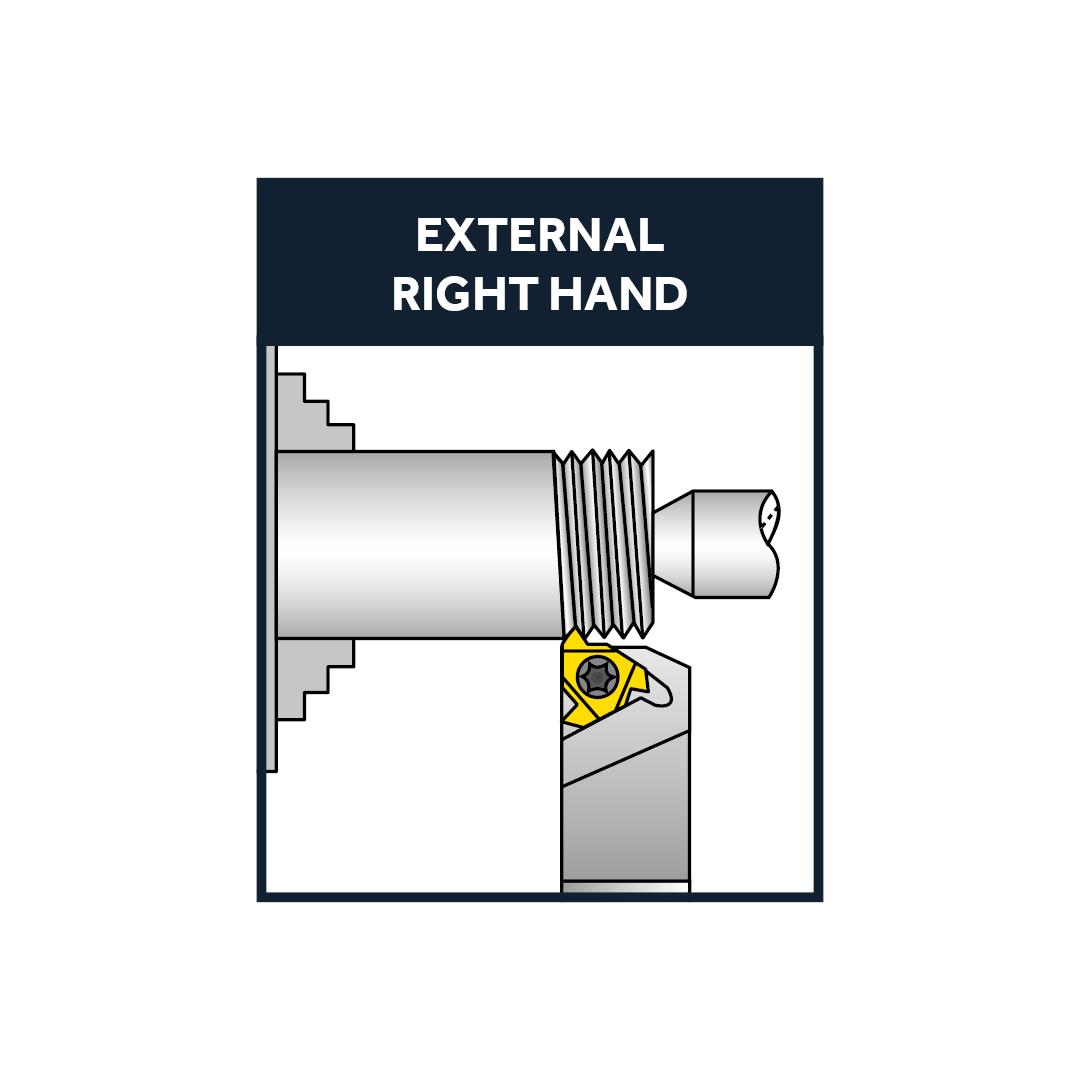

- Unified Insert for External Right Hand Threads
- Vardex are the global number 1 thread turning tool manufacturer

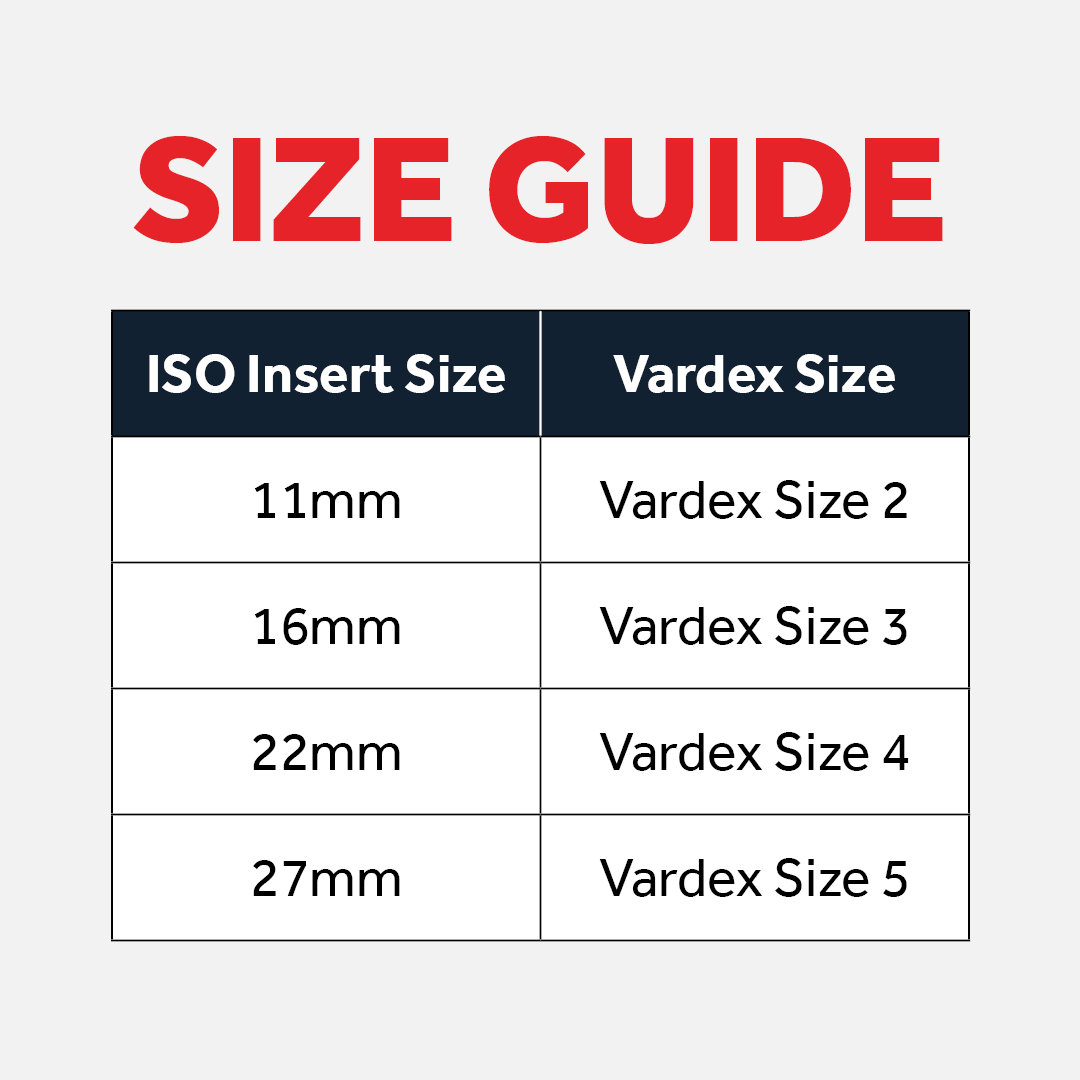

- Insert size reference - Size 2 = 11mm, Size 3 = 16mm, Size 4 = 22mm, Size 5 = 27mm
- Vardex inserts are compatible with other manufacturers holders
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Turning Tools |
| Sub Category 2 | Thread Turning Inserts |
| TPI | 12 |
| Grade | VT10 (Multipurpose Grade) |

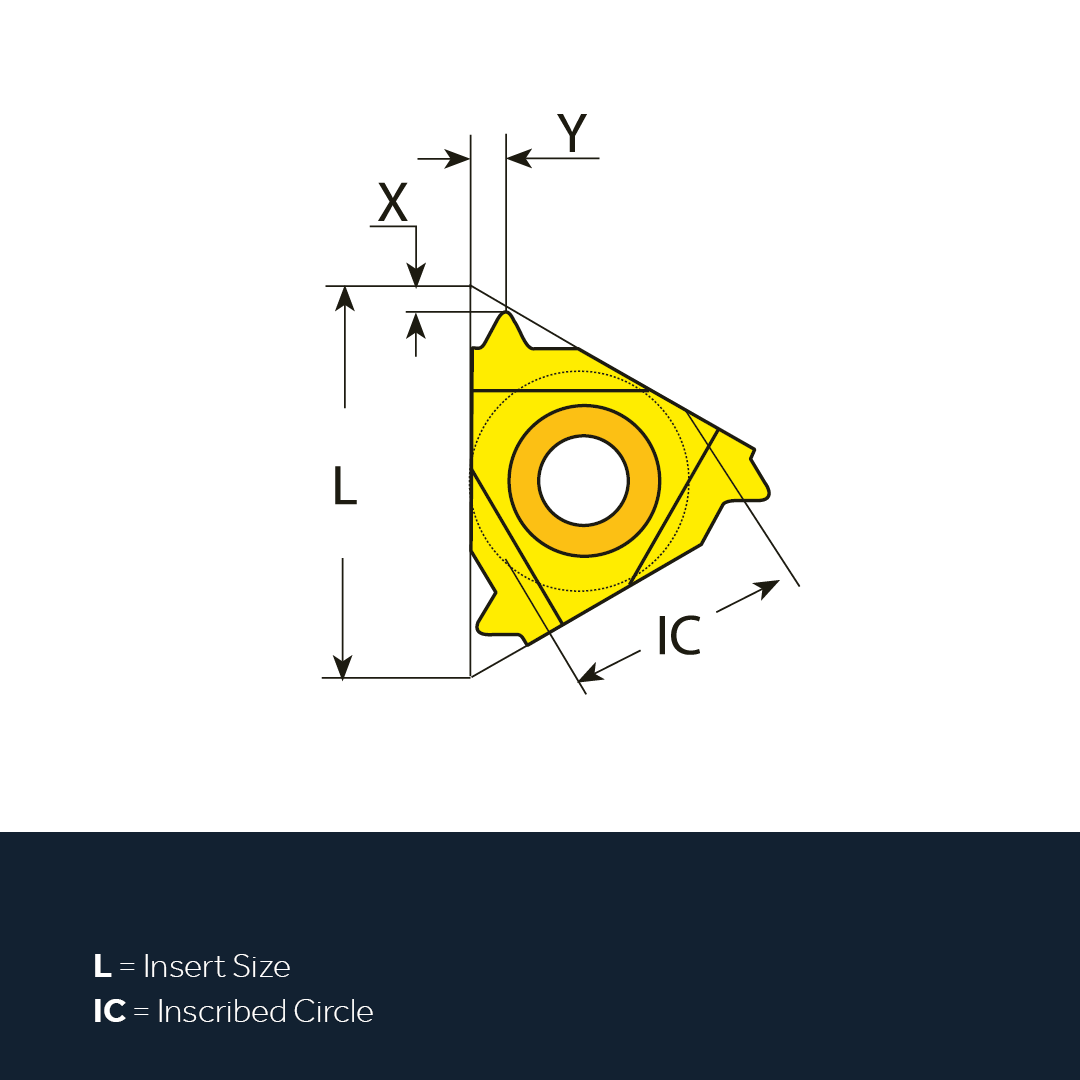

| Insert Size | 16 (Vardex Size 3) |
| Alternative Part Number | 3ER12UNVT10 |
| Surface Treatment | Coated (PVD/CVD) |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Coating Description | VT10 Enhanced Coating |

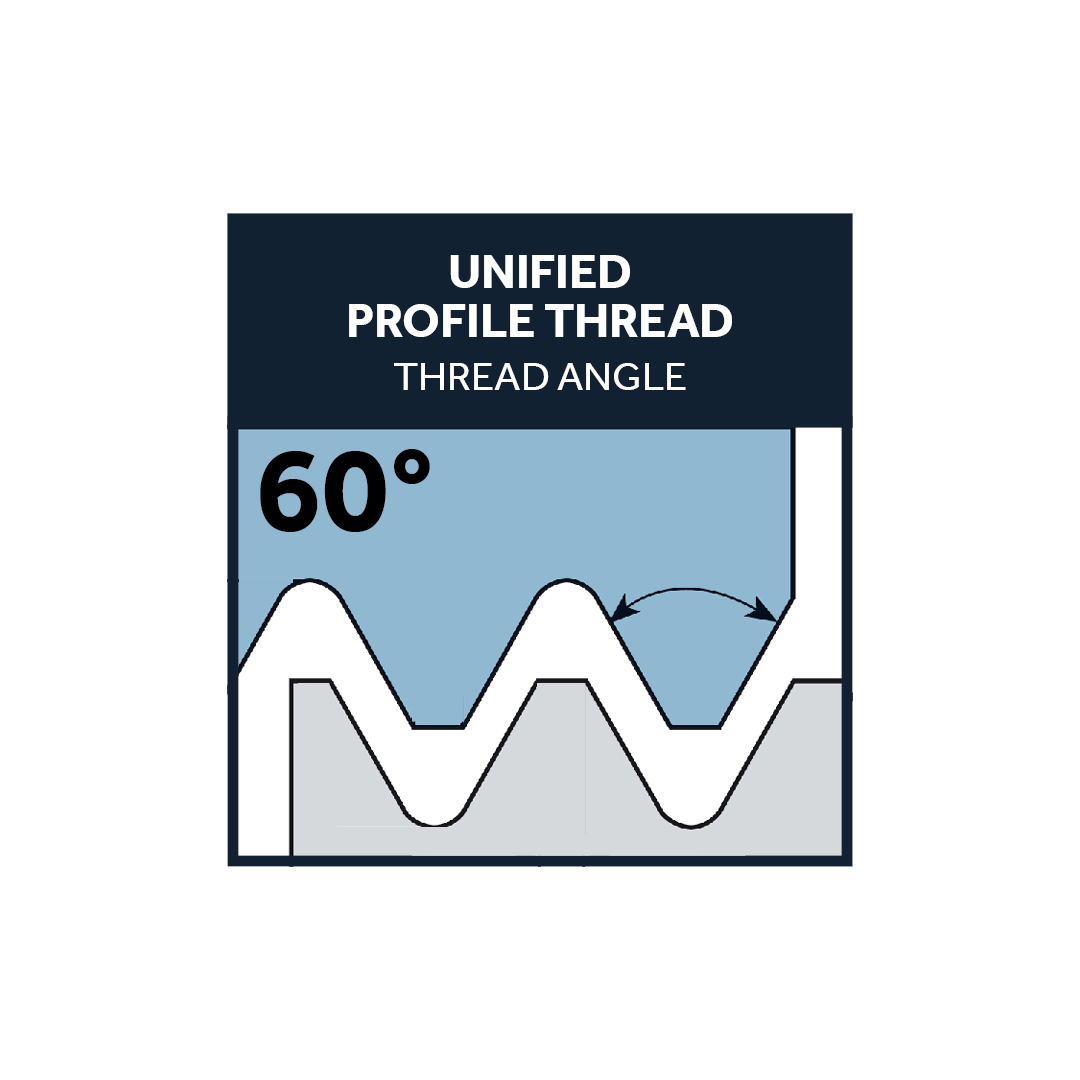

| Thread Form | UN (Unified) |
| Hand | Right Hand |
| Brand | Vardex |
