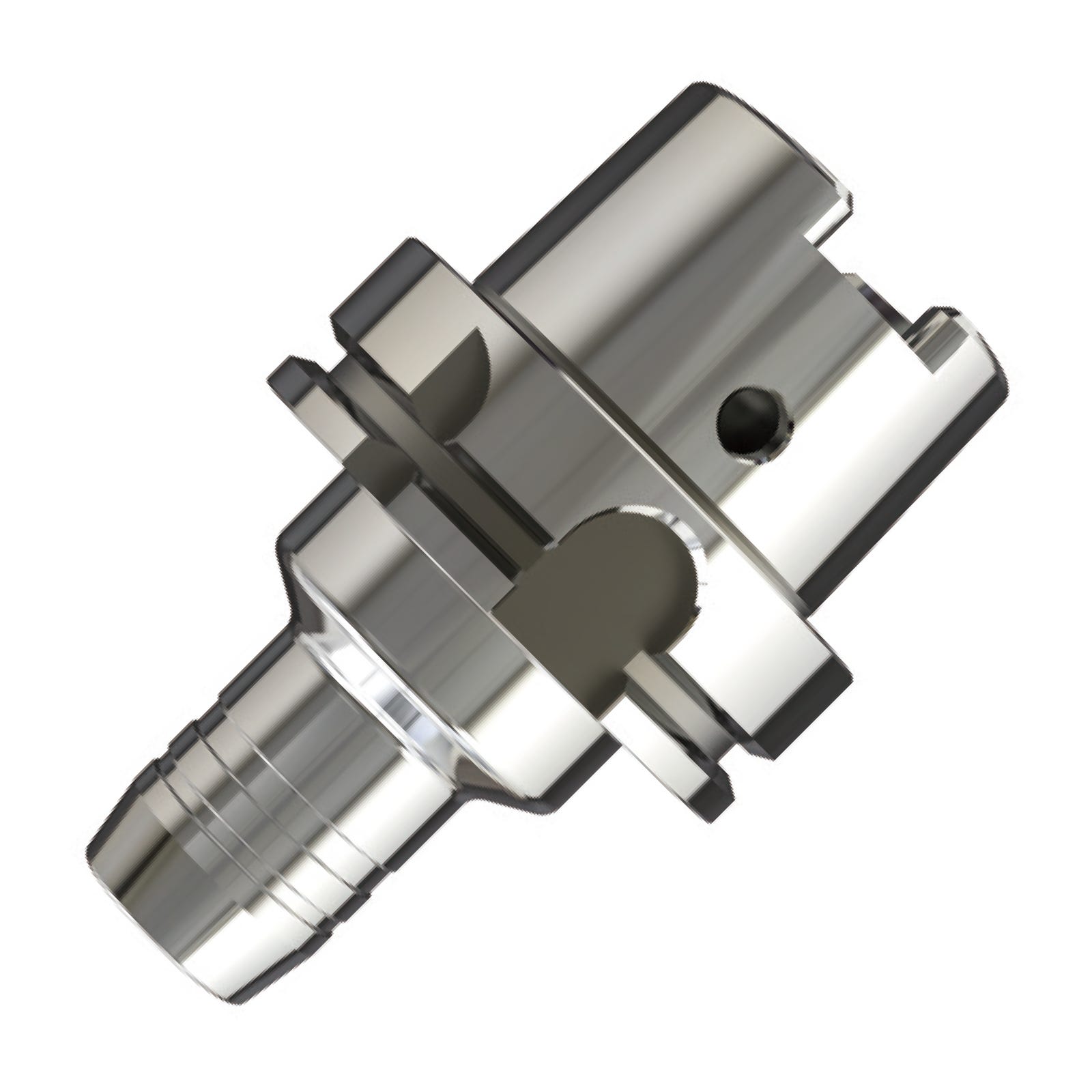

16mm HSK100A Slim Hydraulic Chuck (100mm Long) 25,000RPM G2.5 (YG-1)

Cutwel Sku
YG-P2770411

16mm HSK100A Slim Hydraulic Chuck (100mm Long) 25,000RPM G2.5 (YG-1)

Cutwel Sku
YG-P2770411

Key Features

available Balanced to 25,000RPM G2.5
available High run-out accuracy 0.003mm
available 600Kn clamping force
Read More
Diameter (mm)16
green Available for Delivery within 4-5 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

Specification

Category Toolholding
Sub Category Spindle Tooling
Sub Category 2 Hydraulic Chucks
Diameter (mm) 16
Gauge Length 100
Tolerance h6
Nose Diameter 38
Through Coolant Yes
Type Slim
Balance 25,000RPM G2.5
Run Out 3 Micron Run-Out
Taper HSK100A
Brand YG-1
Part Numbers
  • Cutwel Part Number YG-P2770411

Description

HSK100A YG-1 Slim Hydraulic Chucks offer exceptional value whilst maintaining exceptional quality and performance. These come balanced up to 25,000RPM G2.5 and have a slimmer nose profile, ideal for nominal diameter clamping. Hydraulic chucks offer better performance than conventional tool holders and have quicker set up times, high run-out accuracy and increased tool life.

Features & Benefits

  • Balanced to 25,000RPM G2.5
  • High run-out accuracy 0.003mm
  • 600Kn clamping force
  • Vibration damping effect
  • Increased tool life
  • Exceptional performance in drilling, reaming and high-speed machining
  • Flexible clamping range using reduction sleeves or direct clamping of the tool in the chuck
  • Quick setup times
  • Through coolant
