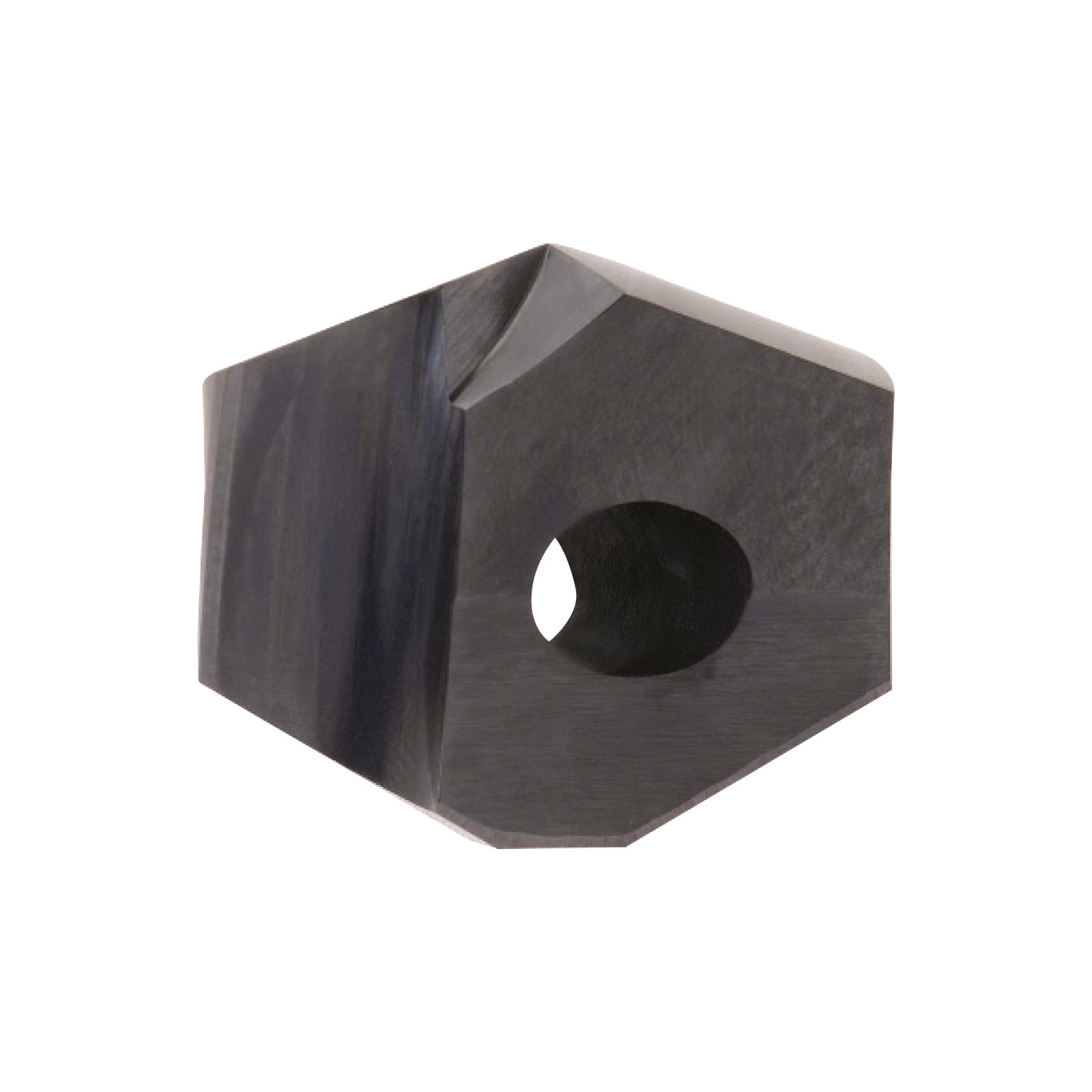

17.8mm INOX Geometry i-Dream Drill Inserts (YG-1)

Cutwel Sku
YC2C1780

17.8mm INOX Geometry i-Dream Drill Inserts (YG-1)

Cutwel Sku
YC2C1780
INOX Geometry i-Dream Drill inserts suitable for High Performance Stainless Steel Drilling. These high accuracy...
Read more
Diameter (mm)17.8
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

INOX Geometry i-Dream Drill inserts suitable for High Performance Stainless Steel Drilling. These high accuracy inserts eliminate the need for centering, reaming and boring. The YG-1 i-Dream Drill is a replaceable insert drilling system that uses advanced drill point technology and solid carbide ground inserts to produce accurate, consistent & high quality results with a reduced cost per hole.
  • INOX geometry for Stainless Steel
  • Self centering inserts
  • Centering, Reaming and Boring operations eliminated
  • Light, sharp cutting edge
  • Soft cutting action
  • Minimize cutting forces
  • Reduce built up edge
  • Precision ground Micrograin Carbide
  • Inserts avaialble in Metric and Imperial
  • Inserts can be changed while the tool is In the machine
  • High precision with accurate and consistent hole size
  • Excellent swarf evacutation, good tool life and high penetration rates
  • High rigidity in powerful drilling operations

Specification

Category Hole Making
Sub Category Indexable Drills
Sub Category 2 i-Dream Drill
Diameter (mm) 17.8
Insert Geometry Inox (Stainless Steel)
Tolerance h7
Point Angle 140°
Substrate Carbide
Applicable Materials Steel, Stainless Steel, Non-Ferrous
Performance 5
Coating Description TiCN Coating
Substrate Description Micrograin Carbide
Self Centring Yes
Brand Range i-Dream Drill
Brand YG-1
