2 Flute CVD Diamond Reduced Neck Ball Nose End Mill - 29.6522 (Karnasch)
Scroll back
Scroll back

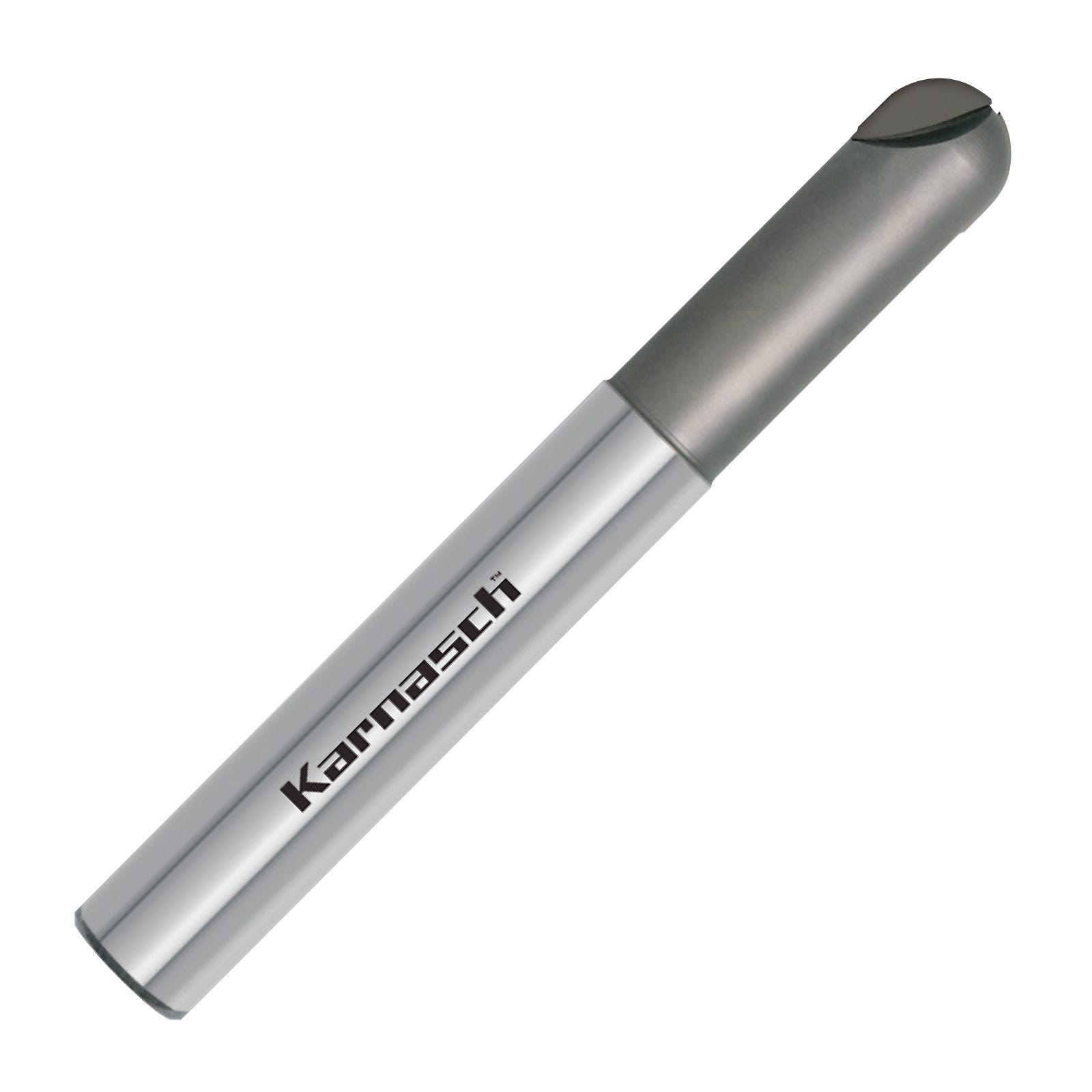

2 Flute CVD Diamond Reduced Neck Ball Nose End Mill - 29.6522 (Karnasch)
The 29.6522 series from Karnasch is a CVD Diamond reduced neck ball nose end mill which ranges from 2-12mm...
Read more
View Products
Related Products

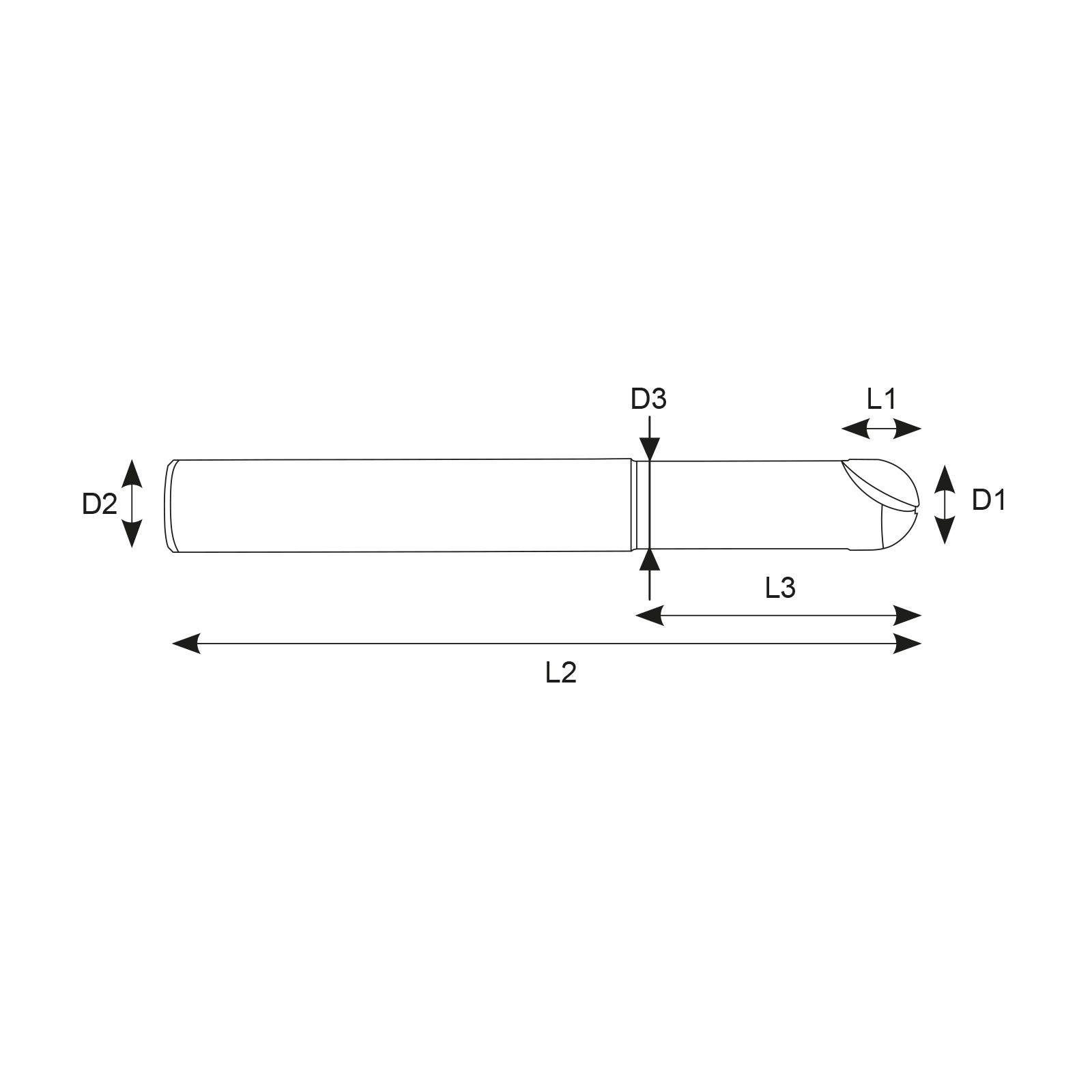

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Diameter (mm)
|
Shank (mm)
|
Flute Length (mm)
|
Overall Length (mm)
|
Reach (mm)
|
Flutes
|
Neck Diameter (mm)
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
| Diameter (mm): 2 | Shank (mm): 4 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 6 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£288.71
£240.59
|
|
|
| Diameter (mm): 2 | Shank (mm): 4 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 8 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£288.71
£240.59
|
|
|
| Diameter (mm): 2 | Shank (mm): 4 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 10 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£288.71
£240.59
|
|
|
| Diameter (mm): 2 | Shank (mm): 4 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 12 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£288.71
£240.59
|
|
|
| Diameter (mm): 2 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 6 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£288.71
£240.59
|
|
|
| Diameter (mm): 2 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 8 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£452.95
£377.46
|
|
|
| Diameter (mm): 2 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 10 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£288.71
£240.59
|
|
|
| Diameter (mm): 3 | Shank (mm): 4 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 6 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£310.03
£258.36
|
|
|
| Diameter (mm): 3 | Shank (mm): 4 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 8 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£310.03
£258.36
|
|
|
| Diameter (mm): 3 | Shank (mm): 4 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 10 | Flutes: 2 | Neck Diameter (mm): 1.92 |
4 days*
|
£310.03
£258.36
|
|
|
| Diameter (mm): 3 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 10 | Flutes: 2 | Neck Diameter (mm): 2.8 |
4 days*
|
£310.03
£258.36
|
|
|
| Diameter (mm): 3 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 15 | Flutes: 2 | Neck Diameter (mm): 2.8 |
4 days*
|
£324.72
£270.60
|
|
|
| Diameter (mm): 3 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 50 | Reach (mm): 20 | Flutes: 2 | Neck Diameter (mm): 2.8 |
4 days*
|
£310.03
£258.36
|
|
|
| Diameter (mm): 4 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 75 | Reach (mm): 10 | Flutes: 2 | Neck Diameter (mm): 3.8 |
4 days*
|
£321.42
£267.85
|
|
|
| Diameter (mm): 4 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 75 | Reach (mm): 20 | Flutes: 2 | Neck Diameter (mm): 3.8 |
4 days*
|
£341.92
£284.93
|
|
|
| Diameter (mm): 4 | Shank (mm): 6 | Flute Length (mm): 2.5 | Overall Length (mm): 75 | Reach (mm): 30 | Flutes: 2 | Neck Diameter (mm): 3.8 |
4 days*
|
£321.42
£267.85
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Flute Length (mm): 3 | Overall Length (mm): 75 | Reach (mm): 15 | Flutes: 2 | Neck Diameter (mm): 4.6 |
4 days*
|
£329.93
£274.94
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Flute Length (mm): 3 | Overall Length (mm): 75 | Reach (mm): 25 | Flutes: 2 | Neck Diameter (mm): 4.6 |
4 days*
|
£329.93
£274.94
|
|
|
| Diameter (mm): 5 | Shank (mm): 6 | Flute Length (mm): 3 | Overall Length (mm): 75 | Reach (mm): 35 | Flutes: 2 | Neck Diameter (mm): 4.6 |
4 days*
|
£429.53
£357.94
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 6 | Overall Length (mm): 100 | Reach (mm): 20 | Flutes: 2 | Neck Diameter (mm): 5.6 |
4 days*
|
£429.53
£357.94
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 6 | Overall Length (mm): 100 | Reach (mm): 30 | Flutes: 2 | Neck Diameter (mm): 5.6 |
4 days*
|
£429.53
£357.94
|
|
|
| Diameter (mm): 6 | Shank (mm): 6 | Flute Length (mm): 6 | Overall Length (mm): 100 | Reach (mm): 40 | Flutes: 2 | Neck Diameter (mm): 5.6 |
4 days*
|
£429.53
£357.94
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 7 | Overall Length (mm): 100 | Reach (mm): 25 | Flutes: 2 | Neck Diameter (mm): 7.4 |
4 days*
|
£536.14
£446.78
|
|
|
| Diameter (mm): 8 | Shank (mm): 8 | Flute Length (mm): 7 | Overall Length (mm): 100 | Reach (mm): 40 | Flutes: 2 | Neck Diameter (mm): 7.4 |
4 days*
|
£536.14
£446.78
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 8 | Overall Length (mm): 100 | Reach (mm): 30 | Flutes: 2 | Neck Diameter (mm): 9.6 |
4 days*
|
£608.69
£507.24
|
|
|
| Diameter (mm): 10 | Shank (mm): 10 | Flute Length (mm): 8 | Overall Length (mm): 100 | Reach (mm): 50 | Flutes: 2 | Neck Diameter (mm): 9.6 |
4 days*
|
£608.69
£507.24
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 9 | Overall Length (mm): 105 | Reach (mm): 35 | Flutes: 2 | Neck Diameter (mm): 11.2 |
4 days*
|
£716.78
£597.32
|
|
|
| Diameter (mm): 12 | Shank (mm): 12 | Flute Length (mm): 9 | Overall Length (mm): 105 | Reach (mm): 60 | Flutes: 2 | Neck Diameter (mm): 11.2 |
4 days*
|
£794.99
£662.49
|
|
Product Information
Features & Benefits
The 29.6522 series from Karnasch is a CVD Diamond reduced neck ball nose end mill which ranges from 2-12mm diameter. CVD (99.9% diamond) have 4-5 times the tool life comapred to PCD and are ideal for carbon fibre, glass reinforced plastics, kevlar, aramid, titanium and abrasive plastics. For Carbon Fibre, Glass Reinforced Plastics, Aluminium, Copper & Brass.
0.1mm chamfer edge preparation protects the cutting edge.
CVD Diamond is the ultimate composite milling tool, twice as hard as PCD and can only be ground by laser. For the most abrasive composites or when the longest tool life is required.
Ball nosed gemoetry.
4-5 times tool life compared to PCD.
CVD 99.9% Diamond.
Ultra-sharp cutting edge from laser grinding process ensures the sharpest cutting edge and prevents delamination.
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | CVD Milling Cutters |
| Substrate | CVD Diamond |
| Surface Treatment | Uncoated (Polished) |
| End Profile | Ball Nose |
| Flute Type | Reduced Neck |
| Shank Type | Plain |
| Applicable Materials | Non-Ferrous |
| Helix Profile | Standard |
| Performance | 5 |
| Brand | Karnasch |
