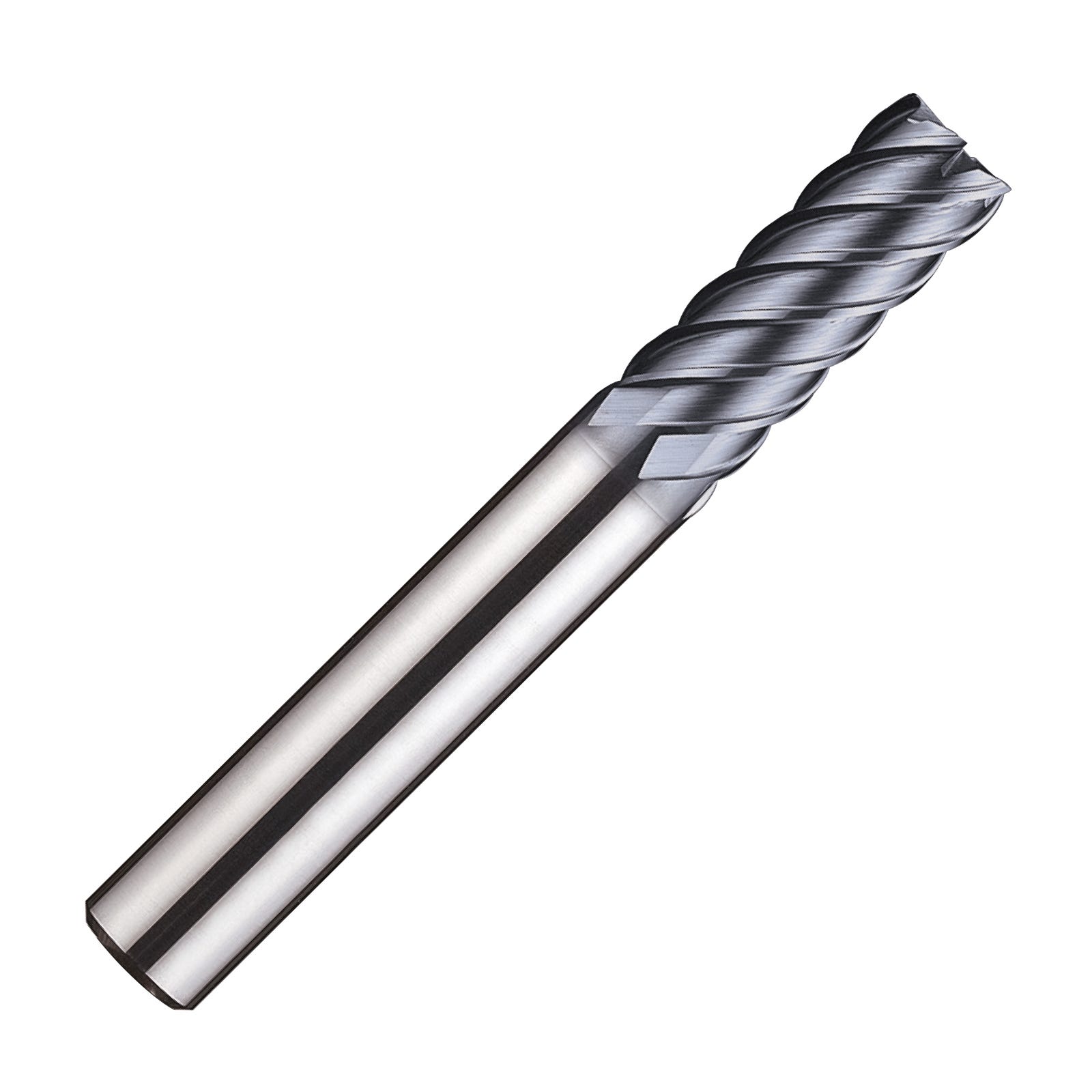

20mm 6 Flute 45 Degree Helix 4G Mill Coated Carbide End Mill (Super Finisher or Trochoidal Milling) - SEME75 (YG-1)
20mm 6 Flute 45 Degree Helix 4G Mill Coated Carbide End Mill (Super Finisher or Trochoidal Milling) - SEME75 (YG-1)
| Diameter (mm) | 20 |
|---|---|
| Overall Length (mm) | 120 |
| Flute Length (mm) | 60 |
| Shank (mm) | 20 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
- YG-1's Y1200 coating & premium micrograin carbide substrate
- HSC - High speed cutting
- Due to new coating and tool geometry, 4G Mills can machine up to 1200 degree with outstanding wear resistance
- Exceptional surface finish in profiling operations

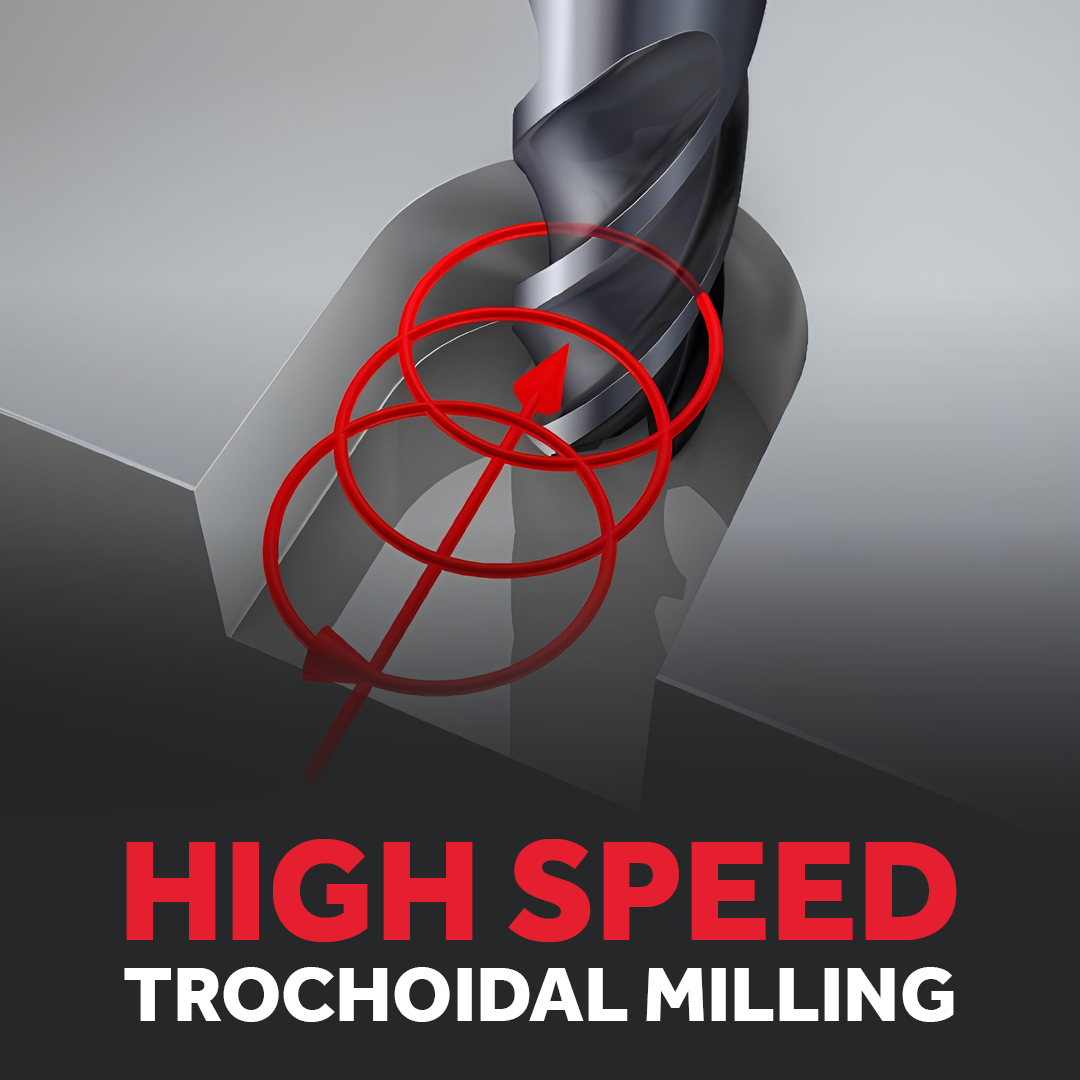

- Can be used for trochoidal machining, high speed milling or normal milling
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | 4G Mills Milling Cutters |
| Diameter (mm) | 20 |
| Shank (mm) | 20 |
| Flute Length (mm) | 60 |
| Overall Length (mm) | 120 |
| Flutes | 6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Square |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron |
| Helix Profile | Multiple Helix |
| Performance | 5 |
| Coating Description | Y1200 Coated |
| Substrate Description | Ultrafine Micrograin Carbide |
| Helix Angle | 45° |
| Brand Range | 4G Mill |
| Brand | YG-1 |
