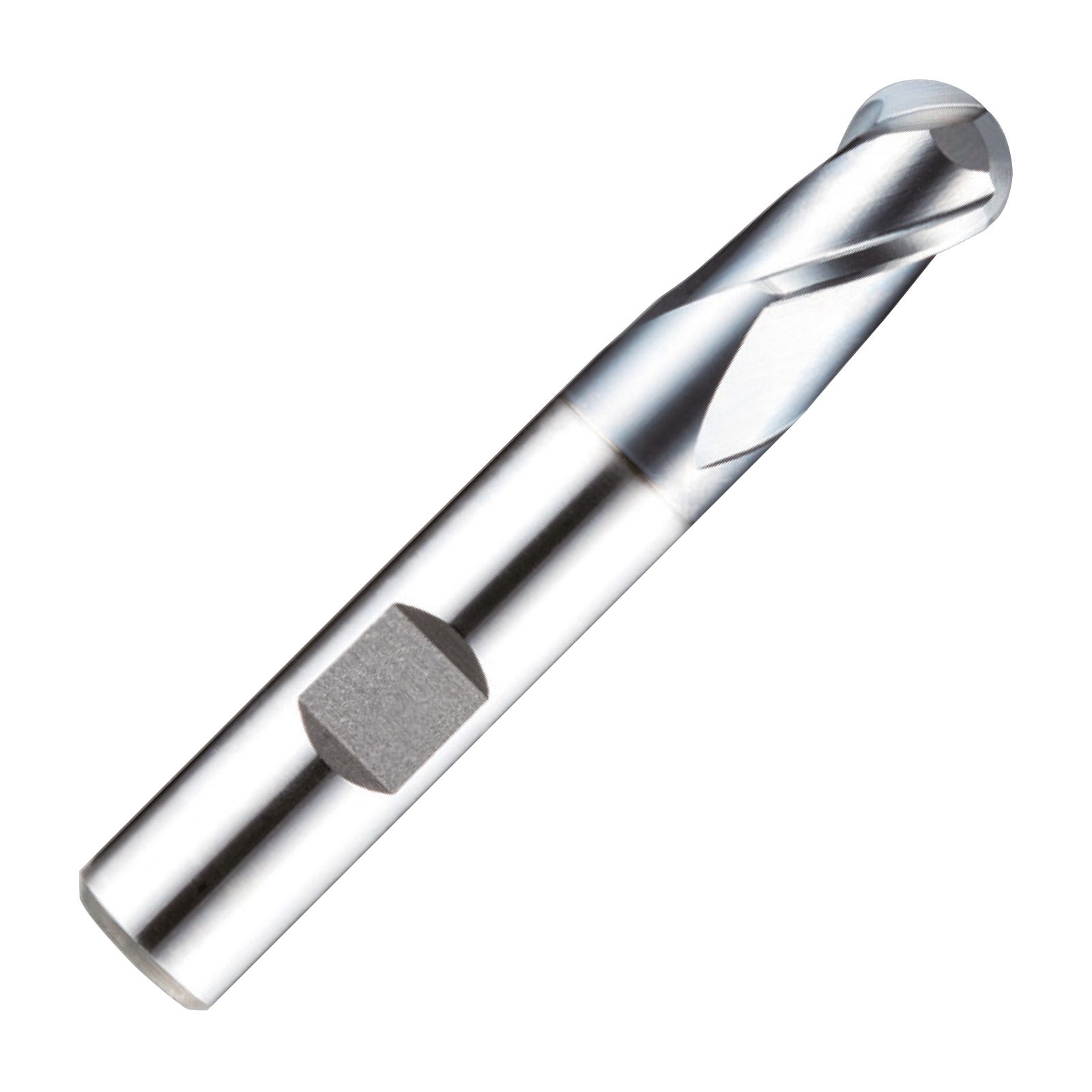

25mm 2 Flute Only One HSS Powder Metal Ball Nose Slot Drill - GYF97 (YG-1)
25mm 2 Flute Only One HSS Powder Metal Ball Nose Slot Drill - GYF97 (YG-1)

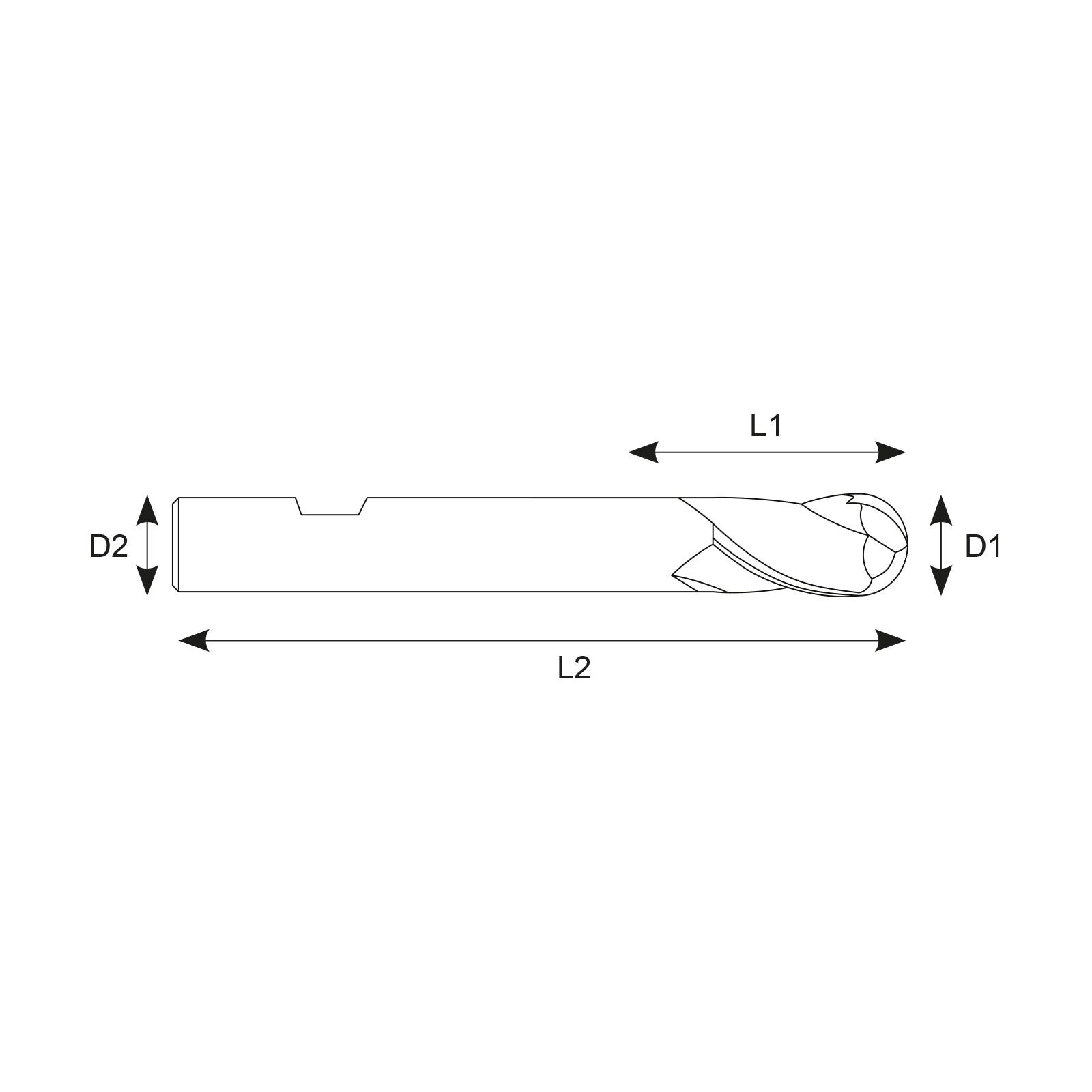

| Diameter (mm) | 25 |
|---|---|
| Overall Length (mm) | 102 |
| Flute Length (mm) | 26 |
| Shank (mm) | 25 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- ASP60 Powder Metal substrate gives similar cutting performance and wear resistance to general carbide cutters.
- YG-1's own high performance 'Y1200' coating allows for machining up to 1200°C.
- The most cost effective milling cutters from YG-1 in unstable machining conditions.
- Exceptional tool life and performance on CNC, NC and conventional milling machines in general machining.
- Wide range of geometries including chamfer preps, coarse & fine pitch roughers and multiple helix.
- Available on weldon shanks.
- Excellent performance in roughing applications.
- The perfect replacement to coated carbide where problems such as tool chipping occurs.
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Diameter (mm) | 25 |
| Shank (mm) | 25 |
| Radius | 12.5 |
| Flute Length (mm) | 26 |
| Overall Length (mm) | 102 |
| Flutes | 2 |
| Substrate | HSS-PM |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Ball Nose |
| Flute Type | Standard |
| Shank Type | Weldon |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Helix Profile | Standard |
| Performance | 3 |
| Coating Description | Y1200 Coated |
| Substrate Description | ASP6020 Powder Metal |
| Helix Angle | 30° |
| Brand Range | Only One |
| Brand | YG-1 |
