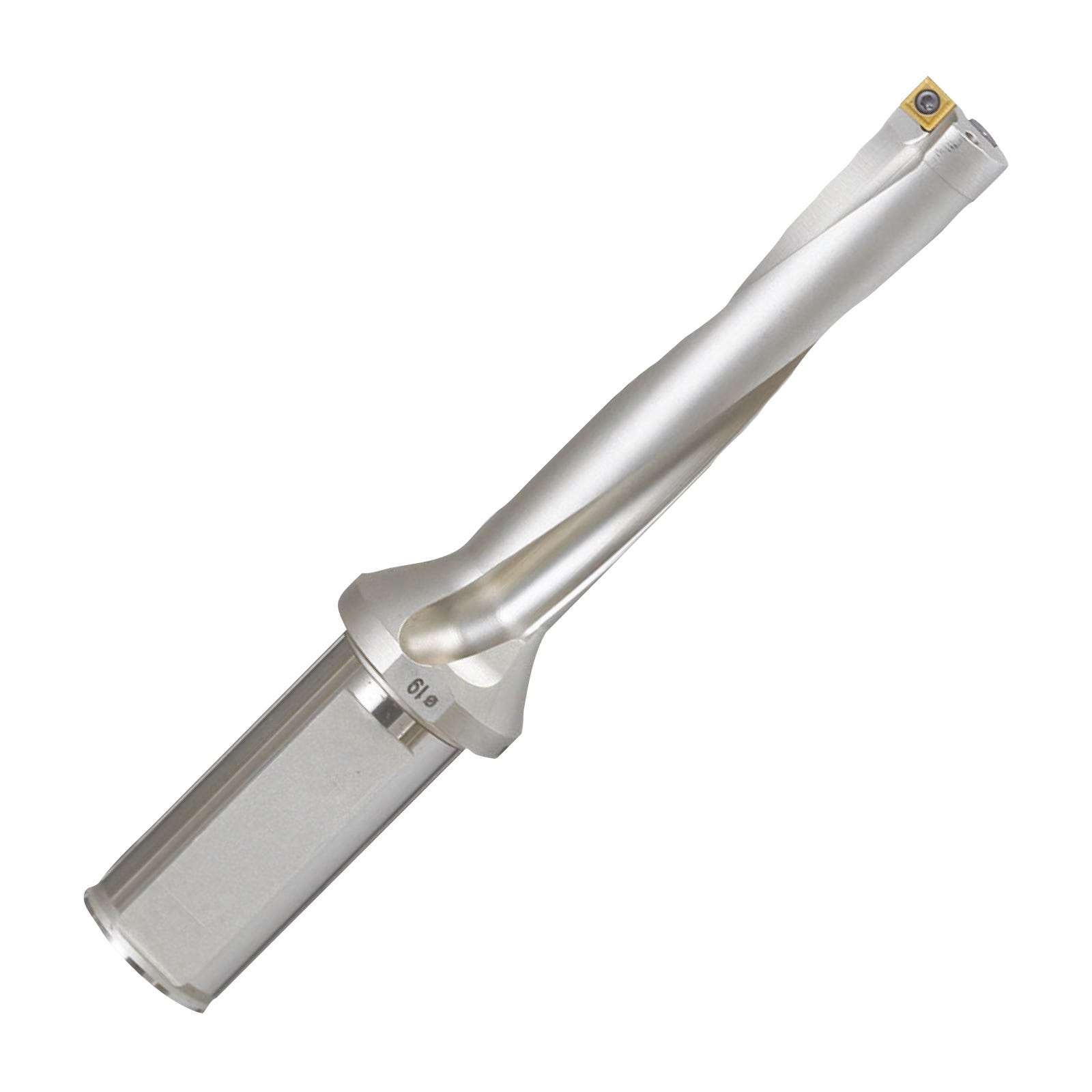

34.5mm 4xD King Drill Indexable U-Drill (Korloy)

Cutwel Sku
1-06-036084

34.5mm 4xD King Drill Indexable U-Drill (Korloy)

Cutwel Sku
1-06-036084
Korloy King Drill's are a high performance u-drill system that utlises a dual insert design for higher...
Read more
Diameter (mm)34.5
Overall Length (mm)227
Flute Length (mm)139
Shank (mm)32
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 21 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

Korloy King Drill's are a high performance u-drill system that utlises a dual insert design for higher efficiency. The unique insert geometries create a balanced step by step entrance into the workpiece which reduces cutting loads up to 50% and virtually eliminates deflection on entry. Holders are avaialble in 2xD, 3xD, 4xD and 5xD and use the SPMT (peripheral) and XOMT (central) inserts.
  • Available in diameters 12mm-60.5mm in 0.5mm increments
  • Inserts available in grades for steel, stainless steel, HRSA’s, cast iron, aluminium & plastics
  • All holders through coolant
  • Tool holders available in 2xD, 3xD, 4xD & 5xD max drill depths
  • Optimised insert design for inner and outer pocket
  • Exceptionally accurate drilling compared to other indexable drills, even in deep holes
  • High performance drilling of a wide range of materials
  • Lower risk of tool failure
  • Reduced insert wear

Specification

Category Hole Making
Sub Category Indexable Drills
Sub Category 2 King Drill

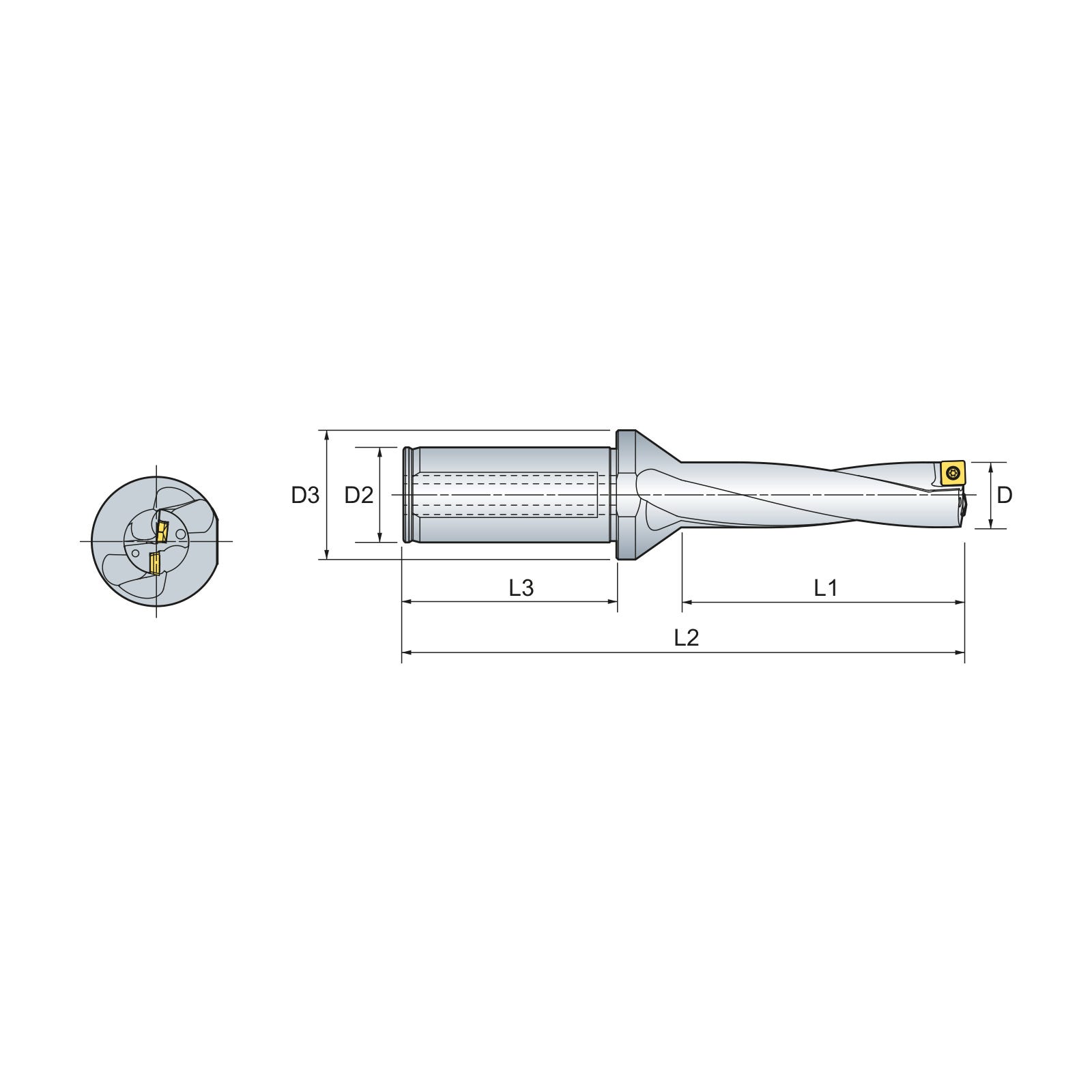

Diameter (mm) 34.5
Shank (mm) 32
Flute Length (mm) 139
Overall Length (mm) 227
D3 44
Shank Length 60
Central Inserts XOMT/XOET11
Peripheral Inserts SPMT/SPET11
Depth 4xD
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics
Performance 5
Through Coolant Yes
Brand Range King Drill
Brand Korloy
