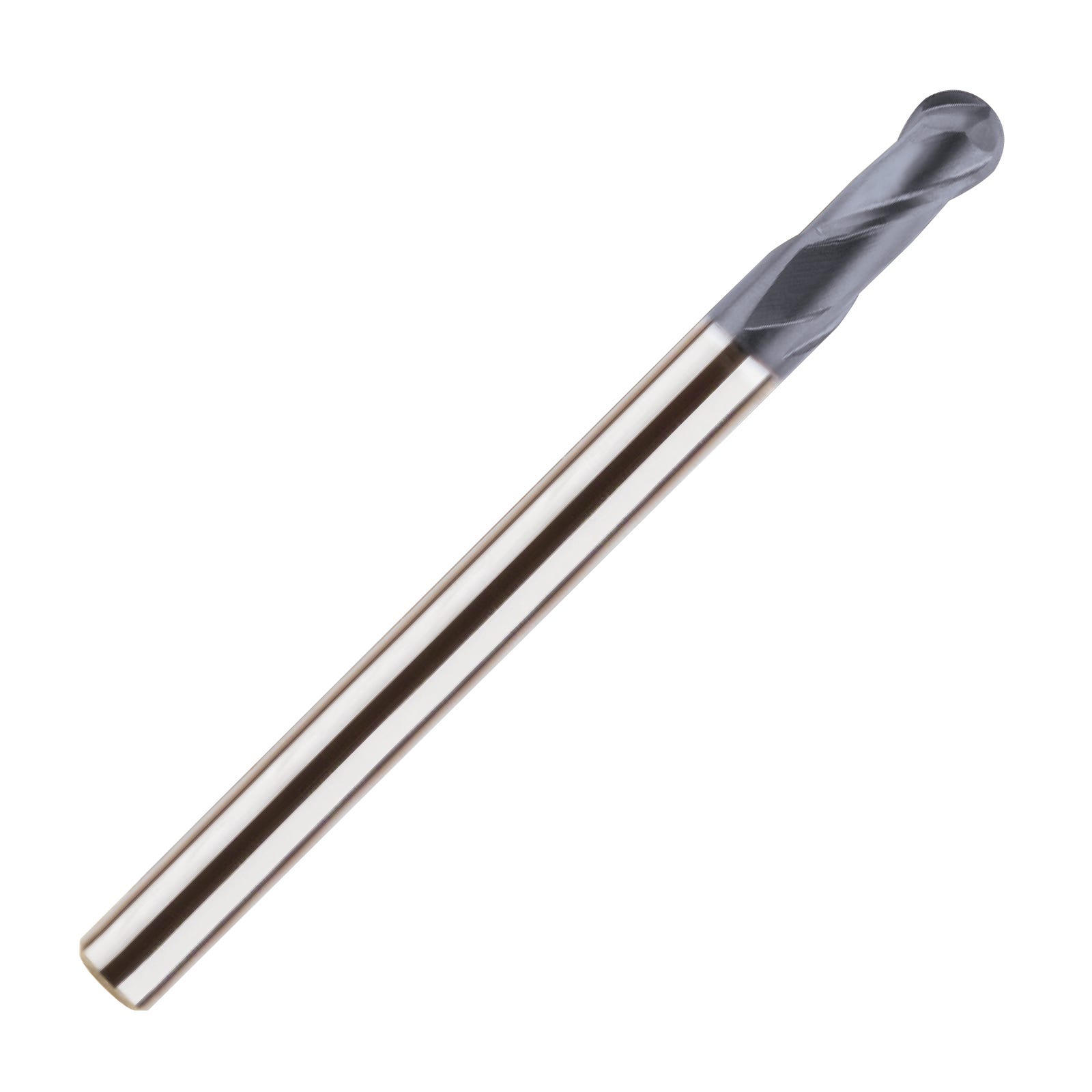

3mm 2 Flute 4G Mill Carbide Ball Nose Slot Drill - SEMD98(YG-1)
3mm 2 Flute 4G Mill Carbide Ball Nose Slot Drill - SEMD98(YG-1)
| Diameter (mm) | 3 |
|---|---|
| Overall Length (mm) | 100 |
| Flute Length (mm) | 6 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
- YG-1's Y1200 coating & premium micrograin carbide substrate
- HSC - High speed cutting
- Due to new coating and tool geometry, 4G Mills can machine up to 1200��C with outstanding wear resistance
- Due to it's unique ball nose geometry and cutting edges, exceptional surface can be achieved)
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | 4G Mills Milling Cutters |
| Diameter (mm) | 3 |
| Shank (mm) | 6 |
| Radius | 1.5 |
| Flute Length (mm) | 6 |
| Overall Length (mm) | 100 |
| Flutes | 2 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Ball Nose |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron |
| Helix Profile | Standard |
| Performance | 5 |
| Coating Description | Y1200 Coated |
| Substrate Description | Ultrafine Micrograin Carbide |
| Brand Range | 4G Mill |
| Brand | YG-1 |
