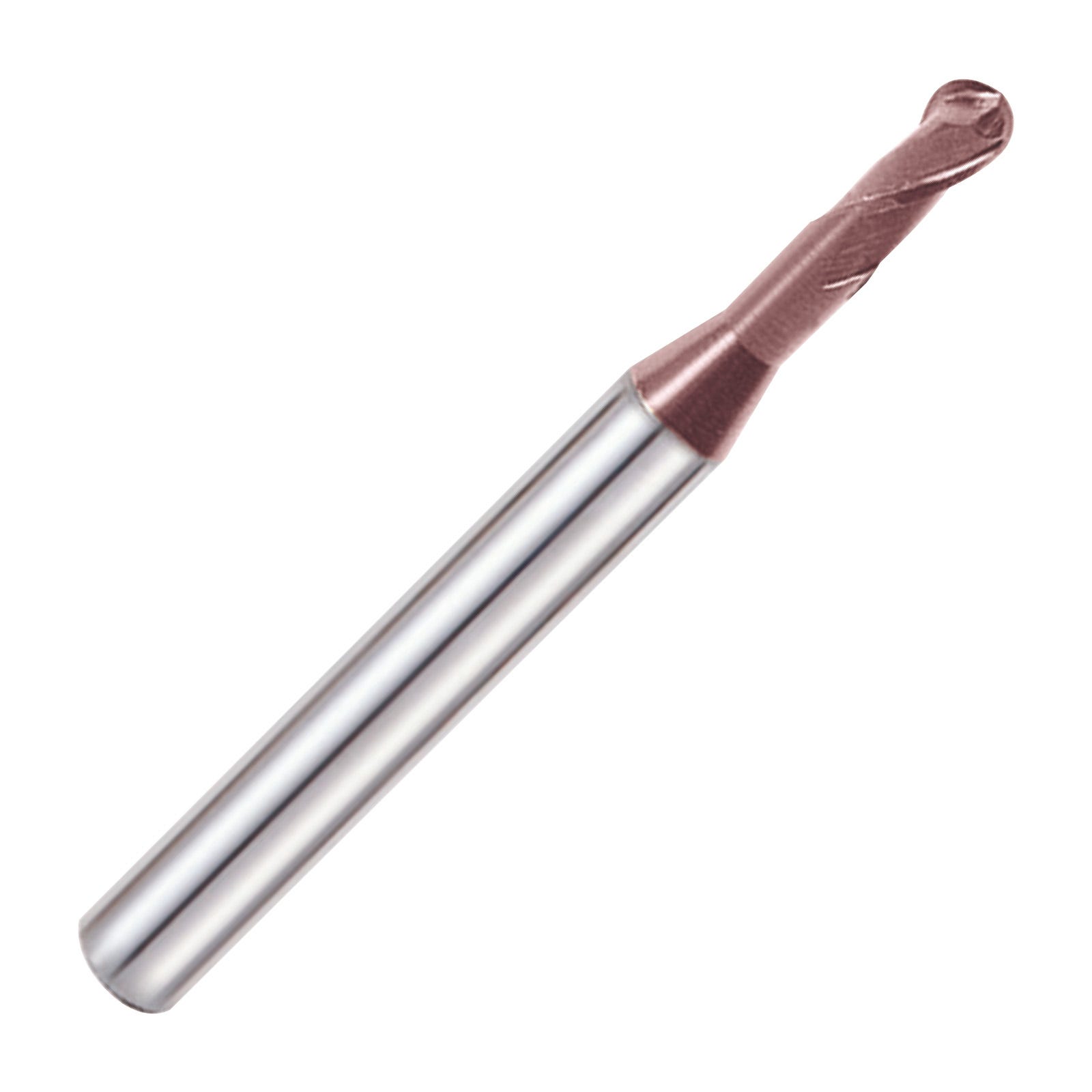

3mm x 1.5mm 2 Flute K2 Coated Carbide Ball Nose Long Neck Slot Drill - G9B81 Series (YG-1)
3mm x 1.5mm 2 Flute K2 Coated Carbide Ball Nose Long Neck Slot Drill - G9B81 Series (YG-1)
| Diameter (mm) | 3 |
|---|---|
| Overall Length (mm) | 50 |
| Flute Length (mm) | 4.5 |
| Shank (mm) | 4 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Ball nose for copy milling, full radius grooving & corner radius milling
- Long neck for deep pocket milling
- Special K2 coating for longer tool life, high heat and wear resistance
- Dry cutting on steel can increase tool life up to 40%
- Also suitable for general milling of steel, stainless steel, cast iron & non-ferrous
- Consistent and reliable performance in general machining conditions
- Made from high-quality micrograin carbide.
- Manufactured by global market leader YG-1

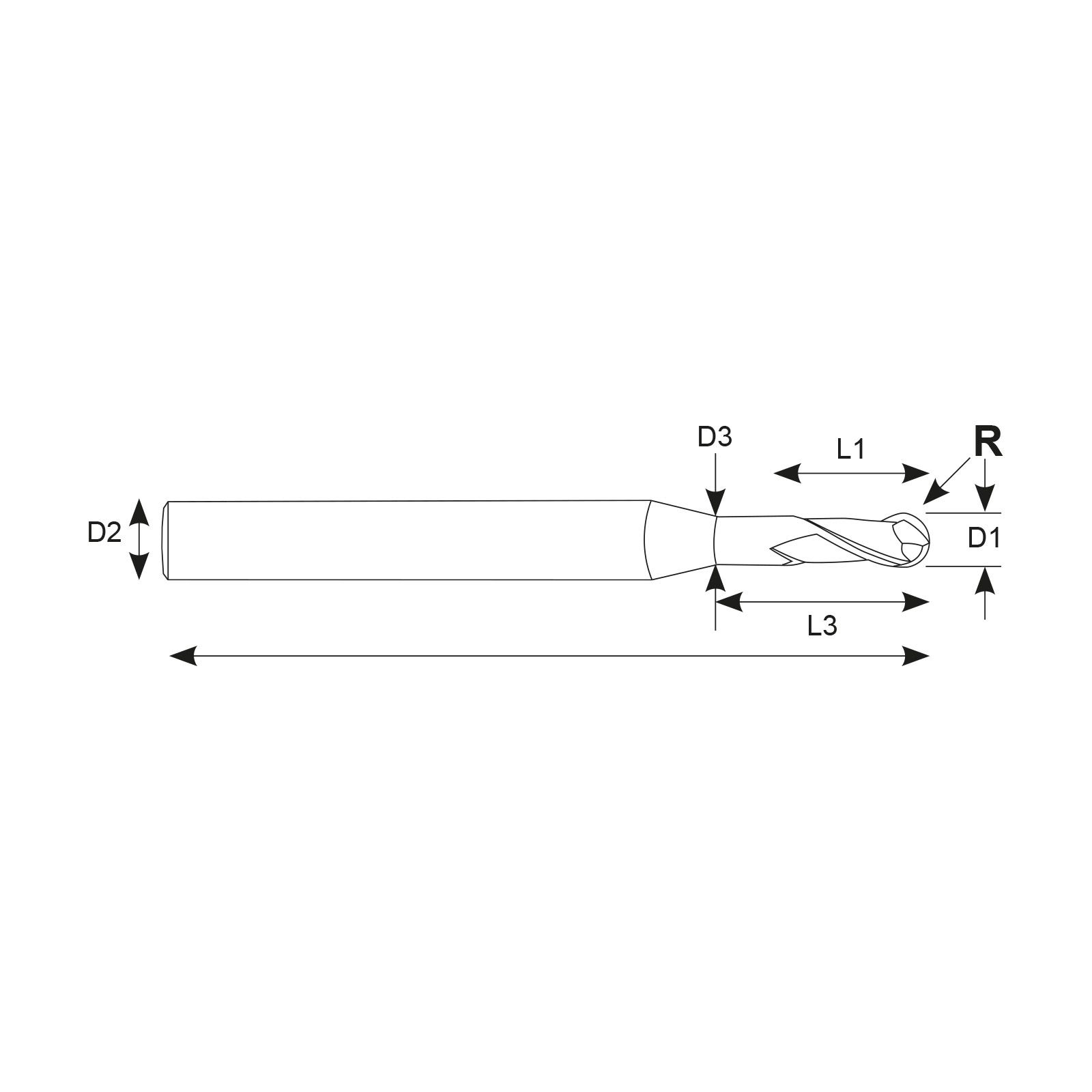

Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | K2 Carbide Milling Cutters |
| Diameter (mm) | 3 |
| Shank (mm) | 4 |
| Flute Length (mm) | 4.5 |
| Overall Length (mm) | 50 |
| Reach (mm) | 10 |
| Flutes | 2 |
| Neck Diameter (mm) | 2.85 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Ball Nose |
| Flute Type | Long Neck |
| Shank Type | Plain |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous |
| Helix Profile | Standard |
| Performance | 3 |
| Coating Description | K2 Coated |
| Substrate Description | Micrograin Carbide |
| Helix Angle | 30° |
| Brand | YG-1 |
