4.2mm Coated Carbide Jobber (5xD) Flat Bottom Dream Drill - DH450 Series (YG-1)
4.2mm Coated Carbide Jobber (5xD) Flat Bottom Dream Drill - DH450 Series (YG-1)

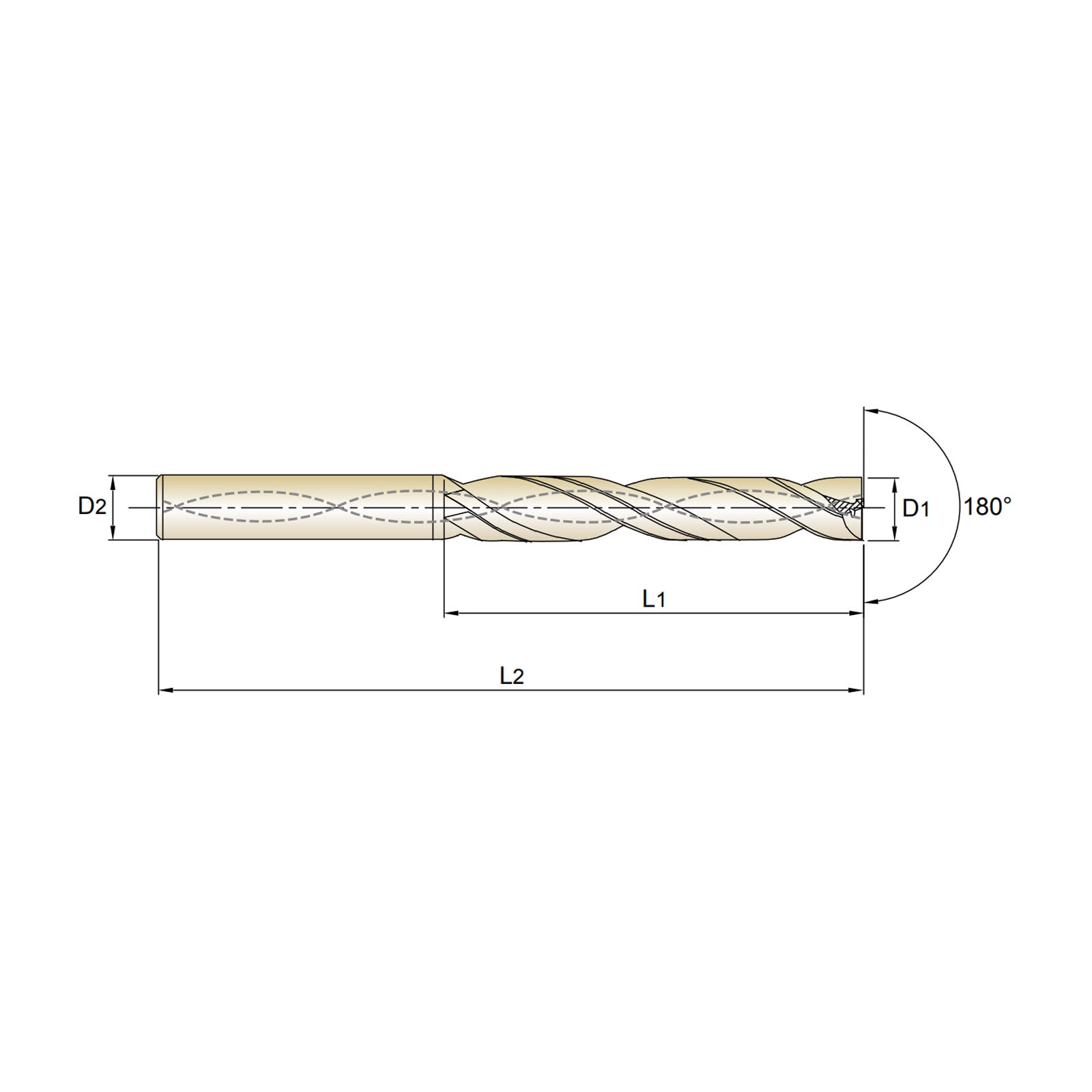

| Diameter (mm) | 4.2 |
|---|---|
| Overall Length (mm) | 74 |
| Flute Length (mm) | 36 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Micrograin Carbide Substrate
- Flat Bottom Drill for Flat, Inclined & Curved Surfaces
- 2-3 Times Quicker Than Drilling With A Slot Drill
- Ideal for Steel & Cast Iron
- Also suitable for general Stainless Steel
- Minimized Burrs when Drilling Thin Plate
- TiAlN coated with through coolant
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Carbide Drills |
| Sub Category 2 | Dream Drill Flat Bottom |
| Diameter (mm) | 4.2 |
| Shank (mm) | 6 |
| Flute Length (mm) | 36 |
| Overall Length (mm) | 74 |
| Tolerance | h7 |
| Point Angle | 180° |
| Shank Type | Plain |
| Shank Tolerance | h6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Drill Type | Jobber |
| Depth | 5xD |
| Performance | 5 |
| Coating Description | TiAlN Coated |
| Through Coolant | Yes |
| Substrate Description | Micrograin Solid Carbide |
| Self Centring | No |
| Helix Angle | 20° |
| Brand Range | Dream Drill |
| Brand | YG-1 |
