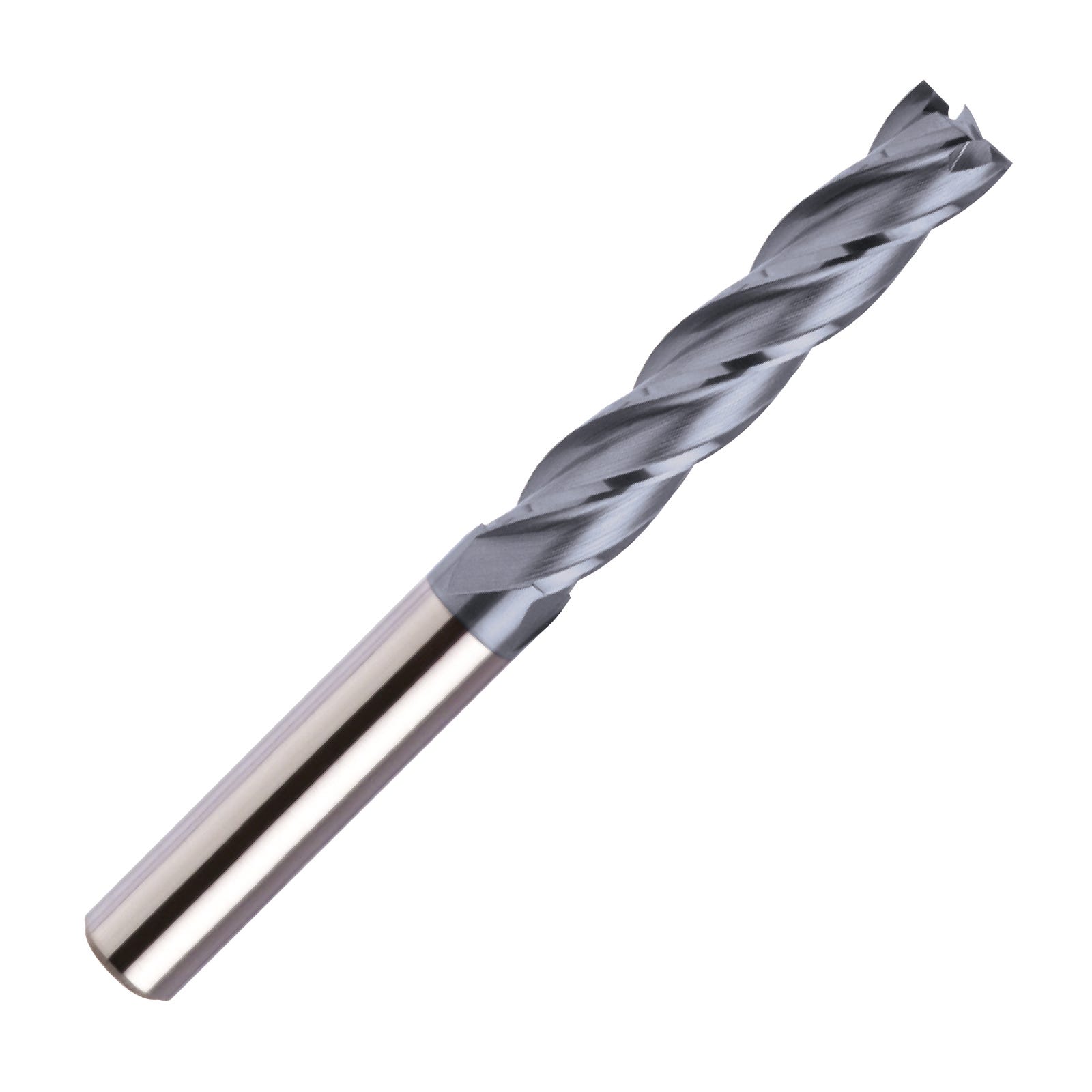

4mm 4 Flute 4G Mill Coated Carbide End Mill - SEME72 (YG-1)
4mm 4 Flute 4G Mill Coated Carbide End Mill - SEME72 (YG-1)
| Diameter (mm) | 4 |
|---|---|
| Overall Length (mm) | 70 |
| Flute Length (mm) | 20 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Excellent performance dry or wet cutting all steels, stainless steel, cast iron & hardened steels (Under HRc55)
- YG-1's Y1200 coating & premium micrograin carbide substrate
- HSC - High speed cutting
- Due to new coating and tool geometry, 4G Mills can machine up to 1200°C with outstanding wear resistance
- Wide range of flute lengths for optimum performance
Specification
| Category | Milling |
|---|---|
| Sub Category | Milling Cutters |
| Sub Category 2 | 4G Mills Milling Cutters |
| Diameter (mm) | 4 |
| Shank (mm) | 6 |
| Flute Length (mm) | 20 |
| Overall Length (mm) | 70 |
| Flutes | 4 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| End Profile | Square |
| Flute Type | Standard |
| Shank Type | Plain |
| Applicable Materials | Steel, Hardened Steel, Stainless Steel, Cast Iron |
| Helix Profile | Standard |
| Performance | 5 |
| Coating Description | Y1200 Coated |
| Substrate Description | Ultrafine Micrograin Carbide |
| Helix Angle | 30° |
| Brand Range | 4G Mill |
| Brand | YG-1 |
