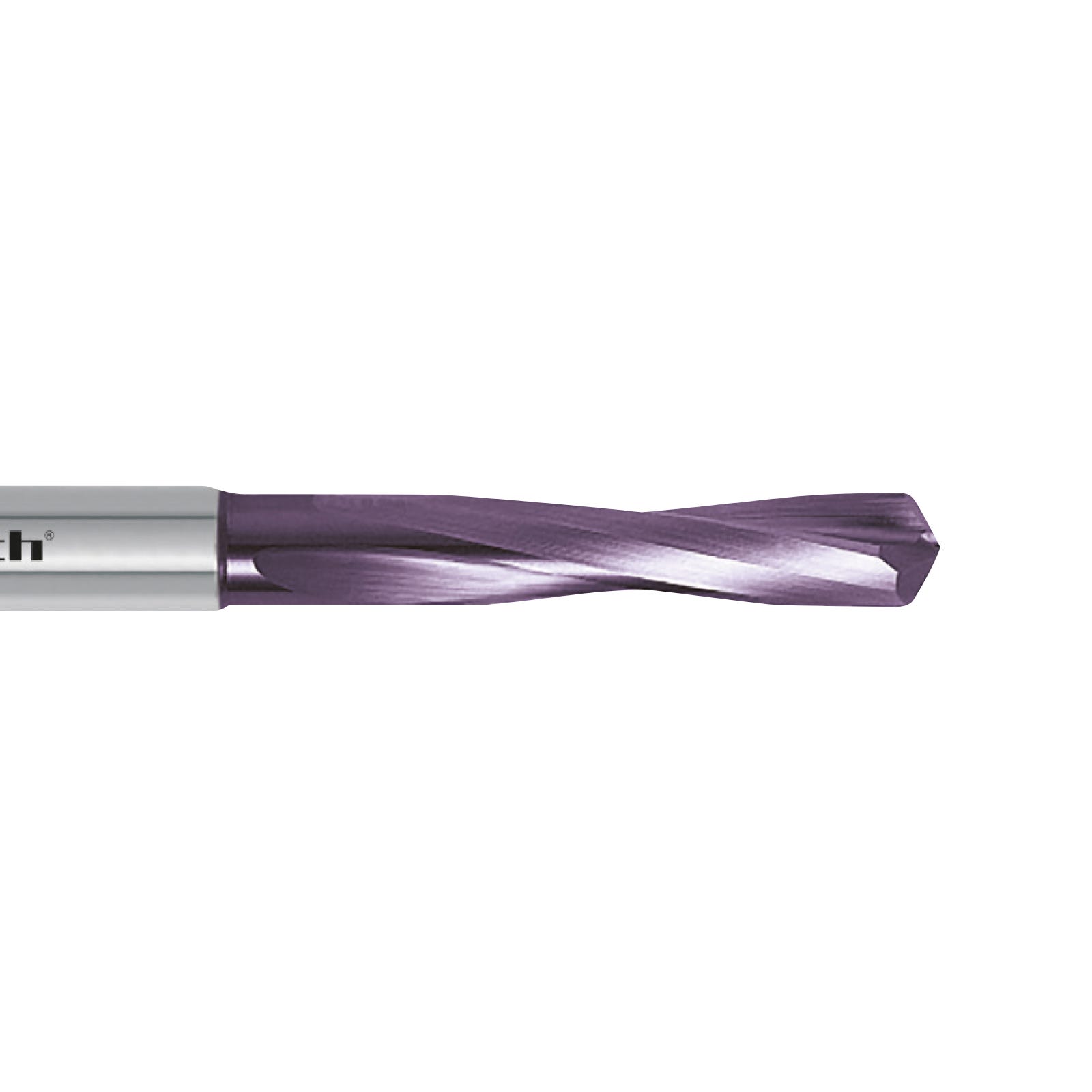

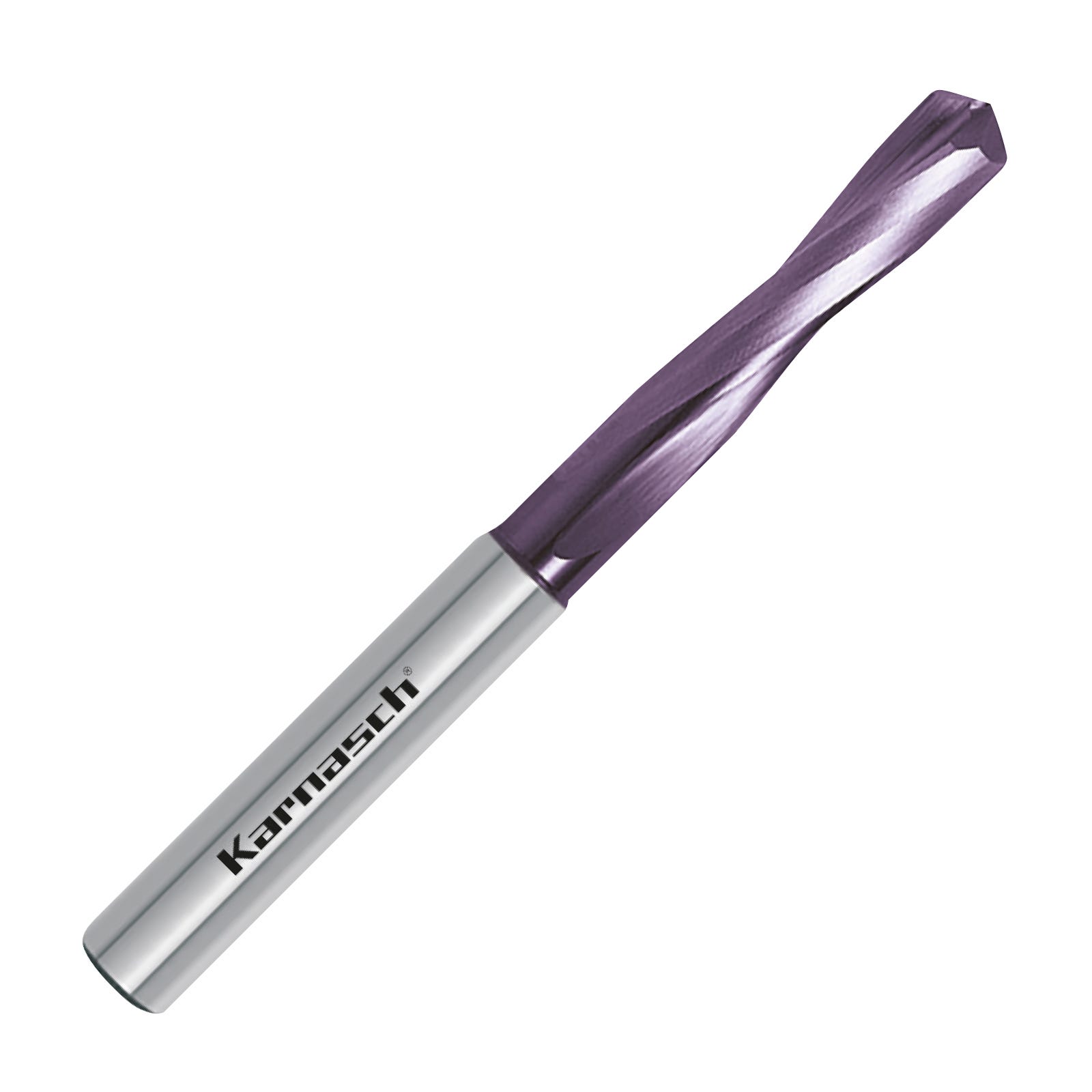

5.2mm Coated Carbide 3xD Stub K-Drill for Hardened Steels - 22.0468 Series (Karnasch)
5.2mm Coated Carbide 3xD Stub K-Drill for Hardened Steels - 22.0468 Series (Karnasch)
Key Features
| Diameter (mm) | 5.2 |
|---|---|
| Overall Length (mm) | 72 |
| Flute Length (mm) | 32 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Specification
| Category | Hole Making |
|---|---|
| Sub Category | Carbide Drills |
| Sub Category 2 | Carbide Drills (Other) |
| Diameter (mm) | 5.2 |
| Shank (mm) | 6 |
| Flute Length (mm) | 32 |
| Overall Length (mm) | 72 |
| Tolerance | m7 |
| Point Angle | 140° |
| Shank Type | Plain |
| Shank Tolerance | h6 |
| Substrate | Carbide |
| Surface Treatment | Coated (PVD/CVD) |
| Performance | 5 |
| Coating Description | Micrograin Solid Carbide |
| Through Coolant | No |
| Substrate Description | Hardlube Coating |
| Self Centring | Yes |
| Helix Angle | 15° |
| Brand | Karnasch |
Part Numbers
- Cutwel Part Number 2204680520
Description
Features & Benefits
- Micrograin Carbide Substrate
- For High Performance Drilling on Hardened Steel HRc55-70 & Cast Iron
- Special 15 degree Helix for High Strength
- 3xD Stub Length
- Self Centering with 140 degree Drill Point
- Eliminates Reaming Operations
Cutting Data
Product PDFs
