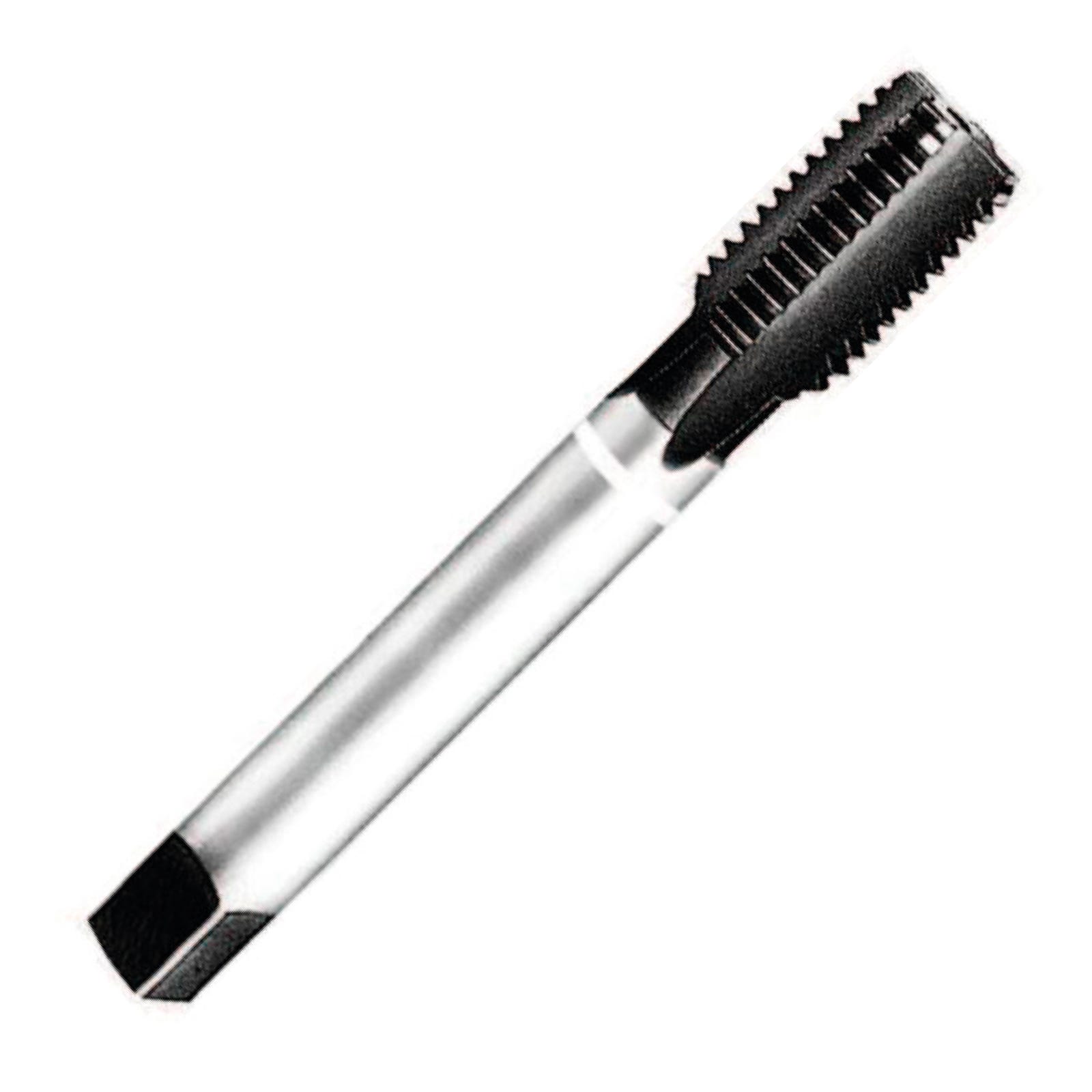

7/8" x 9TPI UNC HSSE Straight Flute Machine Tap (2BX Tolerance) for Cast Iron - Machine Tap (2BX Tolerance) (6HX Tolerance) Series (YG-1)
7/8" x 9TPI UNC HSSE Straight Flute Machine Tap (2BX Tolerance) for Cast Iron - Machine Tap (2BX Tolerance) (6HX Tolerance) Series (YG-1)

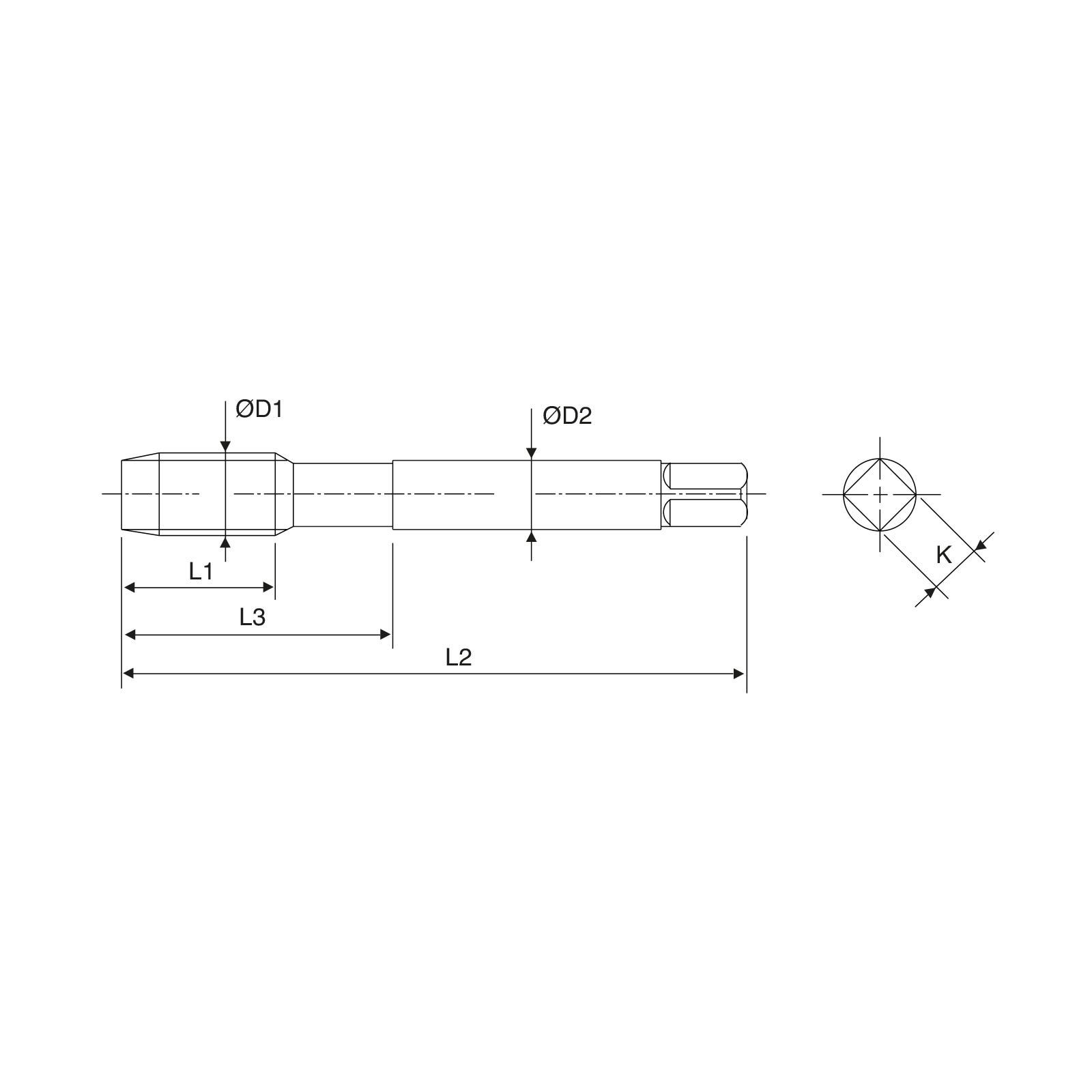

| Overall Length (mm) | 140 |
|---|---|
| Flute Length (mm) | 32 |
| Shank (mm) | 18 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- UNC Machine Tap for Cast Iron
- HSSE Substrate
- Straight Flute for Blind & Through Holes
- NI (Nitrided) Finish
- Suitable for Grey Cast Iron, Short Chipping Brass/Bronze and GFRP/CFRP
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Sub Category 2 | Cast Iron & Abrasive Machine Taps |
| Shank (mm) | 18 |
| Flute Length (mm) | 32 |
| Overall Length (mm) | 140 |
| TPI | 9 |
| Flutes | 3 |
| L3 | 54 |
| Drill Diameter | 19.5 |
| Square | 14.5 |
| Thread | 7/8" |
| Substrate | HSS |
| Oil Grooves | No |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 2xD |
| Applicable Materials | Cast Iron, Exotics |
| Flute Geometry | Straight Flute |
| Performance | 3 |
| Coating Description | NI Treated |
| Substrate Description | HSS 5% Cobalt |
| Helix Angle | 60° |
| Thread Form | UNC (Unified Coarse) |
| Brand | YG-1 |
