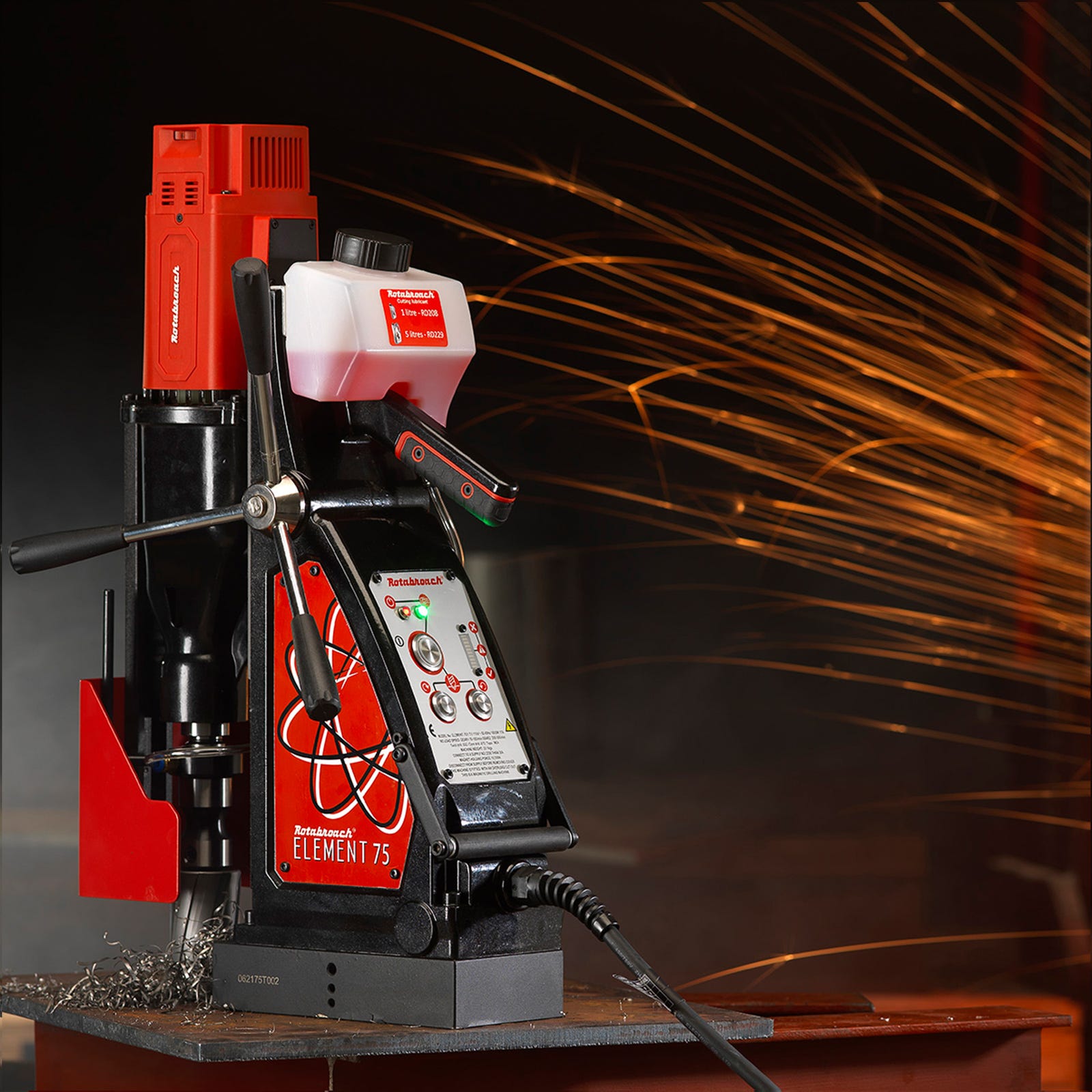

The Element 75 Mag Drill is a large capacity machine. It can drill holes up to 75mm and with 12 forward and reverse speeds is able to tap up to M24. Fitted with CutSmart dual motor protection technology. This machine benefits from high performance and maximum tool life. Swivel base as standard. The Element 75 comes supplied with an internal coolant system, 16mm chuck, arbor assembly (6mm hexagonal spanner included), safety glasses, arbor shank, drift, safety strap, 3mm hexagonal spanner, stationary rings and a pilot pin. Features a quick release interchangeable handle. The 230V version is available upon request. For further information please contact our technical team on 01924 869 615.
Large capacity machine.
It can drill holes up to 75mm and with 12 forward and reverse speeds is able to tap up to M24.
Fitted with CutSmart dual motor protection technology.
This machine benefits from high performance and maximum tool life.
Swivel base as standard.
Supplied with an internal coolant system, 16mm chuck, arbor assembly (6mm hexagonal spanner included), safety glasses, arbor shank, drift, safety strap, 3mm hexagonal spanner, stationary rings and a pilot pin.
Features a quick release interchangeable handle.
The 230V version is available upon request.
For further information please contact our technical team on 01924 869 615.
Specification
Category
Hole Making
Sub Category
Mag Drills
Overall Length (mm)
375
Depth of Cut
75
Morse Taper
MT3
Height
713
Weight
23
Voltage
110v (Please enquire for 230V)
Magnet Size
220x114mm
Stroke
185
Cutter Capacity
75
Twist Drill Capacity
26
Drill Chuck Capacity
16
Tapping
M24
No Load Speed
70-500RPM
Motor
1800W
Countersink
40
Brand Range
Element 75 Mag Drill
Brand
Rotabroach
Application
