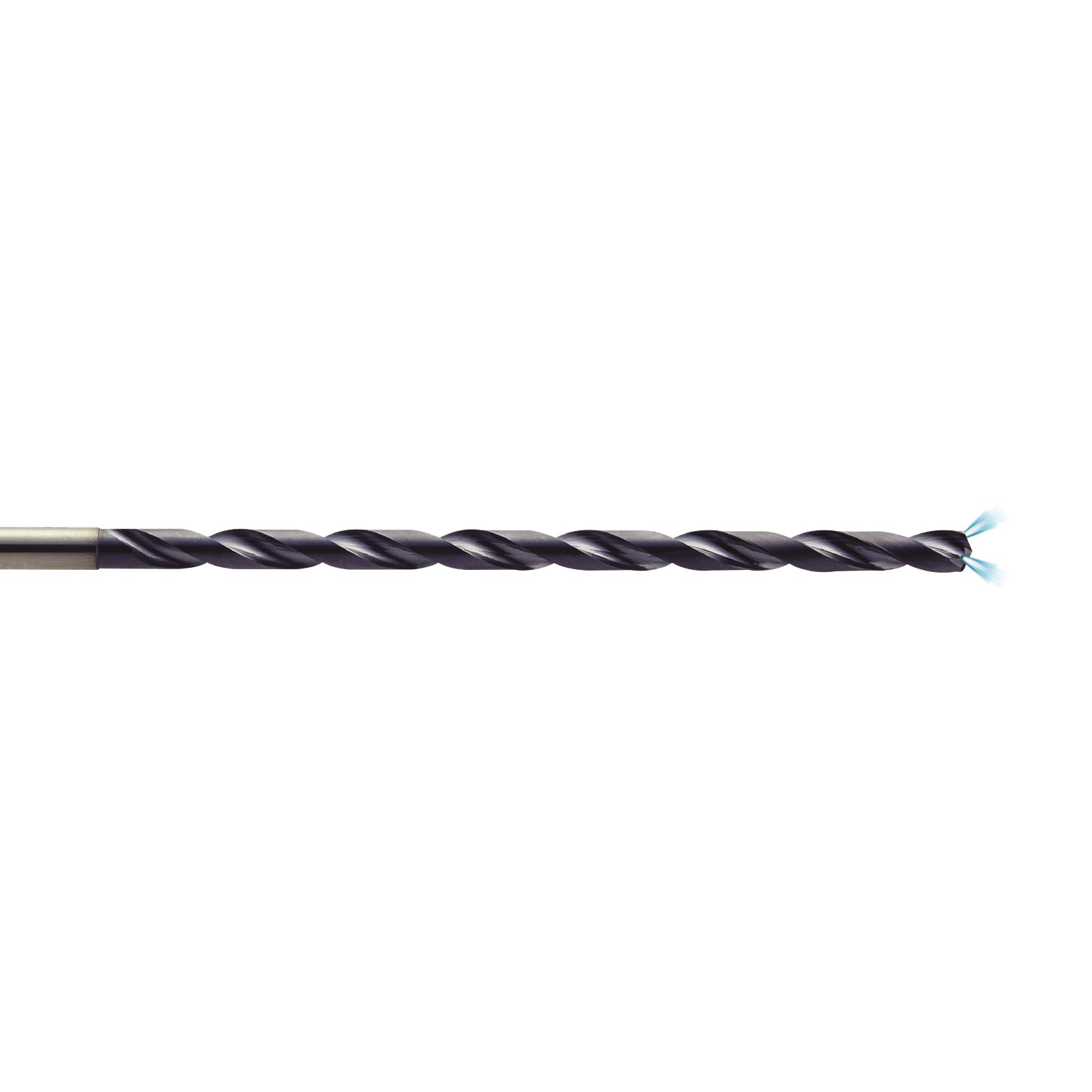

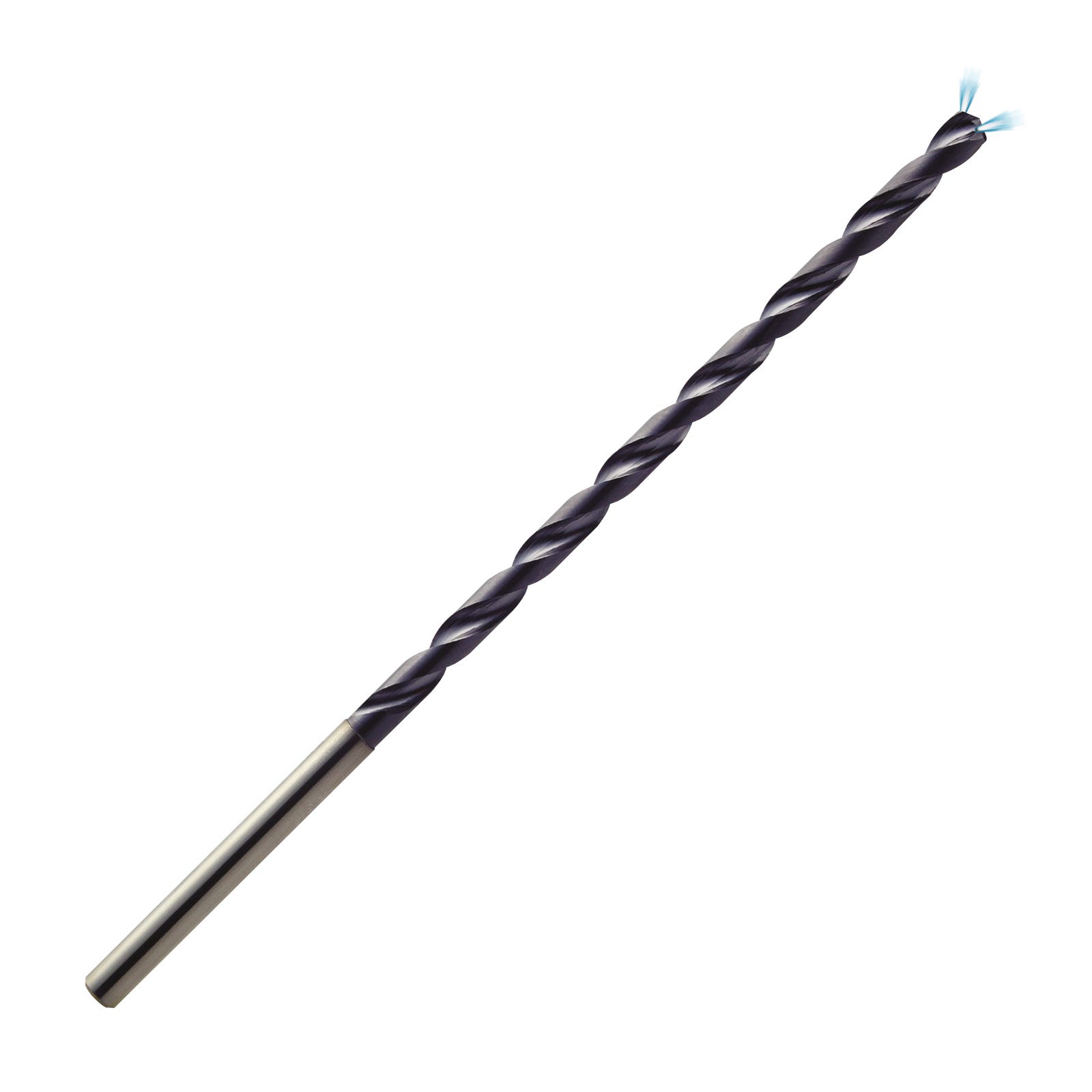

7mm TiAIN Coated Carbide Through Coolant Extra Long 15xD Dream Drill - DHM15 Series (YG-1)

Cutwel Sku
DHM15070

7mm TiAIN Coated Carbide Through Coolant Extra Long 15xD Dream Drill - DHM15 Series (YG-1)

Cutwel Sku
DHM15070

Key Features

available Micrograin Carbide Substrate
available MQL Type 15xD Long Length Drill
available For deep hole drilling on steel
Read More

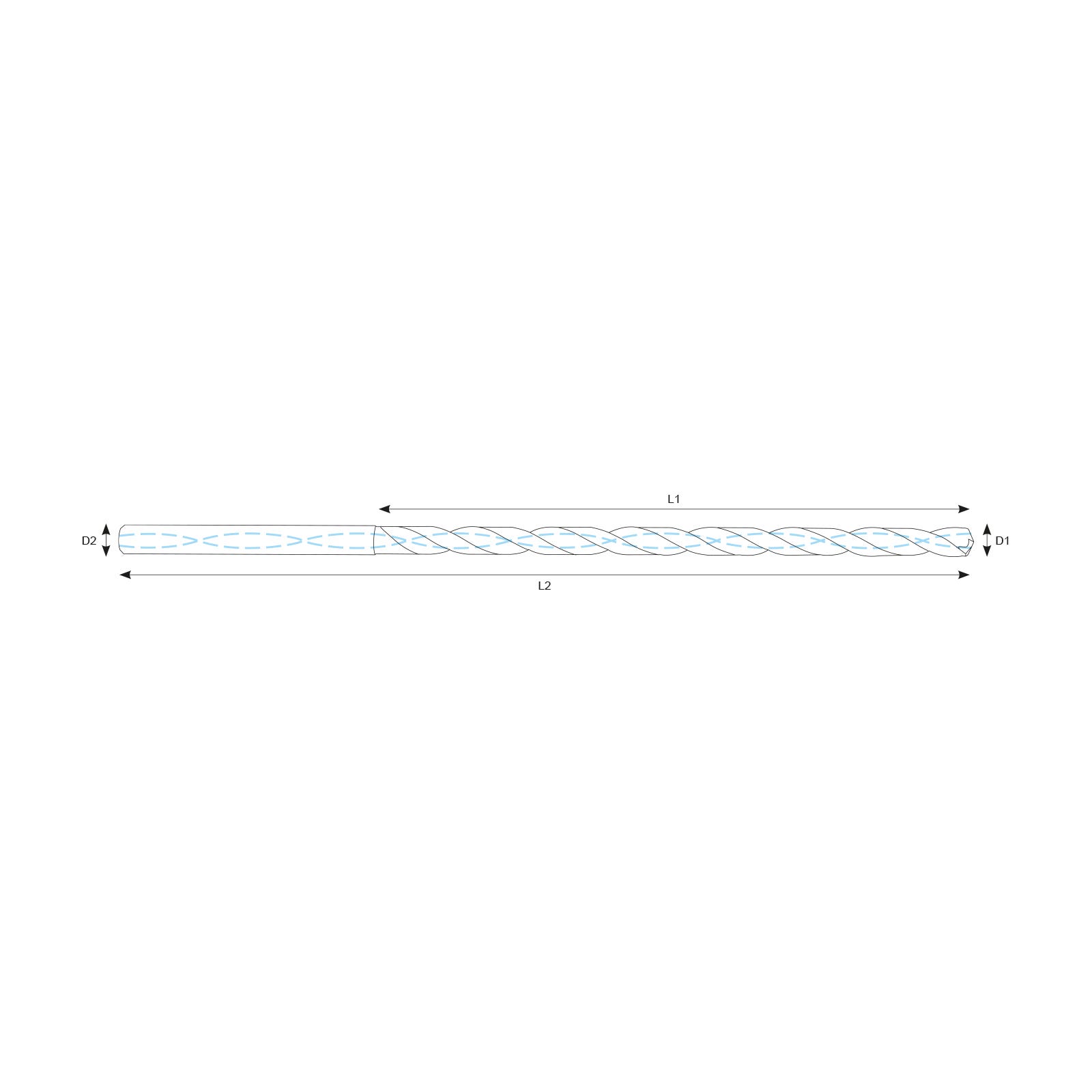

Diameter (mm)7
Overall Length (mm)167
Flute Length (mm)127
Shank (mm)8
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Specification

Category Hole Making
Sub Category Carbide Drills
Sub Category 2 Dream Drill MQL
Diameter (mm) 7
Shank (mm) 8
Flute Length (mm) 127
Overall Length (mm) 167
Tolerance h7
Point Angle 140°
Shank Type Plain
Shank Tolerance h6
Substrate Carbide
Surface Treatment Coated (PVD/CVD)
Drill Type Extra Long
Depth 15xD
Performance 5
Coating Description Micrograin Solid Carbide
Through Coolant Yes
Substrate Description TiAlN coated
Self Centring Yes
Helix Angle 30°
Brand Range Dream Drill
Brand YG-1
Part Numbers
  • Cutwel Part Number DHM15070

Description

The YG-1 DHM515 MQL Type Carbide Dream Drills are designed for long length 15xD high performance drilling of Steel (also suitable for Cast Iron). These through coolant drills are self centering and can drill to a h7 tolerance which eliminates any reaming operations. Diameters range from 3-12mm and they are supplied with whole number shanks.

Features & Benefits

  • Micrograin Carbide Substrate
  • MQL Type 15xD Long Length Drill
  • For deep hole drilling on steel
  • Long tool life, high penetration rates and good chip removal
  • Self centering with 140 degree drill point
  • Through coolant
  • Eliminates reaming operations
  • Always use with a 5 Micron (or less) Run-Out Tool Holder

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £59 (ex vat), and £79 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £59 (ex vat), we offer the following:

  • 1st class post - £2.49
  • DPD Standard Next Day Delivery - £6.50
  • DPD Next Day Pre-12pm - £9.50 or (£5.00 on orders over £59 (ex VAT))
  • DPD Next Day Pre-10.30am - £17.00

For orders containing liquids under £79 (ex vat),  standard UK Mail Next Day Delivery is £8.00 and UK Mail Next Day Pre-12pm Delivery is £13.00.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Videos

Filter Items arrow
Code Diameter (mm) Shank (mm) Flute Length (mm) Overall Length (mm) Point Angle Related Products Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Diameter (mm)
carrat-down
Shank (mm)
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
Point Angle
carrat-down
Diameter (mm): 3 Shank (mm): 6 Flute Length (mm): 55 Overall Length (mm): 95 Point Angle: 140°
green In Stock for Next Day Delivery *
£157.74 £131.45
minus plus
Diameter (mm): 3.5 Shank (mm): 6 Flute Length (mm): 64 Overall Length (mm): 104 Point Angle: 140°
green In Stock for Next Day Delivery *
£157.74 £131.45
minus plus
Diameter (mm): 4 Shank (mm): 6 Flute Length (mm): 73 Overall Length (mm): 113 Point Angle: 140°
green In Stock for Next Day Delivery *
£159.96 £133.30
minus plus
Diameter (mm): 4.5 Shank (mm): 6 Flute Length (mm): 82 Overall Length (mm): 122 Point Angle: 140°
green Available for Delivery within 4-5 Days *
£171.37 £142.81
minus plus
Diameter (mm): 5 Shank (mm): 6 Flute Length (mm): 91 Overall Length (mm): 131 Point Angle: 140°
green In Stock for Next Day Delivery *
£171.37 £142.81
minus plus
Diameter (mm): 5.5 Shank (mm): 6 Flute Length (mm): 100 Overall Length (mm): 140 Point Angle: 140°
green In Stock for Next Day Delivery *
£171.37 £142.81
minus plus
Diameter (mm): 6 Shank (mm): 6 Flute Length (mm): 109 Overall Length (mm): 149 Point Angle: 140°
green In Stock for Next Day Delivery *
£171.37 £142.81
minus plus
Diameter (mm): 7 Shank (mm): 8 Flute Length (mm): 127 Overall Length (mm): 167 Point Angle: 140°
green In Stock for Next Day Delivery *
£198.00 £165.00
minus plus
Diameter (mm): 8 Shank (mm): 8 Flute Length (mm): 145 Overall Length (mm): 185 Point Angle: 140°
green In Stock for Next Day Delivery *
£198.00 £165.00
minus plus
Diameter (mm): 9 Shank (mm): 10 Flute Length (mm): 163 Overall Length (mm): 207 Point Angle: 140°
green Available for Delivery within 4-5 Days *
£255.41 £212.84
minus plus
Diameter (mm): 10 Shank (mm): 10 Flute Length (mm): 182 Overall Length (mm): 226 Point Angle: 140°
green In Stock for Next Day Delivery *
£255.41 £212.84
minus plus
Diameter (mm): 11 Shank (mm): 12 Flute Length (mm): 200 Overall Length (mm): 249 Point Angle: 140°
green Available for Delivery within 4-5 Days *
£342.96 £285.80
minus plus
Diameter (mm): 12 Shank (mm): 12 Flute Length (mm): 218 Overall Length (mm): 267 Point Angle: 140°
green Available for Delivery within 4-5 Days *
£342.96 £285.80
minus plus
