80-85mm 3xD King Drill XL Large Diameter Indexable U-Drill (Korloy)
80-85mm 3xD King Drill XL Large Diameter Indexable U-Drill (Korloy)
| Overall Length (mm) | 380 |
|---|---|
| Flute Length (mm) | 255 |
| Shank (mm) | 50 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Large diameter drilling from Ø61-Ø100mm
- Cartridge can adjust the drilling diameter by up to 5mm in 1mm increments
- Easy to adjust diameter with adjusting bolt & washers
- Tool holders available in 2xD, 3xD & 4xD maximum drill depths
- Optimised insert design for inner and outer pocket
- Inserts available in grades for steel, stainless steel, HRSA’s, cast iron, aluminium & plastics
- Exceptionally accurate drilling compared to other indexable drills even in deep holes
- High performance drilling of a wide range of materials
- Lower risk of tool failure
- Reduced insert wear
- Low cutting resistance

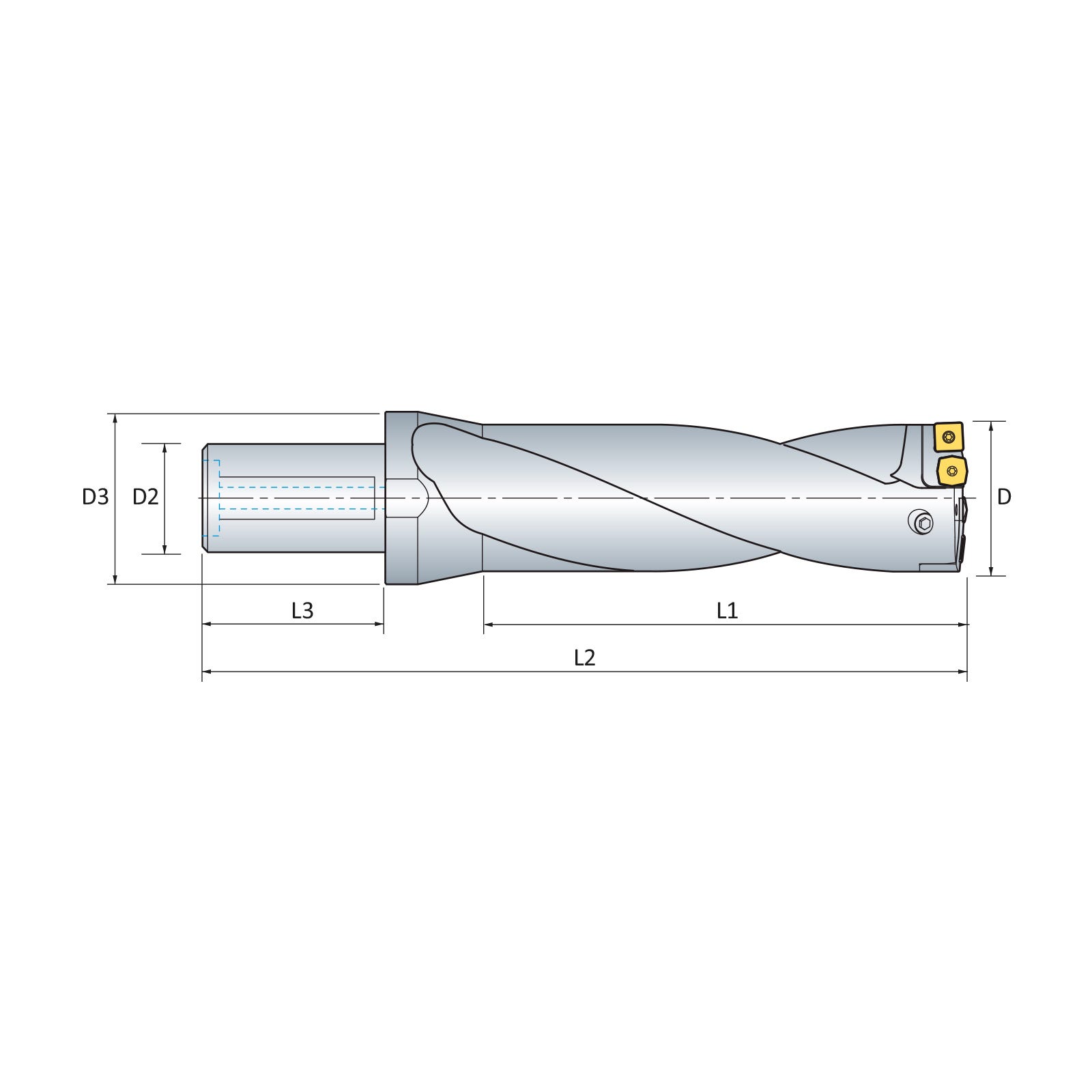

Specification
| Overall Length (mm) | 380 |
|---|---|
| Performance | 5 |
| Through Coolant | Yes |
| Brand | Korloy |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Flute Length (mm) | 255 |
| Shank (mm) | 50 |
| Brand Range | King Drill |
| Depth | 3xD |
| Shank Length | 80 |
| Diameter Range (mm) | 80-85 |
| D3 | 88 |
| Central Inserts | 2x XOMT/XOET15 |
| Peripheral Inserts | 2x SPMT/SPET15 |
