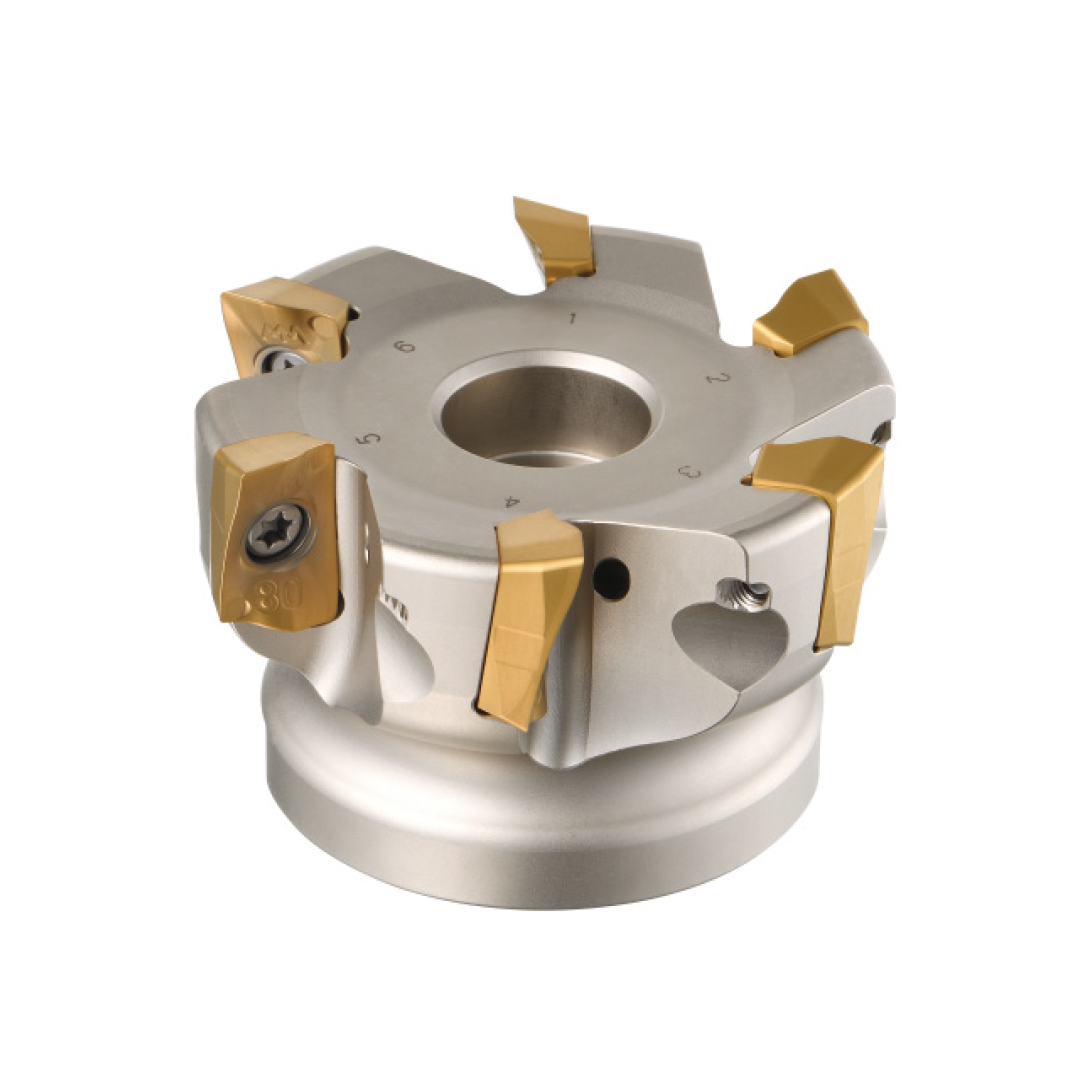

80mm Alpha Mill-X 90 Degree Face Mill for ADKT10 Inserts - AMXCM080R-27-8-AD10 (Korloy)
80mm Alpha Mill-X 90 Degree Face Mill for ADKT10 Inserts - AMXCM080R-27-8-AD10 (Korloy)
| Diameter (mm) | 80 |
|---|---|
| Overall Length (mm) | 50 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- 15% higher speeds and 20% higher productivity versus concentional machining.
- Lower cutting resistance ideal for materials like stainless steel, duplex & inconel.
- Higher cutting rake compared with the original Alpha Mill, with lower cutting load & improved chip control.
- TRUE 90° square shoulder milling with the highest accuracy.
- Unique Alpha Curve geometry ADKT inserts offer the smoothest chip flow.
- Increased clamping force due to thicker insert and flat flank surface clamping structure.
- Ideal for shoulder milling, facing, ramping, helical cutting and slotting.
- Shoulder milling tool for high helix machining.
- Through coolant design.
- Strong, high quality cutter body made from alloy steel with nickel coating.
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | Alpha Mill-X Indexable Milling System |
| Diameter (mm) | 80 |
| Spigot (mm) | 27 |
| Overall Length (mm) | 50 |
| Depth of Cut | 9.5 |
| Teeth | 8 |
| Inserts | ADKT10 |
| Alternative Part Number | AMXCM080R-27-8-AD10 |
| Weight | 0.88 |

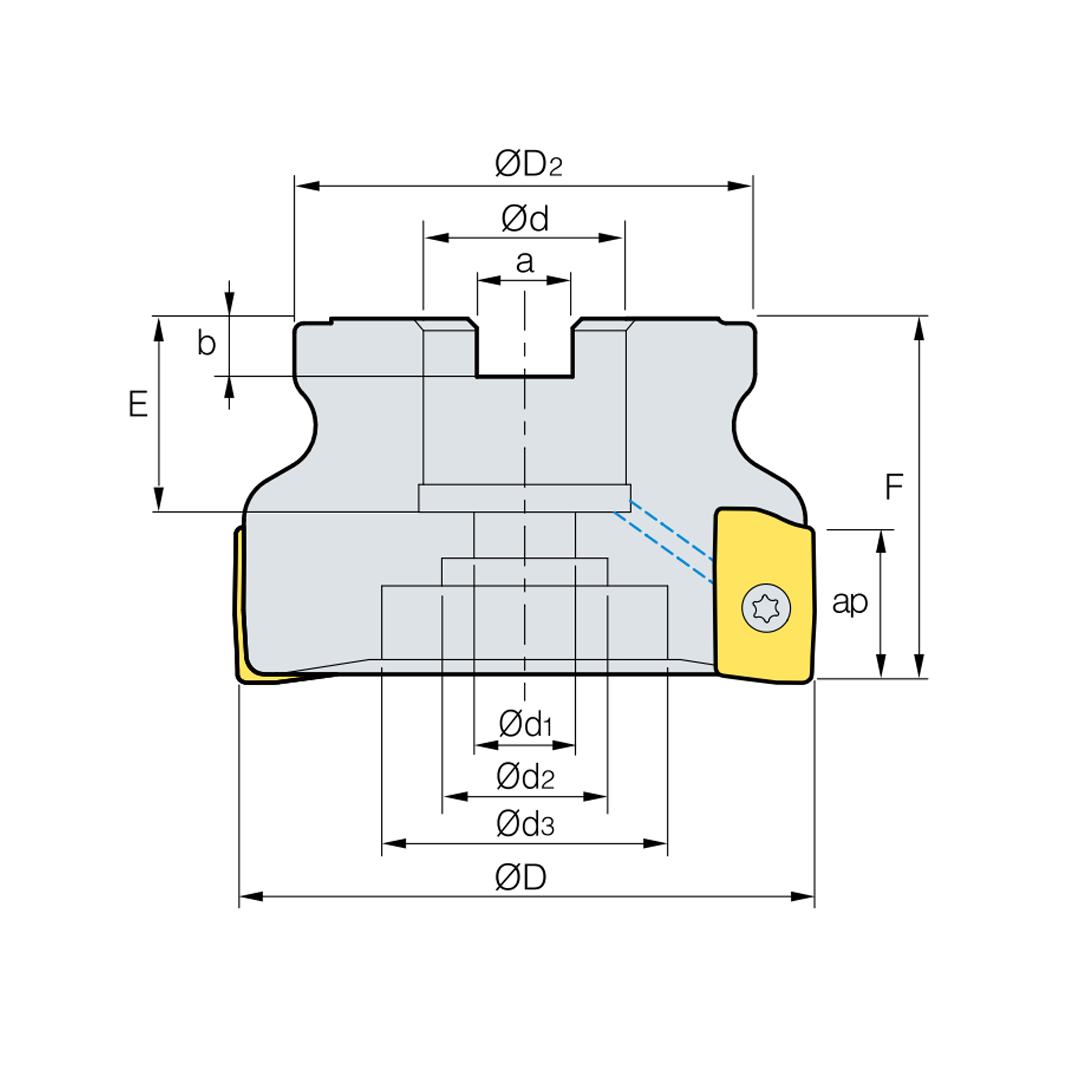

| Ød1 | 14 |
| Ød2 | 25 |
| ØD2 | 57 |
| a | 12.4 |
| b | 7 |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics |
| Performance | 5 |
| Holder Type | Face Mill |
| Application | Face Milling, Slotting, Shoulder Milling, Ramping, Helical Cutting |
| Insert Angle | 90° |
| Holder Material | Steel |
| Brand | Korloy |
