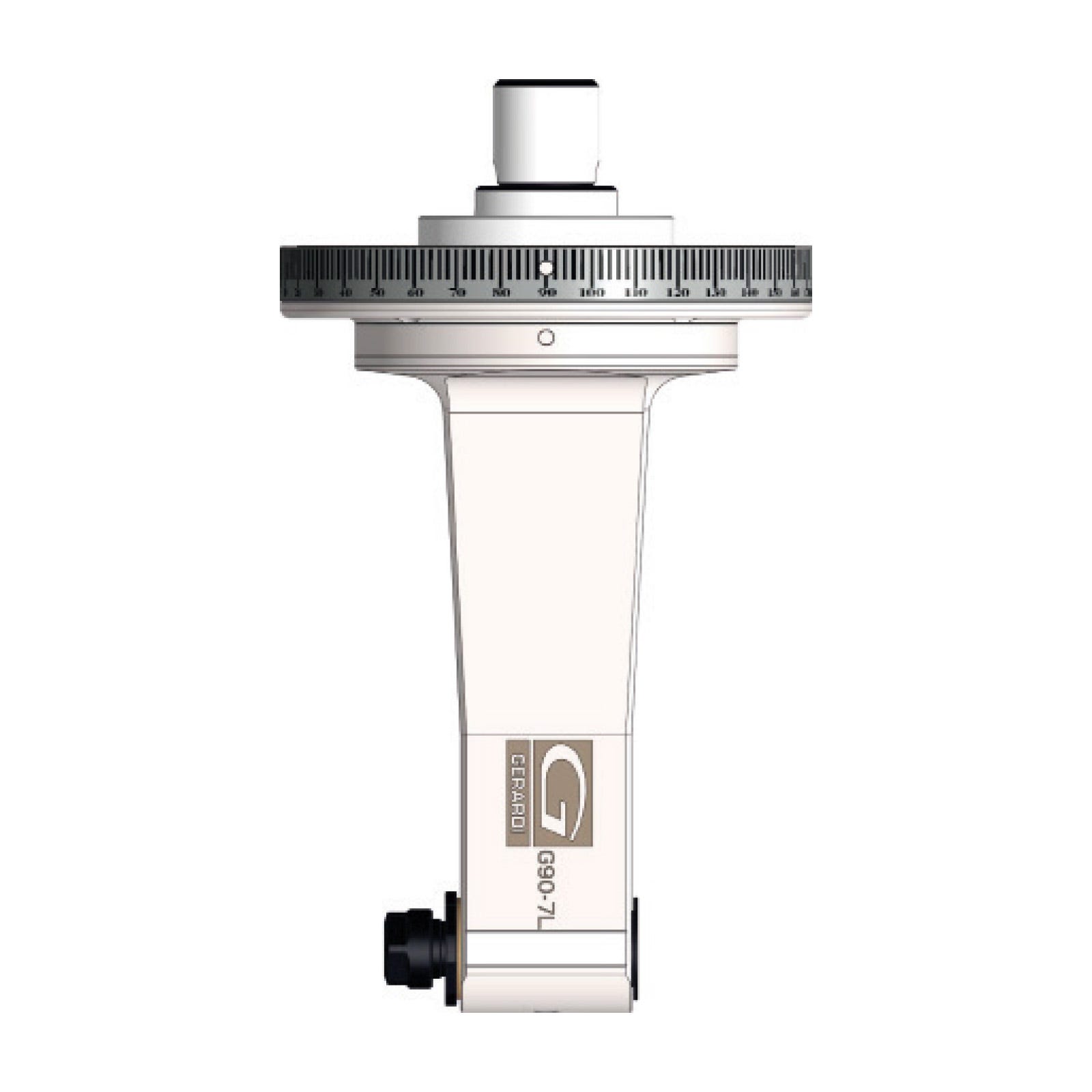

90° Classic Line Angle Head, MTC (Manual Tool Change), ER11 Output - GER-G90-7L-MTC Series (Gerardi)
90° Classic Line Angle Head, MTC (Manual Tool Change), ER11 Output - GER-G90-7L-MTC Series (Gerardi)
Please use the quote request feature to enquire about price and availability.
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Shank
|
||||
|---|---|---|---|---|
| Shank: BT30 | POA |
|
||
| Shank: BT40 | POA |
|
||
| Shank: BT50 | POA |
|
||
| Shank: SK30 | POA |
|
||
| Shank: SK40 | POA |
|
||
| Shank: SK50 | POA |
|
||
| Shank: HSK63 | POA |
|
||
| Shank: HSK100 | POA |
|
||
| Shank: C5 | POA |
|
||
| Shank: C6 | POA |
|
||
| Shank: C8 | POA |
|
||
| Shank: ISO40 | POA |
|
||
| Shank: ISO50 | POA |
|
Product Information
Features & Benefits
- Gerardi Classic Line Angle Heads have a compacct and rigid design. Affordable and available off the shelf.
- Manual tool change designed for traditional machine tools with flange attachement
- Interchangeable drive taper enables the same head to be used in different machines
- Case hardened and ground shank/shaft
- Angular contact preloaded ball bearings of precision class ABEC 9
- Gleason cut spiral bevel drive gears with ground teeth which guarantees a bigger torque
- Designed for superior heat dissipation and for sustained periods of high speed operations
- Treated steel body with internal air pressure, maximum rigidity and corrosion resistance
- Gerardi Evolution line angle heads are 100% designed and manufactured in Italy
- Covered by 1 year manufacturers warranty
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Angle Head Aggregates |
| Type | 90° |
| Holder Material | Steel |
| Output | ER11 (max 7mm shank) |
| Tool Change | MTC (Manual Tool Change) |
| Rotation Direction | Opposite to machine spindle |
| RPM | 6,000RPM |
| Brand | Gerardi |
