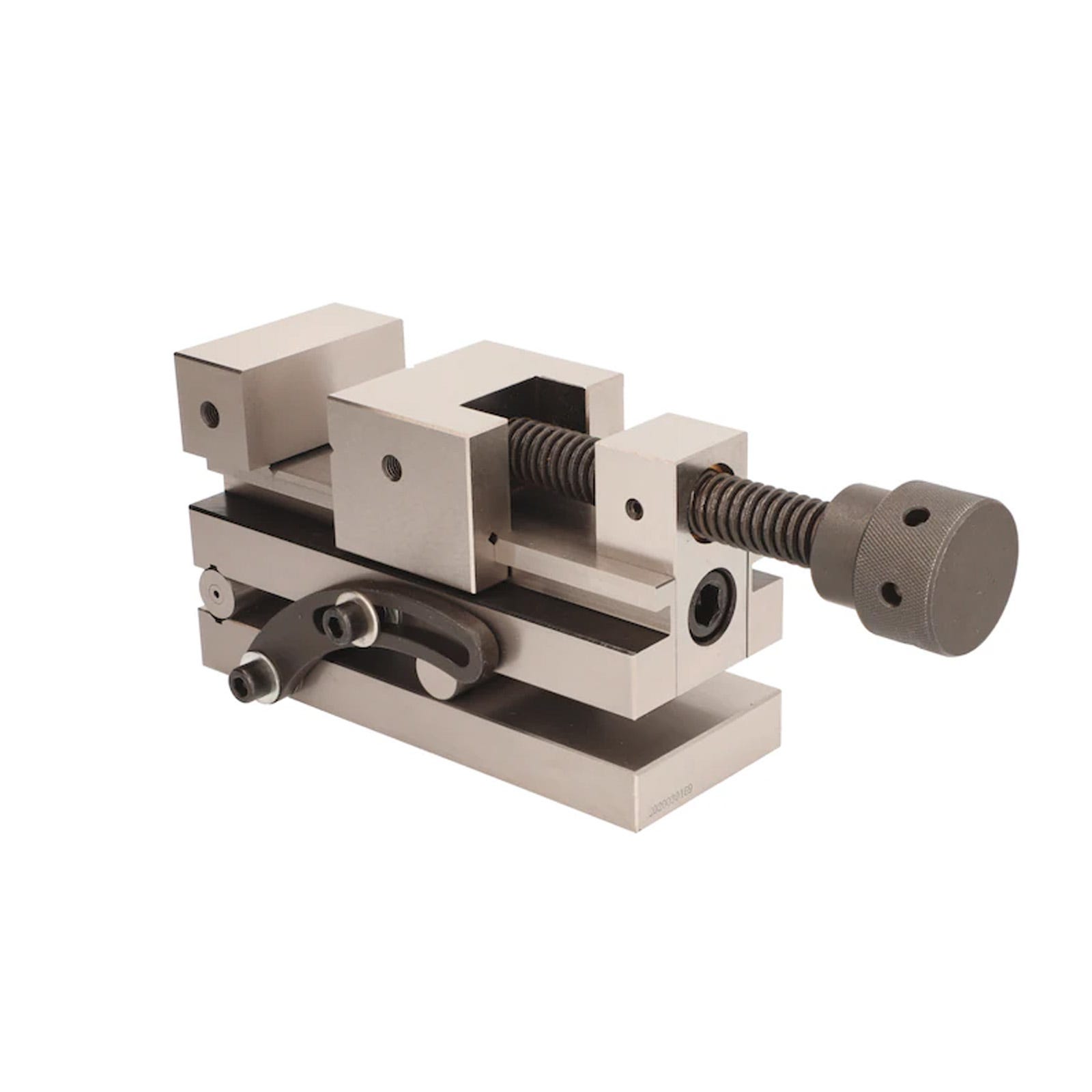

90mm Jaw Width, 42-200mm Max Clamping Precision Sine Vice OPS-S Type (Orion)
90mm Jaw Width, 42-200mm Max Clamping Precision Sine Vice OPS-S Type (Orion)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Made of alloyed tool steel
- Hardened and precision-ground
- Adjustment via trapezoidal spindle
- Horizontally countersunk prism
- Perpendicularity tolerance 0.005mm/100mm (base area to fixed jaw clamping surfaces)
- Parallelism tolerance 0.005mm/100mm (base area to upper guide plate)
- Precise angular adjustment achieved using gauge blocks
- Angular deviation at 45° +/- 15 inch
- Bearing and locating bolts hardened and polished with a tolerance of 0.001mm
- The clamp can be positively locked in any angle
Specification
| Category | Workholding |
|---|---|
| Sub Category | Machine Vices |
| Sub Category 2 | General Machine Vices |
| Angle | 0-46 |
| Height | 113 |
| Base Height | 73 |
| Base Length | 210 |
| Jaw Height | 40 |
| Jaw Width (mm) | 90 |
| Max Spread | 120 |
| Brand | Orion |
