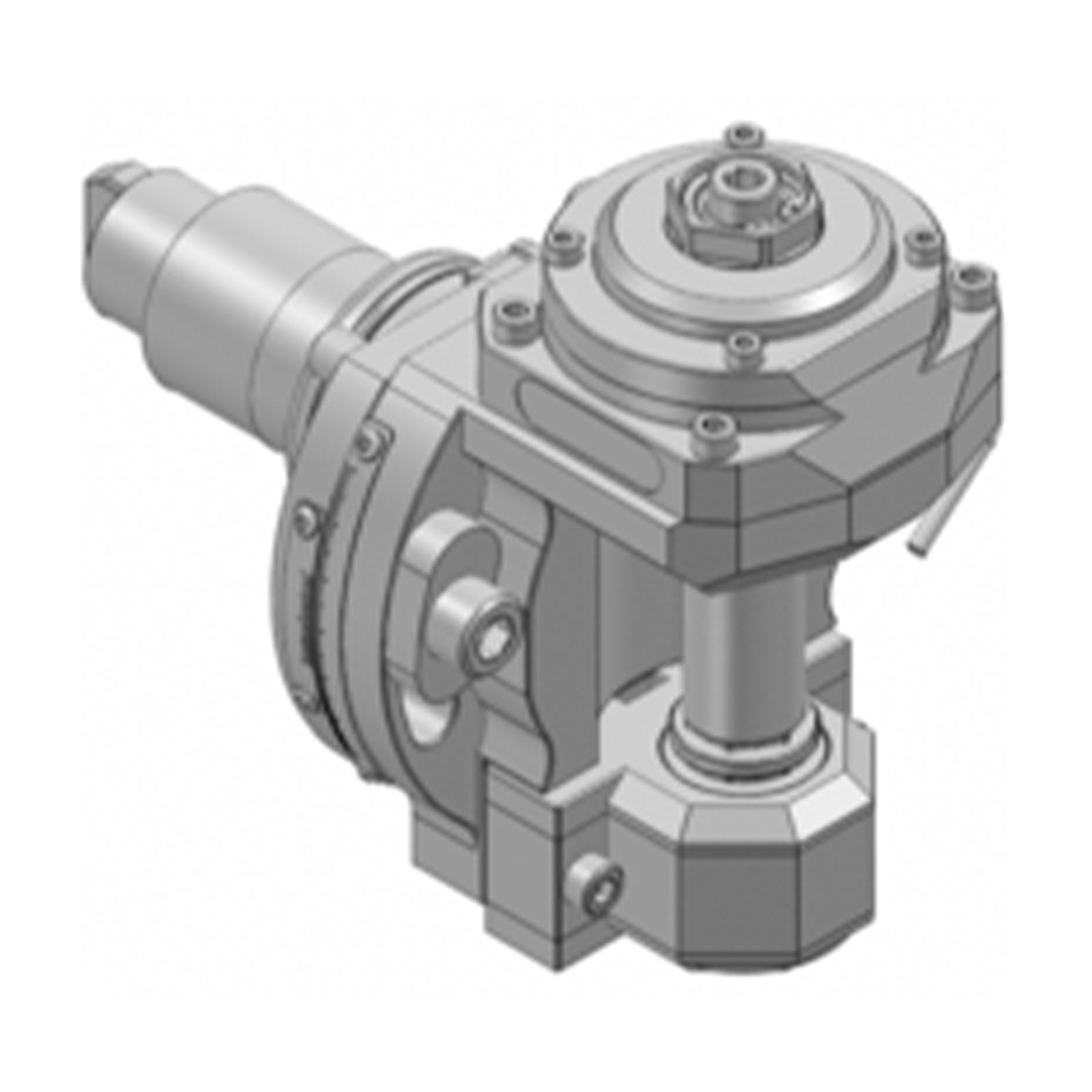

BMT55 Gear Hobbing Unit Driven Tool (WTO)

BMT55 Gear Hobbing Unit Driven Tool (WTO)

Key Features

available BMT55 turret
available Gear Hobbing Unit Driven Tool
available Type 15-2 or Type 16-2 output
Read More

Please use the quote request feature to enquire about price and availability.

View Products

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday
Filter Items arrow
Code Centre Height Tool Clamping Type Ratio Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Centre Height
carrat-down
Tool Clamping
carrat-down
Type
carrat-down
Ratio
carrat-down
Centre Height: 59 Tool Clamping: Type: External Coolant Only Ratio: 1 to 1
green Available for Delivery within 10-14 Days *
Special Price £5,744.11 £4,786.76 Was £6,382.34 £5,318.62
minus plus
Centre Height: 67 Tool Clamping: Type 16-2 Type: External Coolant Only Ratio: 1 to 1
green Available for Delivery within 10-14 Days *
Special Price £5,415.84 £4,513.20 Was £6,017.60 £5,014.67
minus plus

*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.

Specification

Category Toolholding
Sub Category Lathe Toolholders
Sub Category 2 Driven Tools
Type Gear Hobbing Unit Driven Tool
Turret BMT-P
Connection BMT55
Tool Position 1
Quickflex No
Drive Coupling Tang
Warranty 1 Year
Shaft Diameter 55
Brand WTO

Description

BMT55 gear hobbing driven tool from market leader WTO of Germany. The unit is usable for machining gear quality according to standard 8 ISO 1328, AGMA 8. It features a maximum scale swing or +/- 30 degree and features a sine bar for high accuracy adjustment. Cutting tools can be pre-set and are easy to change through a removable counter support and interchangable milling arbor.

Features & Benefits

  • BMT55 turret
  • Gear Hobbing Unit Driven Tool
  • Type 15-2 or Type 16-2 output
  • 12 month warranty
