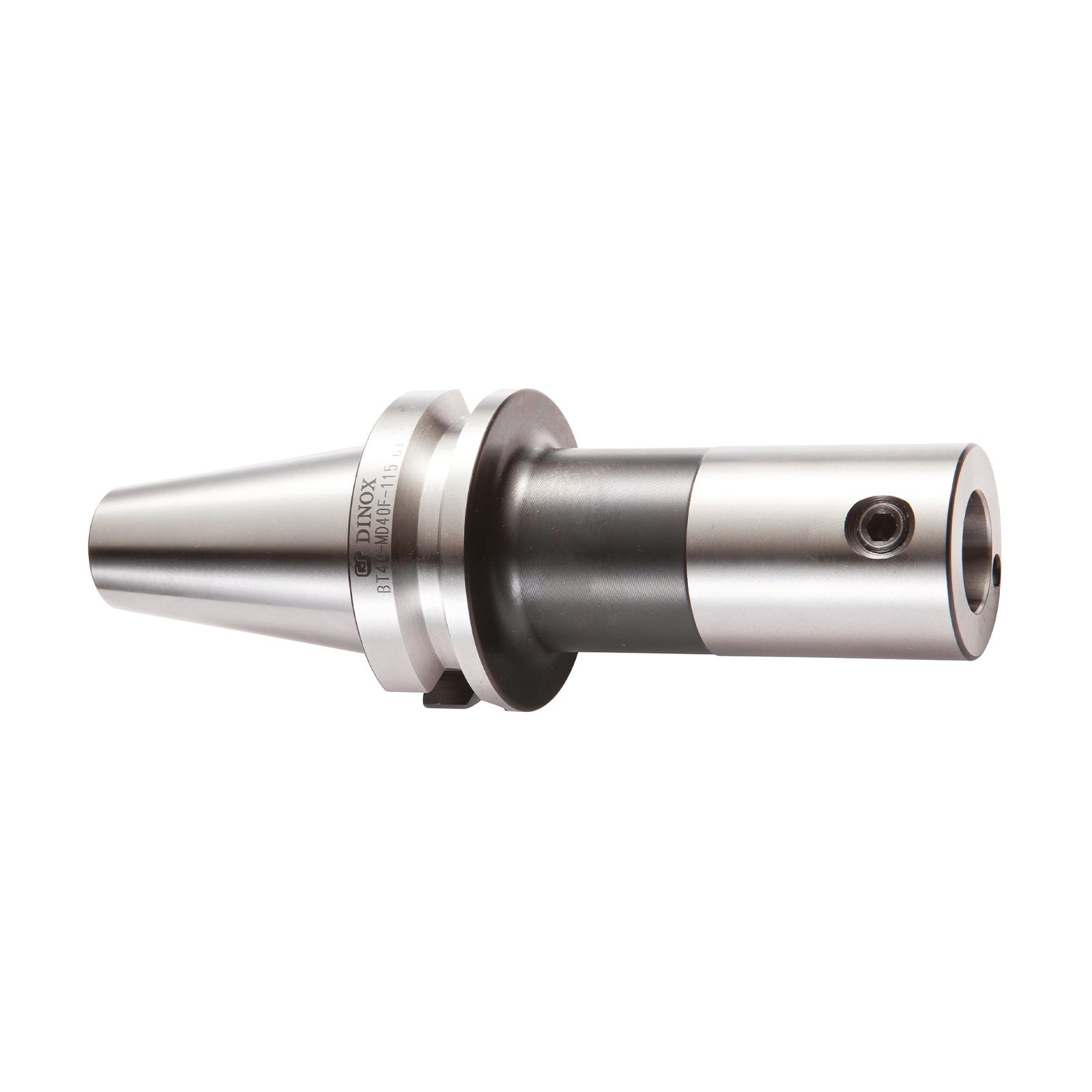

BT MAS Tool Holder For Dinox Modular Finish Boring & Back Boring Systems - FBH/B Series (Dine)

BT MAS Tool Holder For Dinox Modular Finish Boring & Back Boring Systems - FBH/B Series (Dine)

This BT MAS Tool Holder is suitable for use with the Dinox FBH/B Modular Finish Boring and Back Boring System....
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow

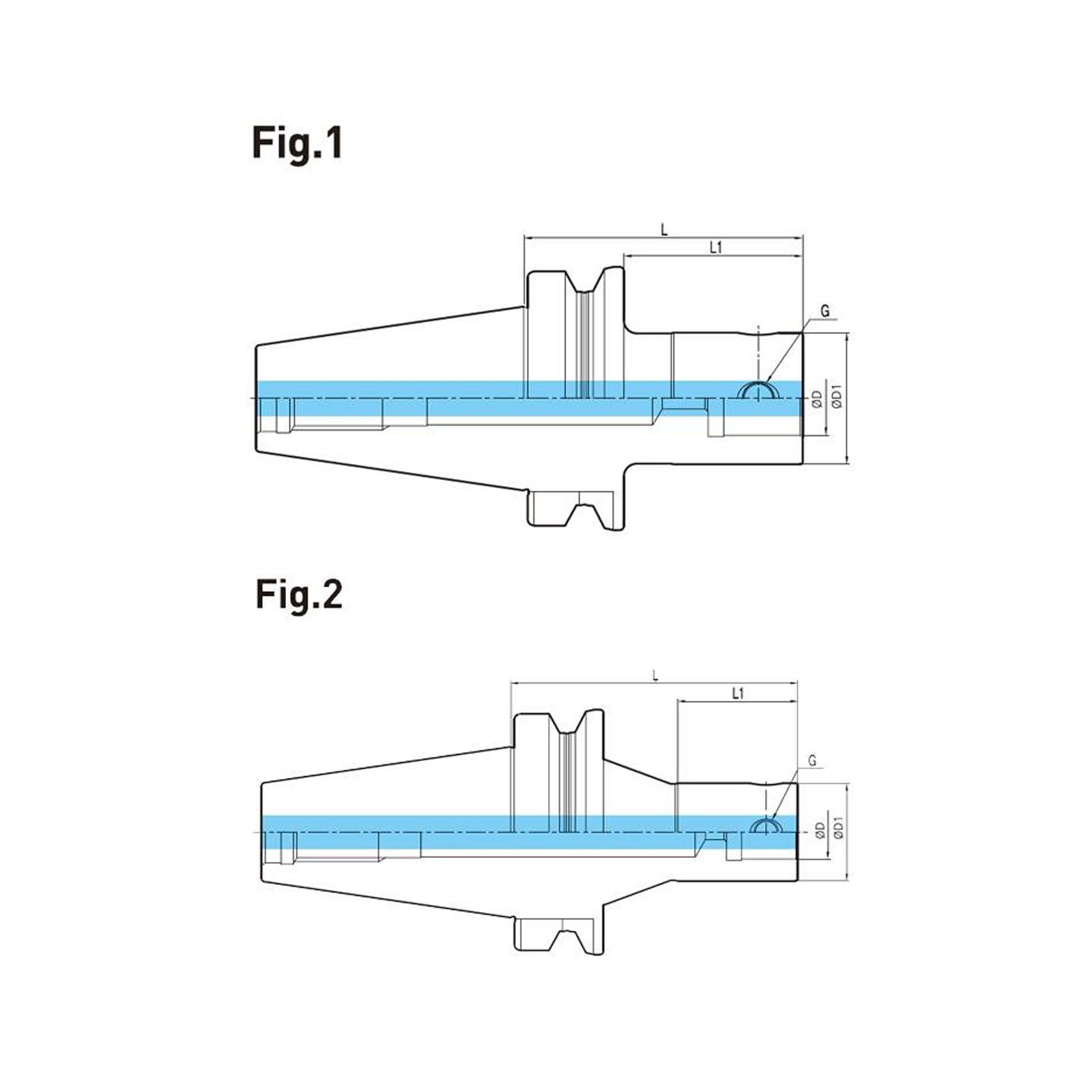

Code D D1 Inserts L1 Length Bore Range Connect Code Taper Figure Suitable For Stock Price
(Ex VATInc. VAT)
Filter Items
cross
D
carrat-down
D1
carrat-down
Inserts
carrat-down
L1
carrat-down
Length
carrat-down
Bore Range
carrat-down
Connect Code
carrat-down
Taper
carrat-down
Figure
carrat-down
Suitable For
carrat-down
D: 11 D1: 19 Inserts: L1: 45 Length: 70 Bore Range: Connect Code: MD19 Taper: BT30 Figure: 1 Suitable For:
unavailable 21 days*
£155.87 £129.89
minus plus
D: 18 D1: 32 Inserts: L1: 55 Length: 80 Bore Range: Connect Code: MD32 Taper: BT30 Figure: Suitable For:
unavailable 21 days*
£171.26 £142.72
minus plus
D: 11 D1: 19 Inserts: L1: 40 Length: 70 Bore Range: Connect Code: MD19 Taper: BT40 Figure: Suitable For:
available In stock
£167.82 £139.85
minus plus
D: 14 D1: 25 Inserts: L1: 63 Length: 95 Bore Range: Connect Code: MD25 Taper: BT40 Figure: Suitable For:
available In stock
£167.82 £139.85
minus plus
D: 22 D1: 40 Inserts: TPGT1103L L1: 31 Length: 60 Bore Range: 90-122 / 120-172 Connect Code: MD40 Taper: BT40 Figure: Suitable For: FBB130-C09, FBB130-C12
available In stock
£174.67 £145.56
minus plus
D: 22 D1: 40 Inserts: L1: 83 Length: 115 Bore Range: Connect Code: MD40 Taper: BT40 Figure: 1 Suitable For:
available In stock
£205.51 £171.26
minus plus
D: 28 D1: 50 Inserts: L1: 73 Length: 105 Bore Range: Connect Code: MD50 Taper: BT40 Figure: 1 Suitable For:
available In stock
£205.51 £171.26
minus plus
D: 36 D1: 63 Inserts: L1: 37 Length: 64 Bore Range: Connect Code: MD63 Taper: BT40 Figure: 1 Suitable For:
available In stock
£239.76 £199.80
minus plus
D: 36 D1: 63 Inserts: L1: 83 Length: 110 Bore Range: Connect Code: MD63 Taper: BT40 Figure: 1 Suitable For:
unavailable 21 days*
£239.76 £199.80
minus plus
D: 36 D1: 63 Inserts: L1: 108 Length: 135 Bore Range: Connect Code: MD63 Taper: BT40 Figure: 1 Suitable For:
available In stock
£239.76 £199.80
minus plus
D: 11 D1: 19 Inserts: L1: 44 Length: 85 Bore Range: Connect Code: MD19 Taper: BT50 Figure: 1 Suitable For:
unavailable 21 days*
£171.26 £142.72
minus plus
D: 14 D1: 25 Inserts: L1: 62 Length: 105 Bore Range: Connect Code: MD25 Taper: BT50 Figure: 1 Suitable For:
unavailable 21 days*
£188.41 £157.01
minus plus
D: 14 D1: 25 Inserts: L1: 40 Length: 120 Bore Range: Connect Code: MD25 Taper: BT50 Figure: 2 Suitable For:
available In stock
£191.82 £159.85
minus plus
D: 18 D1: 32 Inserts: L1: 45 Length: 115 Bore Range: Connect Code: MD32 Taper: BT50 Figure: 2 Suitable For:
available In stock
£198.65 £165.54
minus plus
D: 18 D1: 32 Inserts: L1: 115 Length: 235 Bore Range: Connect Code: MD32 Taper: BT50 Figure: 2 Suitable For:
unavailable 21 days*
£256.88 £214.07
minus plus
D: 22 D1: 40 Inserts: L1: 180 Length: 230 Bore Range: Connect Code: MD40 Taper: BT50 Figure: 2 Suitable For:
unavailable 21 days*
£273.98 £228.32
minus plus
D: 28 D1: 50 Inserts: L1: 182 Length: 225 Bore Range: Connect Code: MD50 Taper: BT50 Figure: 1 Suitable For:
available In stock
£273.98 £228.32
minus plus
D: 36 D1: 63 Inserts: L1: 152 Length: 195 Bore Range: Connect Code: MD63 Taper: BT50 Figure: 1 Suitable For:
unavailable 21 days*
£291.13 £242.61
minus plus
D: 45 D1: 80 Inserts: L1: 36 Length: 75 Bore Range: Connect Code: MD80 Taper: BT50 Figure: 1 Suitable For:
unavailable 21 days*
£258.60 £215.50
minus plus
D: 45 D1: 80 Inserts: L1: 134 Length: 175 Bore Range: Connect Code: MD80 Taper: BT50 Figure: 1 Suitable For:
available In stock
£308.24 £256.87
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

This BT MAS Tool Holder is suitable for use with the Dinox FBH/B Modular Finish Boring and Back Boring System. These tool holders are through coolant and are available in various lengths. They can also be matched with Dine FBH/B extensions (for increasing the boring depth) or reducers (to eliminate the need for extra holders when using smaller boring heads). Please use connect code to match to the applicable Head and Bite.
  • BT MAS Tool Holder for FBH/B Boring System
  • Through Coolant
  • FBH/B System for boring 20-150mm bores
  • Also suitable for back boring 29-150mm bores
  • Up to 172mm bores can be achieves via an extensions type bite
  • Use Connect Code to match to head and bite

Specification

Category Hole Making
Sub Category Modular Boring Systems
Brand Dine
