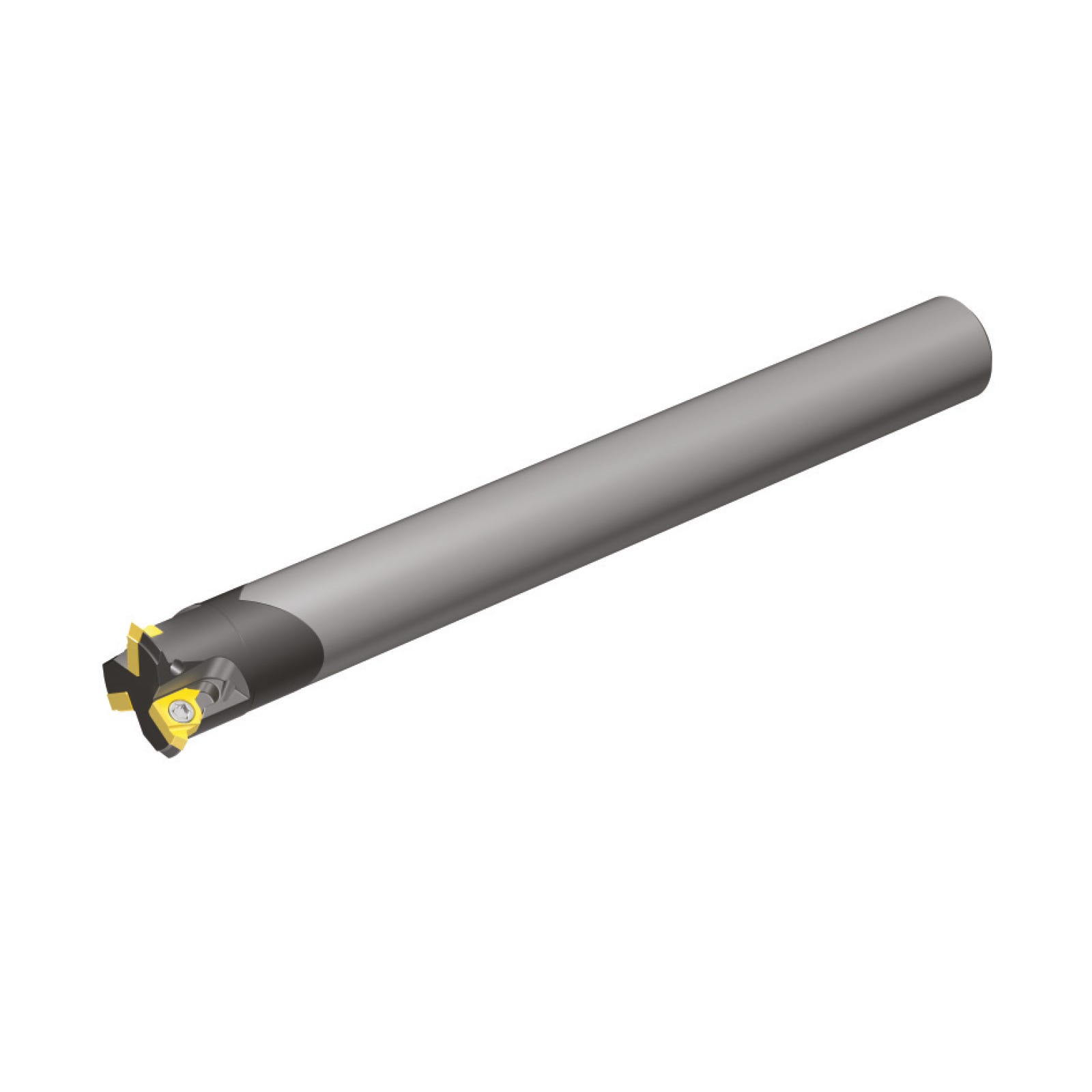

Carbide Shank Deep Hole Indexable Thread Milling Holder - L Style (Vardex)
Carbide Shank Deep Hole Indexable Thread Milling Holder - L Style (Vardex)
Related Products

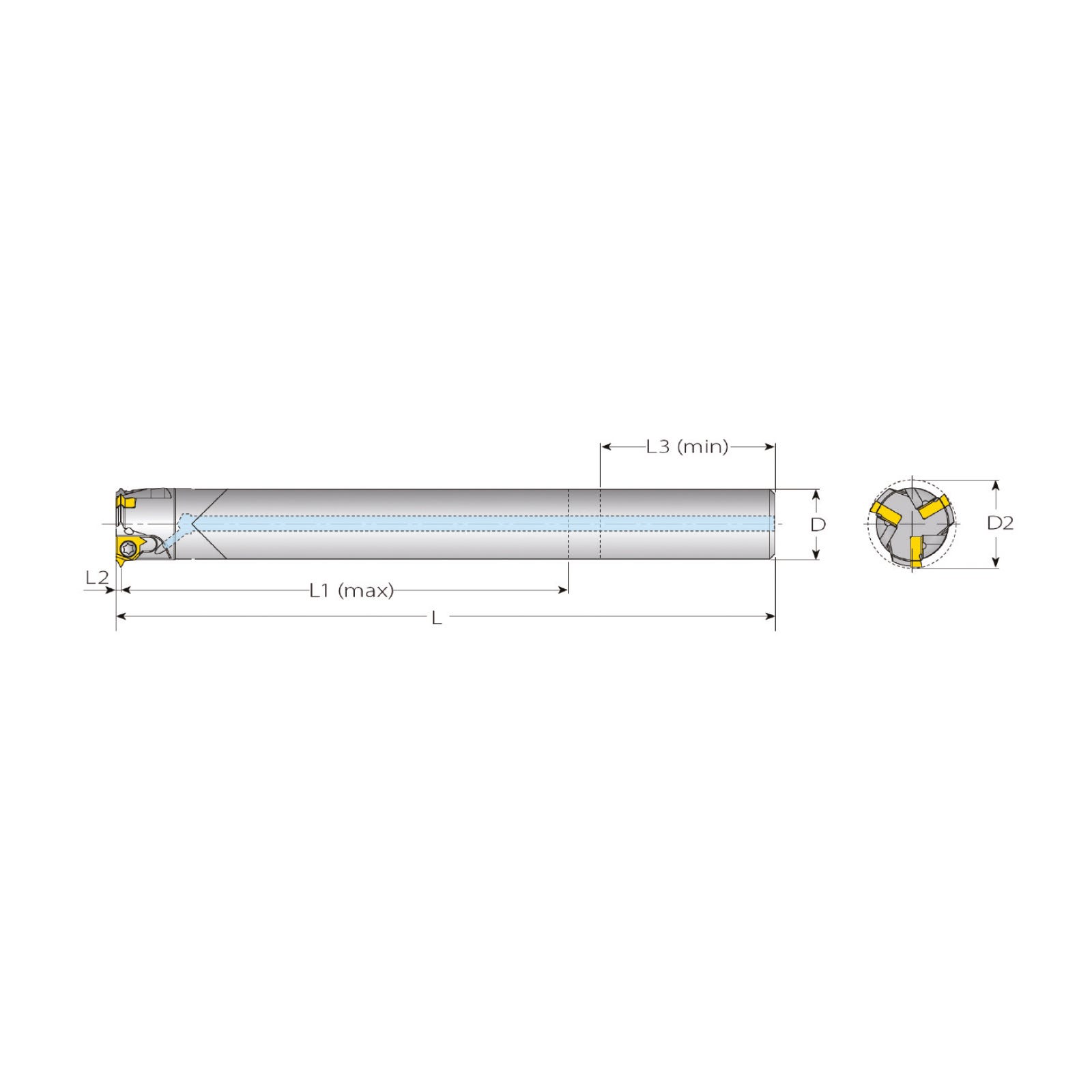

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Overall Length (mm)
|
Neck Diameter (mm)
|
Teeth
|
D
|
L2
|
L3
|
Reach Range
|
||||
|---|---|---|---|---|---|---|---|---|---|---|
| Overall Length (mm): 109 | Neck Diameter (mm): 13 | Teeth: 1 | D: | L2: 1.1 | L3: 20 | Reach Range: <43 |
5 days*
|
£331.14
£275.95
|
|
|
| Overall Length (mm): 116 | Neck Diameter (mm): 13.5 | Teeth: 2 | D: 10 | L2: 1.1 | L3: 22 | Reach Range: <50 |
5 days*
|
£331.14
£275.95
|
|
|
| Overall Length (mm): 132 | Neck Diameter (mm): 17.7 | Teeth: 3 | D: 14 | L2: 1.1 | L3: 30 | Reach Range: <65 |
5 days*
|
£577.60
£481.33
|
|
Product Information
Features & Benefits
- L-style deep hole indexable thread mill holder
- L-Style holders & inserts are ideal for small bores and short reach applications
- Flat shank
- Through coolant
- Carbide shank for increased rigidity in long length applications
- The deep hole system is a multi flute, highly productive and economical solution for milling threads in deep holes.
- From market leader Vardex
- For help finding the right thread mill, please use the Vargus GENius tool recommender or contact the Cutwel technical team today on 01924 869 615.
Specification
| Category | Threading |
|---|---|
| Sub Category | Thread Mills |
| Brand | Vargus |
Application
